Mitsubishi Montero (2004+). Manual - part 723

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-149

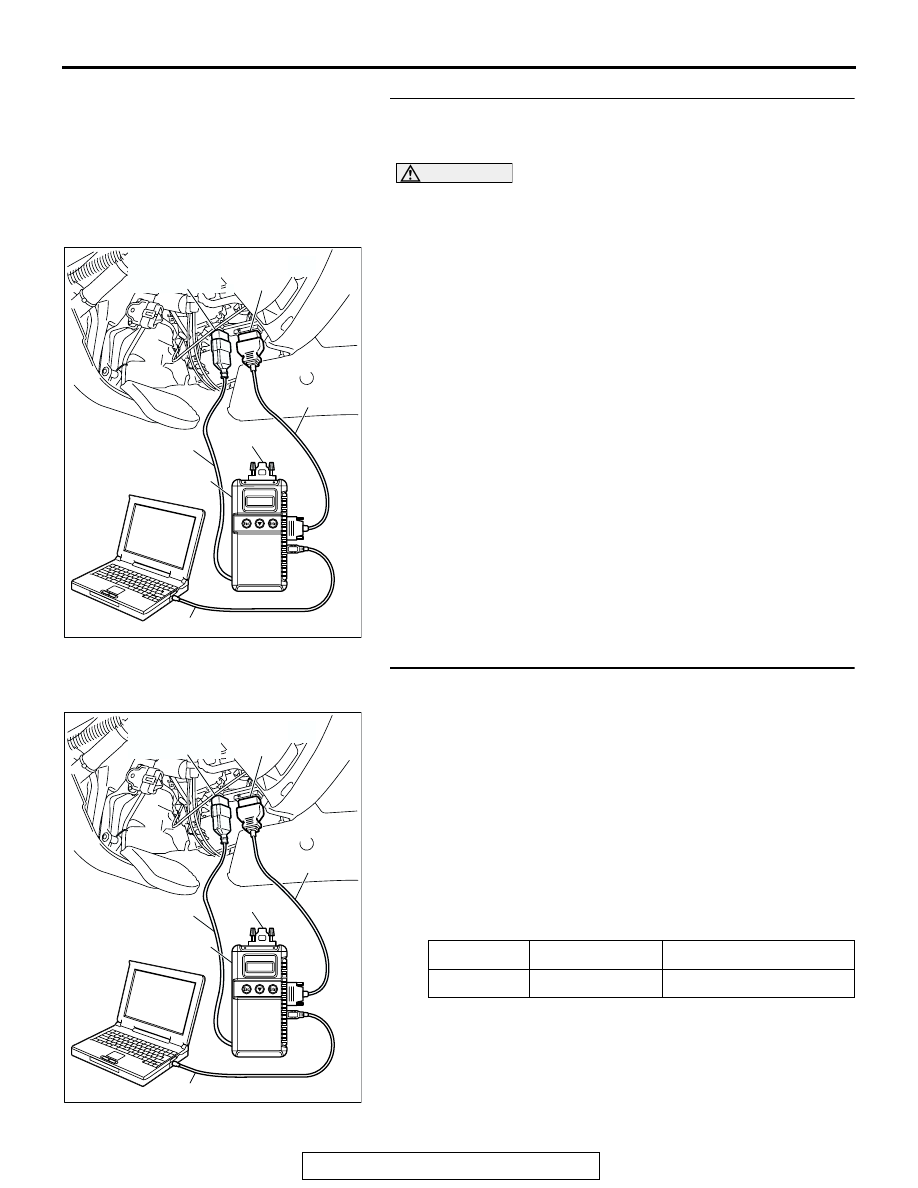

STEP 1. Use scan tool MB991958 to select "ECU COMM
CHK" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-7

(2) Connect SWS monitor kit MB991862 to the data link

connector (13-pin).

(3) Turn the ignition switch to the "ON" position.
(4) Operate scan tool MB991958 according to the procedure

below to display "ECU COMM CHK."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "ECU COMM CHK."

(5) Scan tool MB991958 should show "OK" on the "ECU

COMM ECU" menu for the ETACS ECU menu.

Q: Is "OK" displayed on the "ETACS ECU" menu?

"OK" is displayed for all the items : Go to Step 2.
"NG" is displayed on the "ETACS ECU" menu : Refer to

Inspection Procedure A-3 "Communication with
ETACS-ECU is not possible

P.54B-42

."

STEP 2. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
(1) Turn the ignition switch to the "ON" position before checking

input signals from the ignition switch (IG1).

(2) Operate scan tool MB991958 according to the procedure

below to display "ETACS ECU."

1. Select "SYSTEM SELECT."
2. Select "SWS."
3. Select "SWS MONITOR."
4. Select "DATA LIST."
5. Select "ETACS ECU."

(3) Check that normal conditions are displayed on the item

described in the table below.

Q: Is the scan tool display "IG SW (IG1)" as normal

condition?
YES : Go to Step 3.
NO :  Refer to Inspection Procedure O-2 "ETACS-ECU

does not receive a signal from the ignition switch
(IG1)

P.54B-505

."

AC309091

MB991911

MB991827

MB991824

AB

MB991806

MB991862

DATA LINK
CONNECTOR
(16-PIN)

DATA LINK
CONNECTOR
(13-PIN)

ITEM NO.

ITEM NAME

NORMAL CONDITION

ITEM 30

IG SW (IG1)

ON

AC309091

MB991911

MB991827

MB991824

AB

MB991806

MB991862

DATA LINK
CONNECTOR
(16-PIN)

DATA LINK
CONNECTOR
(13-PIN)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-150

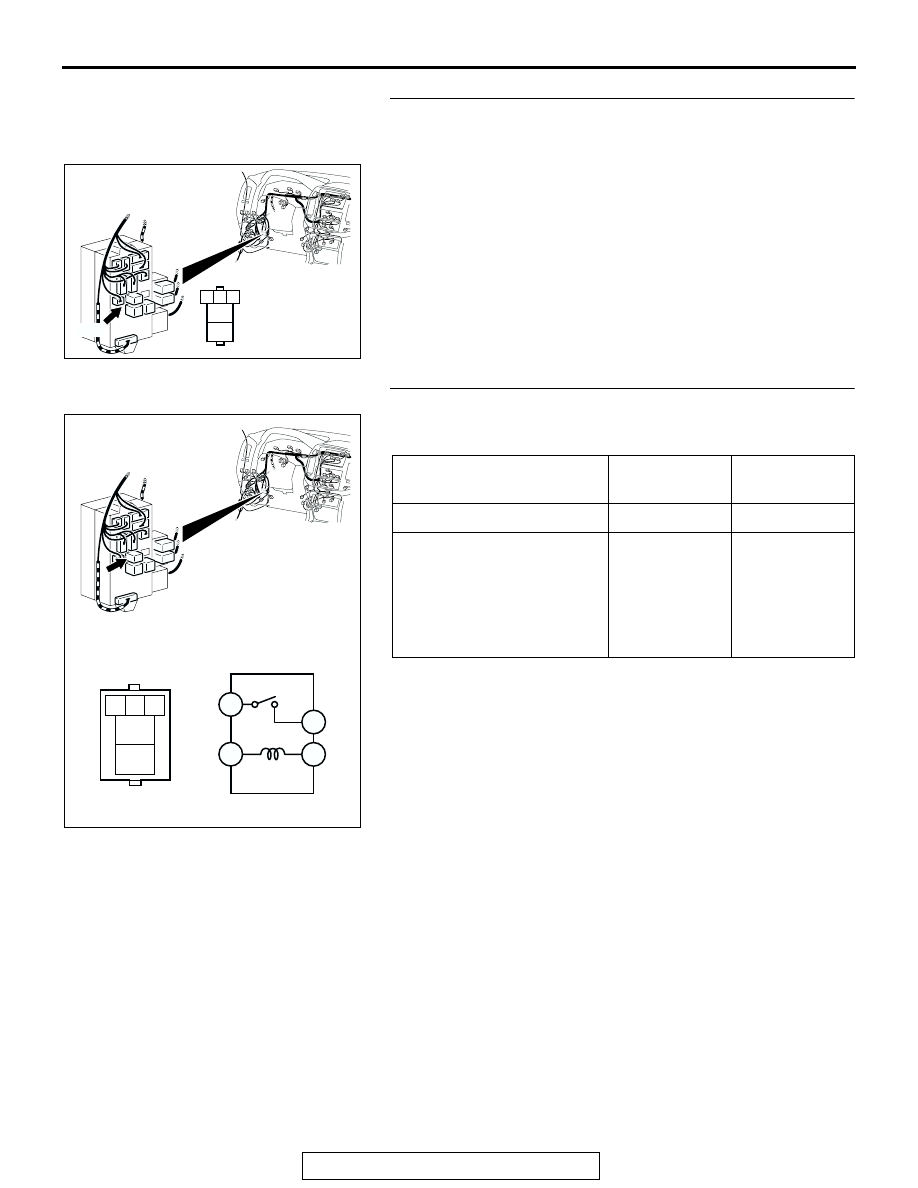

STEP 3. Check power window relay connector D-219 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is power window relay connector D-219 in good

condition?
YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the power windows function

should now work normally.

STEP 4. Check the power window relay.
Properly identify and remove the relay from the under-dash
junction block and test the relay using the chart as a guide.

Q: Is the power window relay in good condition?

YES : Go to Step 5.
NO :  Replace the power window relay. Verify that the

power windows function should now work normally.

AC203850AB

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

1

2

3

4

5

JUNCTION
BLOCK SIDE

D-219

BATTERY CONNECTION

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

• Connect terminal No.3

and the positive battery
terminal

• Connect terminal No.1

and the negative battery
terminal

4

− 5

Less than 2
ohms

AC203858AC

1 2 3

4

5

POWER WINDOW
RELAY D-219

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

5

4

1

3

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-151

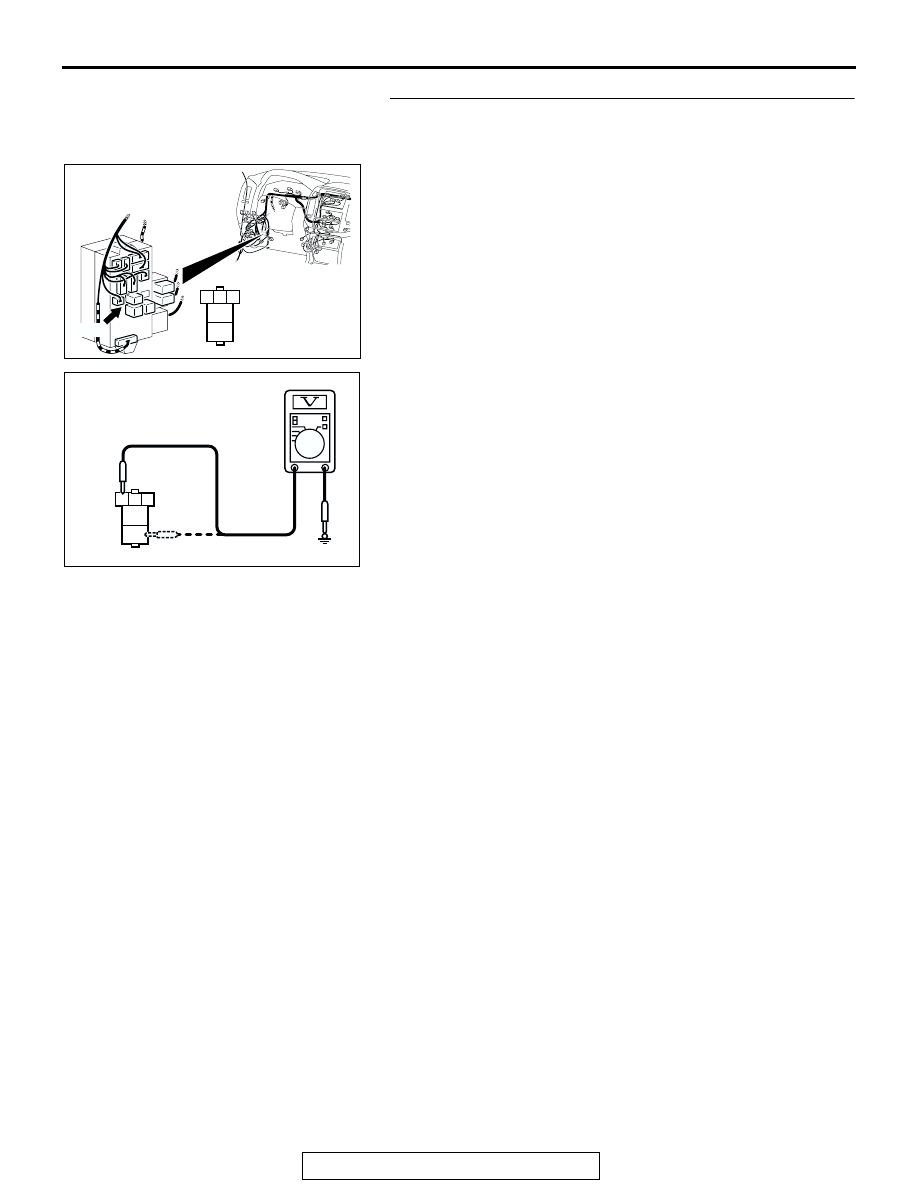

STEP 5. Measure at power window relay connector D-219
in order to check the fusible link (4) line of power supply
system to power window relay.
(1) Disconnect power window relay connector D-219, and

measure at the junction block side.

(2) Measure the voltage between terminal numbers 3, 5 and

ground.

• The voltage should be approximately 12 volts (battery

positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 7.
NO :  Go to Step 6.

AC203850AB

CONNECTOR: D-219

JUNCTION BLOCK
(FRONT VIEW)

D-219

1

2

3

4

5

JUNCTION
BLOCK SIDE

D-219

1

2

3

4

5

ACX01571AB

CONNECTOR D-219
(JUNCTION BLOCK SIDE)

SYMPTOM PROCEDURES

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-152

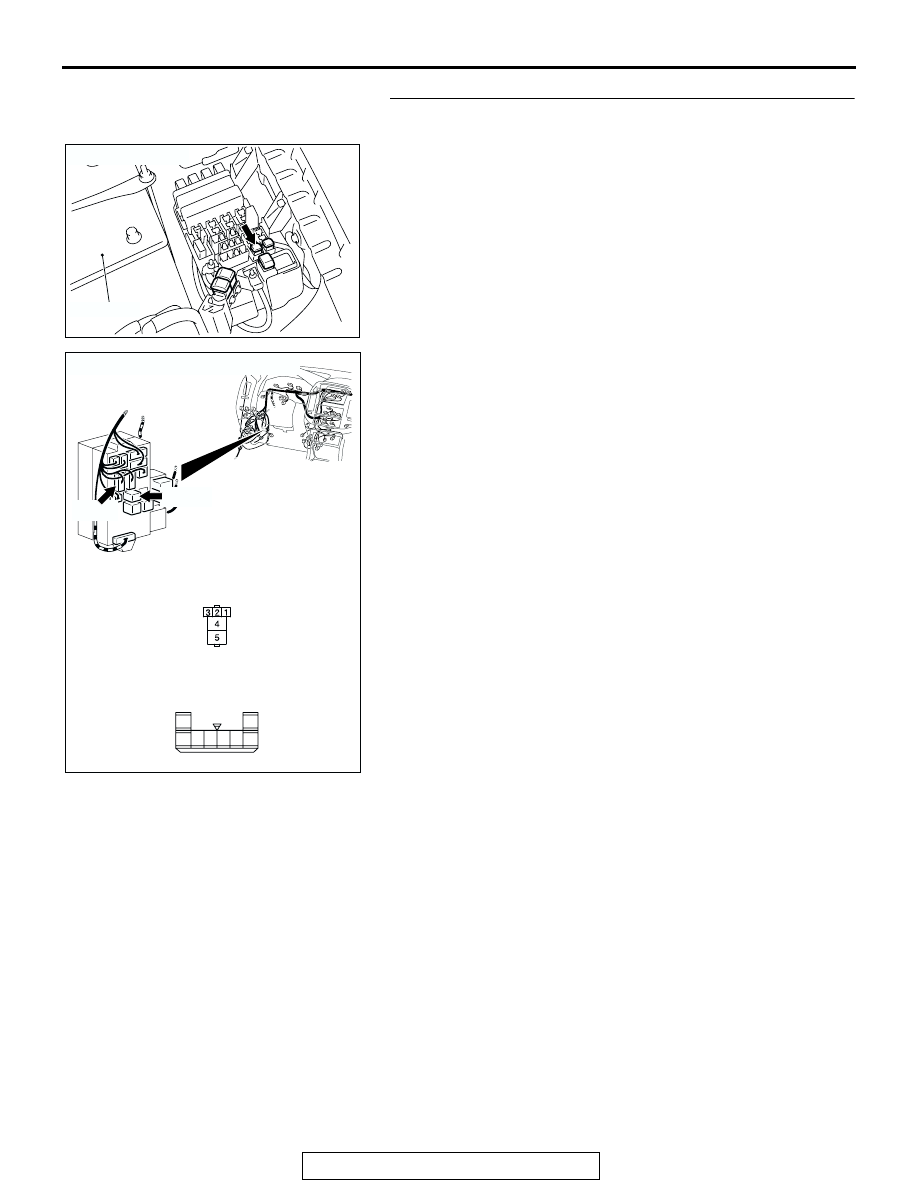

STEP 6. Check the wiring harness between power window
relay connector D-219 (terminal 5) and fusible link (4).

ACX02274

FUSIBLE LINK (4)

AD

BATTERY

AC204191

CONNECTORS : D-219, D-221

D-219

D-221

BB

D-219

HARNESS SIDE

JUNCTION BLOCK SIDE

D-221

3

1

4

6 5

7

8

2
