Mitsubishi Montero (2004+). Manual - part 644

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-65

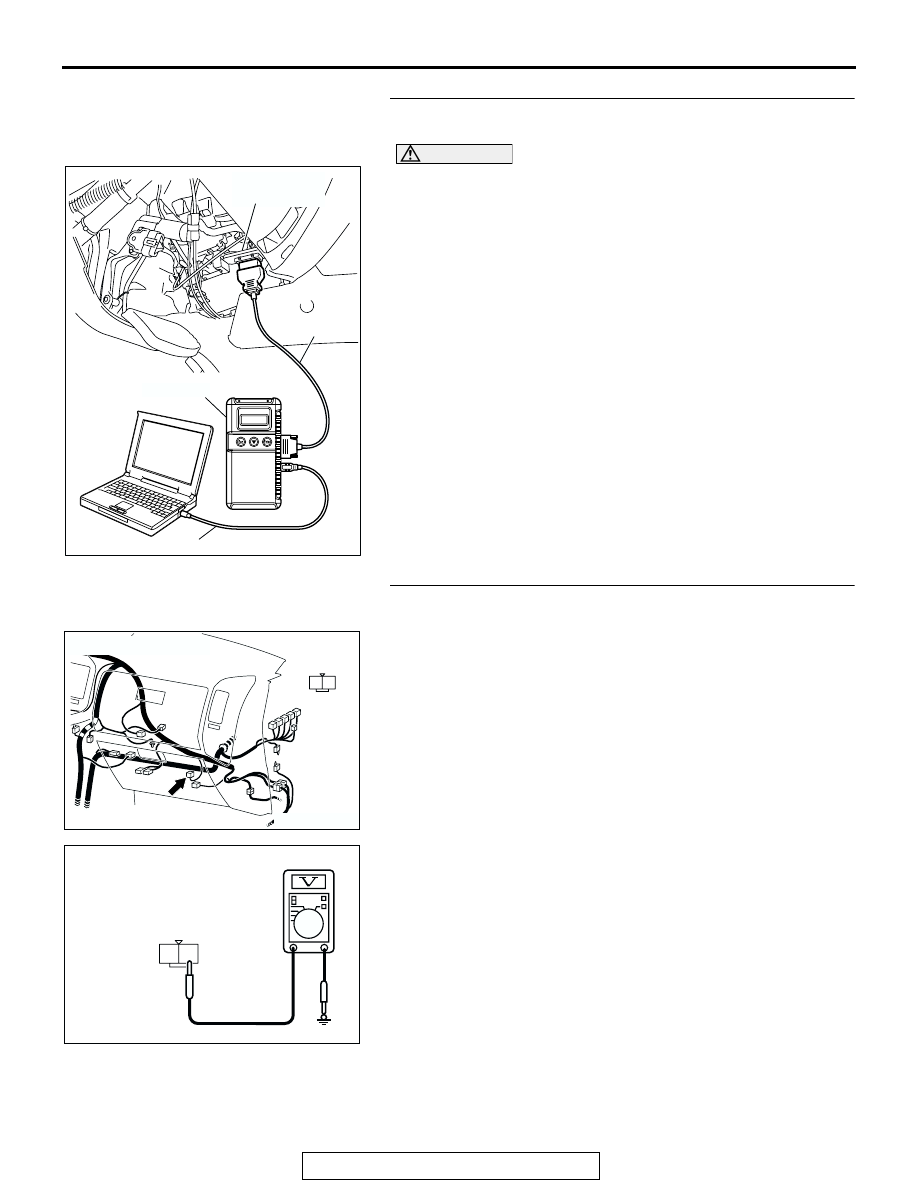

STEP 1. Using scan tool MB991958, check actuator test
item 01, item 02, item 03 and item 04: Blower motor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
Carry out the actuator test.
Item 01, 02, 03 and 04: Blower motor
Q: Do the check results show "Stop" (01 activated), "low

speed" (02 activated), "medium speed" (03 activated),
and "high speed" (04 activated)?
YES :  Go to Step 25.
NO :   Go to Step 2.

STEP 2. Measure the voltage at blower motor connector
D-113.

(1) Disconnect blower motor connector D-113, and measure

the voltage at the harness side.

(2) Turn the ignition switch to the "ON" position.
(3) Turn the blower switch to the "ON" position.

(4) Measure the voltage between terminal 1 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES :  Go to Step 14.
NO :   Go to Step 3.

AC307591 AB

MB991911

DATA LINK

CONNECTOR

MB991824

MB991827

AC204171

CONNECTOR : D-113

AR

HARNESS
SIDE

1

2

AC204738 DB

HARNESS SIDE : D-113

1

2

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-66

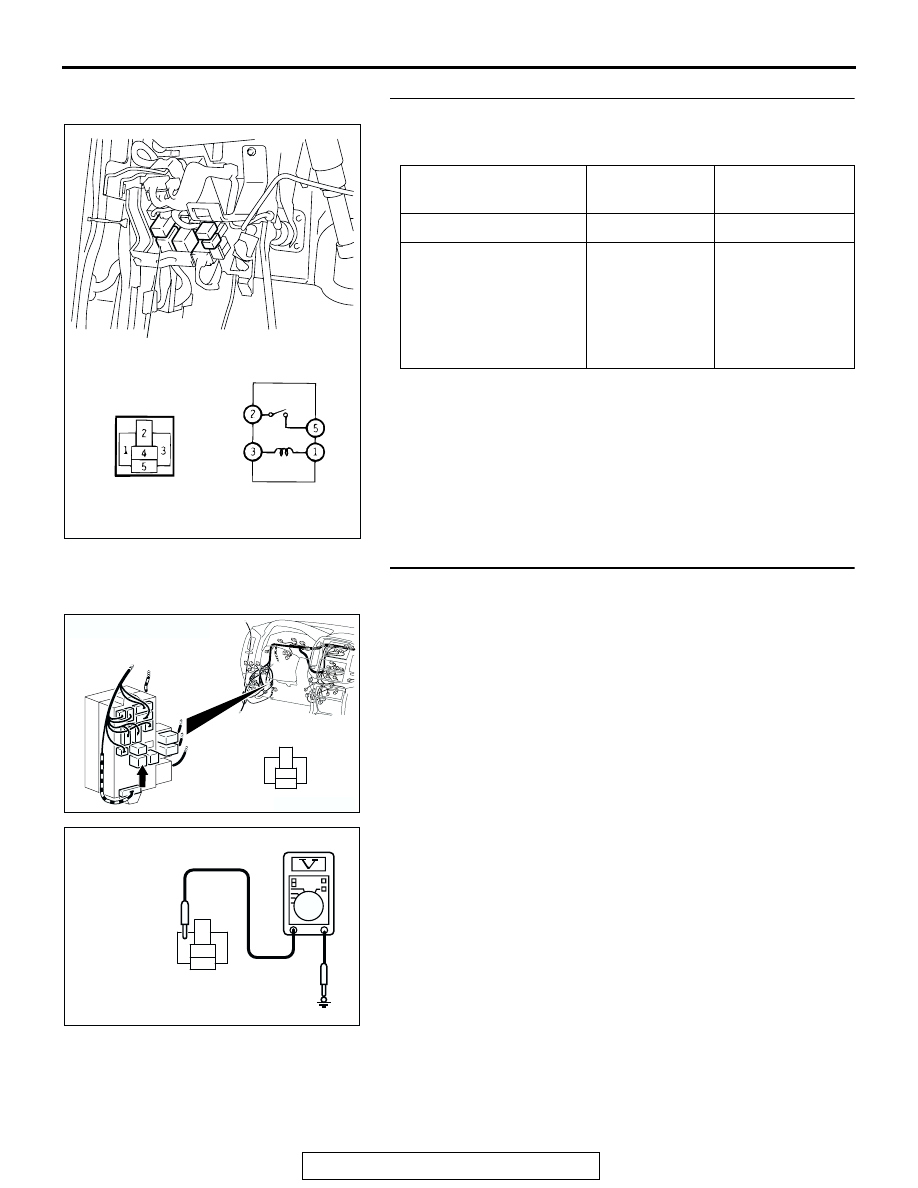

STEP 3. Check the front blower relay continuity.

Follow the table below to check the front blower relay for conti-
nuity.

Q: Is the front blower relay continuity in good condition?

YES : Go to Step 4.
NO :  Replace the front blower relay. The blower motor

should operate normally.

STEP 4. Measure the voltage at front blower relay
connector D-218.

(1) Disconnect front blower relay connector D-218, and

measure the voltage at the junction block side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 3 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES :  Go to Step 7.
NO :   Go to Step 5.

BATTERY VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

2

− 5

Open circuit

• Connect terminal 3

to the positive
battery terminal

• Connect terminal 1

to the negative
battery terminal

2

− 5

Less than 2 ohms

AC204714AB

FRONT BLOWER RELAY

AC204173

CONNECTOR : D-218

BE

JUNCTION BLOCK
SIDE

1

2

5

4

3

AC204738 DG

JUNCTION BLOCK SIDE : D-218

1

2

5

4

3

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-67

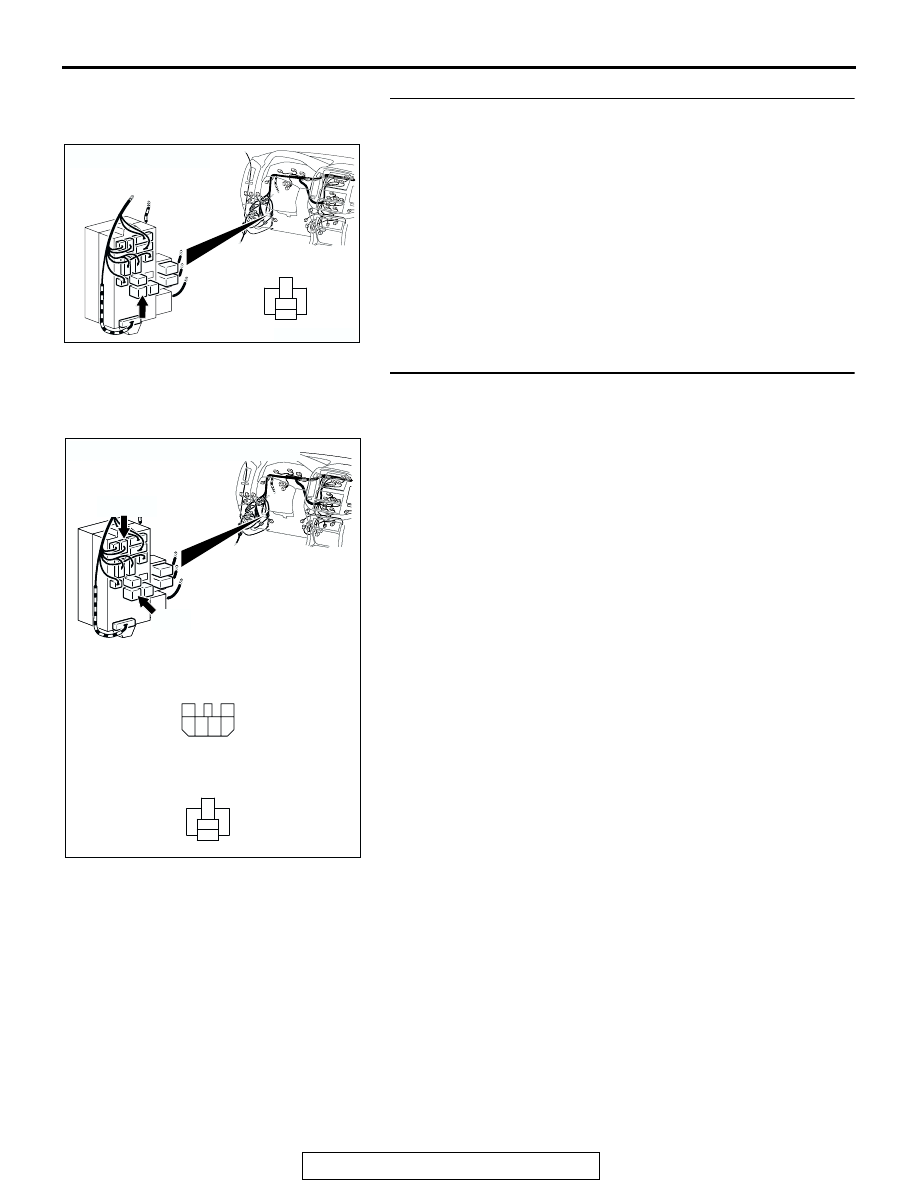

STEP 5. Check front blower relay connector D-218 for
damage.

Q: Is front blower relay connector D-218 in good

condition?
YES : Go to Step 6.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

STEP 6. Check the wiring harness between front blower
relay connector D-218 (terminal 3) and the ignition switch
(IG2).

NOTE: Also check junction block connector D-208. If junction
block connector D-208 is damaged, repair or replace the con-
nector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between front blower relay

connector C-218 (terminal 3) and the ignition switch
(IG2) in good condition?
YES : The front blower motor should operate normally.
NO :  Repair the wiring harness. The blower motor should

operate normally.

AC204173

CONNECTOR : D-218

BE

JUNCTION BLOCK
SIDE

1

2

5

4

3

AC204191

JUNCTION BLOCK
(FRONT VIEW)

AC204191

CONNECTORS : D-208, D-218

D-208

HARNESS SIDE

D-218

RELAY SIDE

AT

D-208

D-218

1

2

3

5

6

4

1

2

5

4

3

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-68

STEP 7. Measure the voltage at front blower relay
connector D-218.

(1) Disconnect front blower relay connector D-218, and

measure the voltage at the junction block side.

(2) Measure the voltage between terminal 2 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES :  Go to Step 10.
NO :   Go to Step 8.

STEP 8. Check front blower relay connector D-218 for
damage.

Q: Is front blower relay connector D-218 in good

condition?
YES : Go to Step 9.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

AC204173

CONNECTOR : D-218

BE

JUNCTION BLOCK
SIDE

1

2

5

4

3

AC204738 DF

JUNCTION BLOCK SIDE : D-218

1

2

5

4

3

AC204173

CONNECTOR : D-218

BE

JUNCTION BLOCK
SIDE

1

2

5

4

3
