Mitsubishi Montero (2004+). Manual - part 1210

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-175

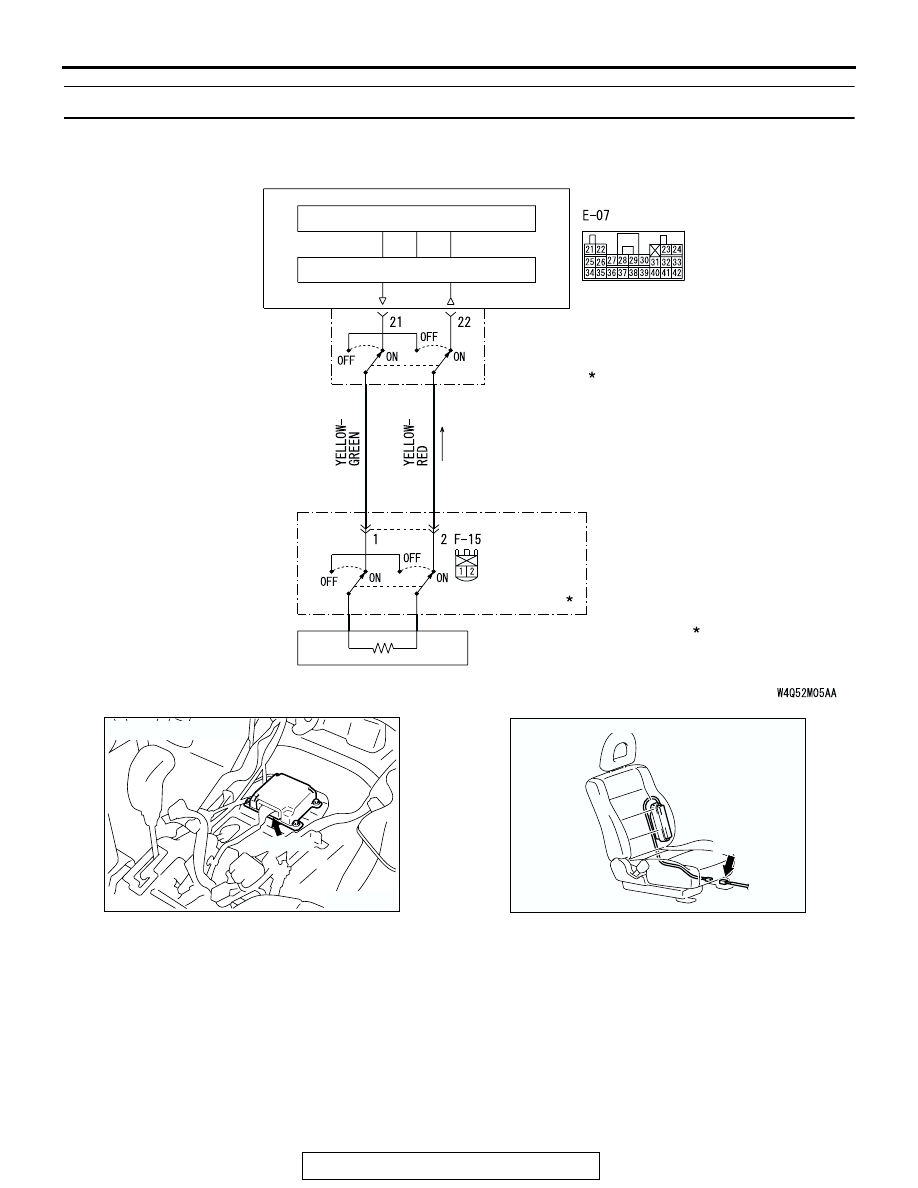

DTC 82:Left Hand Side-Airbag Module (Squib) System Fault 2 (Open in the Squib Circuit)

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a predeter-
mined level, the SRS-ECU outputs an ignition
signal. At this time, if the side-airbag safing
G-sensor is on, the SRS side-airbag will inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the side-airbag mod-
ule (LH) (squib).

.

TROUBLESHOOTING HINTS

• Open circuit in the left hand side-airbag module

(squib) circuit

• Improper connector contact

• Malfunction of the SRS-ECU

MICROCOMPUTER

AIR BAG DRIVE CIRCUIT

SRS-ECU

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

SIDE AIR BAG
MODULE (SQUIB)
(LH)

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

Side-Airbag Module (LH) (Squib) Circuit

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204635 AB

CONNECTOR: F-15

F-15 (R)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-176

.

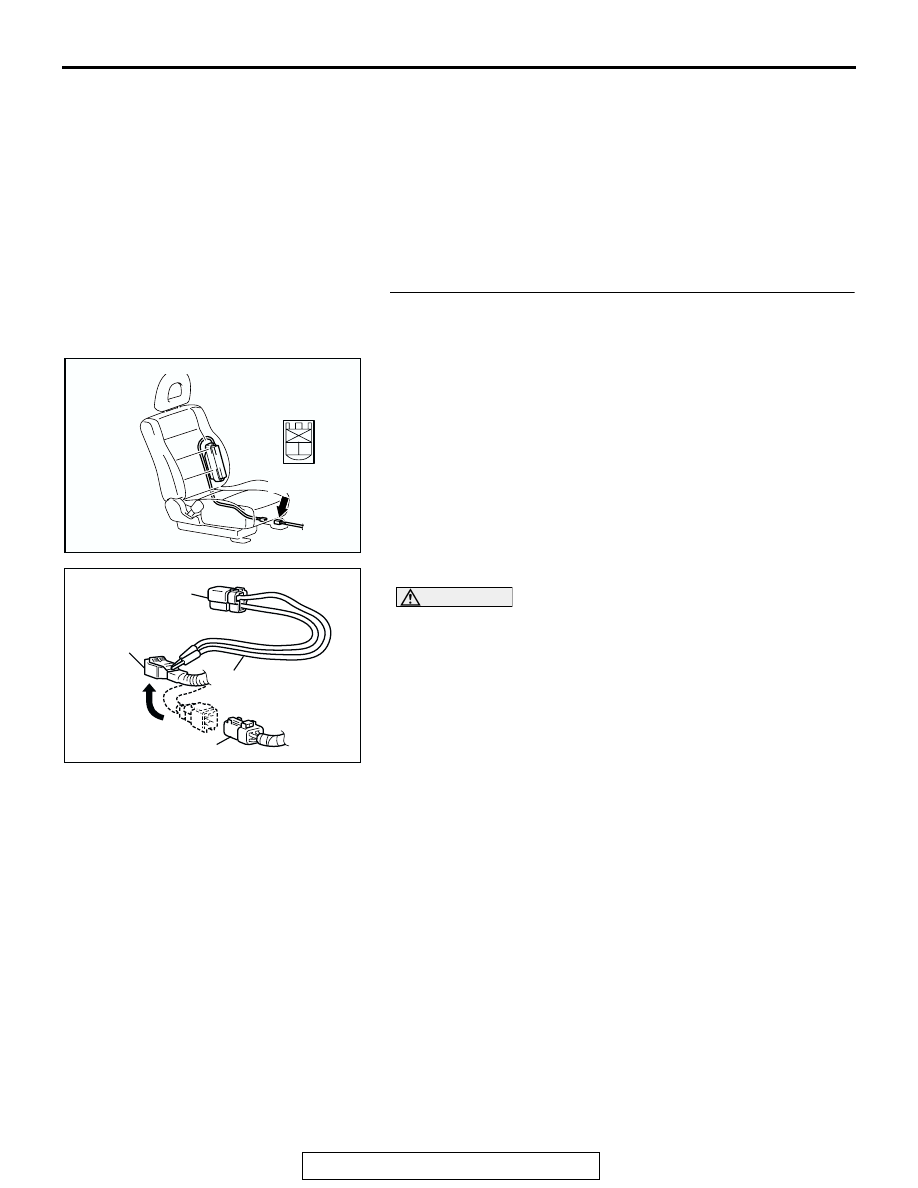

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B (Vehicles without

CAN communication system)

• MB991865: Dummy resister

• MB991866: Resister harness

STEP 1. Check the side-air bag module (LH). (Using scan
tool MB991958, read the diagnostic trouble code).
(1) Disconnect the negative battery terminal.
(2) Disconnect the left hand side-airbag connector F-15.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the F-15 harness

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC 82 set?

YES : Go to Step 2.
NO :  Replace the seat back assembly of the front seat (LH)

(Refer to GROUP 52A, Front Seat

P.52A-14

). Then

go to Step 3.

AC204635 AD

CONNECTOR: F-15

F-15 (R)

1 2

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC006042 AX

MB991866
(RESISTOR HARNESS)

F-15 HARNESS
CONNECTOR

F-15 SIDE-AIRBAG
MODULE (LH) CONNECTOR

MB991865 (DUMMY
RESISTOR: 3

Ω)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-177

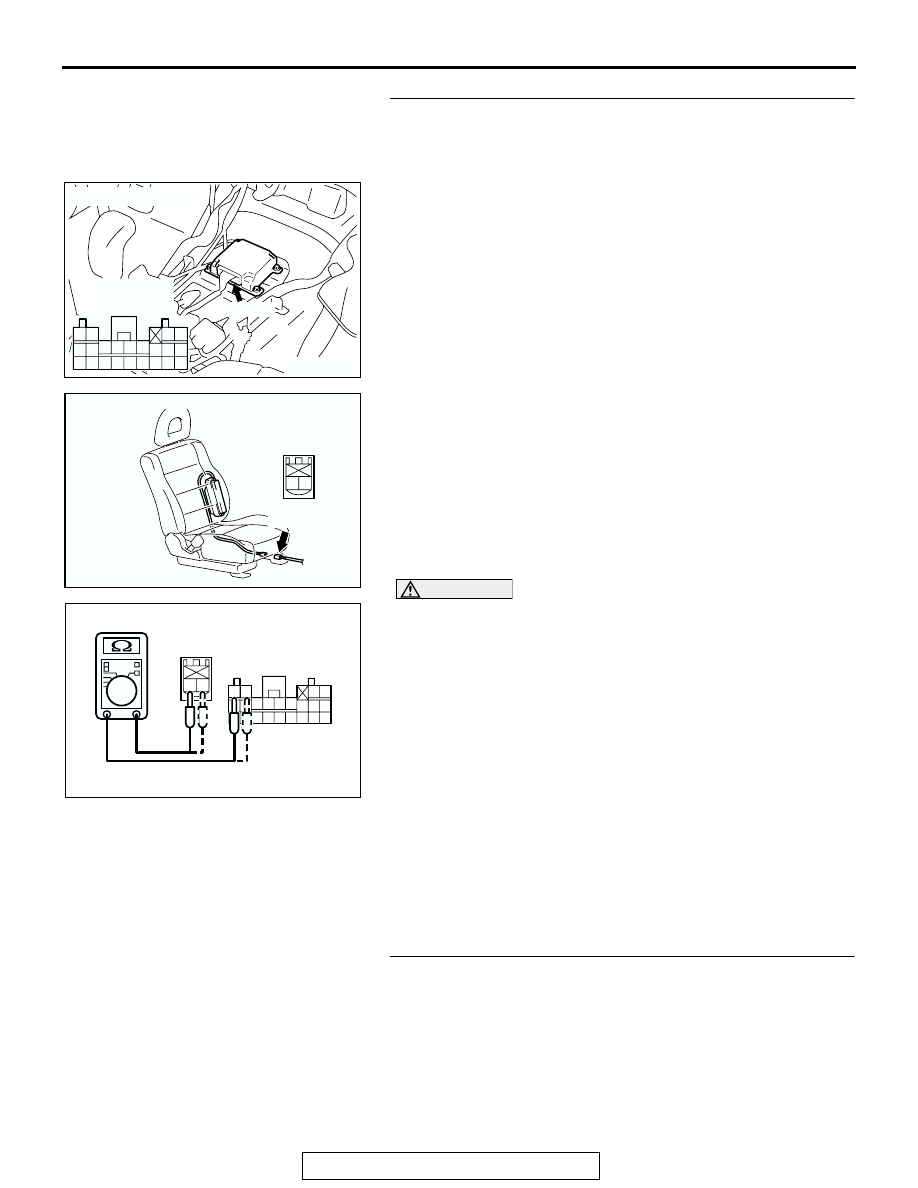

STEP 2. Check the harness for open circuit between the
SRS-ECU connector E-07 (terminal No.21 and 22) and the
left hand side-airbag module (LH) F-15 (terminal No.1 and
2).
(1) Disconnect SRS-ECU connector E-07.

(2) Disconnect S side-airbag module (LH) connector F-15.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(3) Check for continuity between the following terminals.

• Between connector E-07 terminal 21 and connector

F-15 terminal 1

• Between connector E-07 terminal 22 and connector

F-15 terminal 2

(4) It should be less than 2 ohms.
Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 82 sets, replace
the SRS-ECU (Refer to

P.52B-217

). Then go to Step

3.

NO :  Repair the harness wires between SRS-ECU

connector E-07 and side-airbag module (LH)
connector F-15. Then go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Q: Is DTC 82 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

).

ACX01478AJ

CONNECTOR: E-07

E-07 (Y)

34 35 36 37 38 39 40 41 42

25 26 27 28 29 30 31 32 33

21 22

23 24

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC204635 AD

CONNECTOR: F-15

F-15 (R)

1 2

HARNESS SIDE
CONNECTOR
(REAR VIEW)

343536373839404142

252627282930313233

2122

2324

1 2

AC100387AJ

F-15 HARNESS SIDE
CONNECTOR
(REAR VIEW)

E-07 HARNESS SIDE
CONNECTOR
(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-178

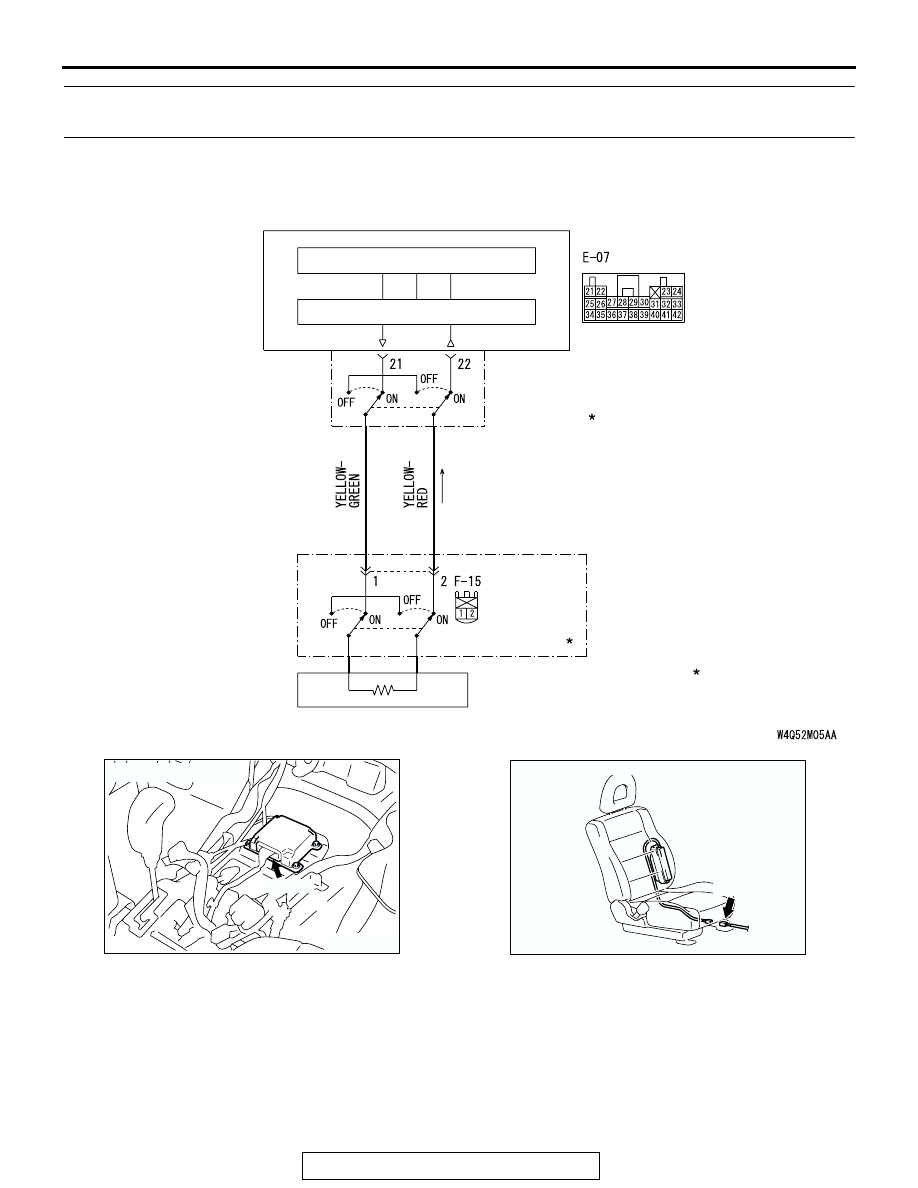

DTC 85:Left Hand Side-Airbag Module (Squib) System Fault Power Supply Circuit (Short-Circuited to
Power Supply)

.

CIRCUIT OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the left and right side
impact sensors. If the impact is over a predeter-
mined level, the SRS-ECU outputs an ignition
signal. At this time, if the side-airbag safing
G-sensor is on, the SRS side-airbag will inflate.

• The ignition signal is input to the side-airbag

module to inflate the side-airbag.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the side-airbag mod-
ule (LH) (squib).

.

MICROCOMPUTER

AIR BAG DRIVE CIRCUIT

SRS-ECU

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

SIDE AIR BAG
MODULE (SQUIB)
(LH)

NOTE

: CONNECTOR
  COUPLED: ON
  CONNECTOR
  UNCOUPLED: OFF

Side-Airbag Module (LH) (Squib) Circuit

ACX01478AI

CONNECTOR: E-07

E-07 (Y)

AC204635 AB

CONNECTOR: F-15

F-15 (R)
