ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-11

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC 11, 12, 13, 14: ABS Sensor (Open Circuit or Short Circuit)

AC204644AB

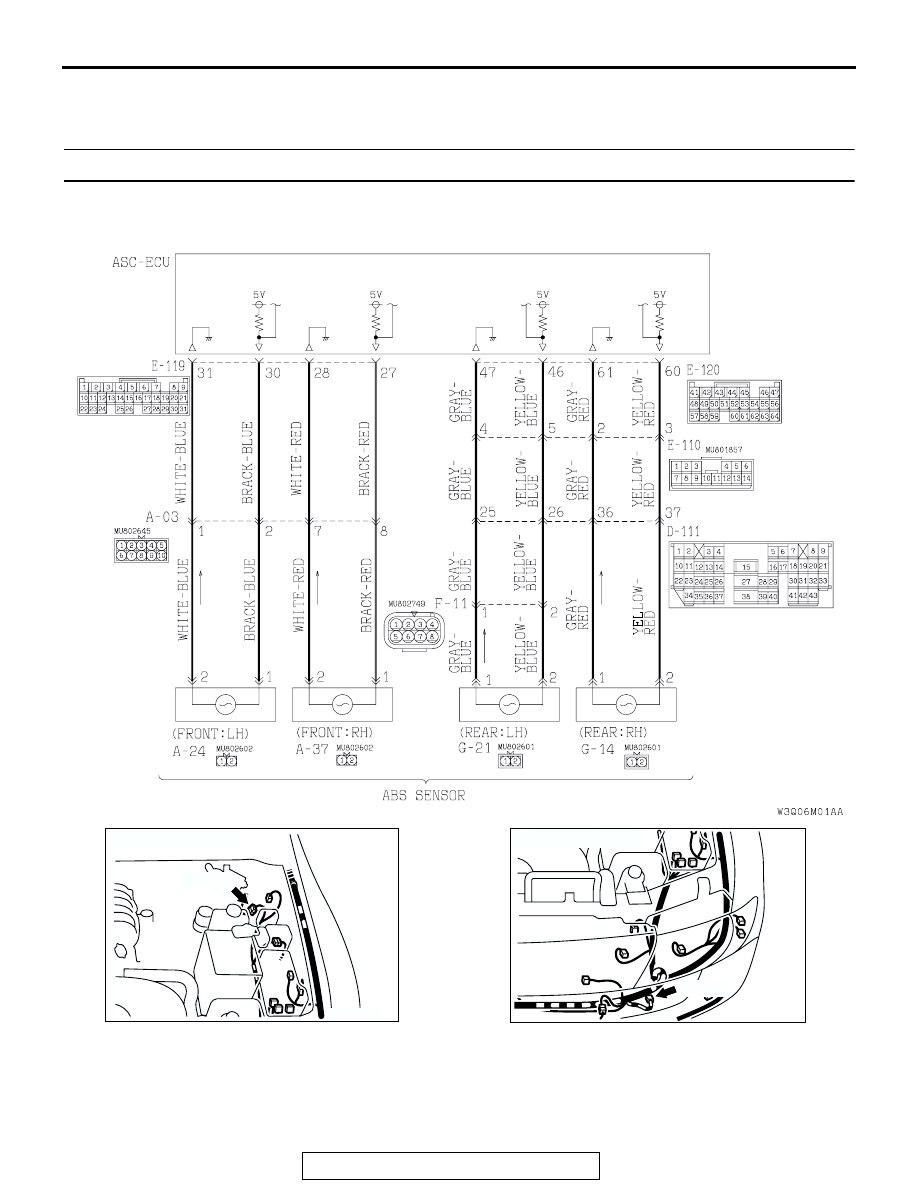

ABS Sensor Circuit

AC204389

CONNECTOR: A-03

A-03(B)

AB

AC204388

CONNECTOR: A-24

AB

A-24(B)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-12

.

CIRCUIT OPERATION

• A toothed ABS rotor generates a voltage pulse as

it moves across the pickup field of each ABS sen-
sor.

• The amount of voltage generated at each wheel

is determined by the clearance between the ABS
rotor teeth and the ABS sensor, and by the speed
of rotation.

• The ABS sensors transmit the frequency of the

voltage pulses and the amount of voltage gener-
ated by each pulse to the Mitsubishi active skid
and traction control system-electronic control unit
(M-ASTC-ECU).

• The ABS hydraulic unit modulates the amount of

braking force individually applied to each wheel
cylinder.

.

ABS DTC SET CONDITIONS
DTCs 11, 12, 13, 14 are output when signal is not
input due to breakage of the (+) or (

−) wire of one or

more of the four ABS sensors.

.

TROUBLESHOOTING HINTS
The most likely causes for these DTCs to set are:

• Malfunction of the ABS sensor

• Damaged wiring harness or connector

• Malfunction of the M-ASTC-ECU

.

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

AC204387

CONNECTOR: A-37

A-37(B)

AB

AC204384

CONNECTOR: D-111

D-111

AB

AC204385

CONNECTORS: E-110, E-119, E-120

E-119

AB

E-120

E-110

AC204386

CONNECTOR: F-11

F-11(B)

AB

AC204390

CONNECTORS: G-14, G-21

G-21(B)

AB

G-14(B)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-13

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

STEP 1. Using scan tool MB991958, check data list.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

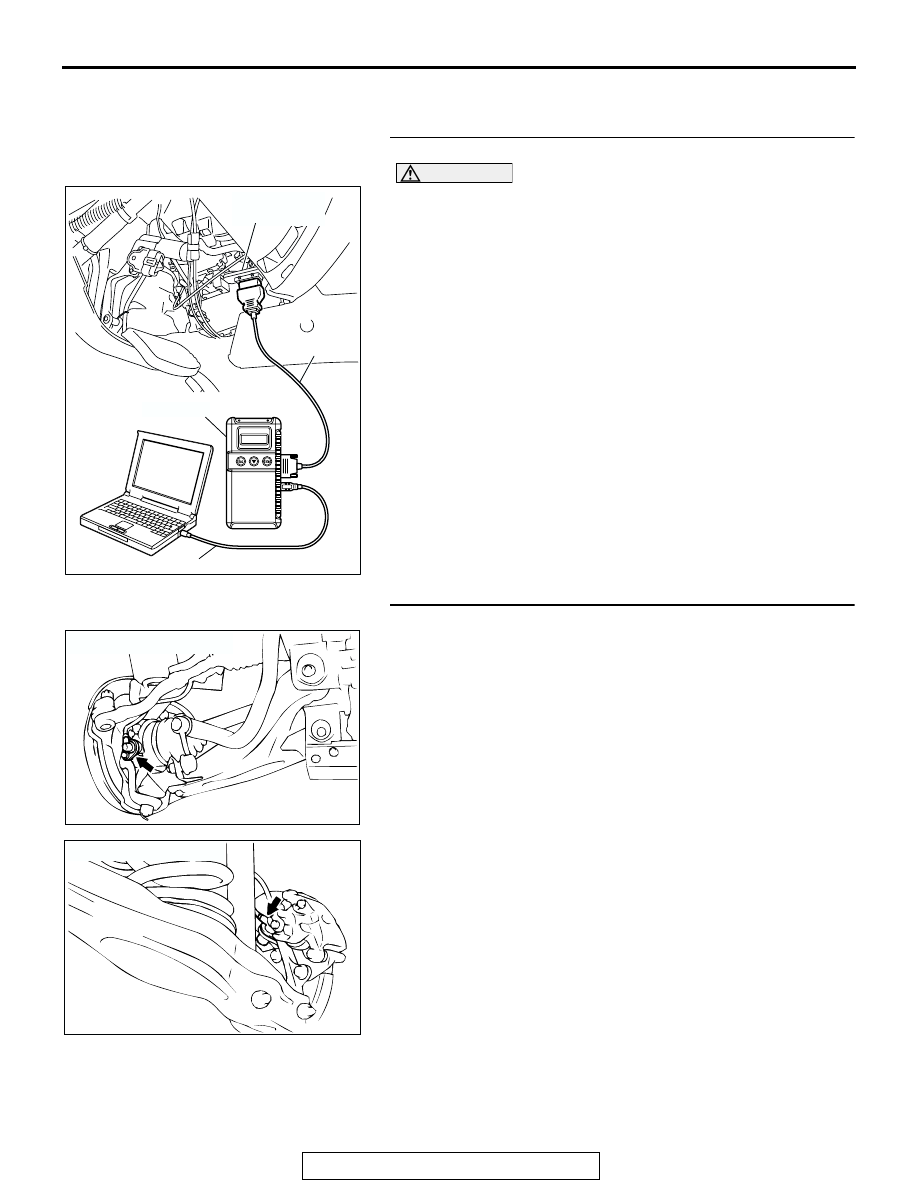

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.

(3) Set scan tool MB991958 to the data reading mode, and

check the data list items by driving the vehicle.

• Item 11 (DTC 11 is set): Front right wheel speed sensor

• Item 12 (DTC 12 is set): Front left wheel speed sensor

• Item 13 (DTC 13 is set): Rear right wheel speed sensor

• Item 14 (DTC 14 is set): Rear left wheel speed sensor

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the speedometer indication match the scan tool

indication?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.

NO :  Go to Step 2.

STEP 2. Check the ABS sensor installation.

Q: Is the ABS sensor bolted securely in place at the front

knuckle or the rear knuckle?
YES : Go to Step 3.
NO :  Install it properly. Refer to

P.35B-129

. Then go to Step

9.

AC307591 AB

MB991911

DATA LINK

CONNECTOR

MB991824

MB991827

ACX01221

ABS SENSOR <FRONT>

AD

ACX01227AD

ABS SENSOR <REAR>

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-14

STEP 3. Inspect the ABS sensor or ABS rotor.

 Refer to

P.35B-130

.

Check items:

• ABS sensor internal resistance: 1.0 − 1.5 kΩ

• Insulation between the ABS sensor body and the connector

terminals

• Toothed ABS rotor check

Q: Is the ABS sensor or ABS rotor damaged?

YES :  Replace it and then go to Step 9.
NO :  Go to Step 4.

STEP 4. Check ABS sensor circuit at the M-ASTC-ECU
connectors E-119 and E-120.

(1) Disconnect connectors E-119, E-120 and measure at the

harness side.

(2) Measure the resistance between the M-ASTC-ECU

connector E-119 terminals 30 and 31, 27 and 28 or
M-ASTC-ECU connector E-120 terminals 46 and 47, 60
and 61.

Standard Value: 1.0

− 1.5 kΩ

Q: Is the resistance between M-ASTC-ECU connector E-119

terminals 30 and 31, 27 and 28 or M-ASTC-ECU
connector E-120 terminals 46 and 47, 60 and 61 within
the standard value?
When resistances between all terminals are within the
standard value. : Go to Step 9.
When resistance between M-ASTC-ECU connector
E-119 terminals 30 and 31 is not within the standard
value. : Go to Step 5.
When resistance between M-ASTC-ECU connector
E-119 terminals 27 and 28 is not within the standard
value. : Go to Step 6.
When resistance between M-ASTC-ECU connector
E-120 terminals 46 and 47 is not within the standard
value. : Go to Step 7.
When resistance between M-ASTC-ECU connector
E-120 terminals 60 and 61 is not within the standard
value. : Go to Step 8.

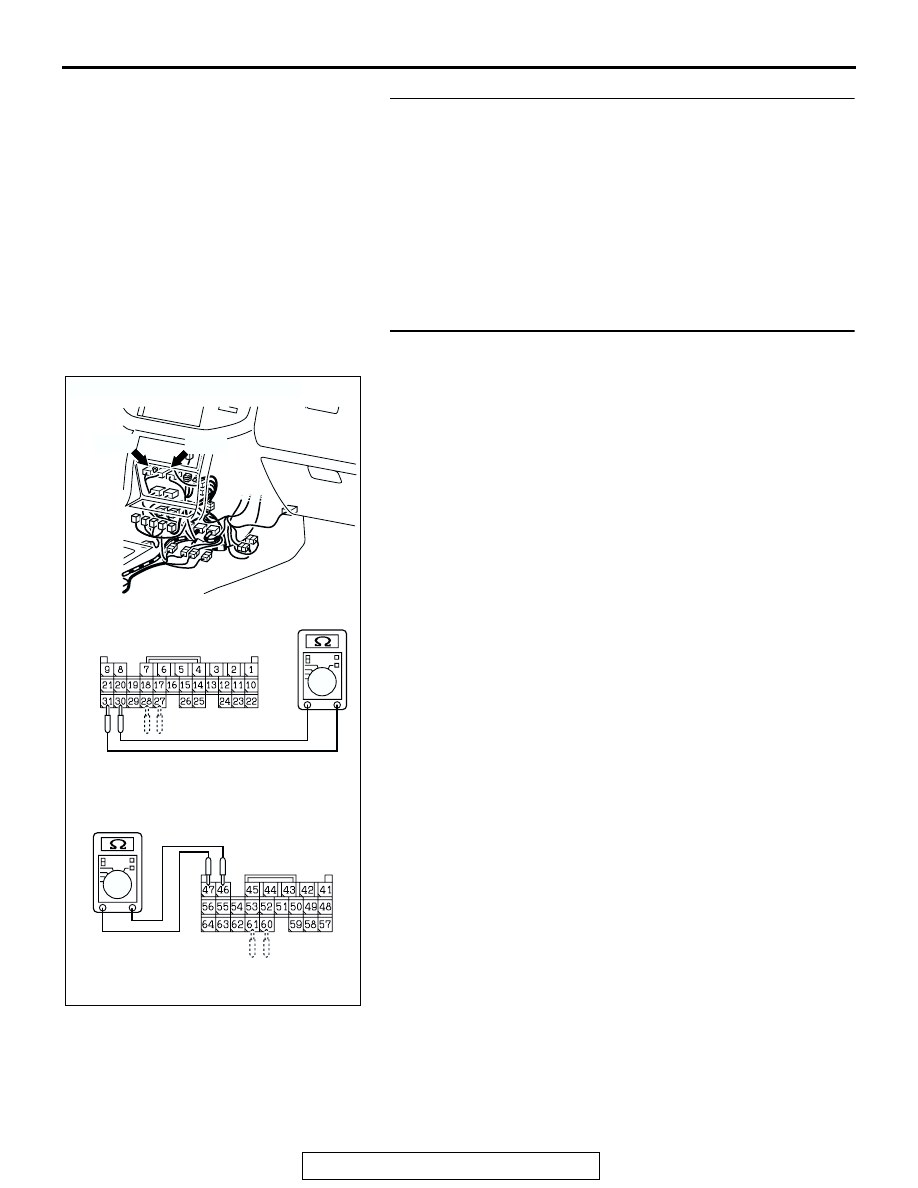

AC204391

CONNECTORS: E-119, E-120

E-119

AB

E-120

E-119 HARNESS CONNECTOR:
COMPONENT SIDE

E-120 HARNESS CONNECTOR:
COMPONENT SIDE
