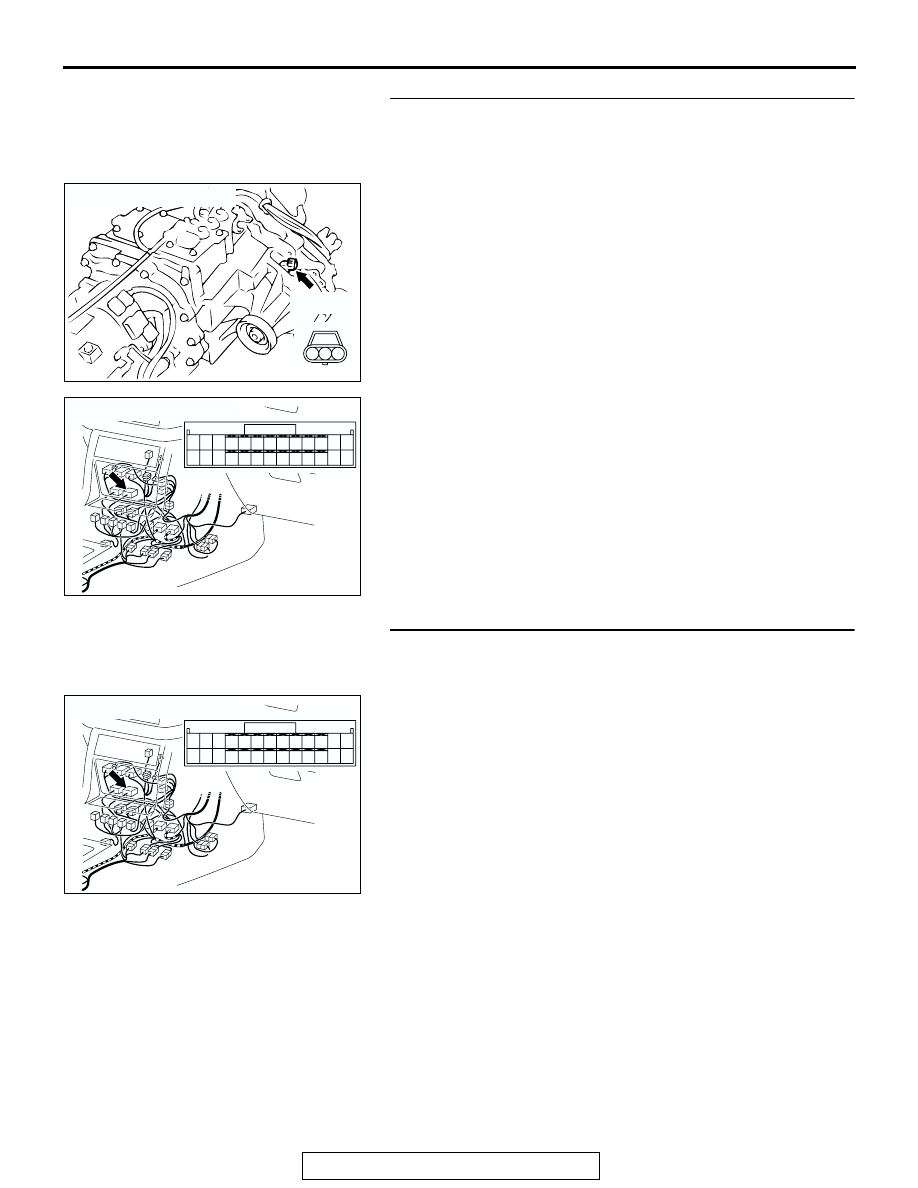

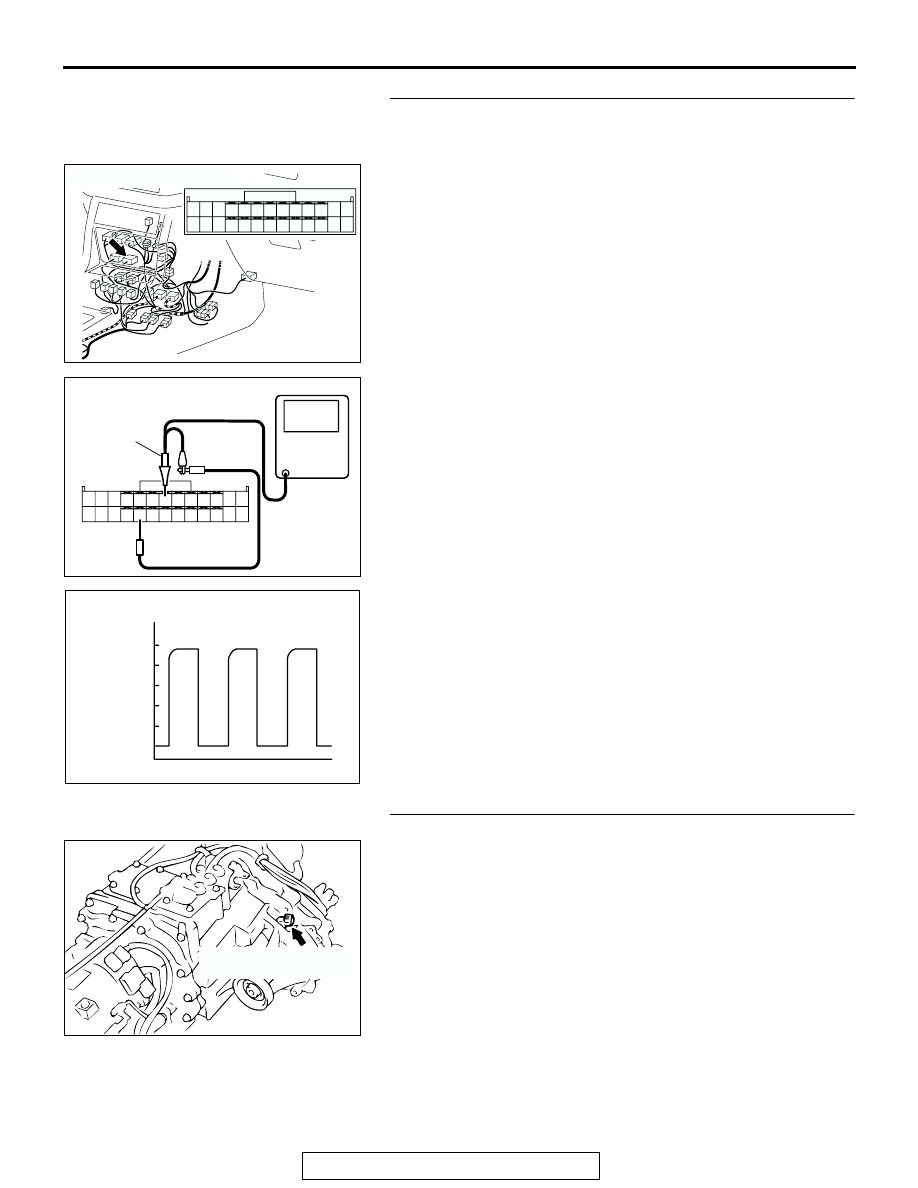

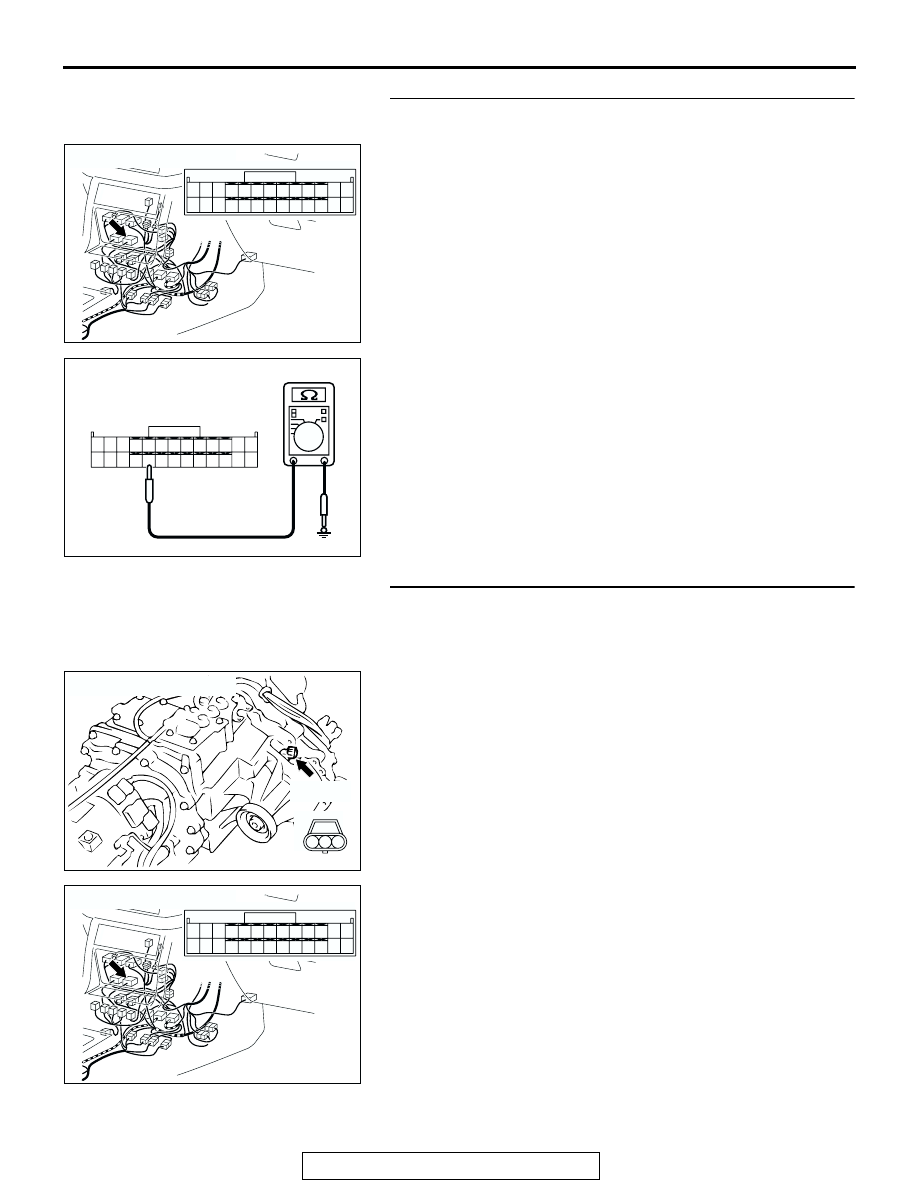

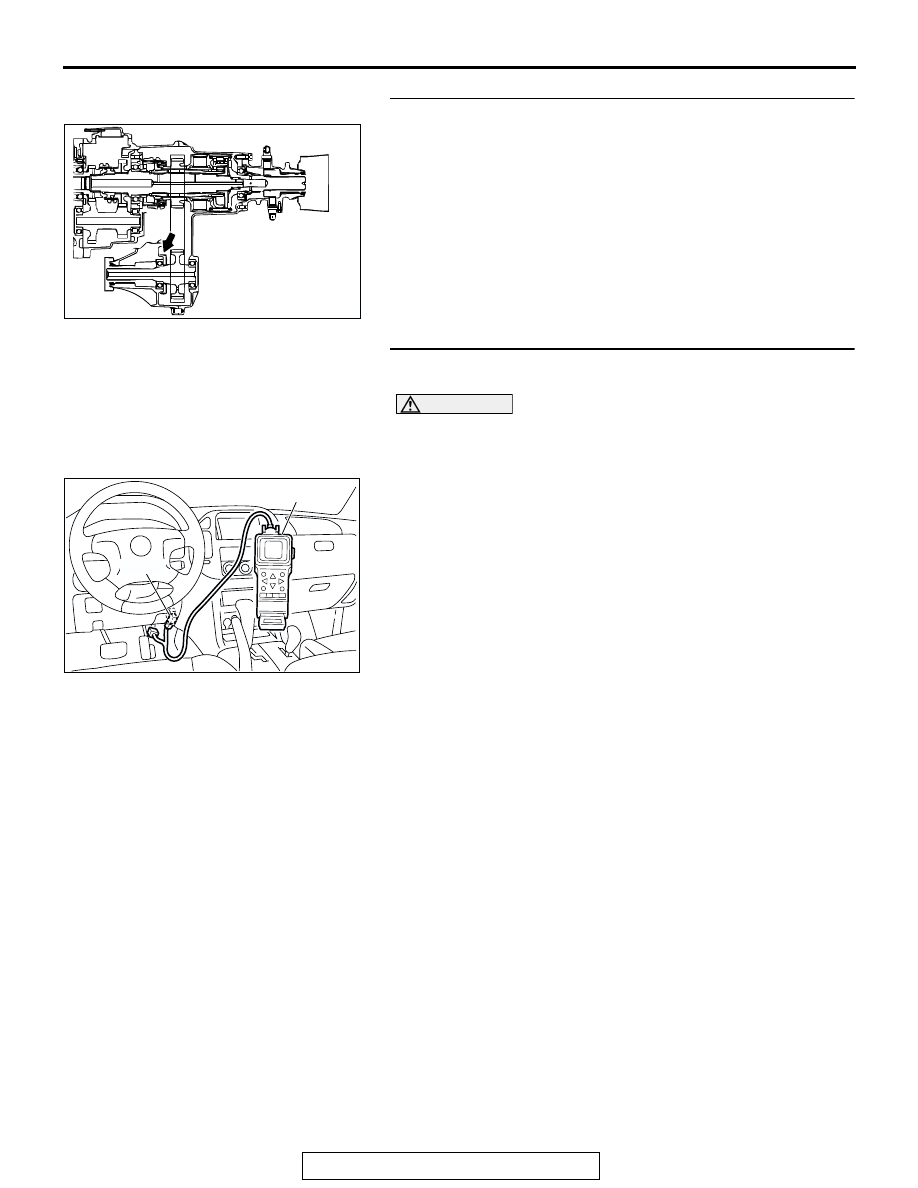

DIAGNOSTIC TROUBLE CODE PROCEDURES <TRANSFER> TSB Revision DIAGNOSTIC TROUBLE CODE PROCEDURES 23Ac-283 STEP 12. Measure the resistance at the transfer-ECU (2) Measure the resistance between terminal 18 and ground by backprobing. • The resistance should measure less than 2 ohms. Q: Is the measured resistance less than 2 ohms? YES : Go to Step 13. STEP 13. Check front propeller shaft speed sensor YES : Go to Step 14. GROUP 00E, Harness Connector Inspection AC204176 CONNECTOR : E-109 BB 11 12 25 24 13 26 9 22 7 6 20 19 8 21 10 23 5 4 17 2 1 15 14 3 16 18 AC204918 CF E-109 HARNESS CONNECTOR : 11 12 25 24 13 26 9 22 7 6 20 19 8 21 10 23 5 4 17 2 1 15 14 3 16 18 AC204752 CONNECTOR : C-13 AB 2 3 1 C-13 (B) AC204176 CONNECTOR : E-109 BB 11 12 25 24 13 26 9 22 7 6 20 19 8 21 10 23 5 4 17 2 1 15 14 3 16 18 |
