Mitsubishi Montero (2002-2004). Manual - part 904

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-99

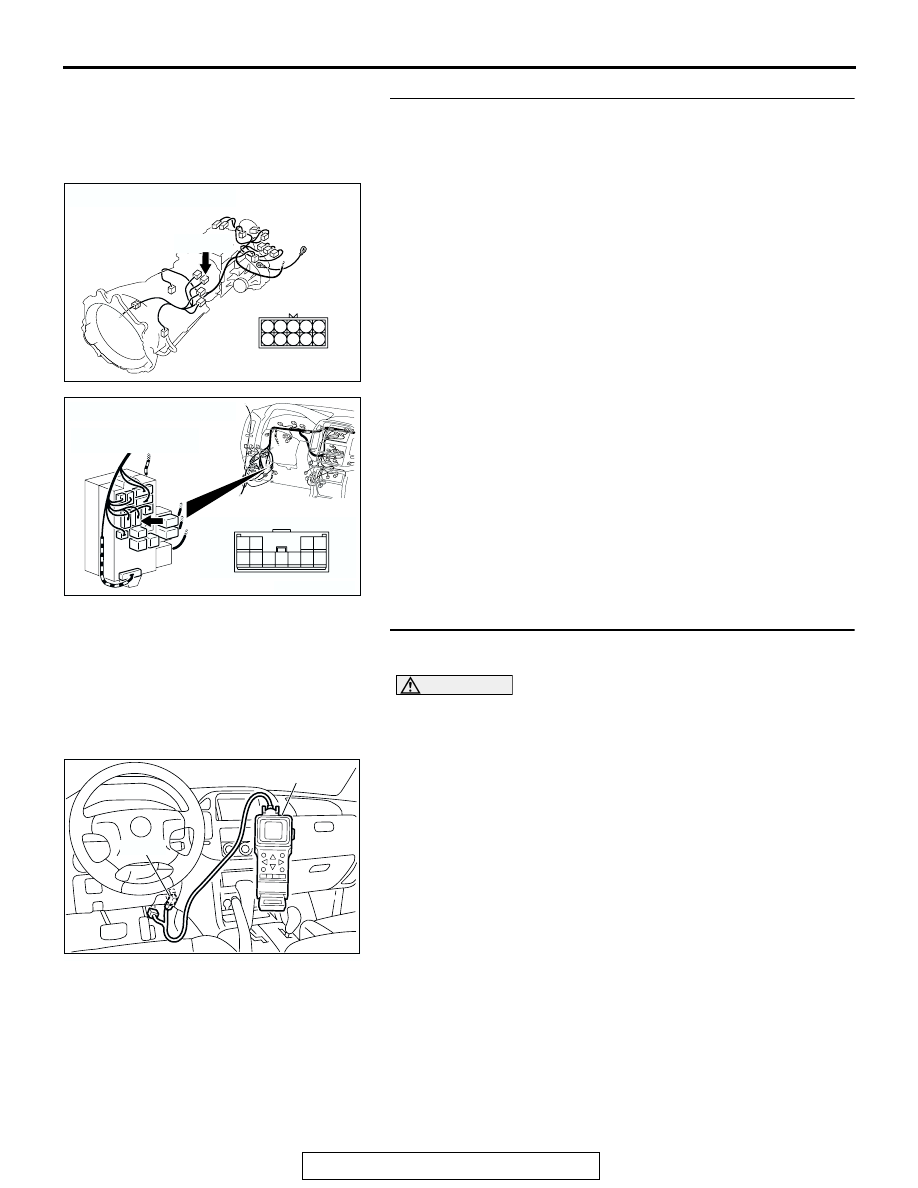

STEP 4. Check harness for open circuit or short circuit to
ground between transmission range switch connector C-
04 terminal 7 and junction block connector D-212 terminal
9.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the harness wire.

STEP 5. Using scan tool MB991502, check data list item 61:
Transmission Range Switch.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991502 to data reading mode for item 61,

Transmission Range Switch.

• Move the selector lever to "P," "R," "N," "D" and sport

mode positions and confirm that the selected transmis-
sion ranges match the positions shown on scan tool
MB991502. (Sport mode is indicated as "D" on scan tool
MB991502.)

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the switch operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

.

NO :  Replace the PCM.

AC204395

CONNECTOR : C-04

AF

C-04 (B)

4
9

5

10

3
8

2
7

6

1

AC204173

CONNECTOR : D-212

AZ

3

10

9

4

11

8

7

1

5

2

6

JUNCTION BLOCK
(FRONT VIEW)

ACX01539AD

MB991502

16-PIN

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-100

STEP 6. Check the transmission range switch.
Measure the resistance between the terminals for each selec-
tor position as indicated in the table above.

Q: Does the resistance measure less than 2 ohms for each

selector position?
YES : Go to Step 7.
NO :  Replace the transmission range switch. Refer to

GROUP 23B, Transmission

P.23B-18

.

STEP 7. Check transmission range switch connector C-04
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 8.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

TRANSMISSION
RANGE

TERMINAL
CONNECTION OF
TESTER

SPECIFIED
CONDITION

P

1

− 7

Less than 2 ohms.

R

7

− 8

N

2

− 7

D

3

− 7

ACX01187AD

P

R

N

D

AC204395

CONNECTOR : C-04

AF

C-04 (B)

4
9

5

10

3
8

2
7

6

1

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-101

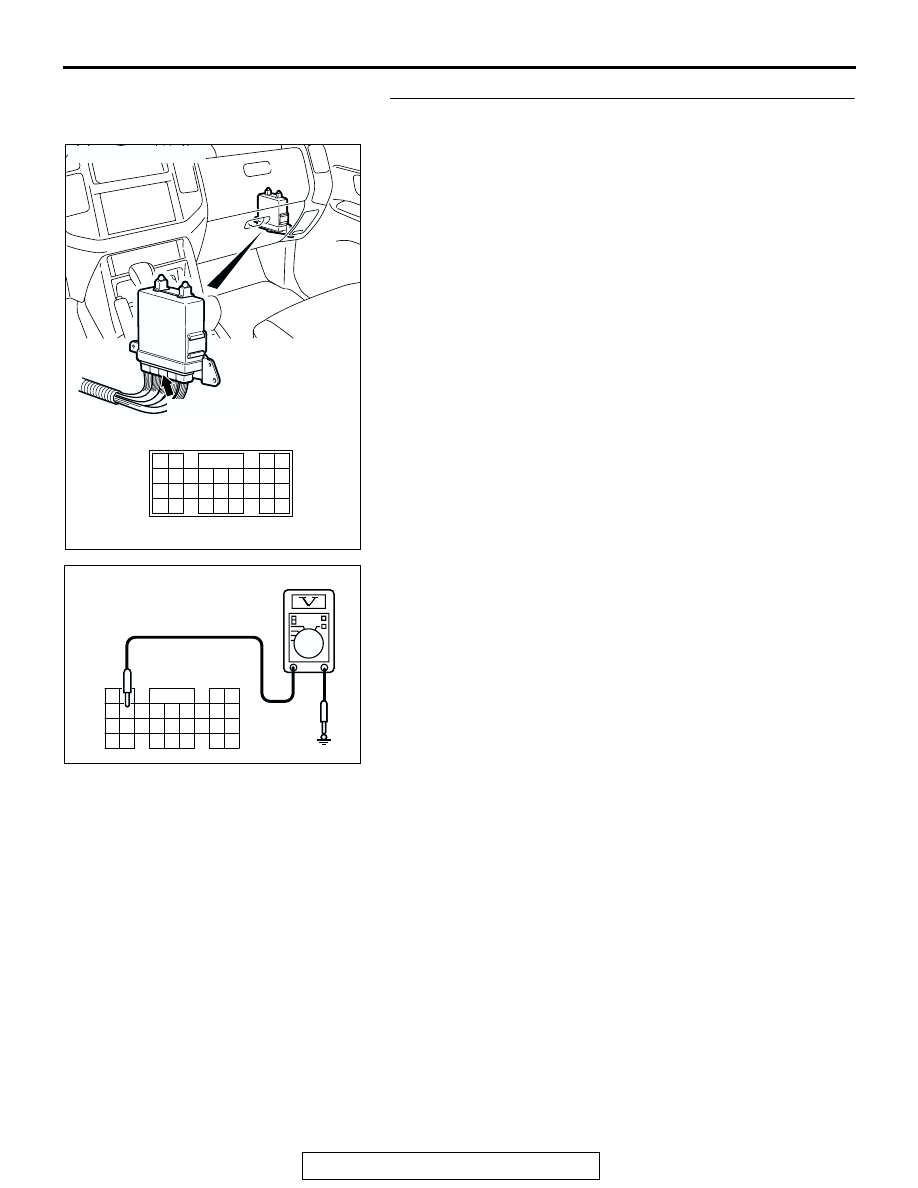

STEP 8. Measure the transmission range switch output
voltage at PCM connector D-134 by backprobing.
(1) Do not disconnect connector D-134.
(2) Turn the ignition switch to the "ON" position.
(3) Move the selector lever to the "P" position.

(4) Measure the voltage between terminal 66 and ground by

backprobing.

• The voltage should measure battery positive voltage.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the voltage measure battery positive voltage?

YES : Go to Step 13.
NO :  Go to Step 9.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204918 BF

D-134 HARNESS CONNECTOR :
HARNESS SIDE

76

85

65

72

71

73

82

75

81

74

63 64

66

70

69

68

67

78

87

79

88 89

80

77

86

62

61

83 84

DIAGNOSTIC TROUBLE CODE PROCEDURES <AUTOMATIC TRANSMISSION>

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

23Ac-102

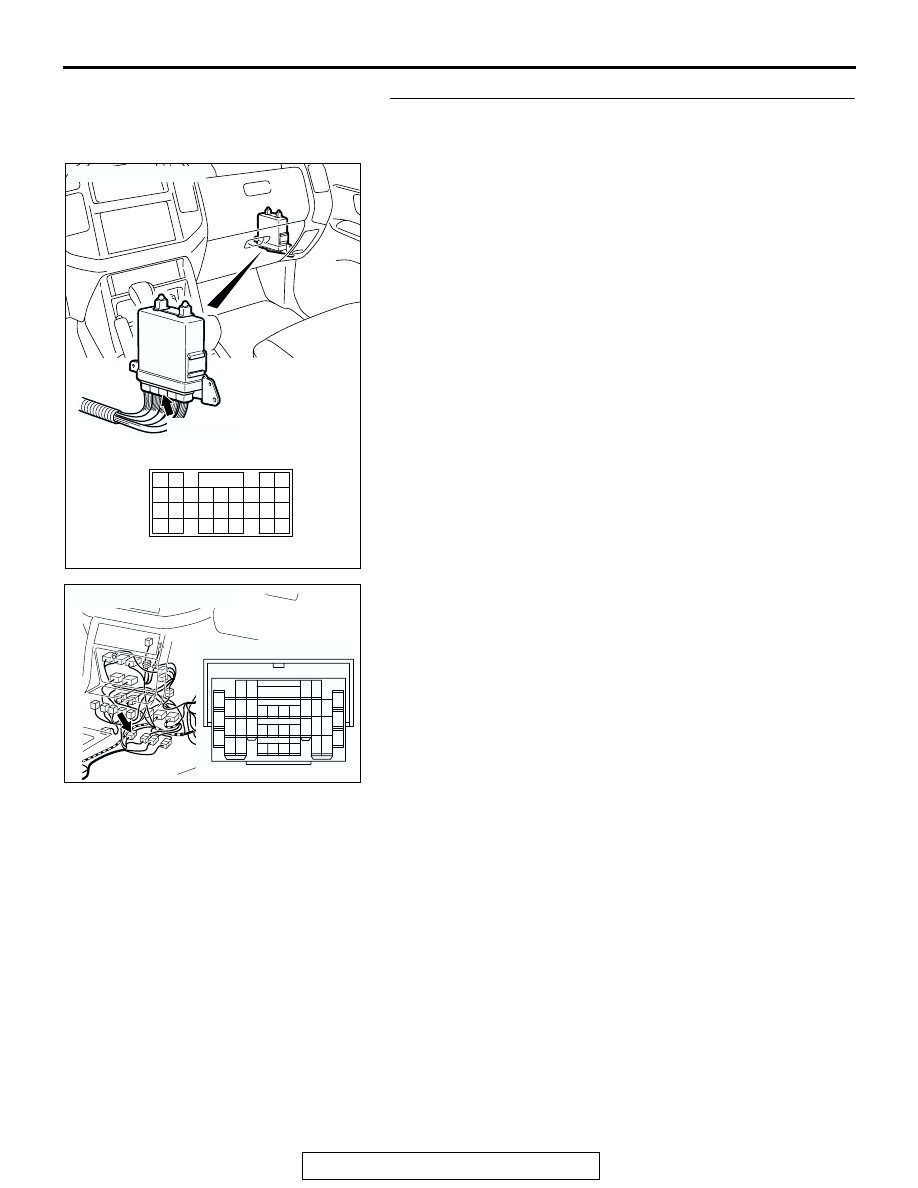

STEP 9. Check PCM connector D-134 and intermediate
connector E-114 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 10.
NO :  Repair or replace the damaged components. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

.

AC204681AC

CONNECTOR: D-134

D-134 (GR)

61 62

63 64

65 66 67 68 69 70 71 72 73

82

89

81

88

80

79

78

77

87

86

85

76

75

74

84

83

AC204176

CONNECTOR : E-114

BD

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

3435

1112

27

26

3637

14

4

15
