CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-29

CYLINDER HEAD GASKET

REMOVAL AND INSTALLATION

M1112004000525

Pre-removal and Post-installation Operation
• Intake Manifold Removal and installation (Refer to

GROUP 15, Intake Manifold

P.15-7

.)

• Timing Belt Removal and installation (Refer to

P.11A-33

.)

• Front Exhaust Pipe Removal and Installation (Refer to

GROUP 15, Exhaust and Main Muffler

P.15-13

.)

AC204259AB

1

2

3

4

5

6

7

8

9

10

12

17

N

N

N

N

N

14 ± 1 N·m
120 ± 13 in-lb

19 ± 1 N·m
14 ± 1 ft-lb

11

10

14 ± 1 N·m
120 ± 13 in-lb

<COLD ENGINE>
108 ± 5 N·m
80  ± 3 ft-lb

<COLD ENGINE>
108 ± 5 N·m
80  ± 3 ft-lb

3.5 ± 0.5 N·m
31 ± 4 in-lb

3.5 ± 0.5 N·m
31 ± 4 in-lb

13

14

15

16

18

16

18

14 ± 1 N·m
120 ± 13 in-lb

13 ± 2 N·m
111 ± 22 in-lb

39 ± 3 N·m
29 ± 2 ft-lb

19

19

BACK OFF

108 ± 5 N·m
80  ± 3 ft-lb

BACK OFF

108 ± 5 N·m
80  ± 3 ft-lb

N

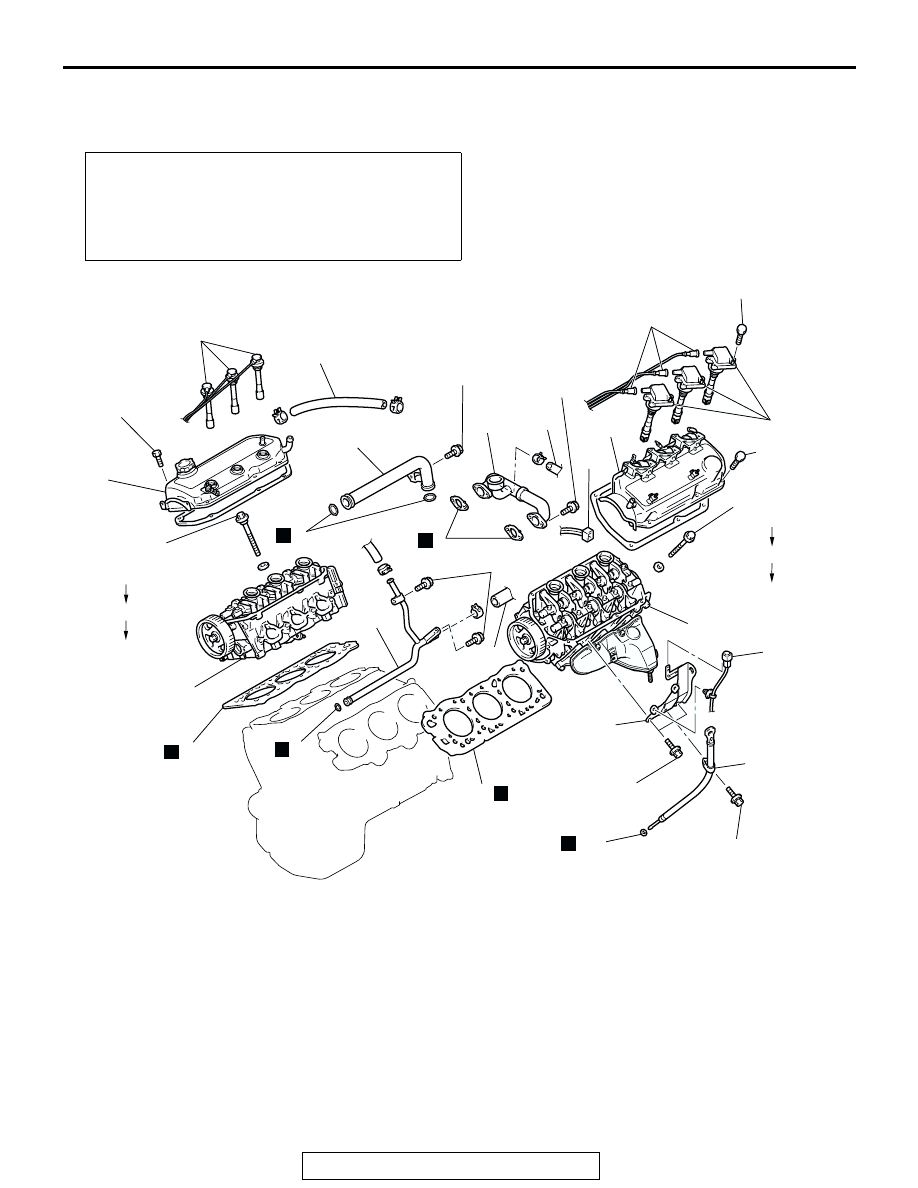

REMOVAL STEPS

1.

WATER OUTLET PIPE
ASSEMBLY

>>C<<

2.

O-RING

3.

HEATER HOSE CONNECTION

4.

HEATER HOSE CONNECTION

>>D<<

5.

WATER PASSAGE ASSEMBLY

>>D<<

6.

GASKET

7.

WATER PIPE ASSEMBLY

>>C<<

8.

O-RING

9.

BREATHER HOSE

10. SPARK PLUG CABLE
11. IGNITION COIL
12. OXYGEN SENSOR

CONNECTOR

13. ENGINE OIL DIPSTICK

ASSEMBLY

14. O-RING
15. INTAKE MANIFOLD PLENUM

STAY

REMOVAL STEPS (Continued)

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-30

Required Special Tool:
MD998051: Cylinder Head Bolt Wrench

REMOVAL SERVICE POINT

.

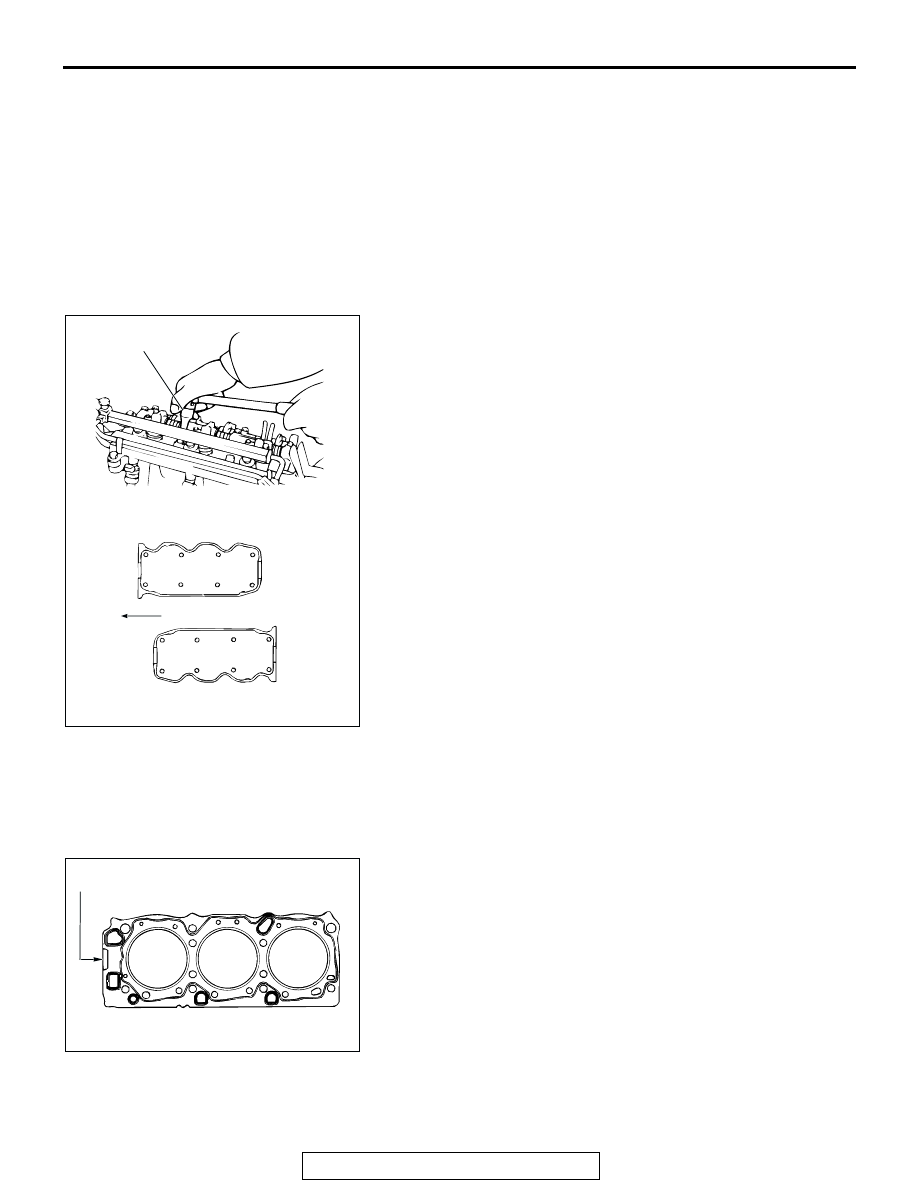

<<A>> CYLINDER HEAD ASSEMBLY REMOVAL
Use special tool MD998051 to tighten each bolt two or three
steps in the order shown in the illustration.

INSTALLATION SERVICE POINTS

.

>>A<< CYLINDER HEAD GASKET INSTALLATION
1. Degrease the cylinder head and cylinder block gasket

mounting surfaces.

2. Make sure that the gasket has the proper identification mark

for the engine.

3. Lay the cylinder head gasket on the cylinder block with the

identification mark at the front top.

.

16. ROCKER COVER
17. CAMSHAFT POSITION

SENSOR CONNECTOR

<<A>>

>>B<<

18. CYLINDER HEAD ASSEMBLY

>>A<<

19. CYLINDER HEAD GASKET

REMOVAL STEPS (Continued)

ACX00352AB

MD998051

EXHAUST SIDE

EXHAUST SIDE

INTAKE SIDE

RIGHT
BANK

LEFT
BANK

FRONT

1

2

3

4

5

6

7

8

8

7

4

1

5

6

2

3

ACX00349AB

IDENTIFICATION MARK

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-31

>>B<< CYLINDER HEAD ASSEMBLY INSTALLATION

CAUTION

Be careful that no foreign material gets into the cylinder,
coolant passages or oil passages. Engine damage may
result.
1. Use a scraper to clean the gasket surface of the cylinder

head assembly.

CAUTION

Install the head bolt washers with the beveled side facing
upwards as shown in the illustration.

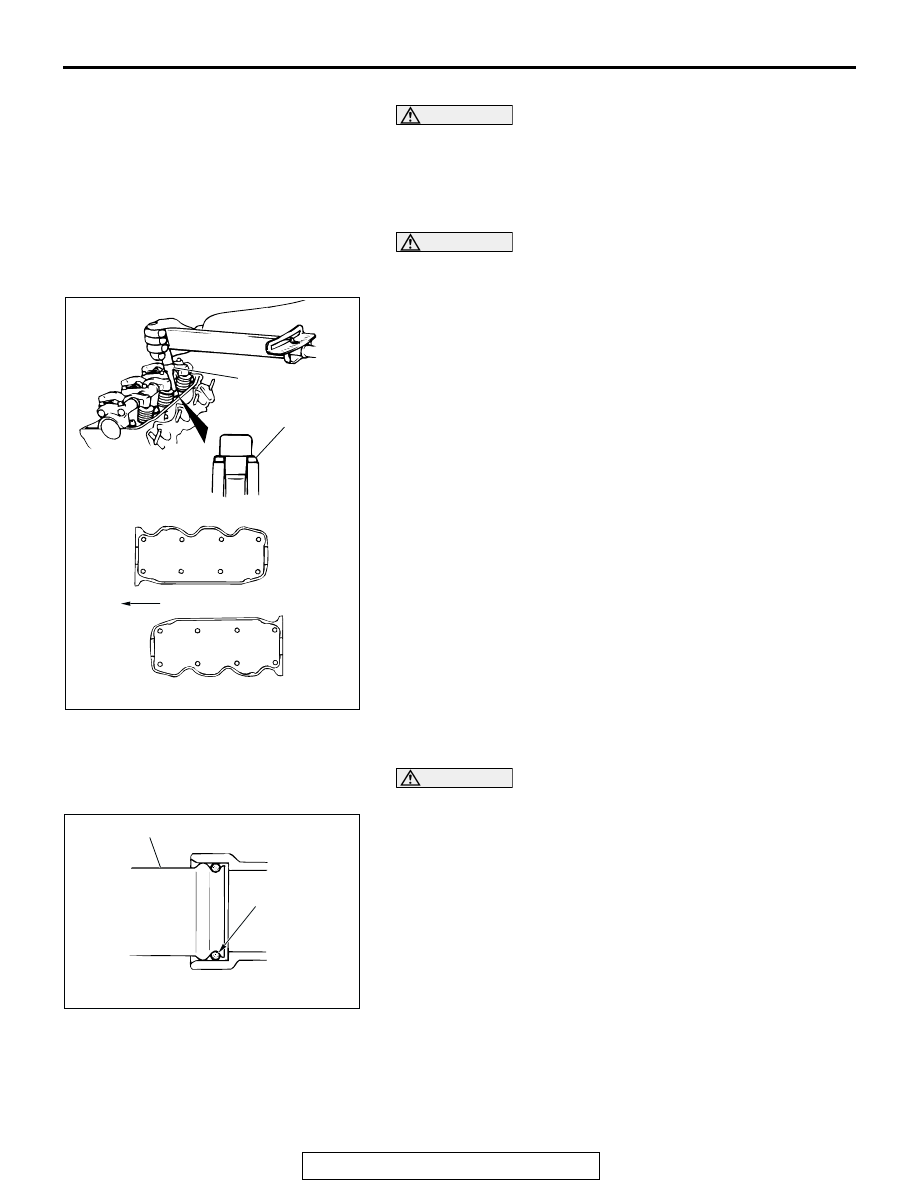

2. Using special tool MD998051 and a torque wrench, tighten

the bolts to the specified torque in the order shown in the
illustration. (in two or three cycles)

Tightening torque: 108

± 5 N⋅m (80 ± 3 ft-lb)

.

>>C<< O-RING INSTALLATION

CAUTION

Never apply lubricant such as engine oil to the O-ring.
Install the O-ring into the groove of the pipe, and then apply
water around the O-ring.

.

ACX00348

MD998051

EXHAUST SIDE

EXHAUST SIDE

FRONT

INTAKE SIDE

RIGHT
BANK

LEFT
BANK

CYLINDER
BOLT
WASHER

AB

1

2

3

4

5

6

7

8

8

7

4

1

5

6

2

3

ACX00758AB

PIPE

O-RING

CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-32

>>D<< GASKET/WATER PASSAGE ASSEMBLY
INSTALLATION

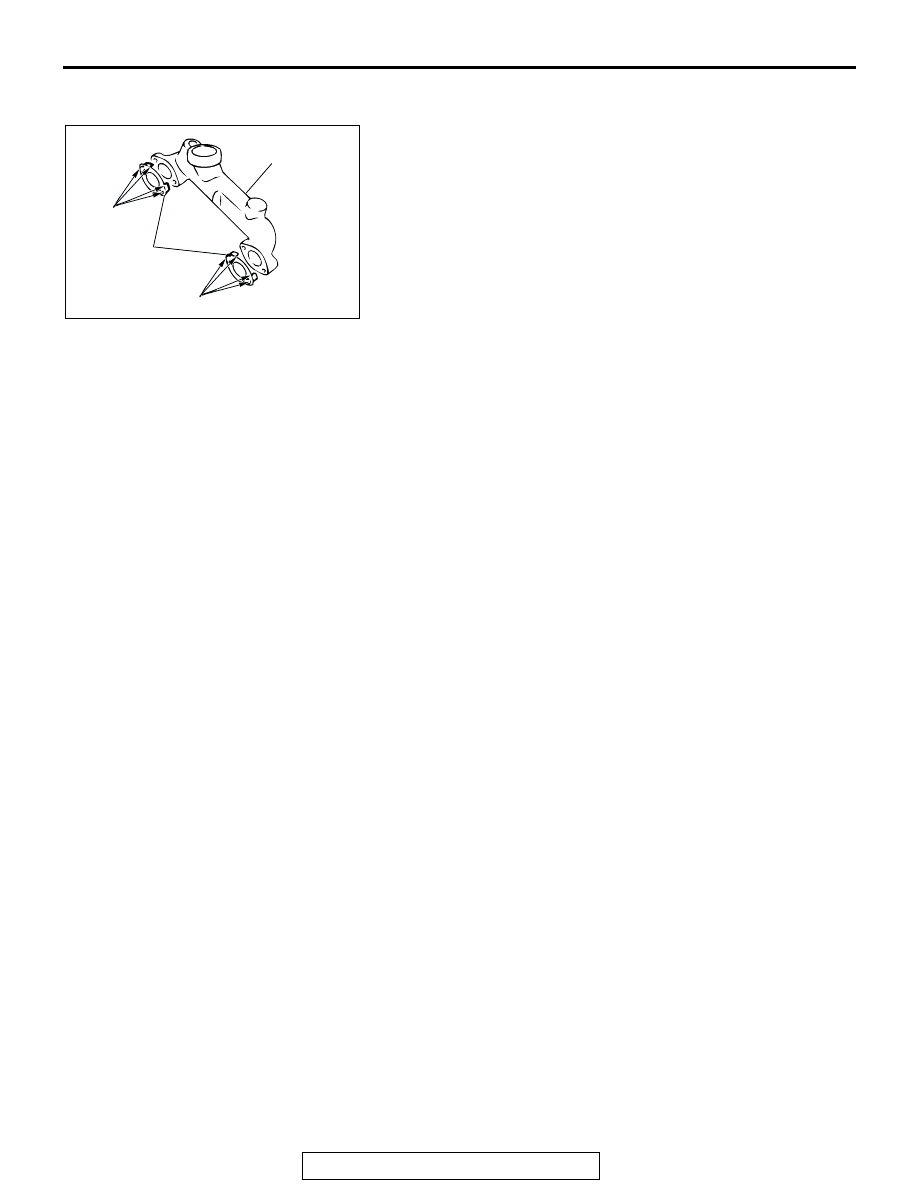

Bend the tabs onto the water passage assembly. Then install
the water passage assembly to the cylinder head so that the
gasket doesn't slip.

ACX00344AB

WATER PASSAGE
ASSEMBLY

TABS

TABS

GASKET
