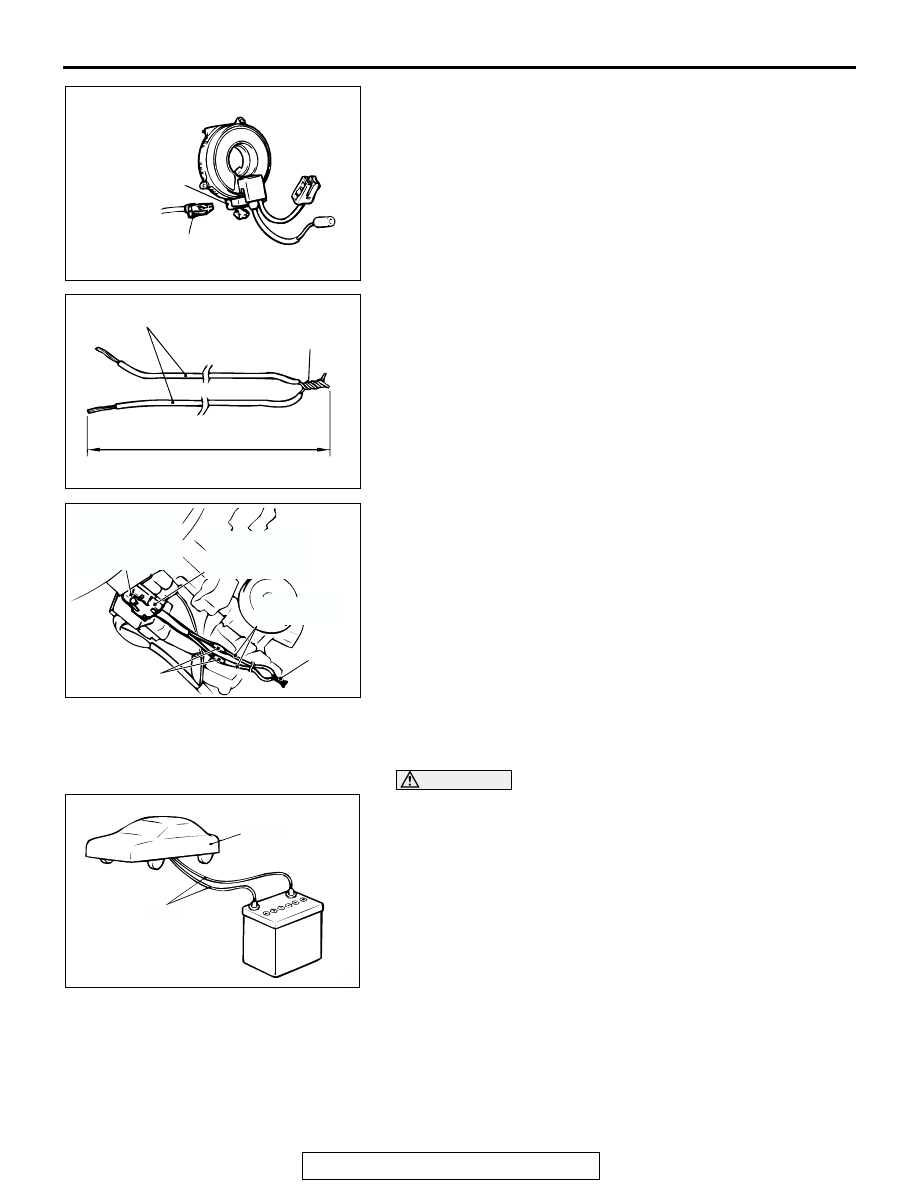

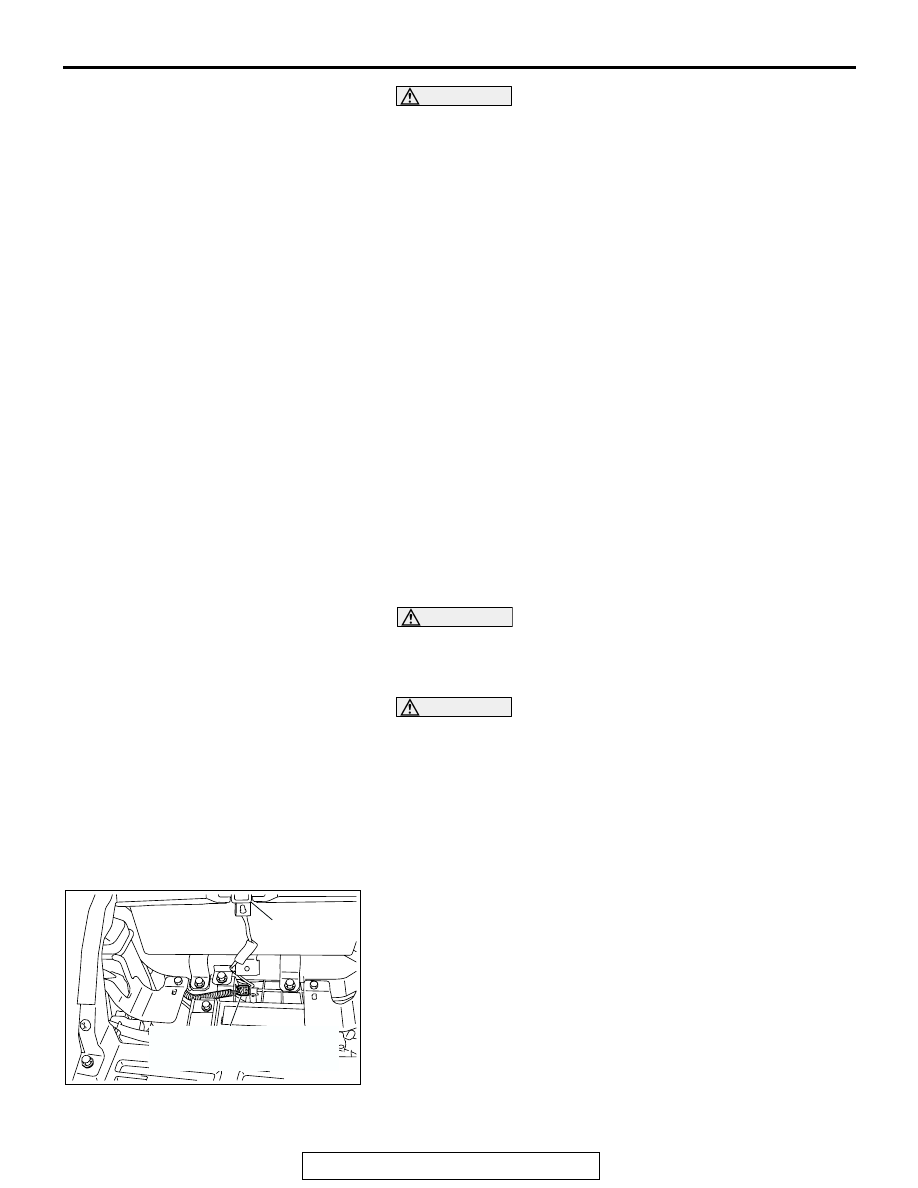

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES TSB Revision SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52Ba-49 4. Remove the connection between the D-206 clock spring connector (four-pin, yellow) and the harness connector 5. Obtain two suitable wires, which are 6 meters (20 feet) or longer, as deployment wires. Then connect the wires at one 6. Cut with a nipper, etc. the instrument panel wiring harness shown in the Figure of the instructions, while the D-206 7. Individually connect a harness on the two harnesses disconnected, cover the connection areas with insulation 8. Connect the D-206 harness side connector connected with an expansion harness to the D-206 clock spring connector. WARNING If the glass is scratched, air bag deployment could 9. To suppress the operation sound as much as possible completely close all door windows, close the doors and put ACX00605 AC D-206 D-206 HARNESS AC100450AD DEPLOYMENT WIRES CONNECTION 6m (20 ft) OR LONGER AC106740 DEPLOYMENT AG INSULATOR D-206 CONNECTION D-206 HARNESS ACX01308AC DEPLOYMENT WIRE COVER |
