TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-569

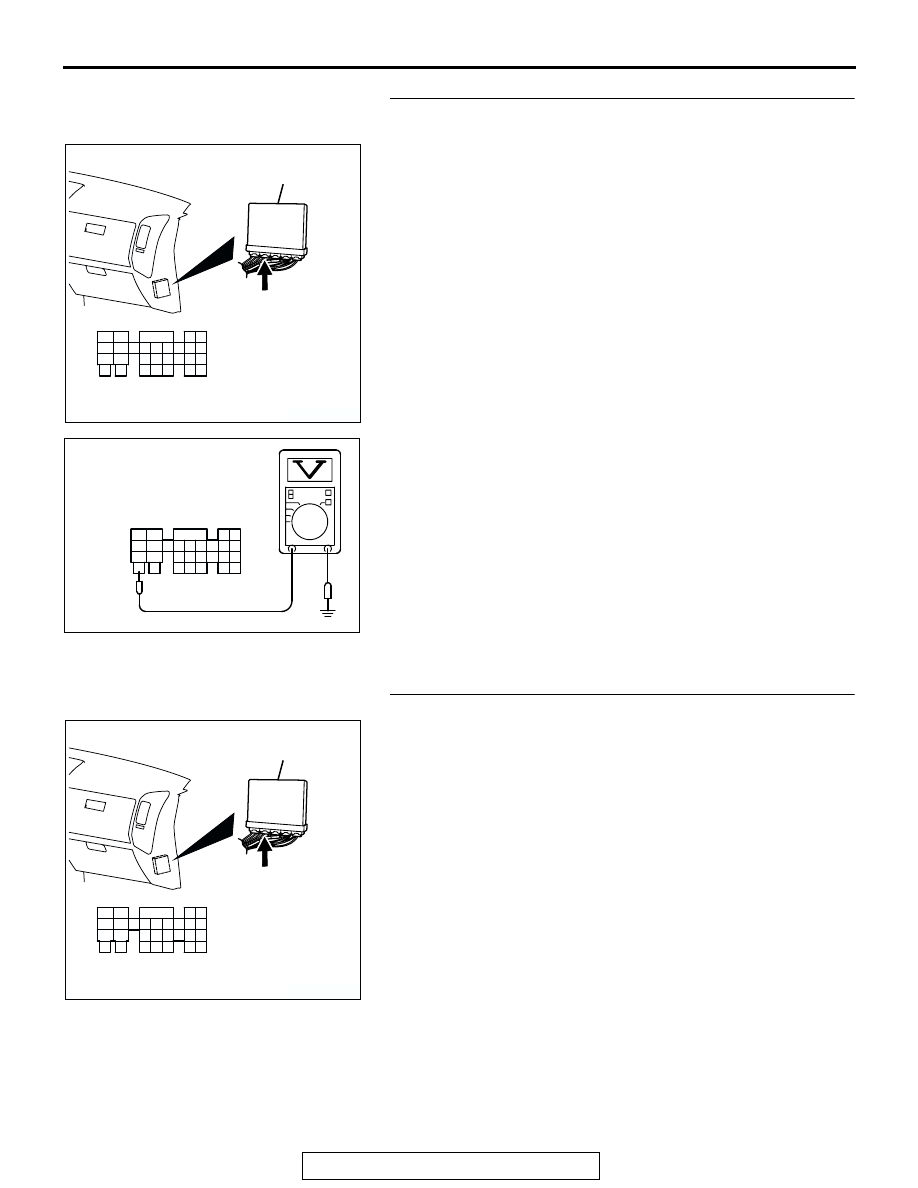

STEP 3. Measure the backup power supply voltage at PCM
harness side connector D-133.
(1) Disconnect the PCM connector D-133 and measure at the

harness side.

(2) Measure the voltage between terminal No. 58 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 4.
NO :  Check connector A-03 at intermediate connector for

damage, and repair or replace as required. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-

2

. If intermediate connector is in good condition,

repair harness wire between fusible link (5) and PCM
connector D-133 (terminal No. 58) because of open
circuit or short circuit to ground. Then go to Step 6.

STEP 4. Check connector D-133 at PCM for damage.
Q: Is the harness connector in good condition?

YES : Check connector A-03 at intermediate connector for

damage, and repair or replace as required. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-

2

. If intermediate connector is in good condition,

repair harness wire between battery and PCM
connector D-133 (terminal No. 58) because of
harness damage. Then go to Step 6.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

AK201428

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

D-133 HARNESS
CONNECTOR:
COMPONENT SIDE

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-570

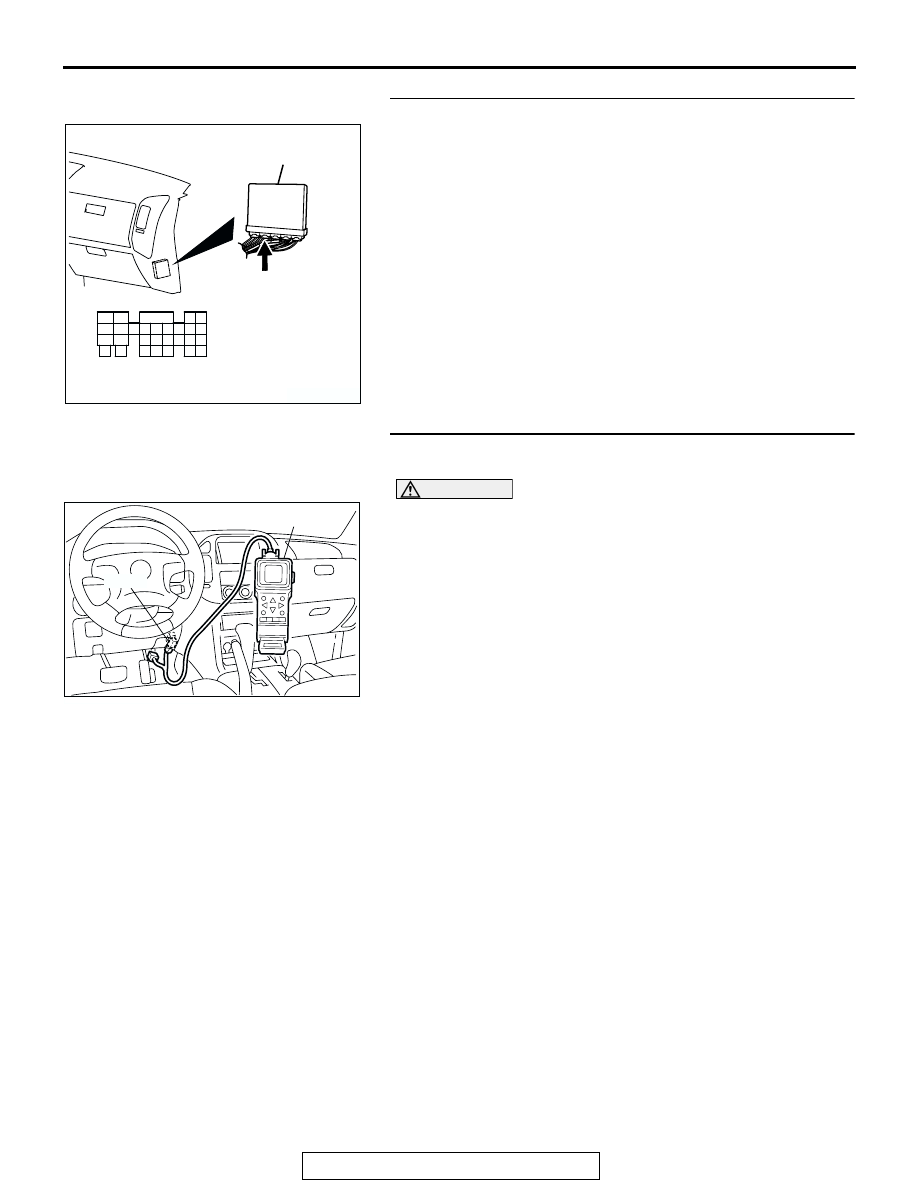

STEP 5. Check connector D-133 at PCM for damage.
Q: Is the harness connector in good condition?

YES : Replace the PCM. Then go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

STEP 6. Using scan tool MB991502, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P1603 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK200939

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

52

53

54

55

56

57

58

50

51

AB

CONNECTOR: D-133

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-133(GR)

ACX01539

16-PIN

MB991502

AC

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-571

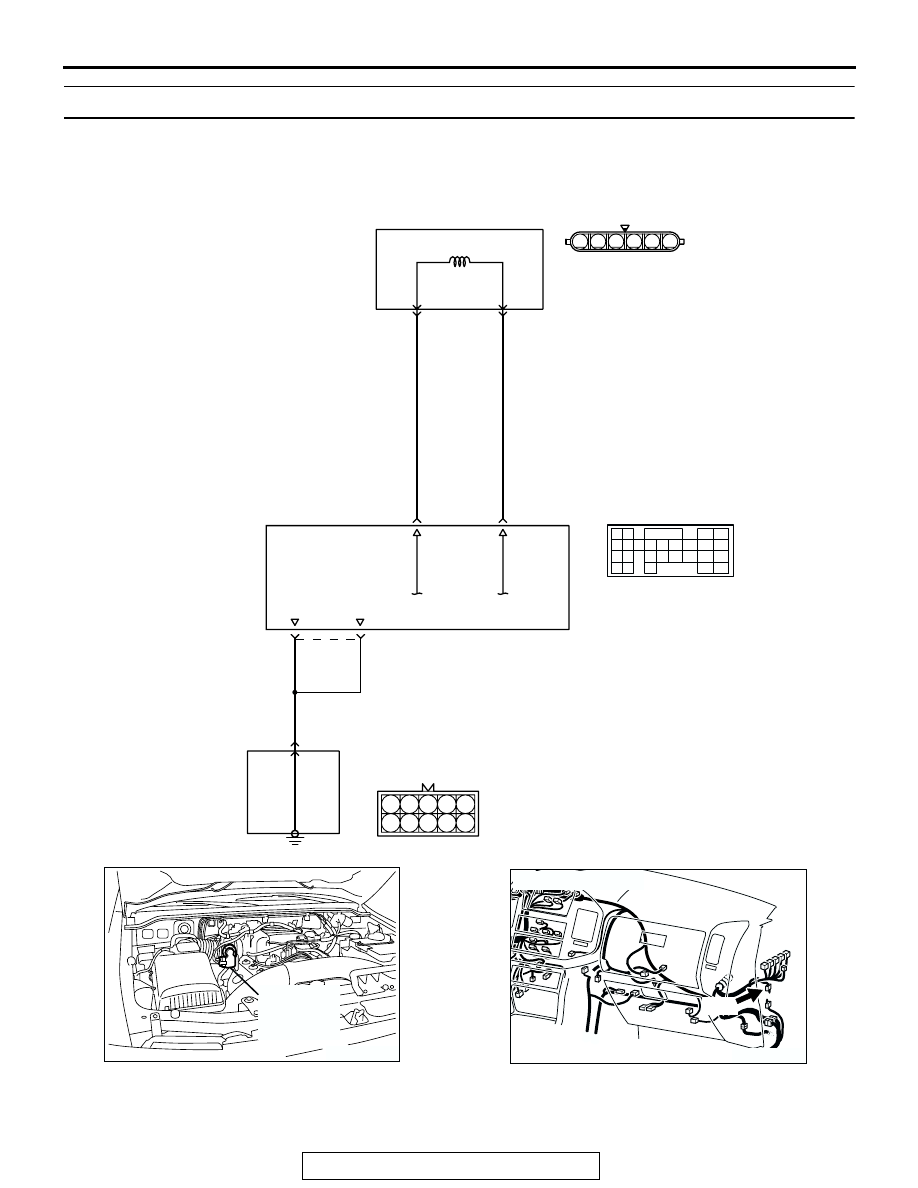

P2100 Throttle Actuator Control Motor Circuit (Open)

AK201406

GREEN-

WHITE

GREEN-

YELL

OW

B-05

133

8

6

THROTTLE
ACTUATOR
CONTROL
MOTOR

POWERTRAIN
CONTROL
MODULE

GROUND
JOINT
CONNECTOR

141

144

145

5

6

1 2 3 4 5

D-14

(MU801335)

BL

ACK

BL

ACK

BL

ACK

GND

GND

1

2 3

6

7 8

4 5

9 10

D-136

(MU803801)

121122

123

125126127128129 130 131 132

134135

136 137 138 139 140

142143

144

145

124

133

141

146

AK201173AC

THROTTLE
ACTUATOR
CONTROL
MOTOR

AK201049

D-14

AB

CONNECTOR: D-14

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-572

.

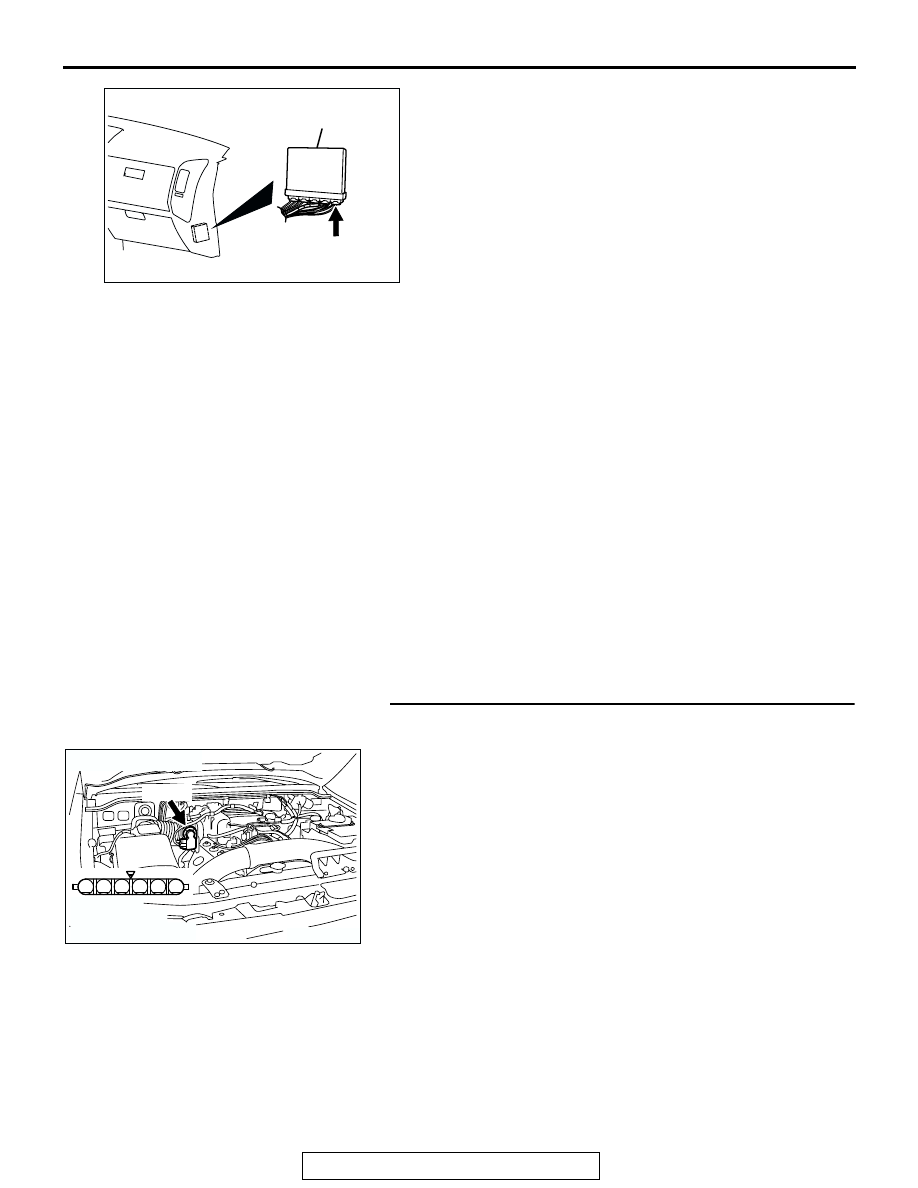

CIRCUIT OPERATION

• Controls the current that is applied from the PCM

(terminals No. 133, No. 141) to the throttle actua-
tor control motor (terminals No. 5, No. 6).

.

TECHNICAL DESCRIPTION

• PCM varies the direction and the amperage of

the current that is applied to the throttle actuator
control motor in order to control the opening of
the throttle valve.

.

DTC SET CONDITIONS

Check Condition

• Battery positive voltage is higher than 8.3 volts.

Judgement Criteria

• Throttle actuator control motor current should be

0.1 amperes or less for 0.72 seconds.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Throttle actuator control motor failed or malad-

justed.

• Open or shorted throttle actuator control motor

circuit, or loose connector.

• PCM failed.

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

STEP 1. Check connector B-05 at throttle actuator control
motor for damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 8.

AK201038AI

CONNECTOR: D-136

PCM

D-136(GR)

AK201174

1

6 5 4 3 2

B-05(B)

CONNECTOR: B-05

HARNESS
CONNECTOR:
COMPONENT SIDE

AB
