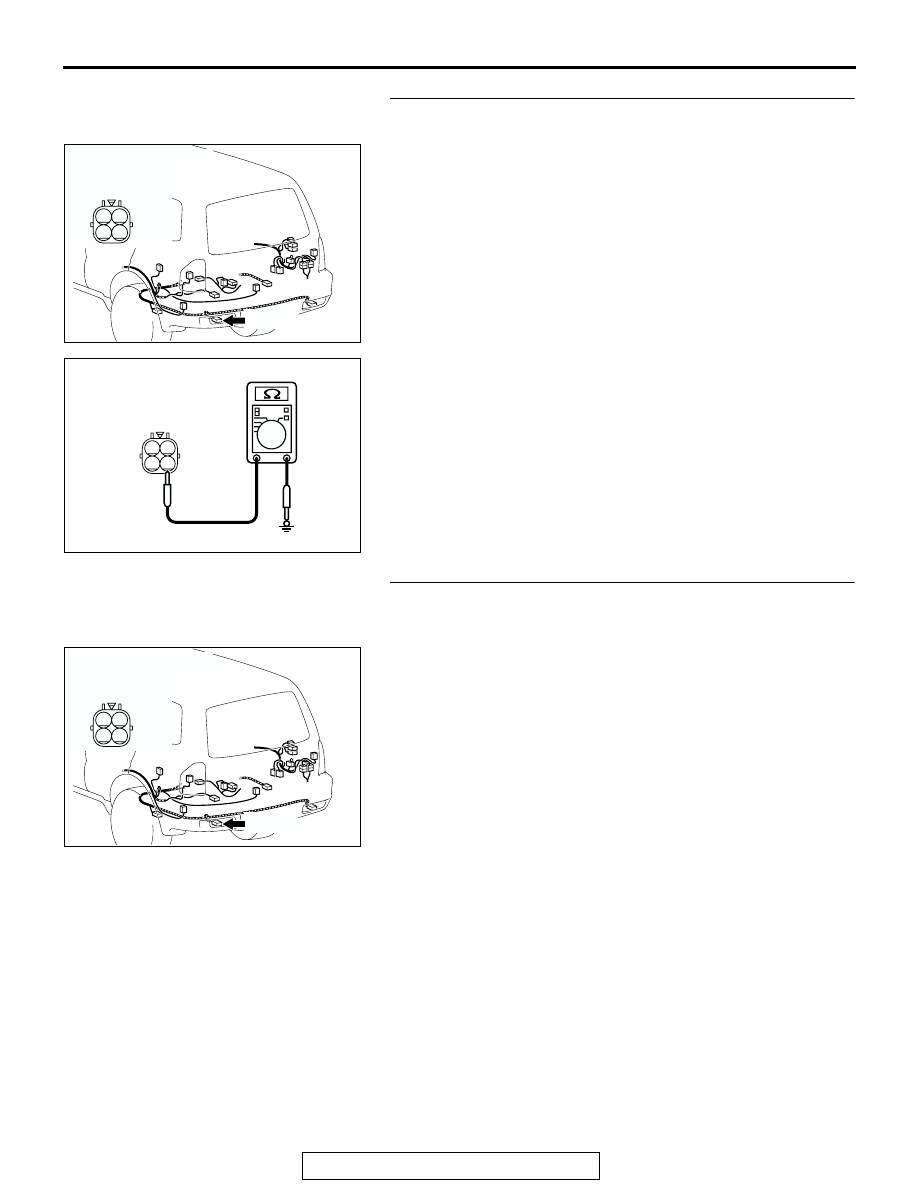

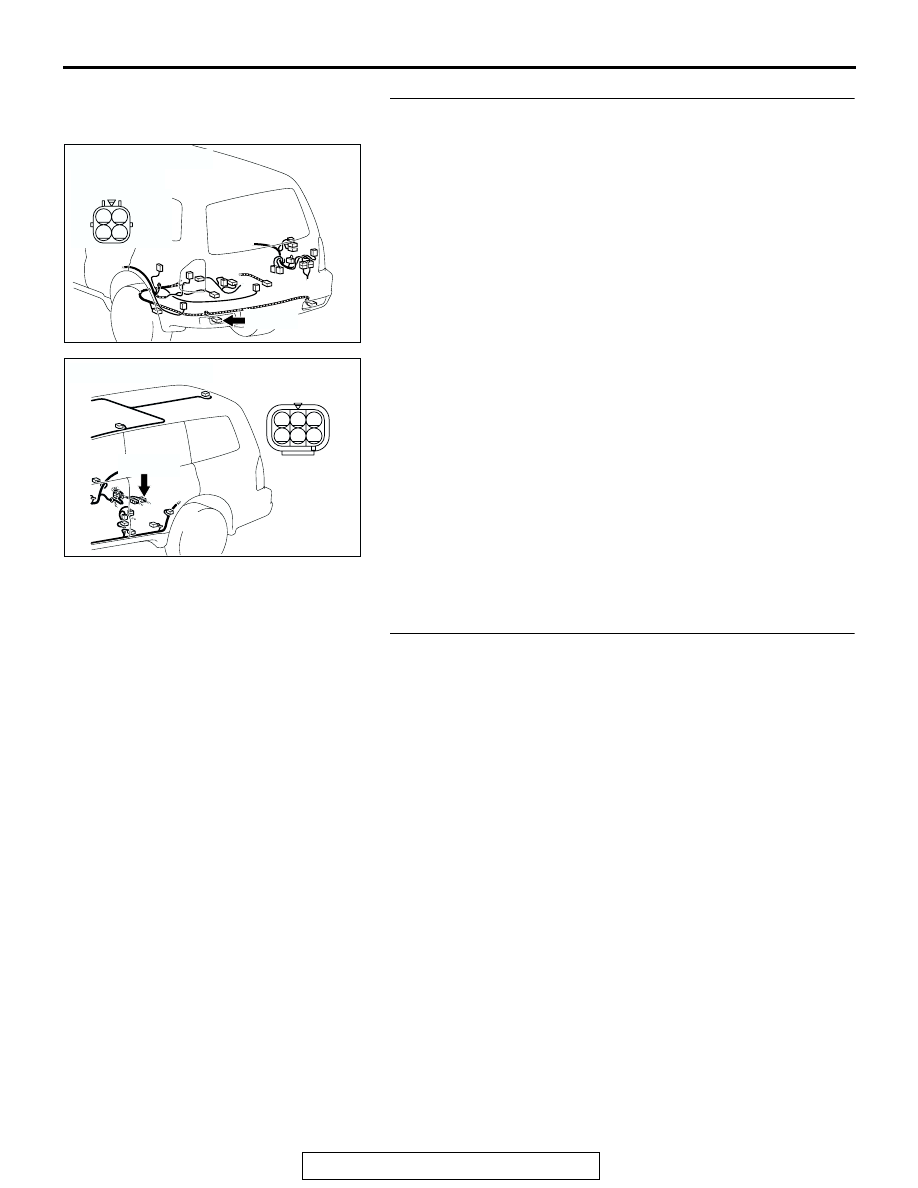

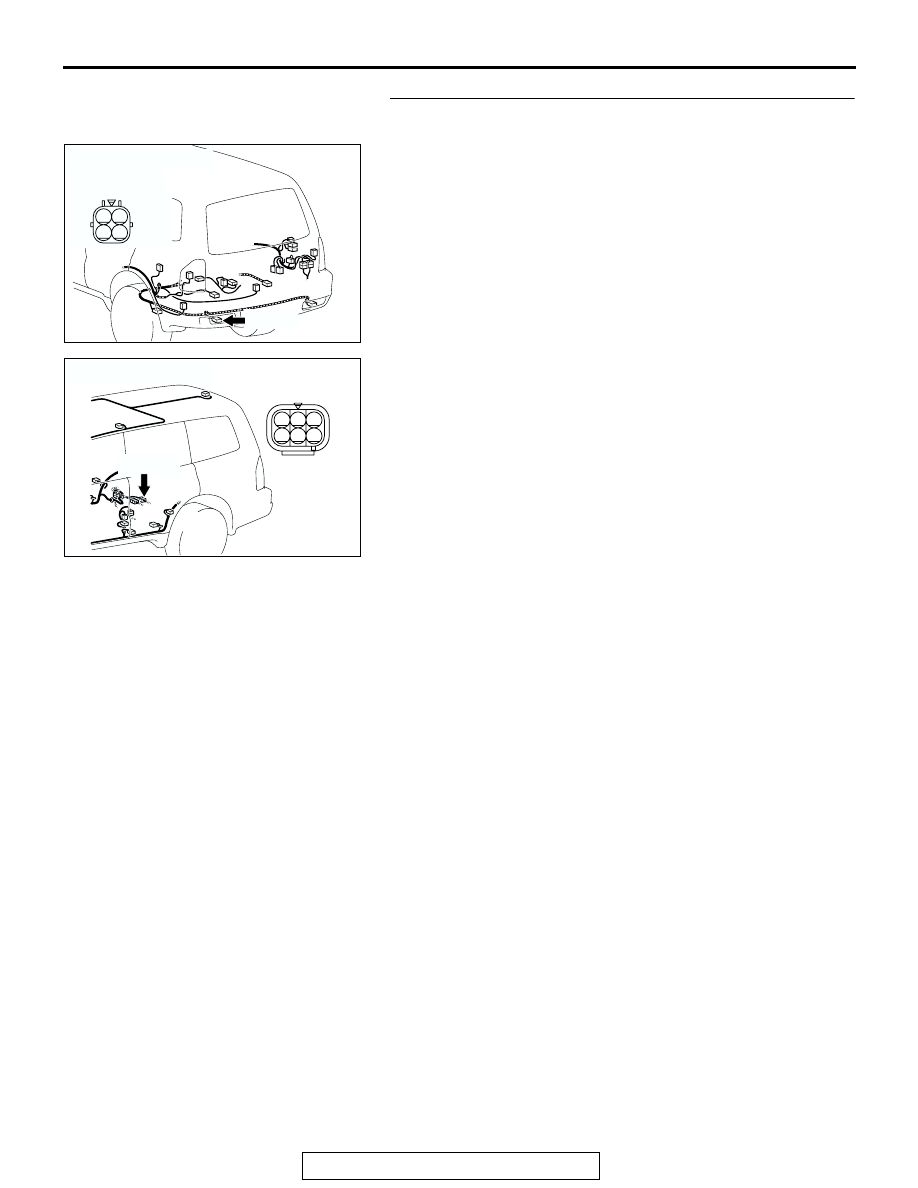

SYMPTOM PROCEDURES TSB Revision SWS SYMPTOM PROCEDURES 54Bb-335 STEP 23. Check the ground circuit to the taillight (LH). Test resistance available at the wiring harness side of the (2) Measure the resistance value between terminal 3 and ground. • The resistance should equal 2 ohms or less. Q: Is the measured resistance 2 ohms or less? YES : No action is necessary and testing is complete. STEP 24. Check rear light (LH) connector G-16 for loose, YES : Go to Step 25. to GROUP 00E, Harness Connector Inspection . Verify that the taillights illuminate normally. AC204179 CONNECTOR : G-16 AH HARNESS SIDE G-16(B) G-16(B) 3 4 2 1 4 1 2 3 AC100265AB CONNECTOR G-16 AC204179 CONNECTOR : G-16 AH HARNESS SIDE G-16(B) G-16(B) 3 4 2 1 |
