ACTIVE TRAC 4WD II SYSTEM

TSB Revision

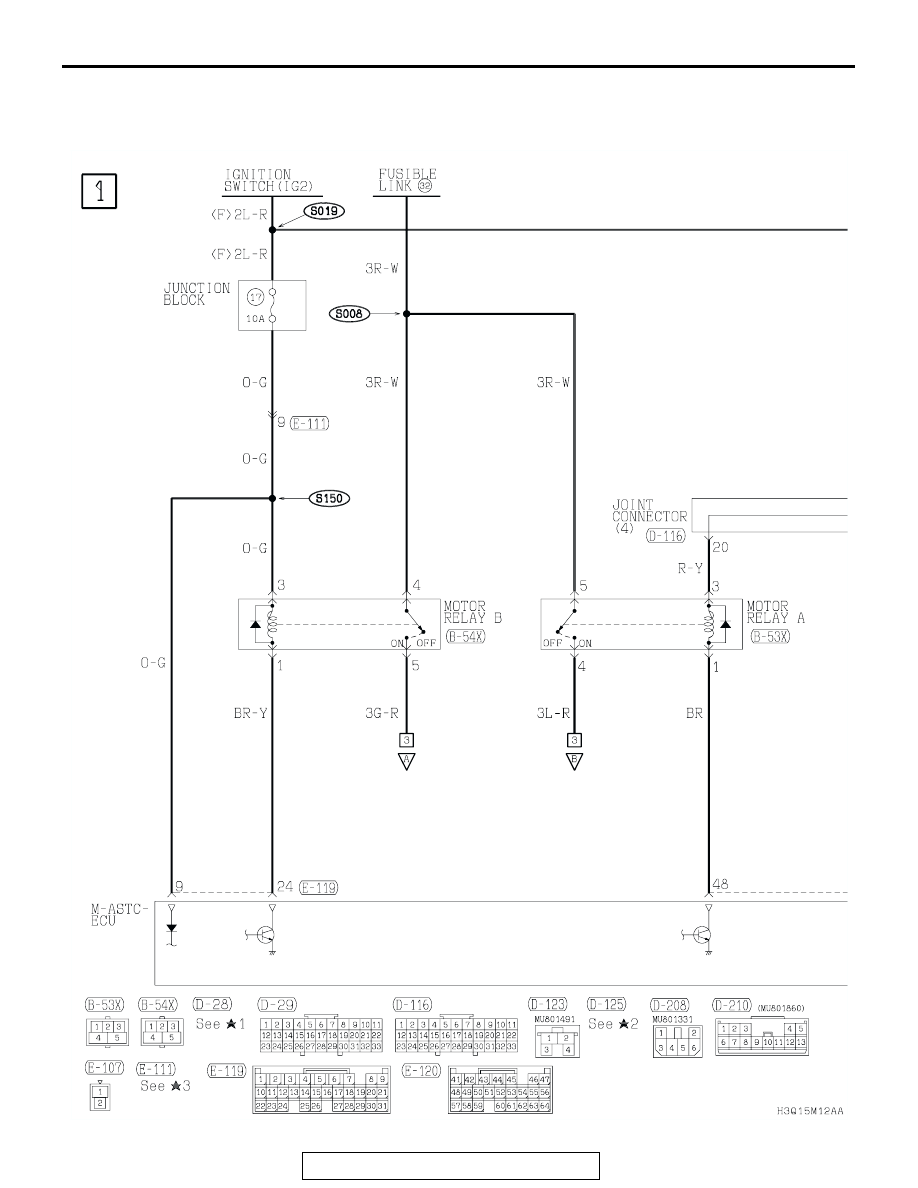

CIRCUIT DIAGRAMS

90-231

ACTIVE TRAC 4WD II SYSTEM

TSB Revision

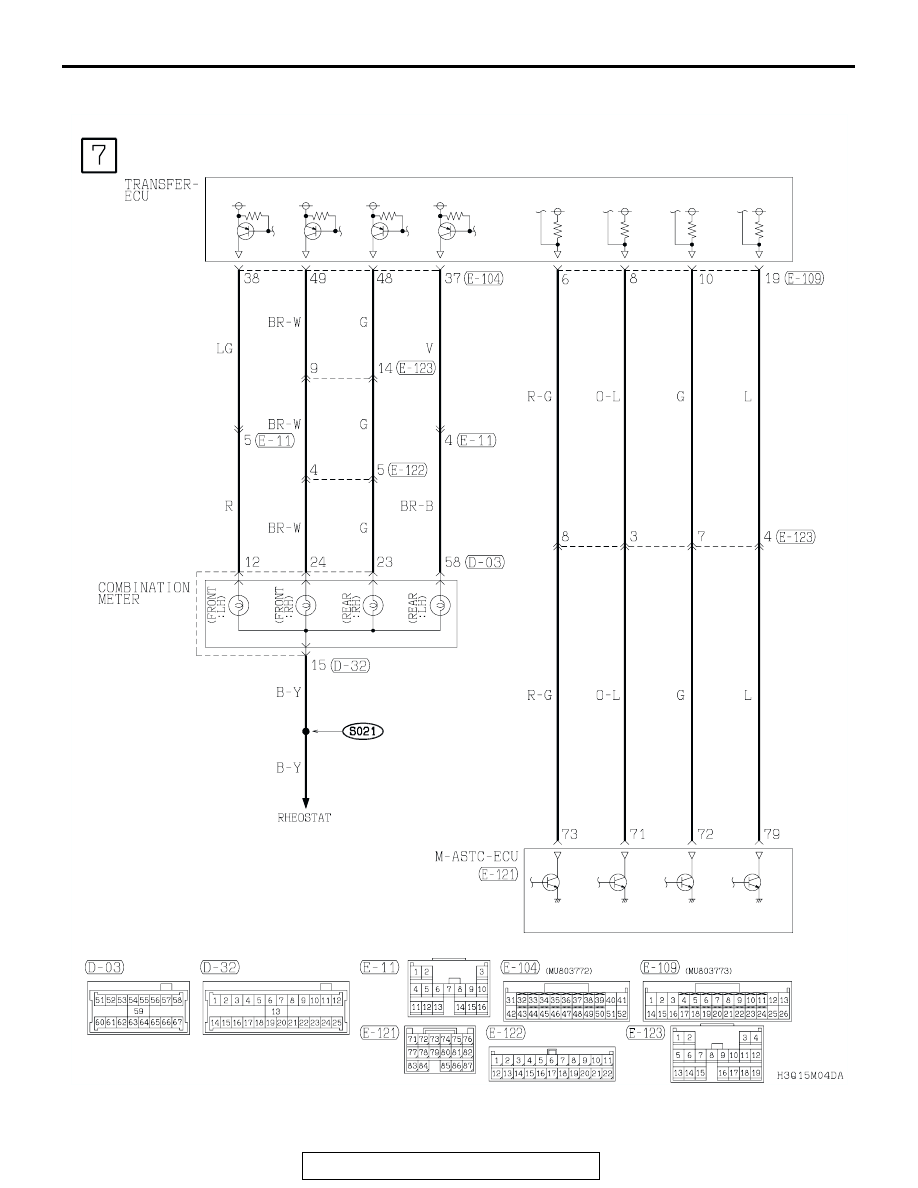

CIRCUIT DIAGRAMS

90-232

ACTIVE TRAC 4WD II SYSTEM (CONTINUED)

ACTIVE TRAC 4WD II SYSTEM

TSB Revision

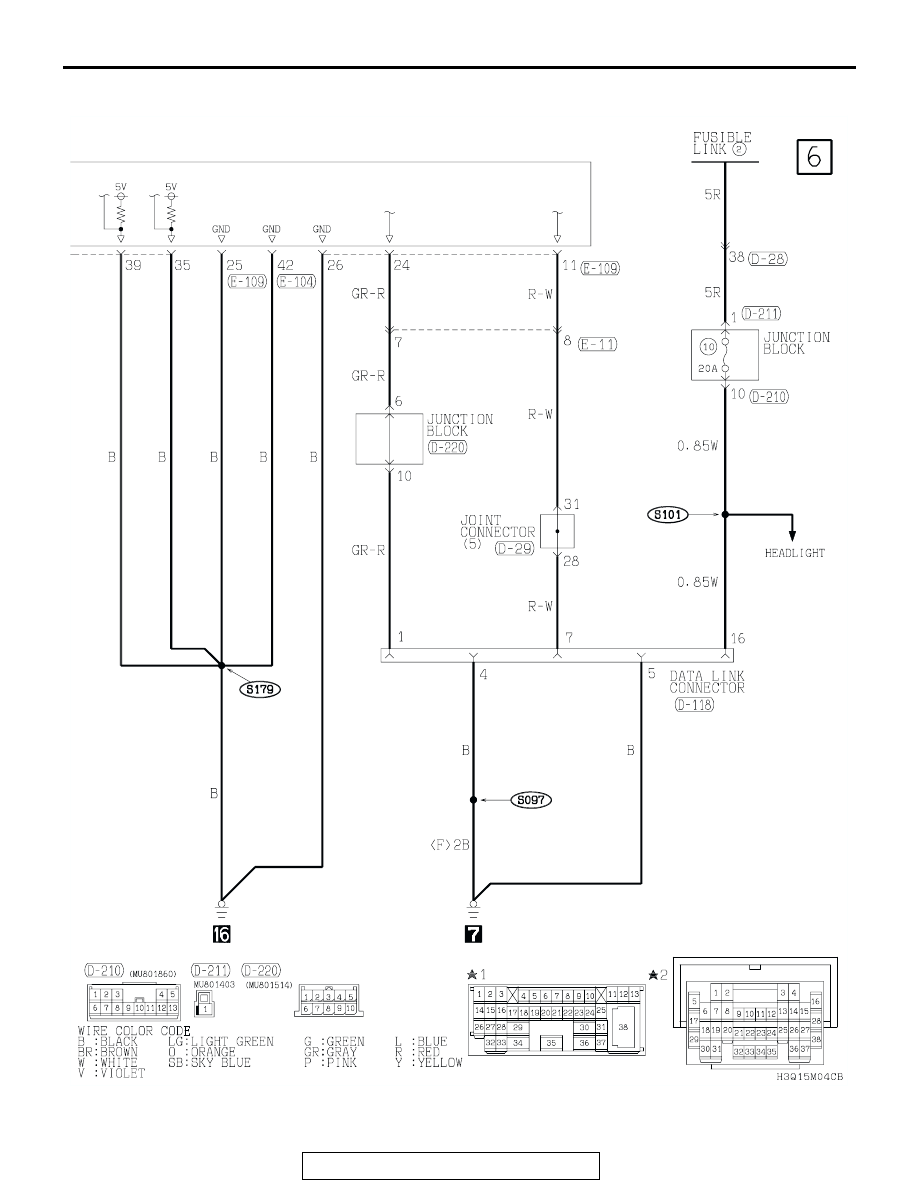

CIRCUIT DIAGRAMS

90-233

NOTES

HYDRAURIC BRAKE BOOSTER (HBB), ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD), ANTI-LOCK BRAKING

TSB Revision

CIRCUIT DIAGRAMS

90-234

HYDRAURIC BRAKE BOOSTER (HBB), ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD), ANTI-LOCK

BRAKING SYSTEM (ABS) AND MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM (M-ASTC)

M1901015500021

HBB, EBD, ABS AND M-ASTC
