MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-533

STEP 3. Check the compression.

Refer to GROUP 11A, On-Vehicle Service

− Compression

Pressure Check

P.11A-16

.

Q: Are there any abnormalities?

YES : Repair or replace it. Then go to Step 5.
NO :  Go to Step 4.

STEP 4. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0304 set?

YES : Replace the PCM. Then go to Step 5.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0304 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-534

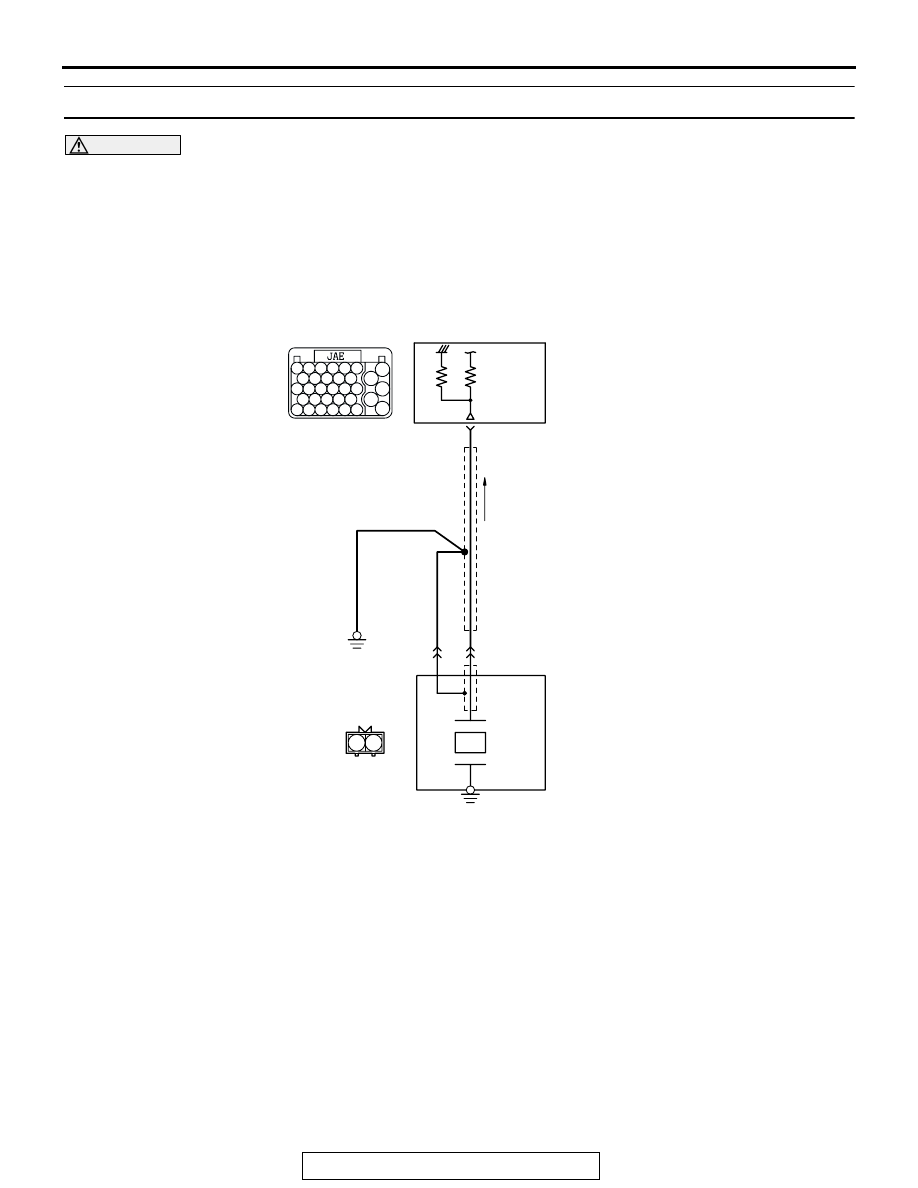

DTC P0325: Knock Sensor Circuit

CAUTION

If DTC P0325 has been set, TCL related DTC
U1120 is also set. After P0325 has been diag-
nosed, don't forget to erase DTC U1120.

2

1

AK303854

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

WHITE

BLA

CK

BLA

CK

59

KNOCK SENSOR

2

1

B-120

MU802661

B-21

POWERTRAIN CONTROL
MODULE (PCM)

Knock Sensor Circuit

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-535

.

CIRCUIT OPERATION

• The knock sensor sends a signal voltage to the

PCM (terminal No. 59).

.

TECHNICAL DESCRIPTION

• The knock sensor converts the vibration of the

cylinder block into a voltage and outputs it. If
there is a malfunction of the knock sensor, the
voltage output will not change.

• The PCM checks whether the voltage output

changes.

.

DTC SET CONDITIONS

Check Conditions

• 2 seconds or more have passed since the start-

ing sequence was completed.

• Engine speed is higher than 2,500 r/min.

Judgment Criteria

• Knock sensor output voltage (knock sensor peak

voltage in each 1/2 turn of the crankshaft) has not
changed more than 0.06 volt in the last consecu-
tive 200 periods.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Knock sensor failed.

• Open or shorted knock sensor circuit, harness

damage or connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

AK303855AB

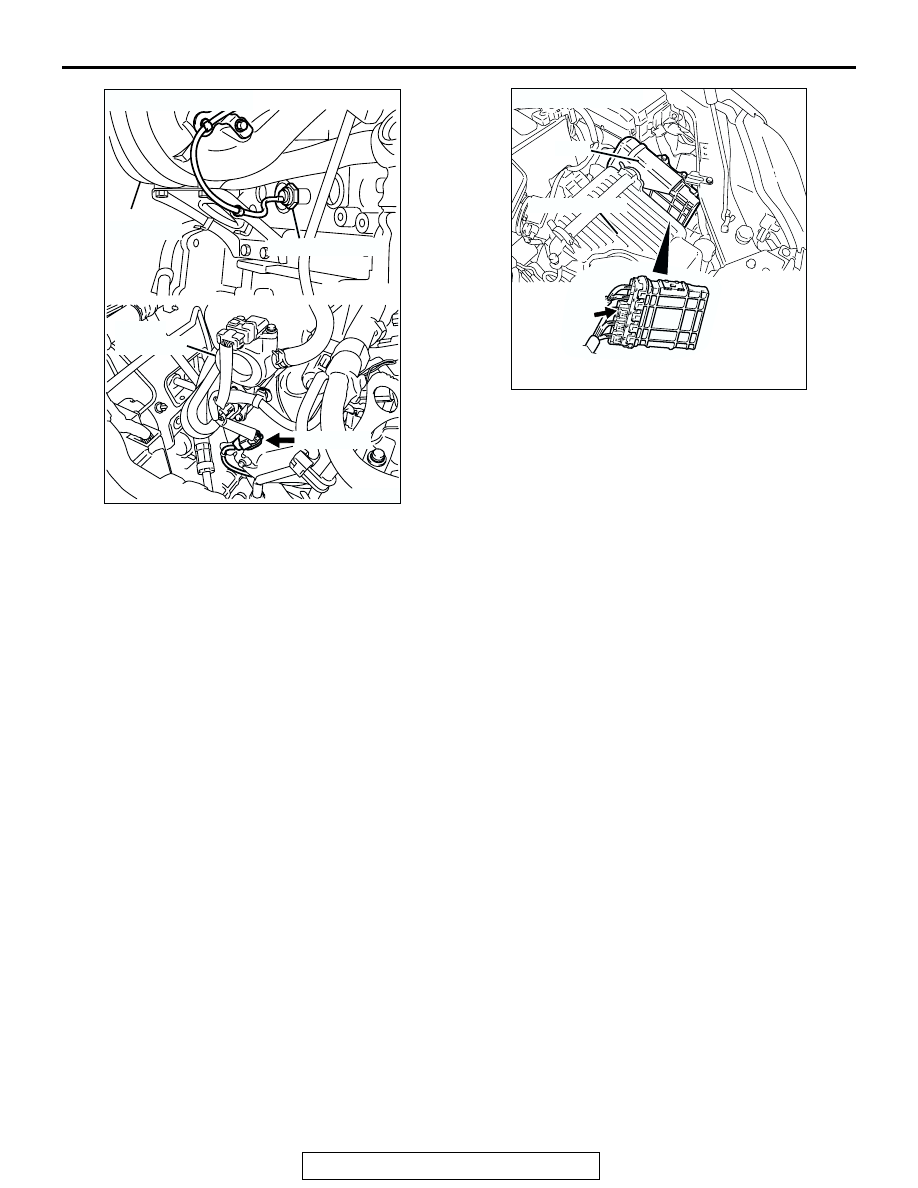

CONNECTOR: B-120

KNOCK SENSOR

INTAKE
MANIFOLD

INTAKE
MANIFOLD

B-120 (GR)

AK303119

CONNECTOR: B-21

PCM

AB

AIR CLEANER

B-21

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-536

STEP 1. Check harness connector B-120 at the knock
sensor for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

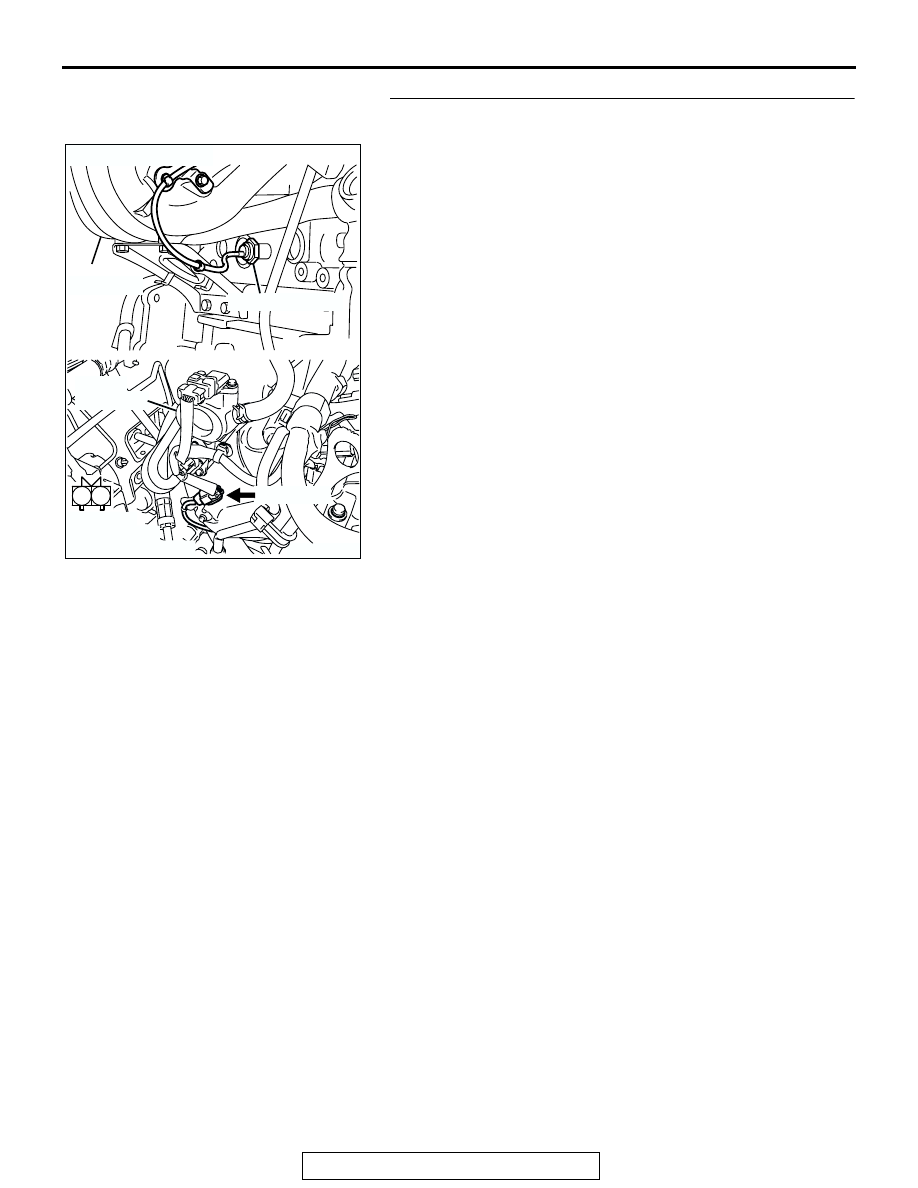

AK303856

1

2

AB

CONNECTOR: B-120

KNOCK SENSOR

B-120 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

INTAKE
MANIFOLD

INTAKE
MANIFOLD
