PARKING BRAKE CABLE

TSB Revision

PARKING BRAKES

36-7

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001900547

Pre-removal Operation
• Floor Console Assembly Removal (Refer to GROUP 52A,

Floor Console Assembly

P.52A-9

).

Post-installation Operation
• Floor Console Assembly Installation (Refer to GROUP

52A, Floor Console Assembly

P.52A-9

).

• Parking Brake Lever Stroke Check and Adjustment (Refer

to

P.36-4

).

AC305772

1

AB

2

N





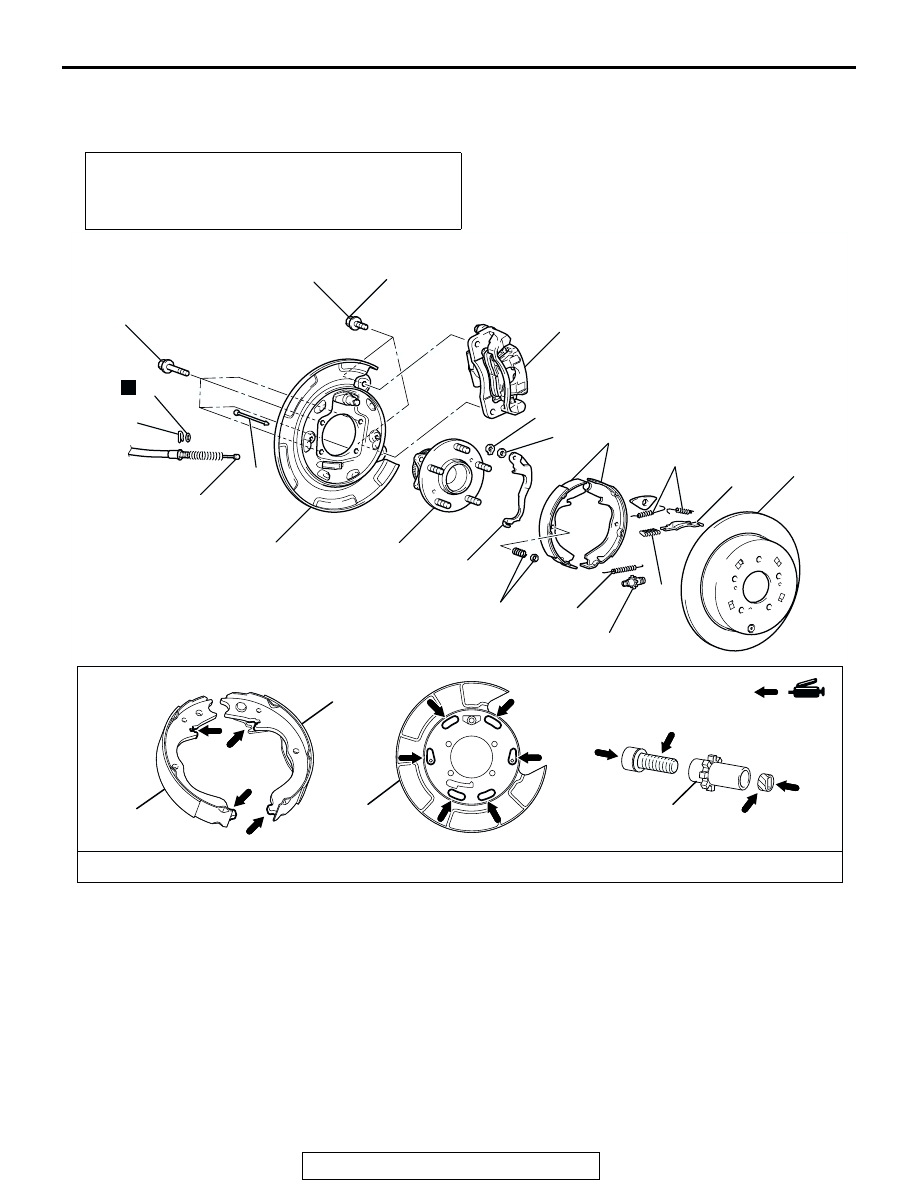

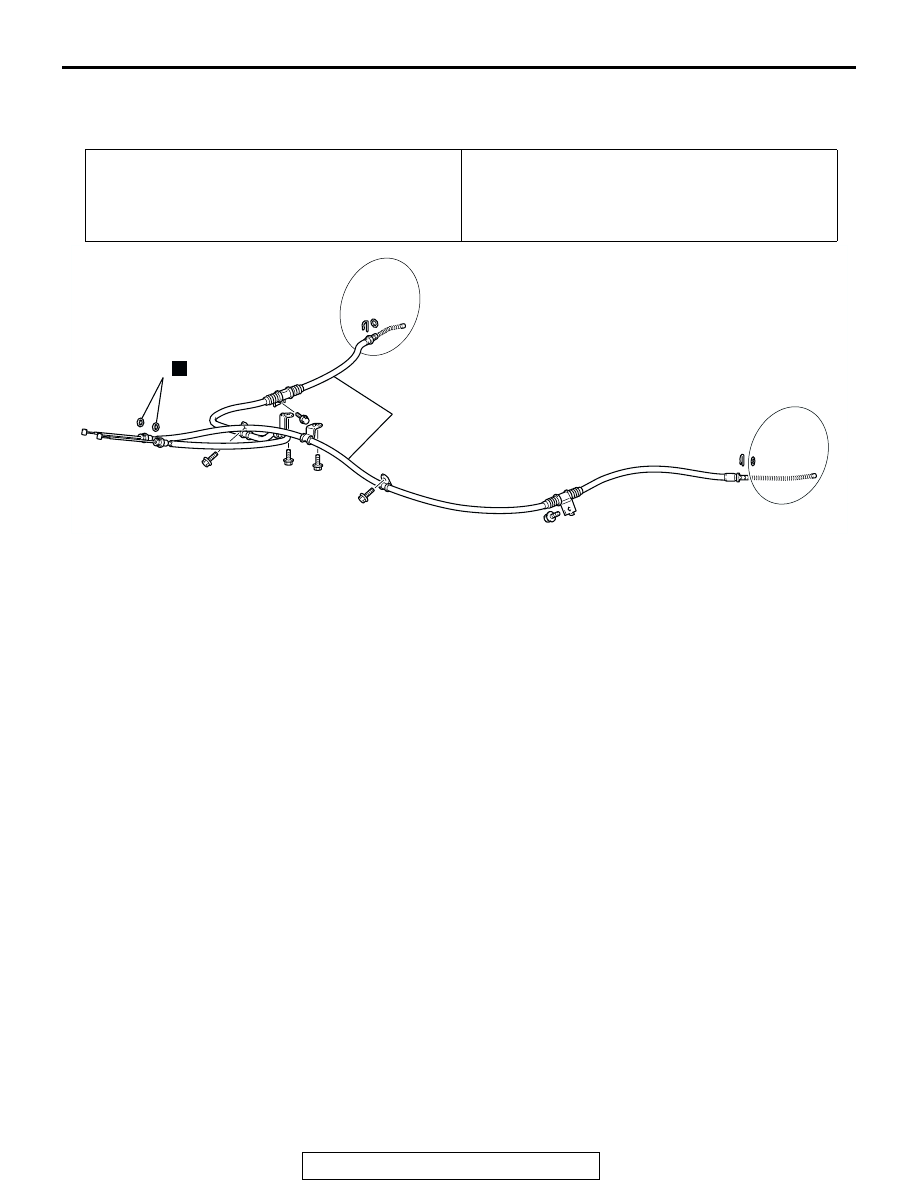

REMOVAL

STEPS





•

SHOE ASSEMBLY (REFER TO

P.36-8

).





•

REAR PARKING BRAKE CABLE TO
BAKING PLATE CONNECTION (REFER
TO

P.36-8

).





•

FRONT PARKING BRAKE CABLE TO
REAR PARKING BRAKE CABLE
CONNECTION (REFER TO

P.36-6

).





1.

REAR PARKING BRAKE CABLE





2.

O-RING

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-8

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500315

Post-installation Operation
• Parking Brake Lever Stroke Check and Adjustment (Refer

to

P.36-4

).

• Parking Brake Lining Seating (Refer to

P.36-5

).

AC306238AB

6

13

13

BRAKE GREASE: BRAKE GREASE SAE J310, NLGI No.1

18

:

1

3

2

4

5

6

7

8

9

10

11

13

14

15

16

17

18

60 ± 5 N·m
45 ± 3 ft-lb

73 ± 7 N·m
54 ± 5 ft-lb

19

12

N





REMOVAL

STEPS

<<A>>

1.  REAR BRAKE BOLT

<<A>>

2.  REAR BRAKE CALIPER

ASSEMBLY

<<B>>

3.  REAR BRAKE DISC



>>C<<

4.

SHOE-TO-ANCHOR SPRING





5. ADJUSTING

WHEEL

SPRING



>>B<<

6.  REAR BRAKE SHOE SLACK

ADJUSTER





7.  PARKING BRAKE OPERATING

LEVER STRUT





8.  STRUT-TO- SHOE SPRING





9.  REAR BRAKE SHOE SPRING

CUP AND SHOE HOLD-DOWN
SPRING





10.  PARKING BRAKE CABLE CLIP





11.  REAR PARKING BRAKE CABLE

CONNECTION





12. O-RING





13.  REAR BRAKE SHOE ASSEMBLY

<<C>> >>A<<

14.  REAR BRAKE CHAMBER

RETAINER



15.  REAR BRAKE WASHER





16.  PARKING BRAKE OPERATING

LEVER





REMOVAL

STEPS

(Continued)

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-9

REMOVAL SERVICE POINTS

.

<<A>> REAR BRAKE BOLT/REAR BRAKE CALIPER
ASSEMBLY REMOVAL
Remove the rear brake caliper assembly and support it with
wire or something similar.

.

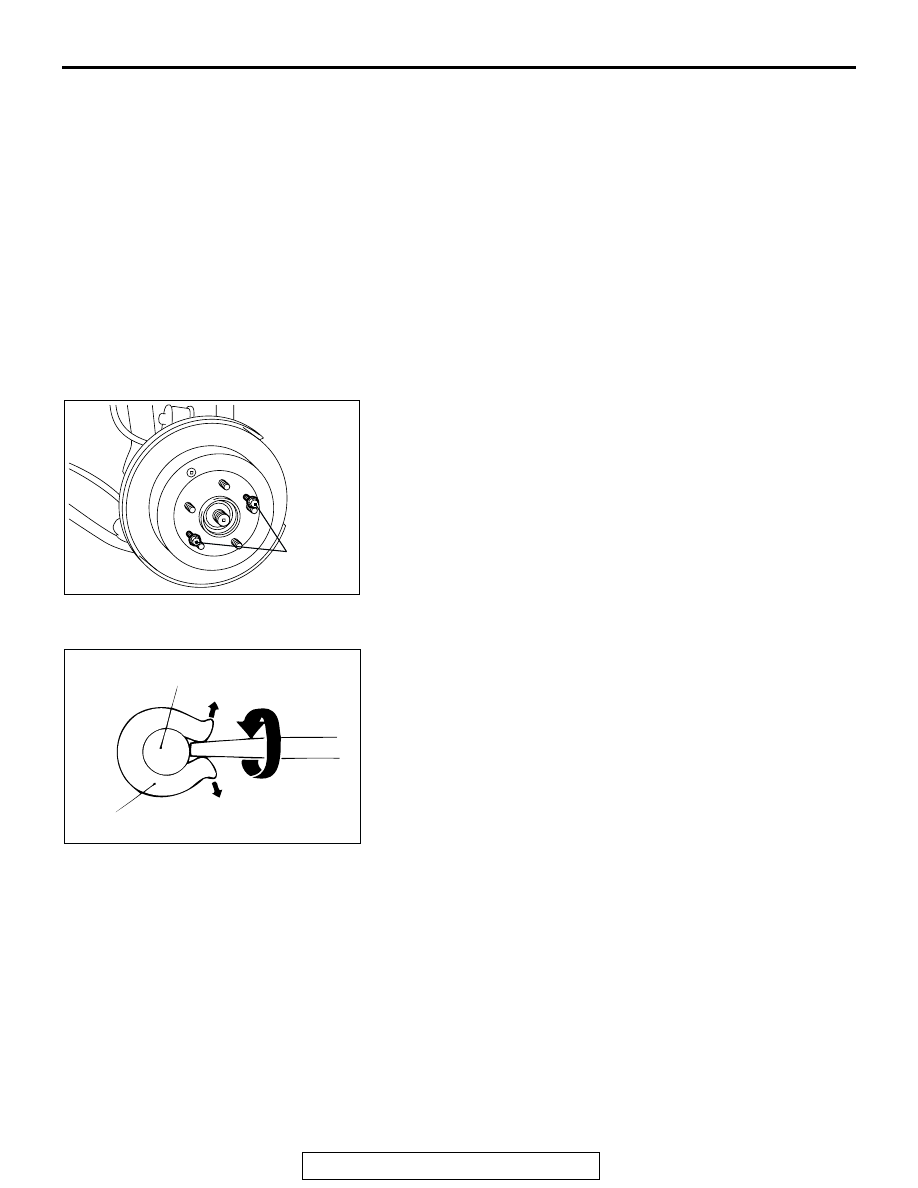

<<B>> REAR BRAKE DISC REMOVAL
If the rear brake disc is seized, install M8

×1.25 bolts as shown,

and remove the rear brake disc by tightening the bolts evenly
and gradually.

.

<<C>> REAR BRAKE CHAMBER RETAINER REMOVAL
Use a flat-tipped screwdriver or a similar tool to open up the
rear brake chamber retainer joint. Then remove the rear brake
chamber retainer.





•

REAR WHEEL SPEED SENSOR
<VEHICLES WITH ABS> (REFER
TO GROUP 35B, WHEEL SPEED
SENSOR

P.35B-112

).





17.  REAR WHEEL HUB ASSEMBLY





18. BACKING PLATE
19. SHOE HOLD-DOWN PIN





REMOVAL

STEPS

(Continued)

AC205986

AB

BOLTS
(M8 × 1.25)

AC000924 AD

PIN OF REAR BRAKE
SHOE ASSEMBLY

REAR BRAKE CHAMBER
RETAINER

PARKING BRAKE LINING AND DRUM

TSB Revision

PARKING BRAKES

36-10

INSTALLATION SERVICE POINTS

.

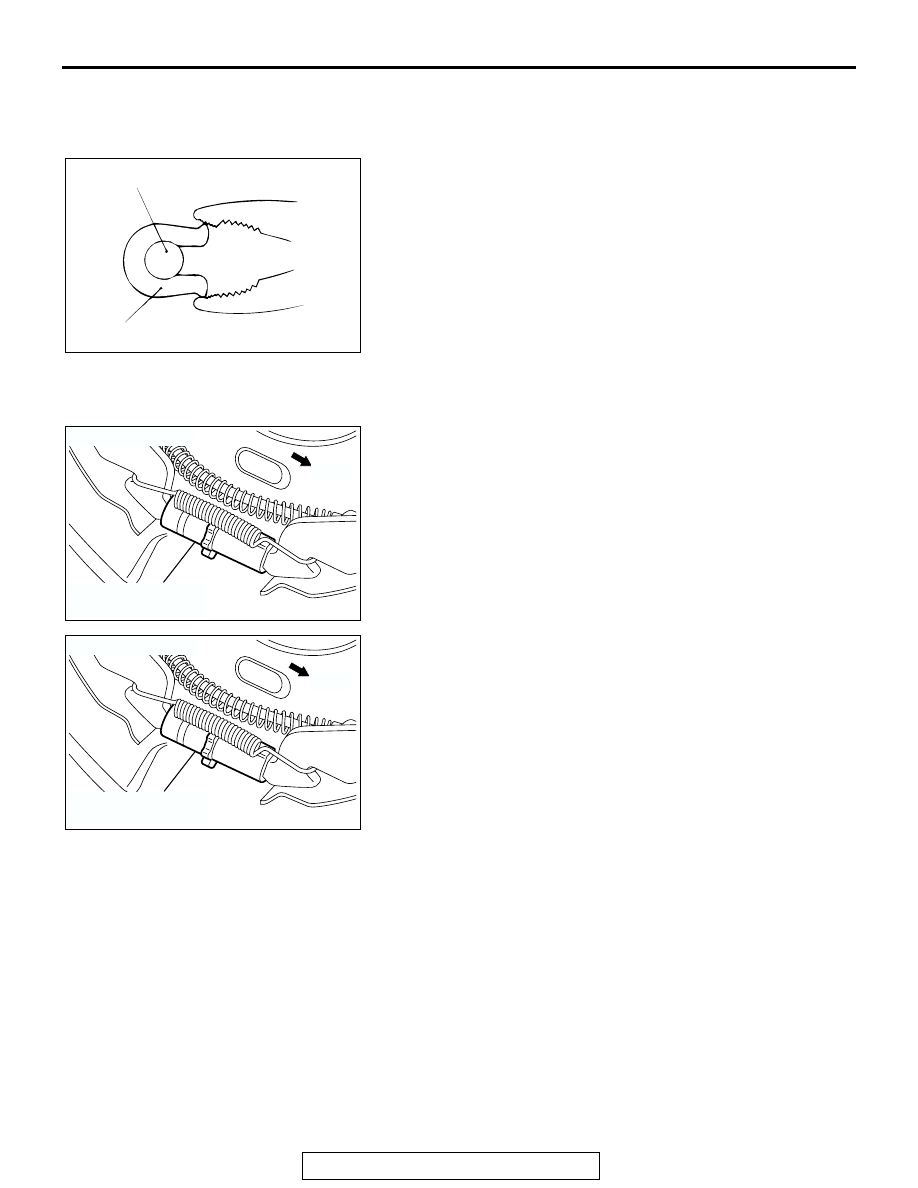

>>A<< REAR BRAKE CHAMBER RETAINER INSTALLA-
TION
Use pliers or a similar tool to close the rear brake chamber
retainer end onto the pin.

.

>>B<< REAR BRAKE SHOE SLACK ADJUSTER
INSTALLATION
Install the rear brake shoe slack adjuster as shown.

.

AC000926 AF

PIN OF REAR BRAKE
SHOE ASSEMBLY

REAR BRAKE CHAMBER
RETAINER

AC206987

AB

REAR BRAKE SHOE
SLACK ADJUSTER

REAR

LEFT SIDE WHEEL

AC206987

AC

REAR BRAKE SHOE
SLACK ADJUSTER

FRONT

RIGHT SIDE WHEEL
