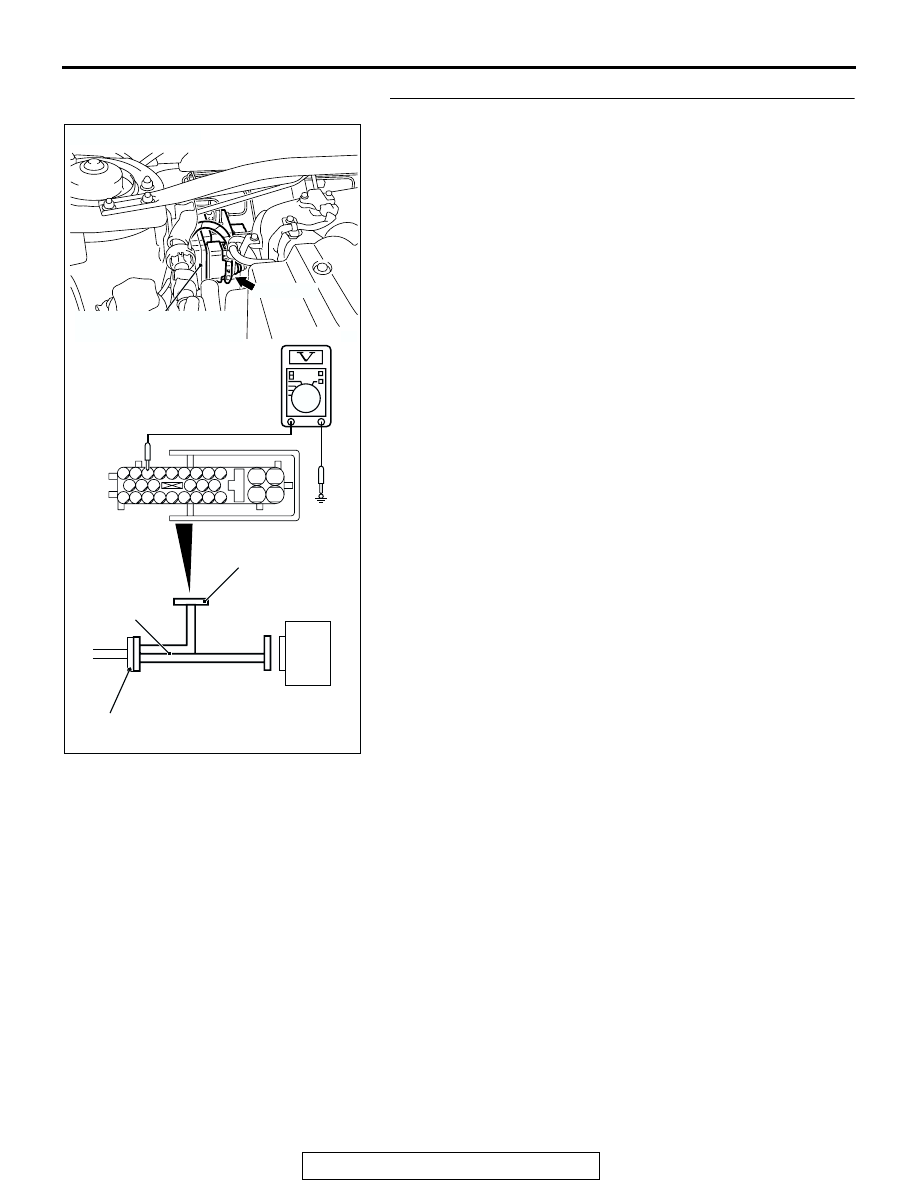

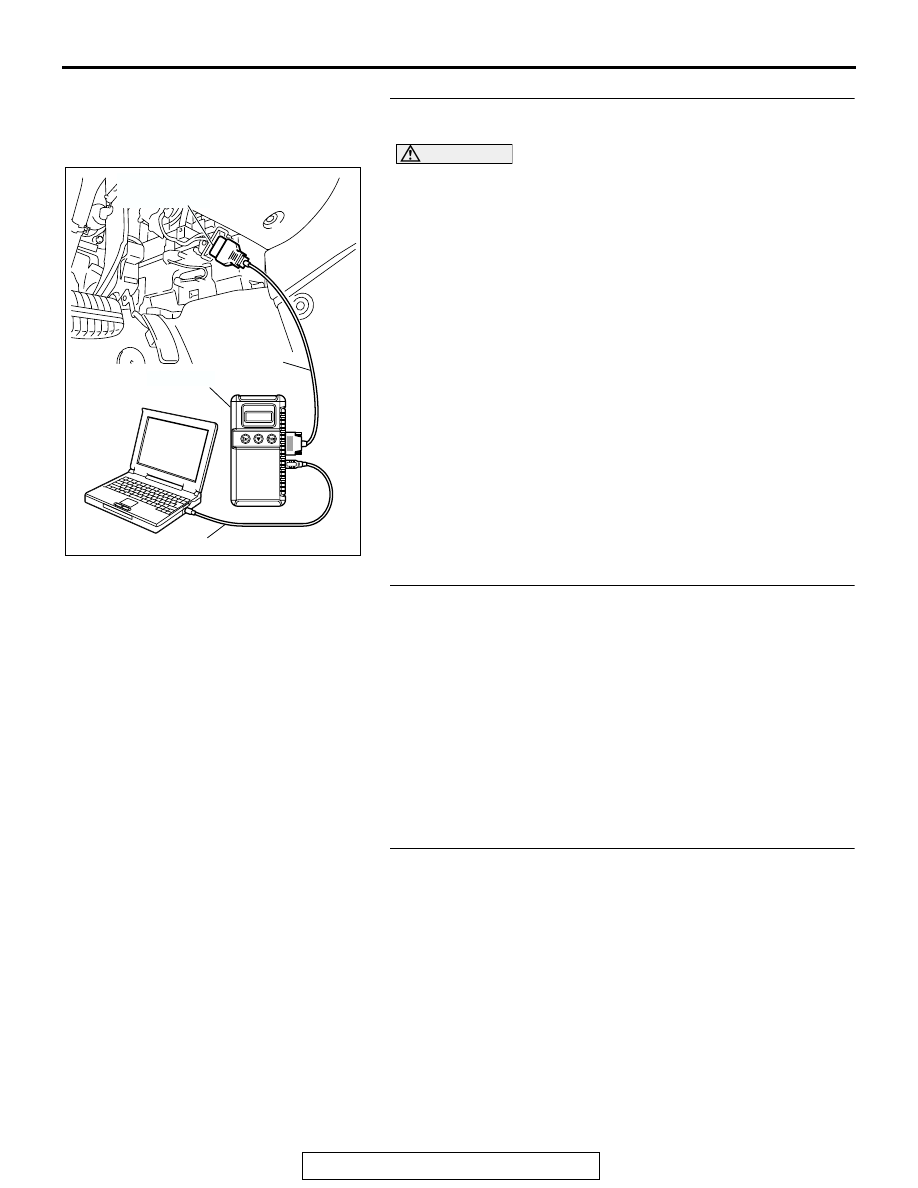

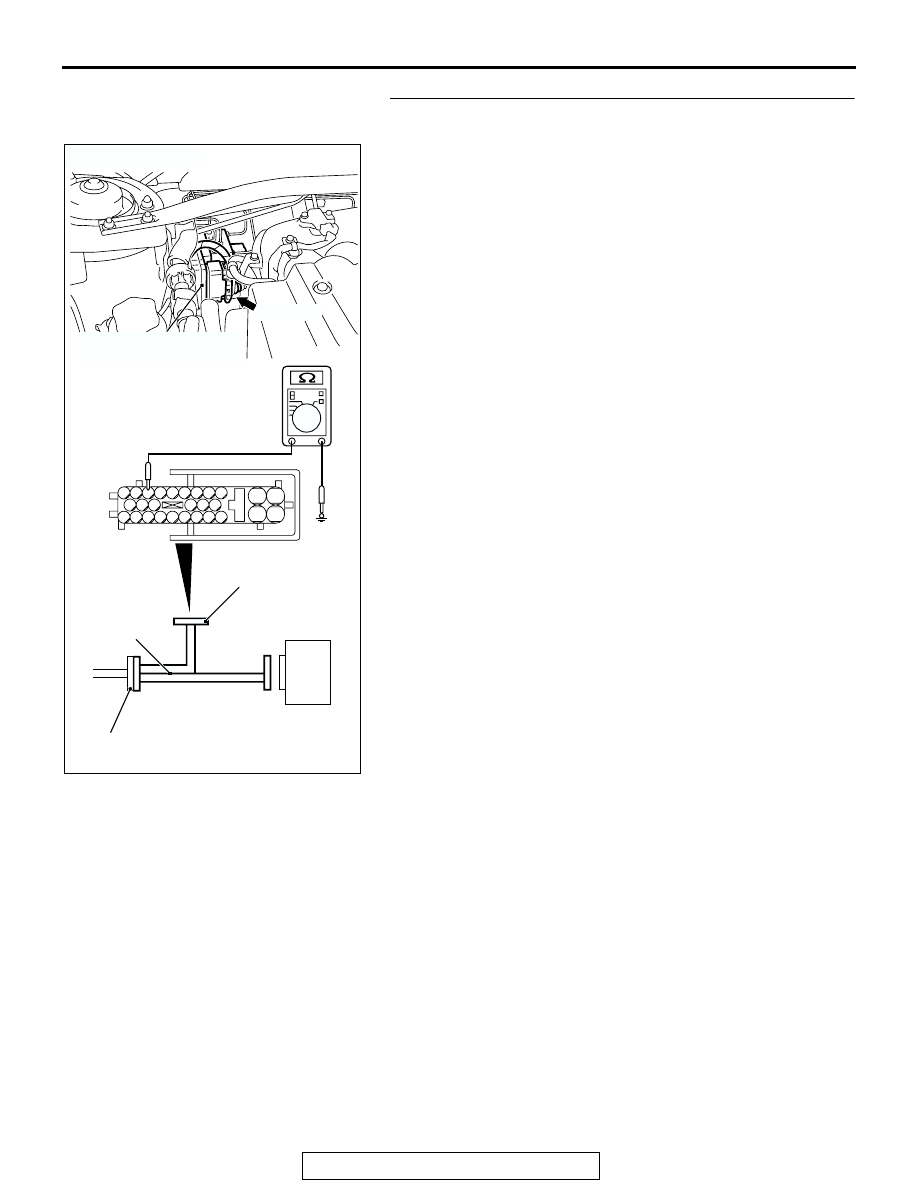

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS TSB Revision ANTI-LOCK BRAKING SYSTEM (ABS) 35B-33 STEP 3. Using scan tool MB991958, read the diagnostic CAUTION To prevent damage to scan tool MB991958, always turn the been set. (4) Turn the ignition switch to the "LOCK" (OFF) position. YES : Carry out diagnosis relevant to DTC C1200, C1205, ). NO : Go to Step 4. STEP 4. Check the installation condition of the wheel For the wheel speed sensor, which the DTC code indicates, • DTC C1201 is set: Front right wheel speed sensor • DTC C1206 is set: Front left wheel speed sensor • DTC C1211 is set: Rear right wheel speed sensor • DTC C1216 is set: Rear left wheel speed sensor Q: Is the wheel speed sensor installed correctly? YES : Go to Step 5. to Step 16. STEP 5. Check the wheel speed sensor after it is removed Check the wheel speed sensor which the DTC code indicates • DTC C1201 is set: Front right wheel speed sensor • DTC C1206 is set: Front left wheel speed sensor • DTC C1211 is set: Rear right wheel speed sensor • DTC C1216 is set: Rear left wheel speed sensor Q: Is the wheel speed sensor in good condition? YES : Go to Step 6. AC305412 AB MB991910 DATA LINK CONNECTOR MB991824 MB991827 |
