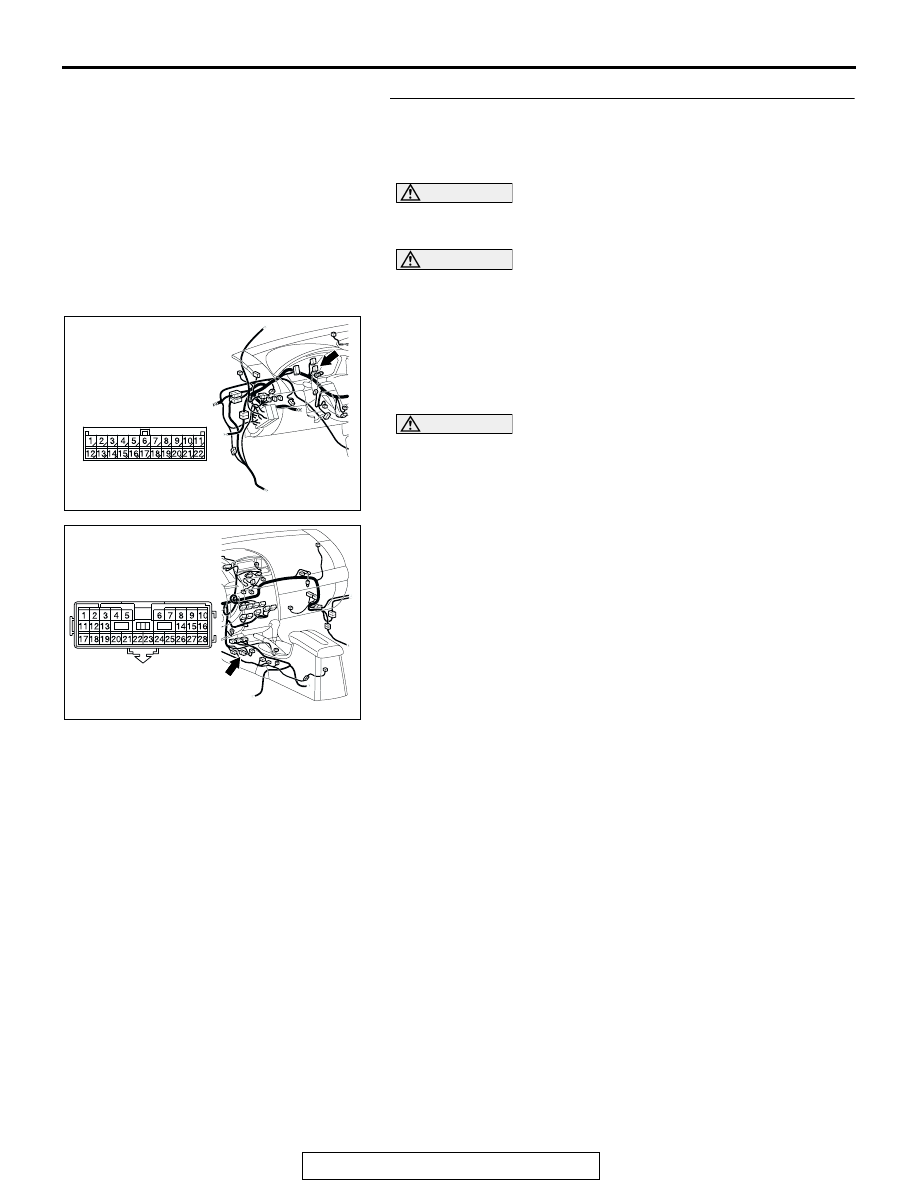

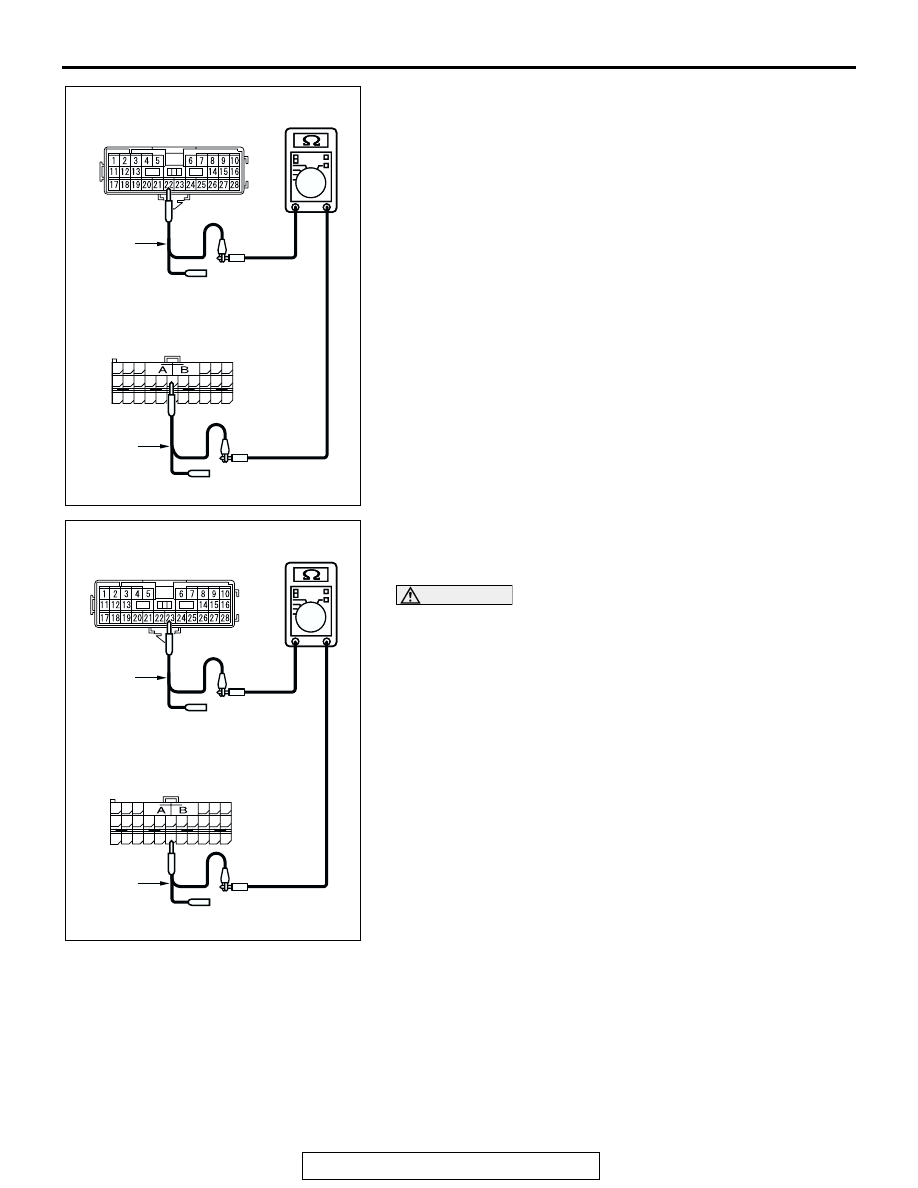

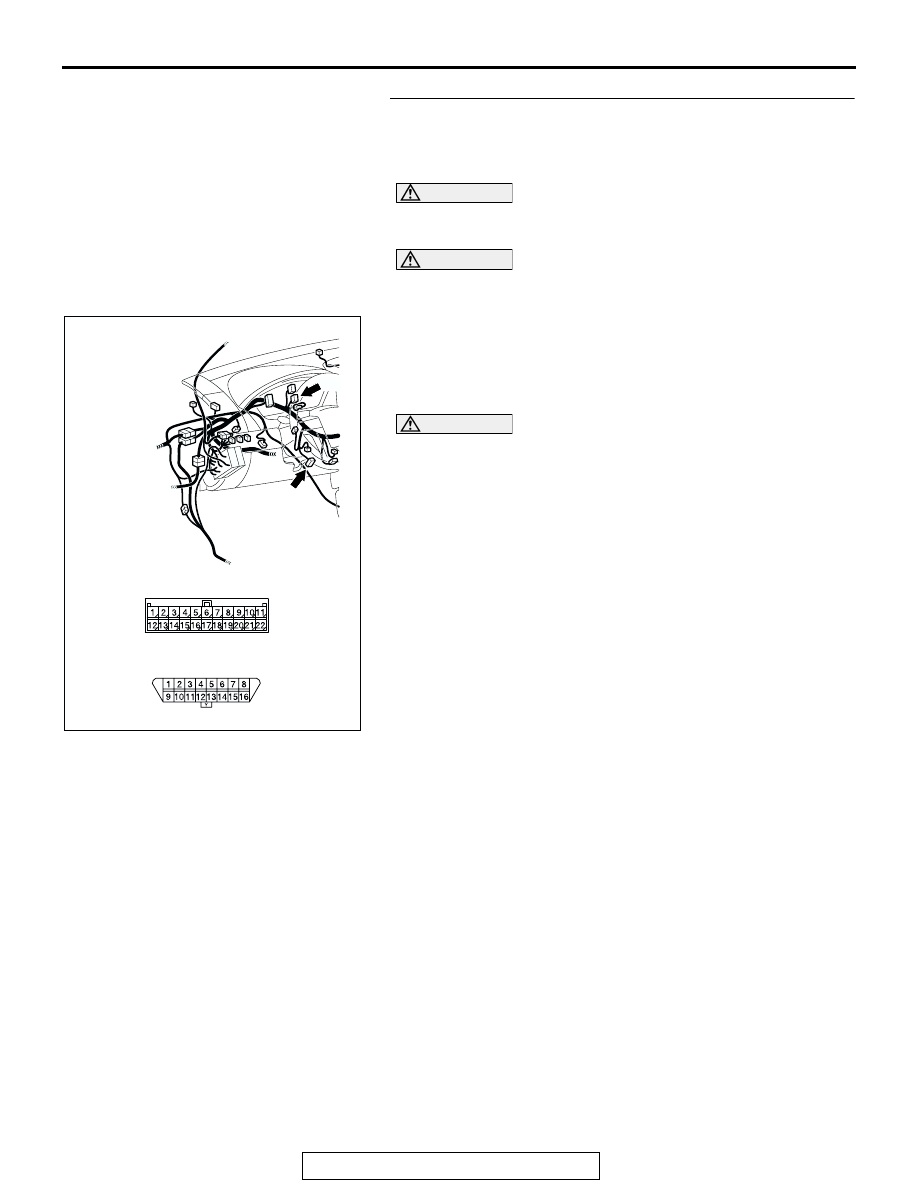

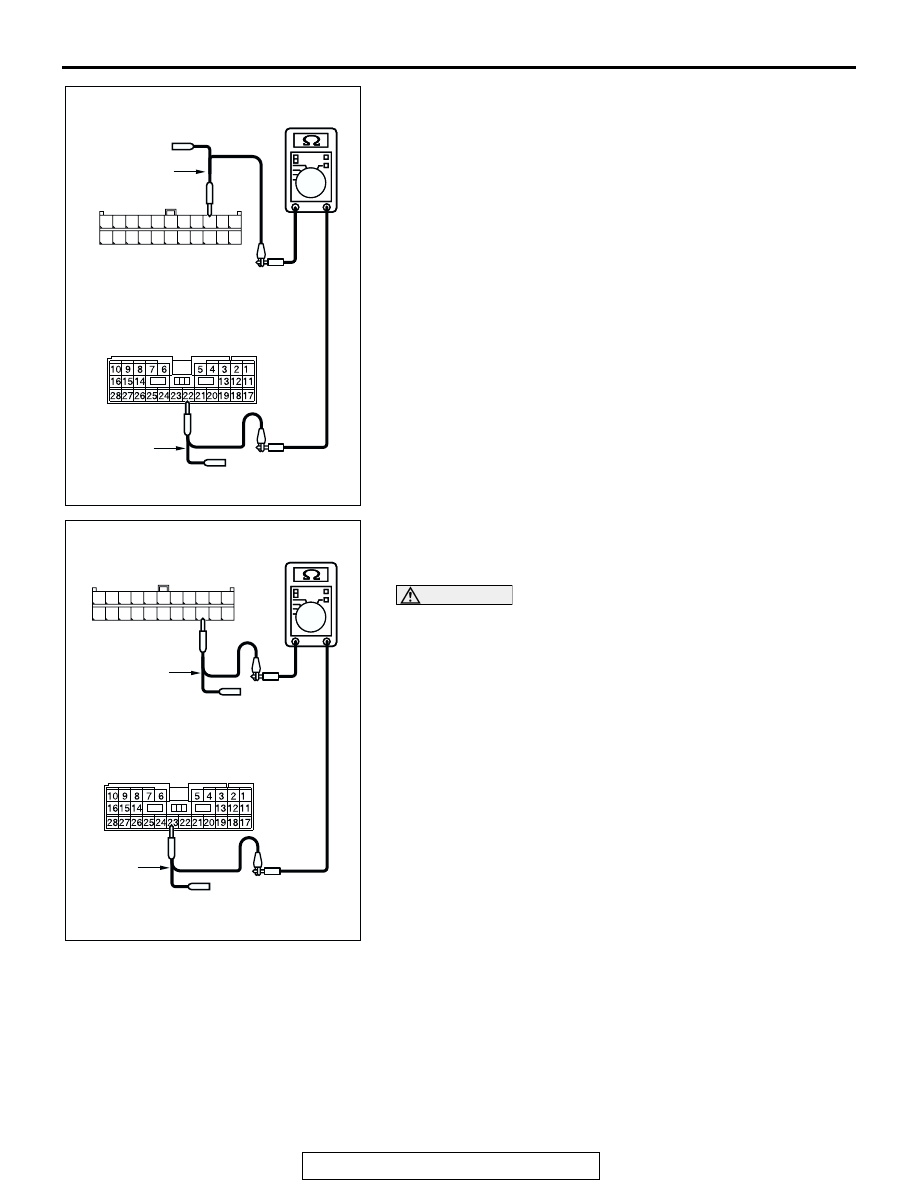

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-519 (4) Measure the resistance between intermediate connector terminal 22 and SRS-ECU connector terminal 32. OK: 2 ohms or less (5) Measure the resistance between intermediate connector terminal 23 and SRS-ECU connector terminal 43. OK: 2 ohms or less CAUTION Strictly observe the specified wiring harness repair proce- Q: Do all the resistances measure 2 ohms or less? YES : If all the resistances measure 2 ohms or less, go to Step 18. NO : If either of the resistances measures more than 2 ohms or all the resistances measure more than 2 AC204582 48 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 AC204582 TEST CC TEST MALE SIDE: C-22 HARNESS SIDE: C-121 AC204582 48 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 AC204582 TEST CB TEST MALE SIDE: C-22 HARNESS SIDE: C-121 |
