DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-387

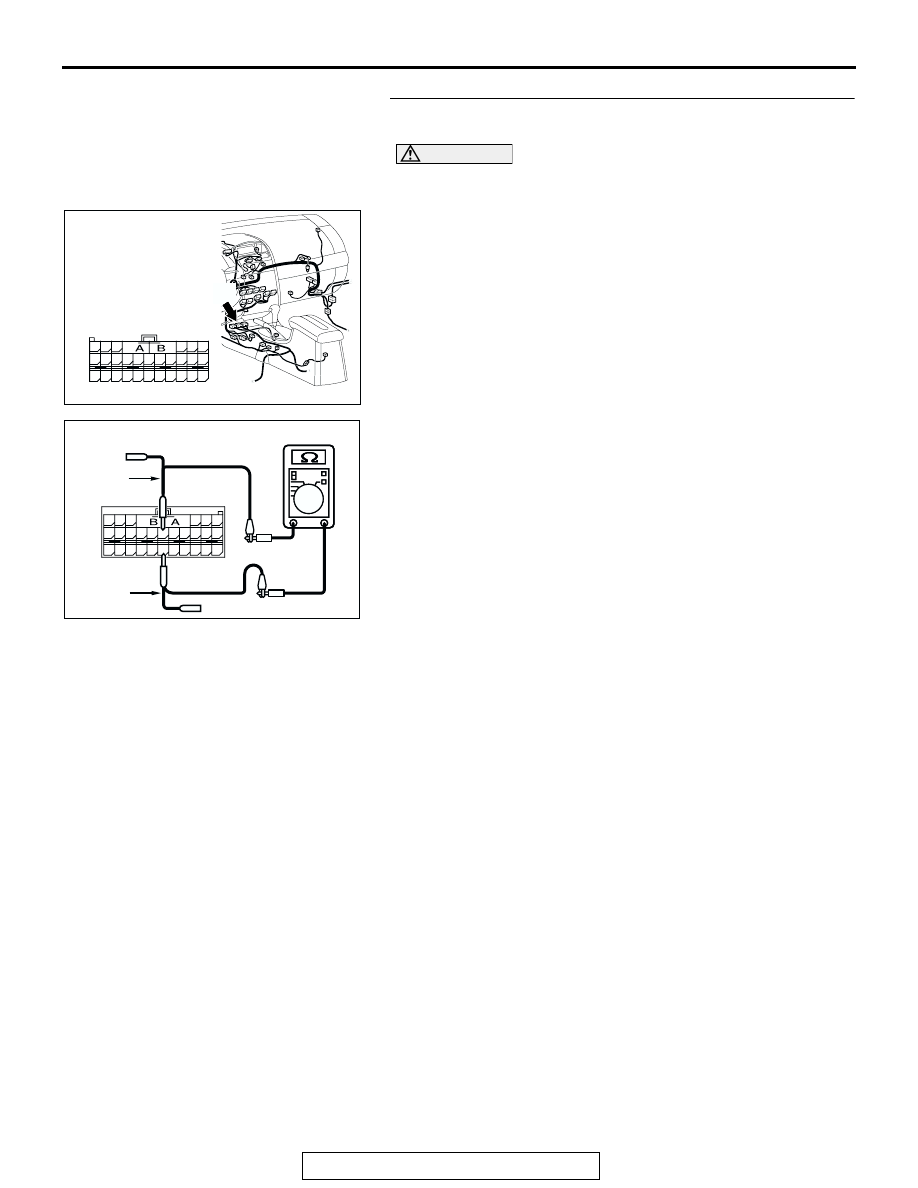

STEP 21. Check the SRS-ECU for short circuit. Measure

the resistance at SRS-ECU connector C-121.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

(1) Disconnect SRS-ECU connector C-121, and measure the

resistance at the component side of SRS-ECU connector
C-121.

(2) Measure the resistance between SRS-ECU connector

terminals 32 and 43.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-534

.

NO :  If the resistance measures less than 1 k

Ω, replace the

SRS-ECU.

AC305233 AJ

CONNECTOR: C-121

HARNESS SIDE

C-121 (Y)

48

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

AC209438

48

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

AC209438

TEST
HARNESS

AU

TEST
HARNESS

COMPONENT SIDE: C-121

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-388

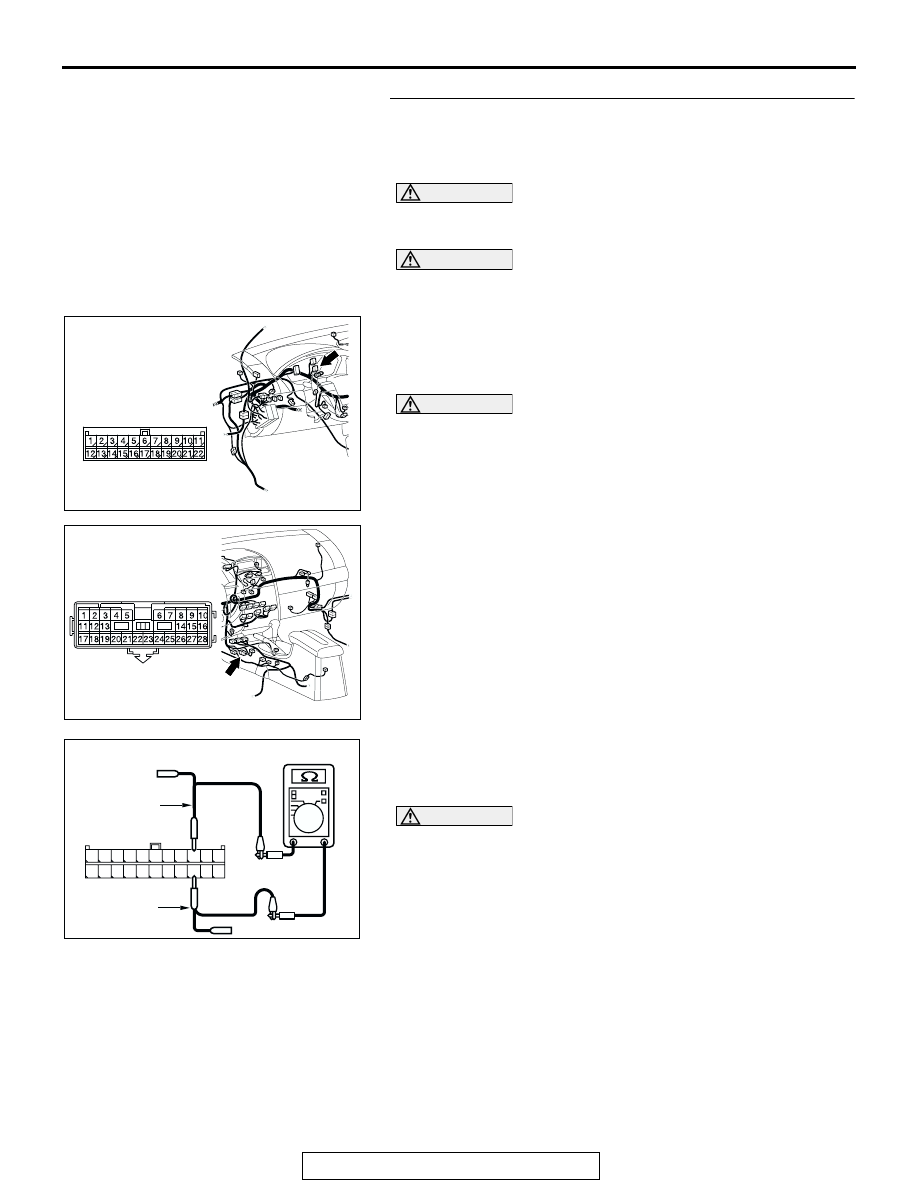

STEP 22. Check the CAN_L and H lines (communication
lines only) between joint connector (3) and the
intermediate connector for a short circuit. Measure the

resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect intermediate connector C-22 and joint

connector (3) C-02, and measure the resistance at the
wiring harness side of joint connector (3) C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminals 3 and 14.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, diagnose

CAN bus lines thoroughly by referring to

P.54C-534

.

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between intermediate connector C-22
and joint connector (3).

AC305231AP

CONNECTOR: C-02

AC305233 AI

CONNECTOR: C-22

C-22 (Y)

AC209438

11

22

10

21

9

20

8

19

7

18

6

17

5

16

4

15

3

14

2

13

1

12

TEST
HARNESS

AV

TEST
HARNESS

HARNESS SIDE: C-02

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-389

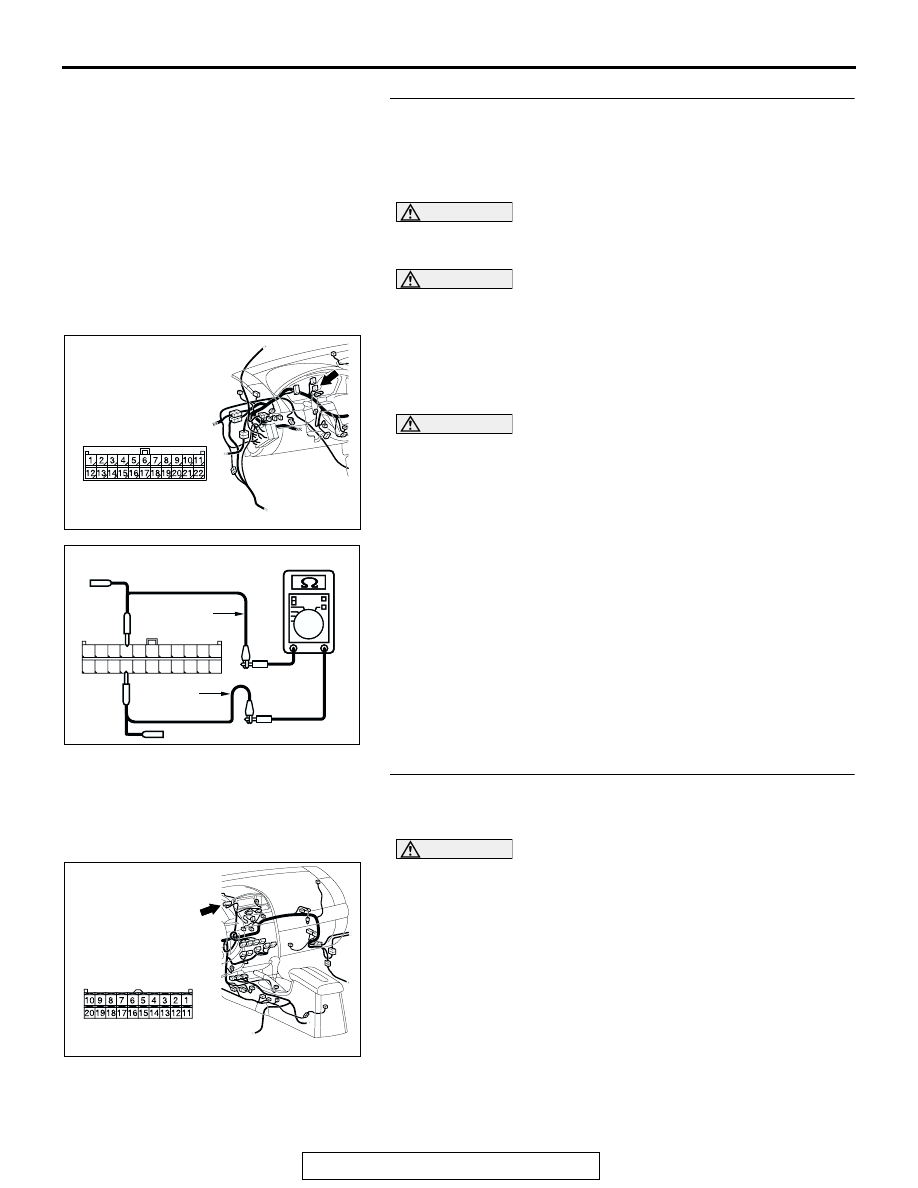

STEP 23. Check the CAN_L and H lines (communication
lines including the multi-center display unit (middle-grade
type)) between joint connector (3) and the middle-grade
multi-center display for a short circuit. Measure the

resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02, and measure the

resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminals 8 and 19.

OK: 1 k

Ω or more

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

27  .

NO :  If the resistance measures less than 1 k

Ω, go to Step

24.

STEP 24. Check multi-center display unit (middle-grade
type) connector C-05 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

CAUTION

The strand end of the twisted wire should be within 10 cm
(4 inches) from the connector. For details refer to

P.54C-4

.

Q: Is multi-center display unit (middle-grade type)

connector C-05 in good condition?
YES : Go to Step 25.
NO :  Repair the damaged parts.

AC305231AP

CONNECTOR: C-02

AC209438

AC209438

TEST
HARNESS

AW

TEST
HARNESS

1110 9 8 7 6 5 4 3 2 1

22 21201918 1716 15 14 1312

HARNESS SIDE: C-02

AC305233 AF

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

DIAGNOSIS

TSB Revision

CONTROLLER AREA NETWORK (CAN)

54C-390

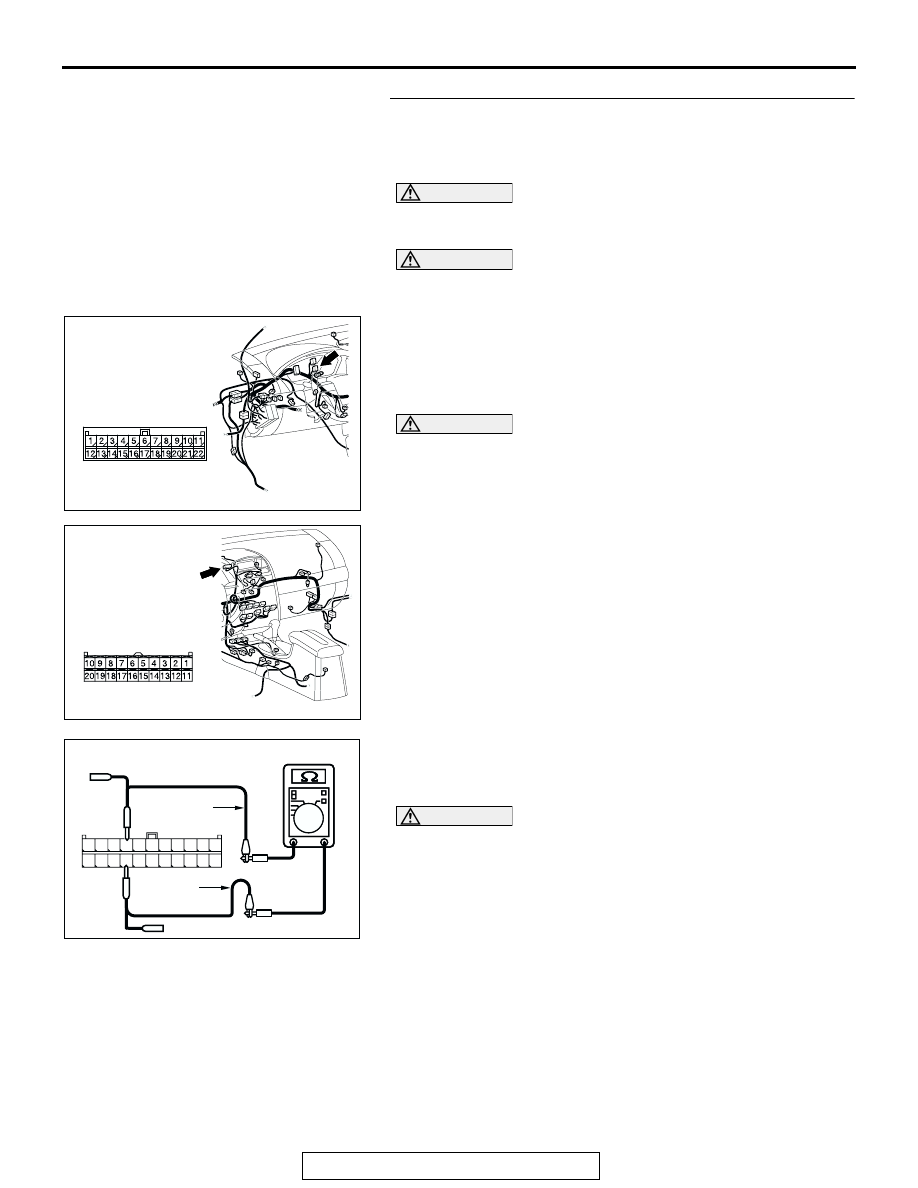

STEP 25. Check the CAN_L and H lines (communication
lines only) between joint connector (3) and the multi-center
display unit (middle-grade type) for a short circuit.

Measure the resistance at joint connector (3) C-02.

CAUTION

A digital multimeter should be used. For details refer to

P.54C-4

.

CAUTION

The test wiring harness should be used. For details refer to

P.54C-4

.

(1) Disconnect joint connector (3) C-02 and multi-center display

unit (middle-grade type) connector C-05, and measure the
resistance at the wiring harness side of joint connector (3)
C-02.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

CAUTION

Disconnect the negative battery terminal. For details refer
to

P.54C-4

.

(3) Disconnect the negative battery terminal.

(4) Measure the resistance between joint connector (3)

terminals 8 and 19.

OK: 1 k

Ω or more

CAUTION

Strictly observe the specified wiring harness repair proce-
dure. For details refer to

P.54C-5

.

Q: Does the resistance measure 1 k

Ω or more?

YES : If the resistance measures 1 k

Ω or more, go to Step

26  .

NO :  If the resistance measures less than 1 k

Ω, repair the

wiring harness between joint connector (3) and
multi-center display unit (middle-grade type)
connector.

AC305231AP

CONNECTOR: C-02

AC305233 AF

CONNECTOR: C-05

HARNESS SIDE

C-05 (B)

AC209438

AC209438

TEST
HARNESS

AW

TEST
HARNESS

1110 9 8 7 6 5 4 3 2 1

22 21201918 1716 15 14 1312

HARNESS SIDE: C-02
