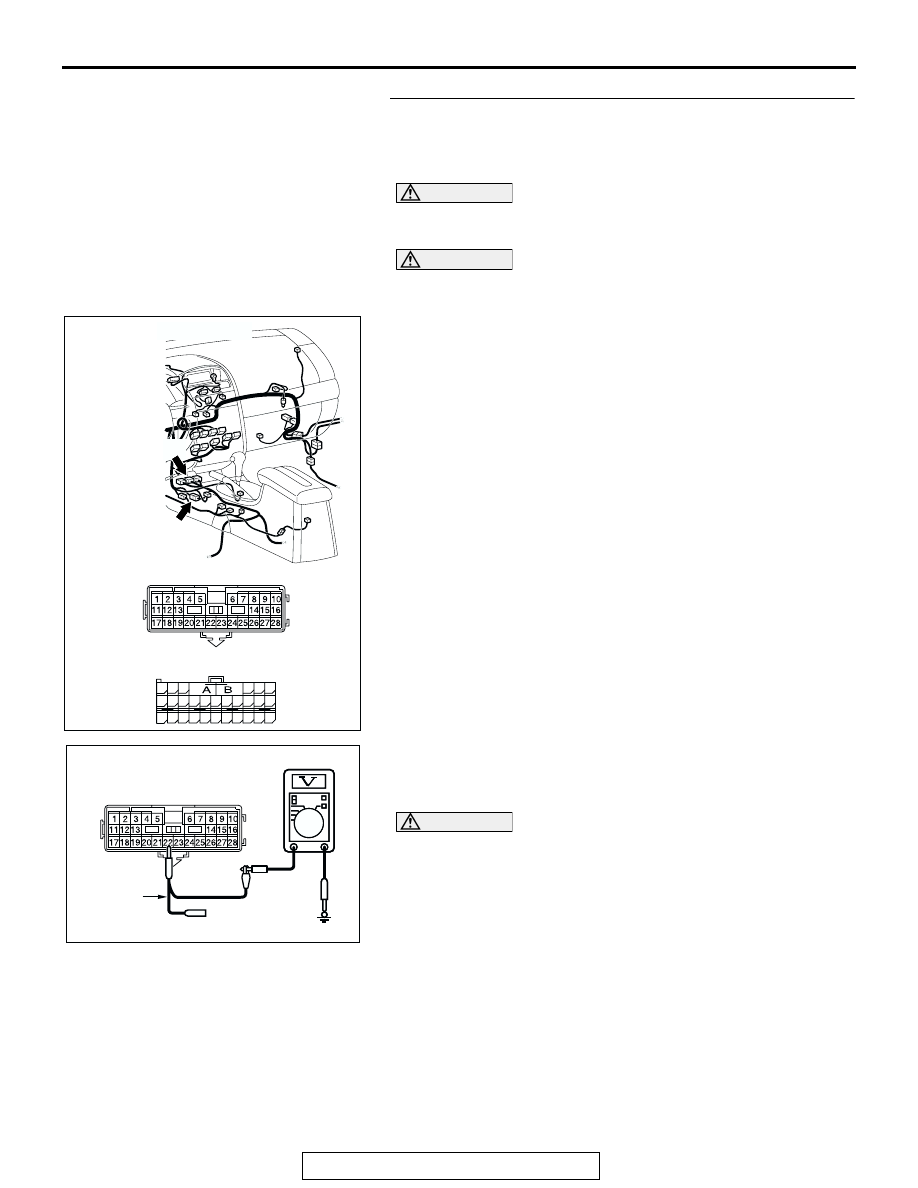

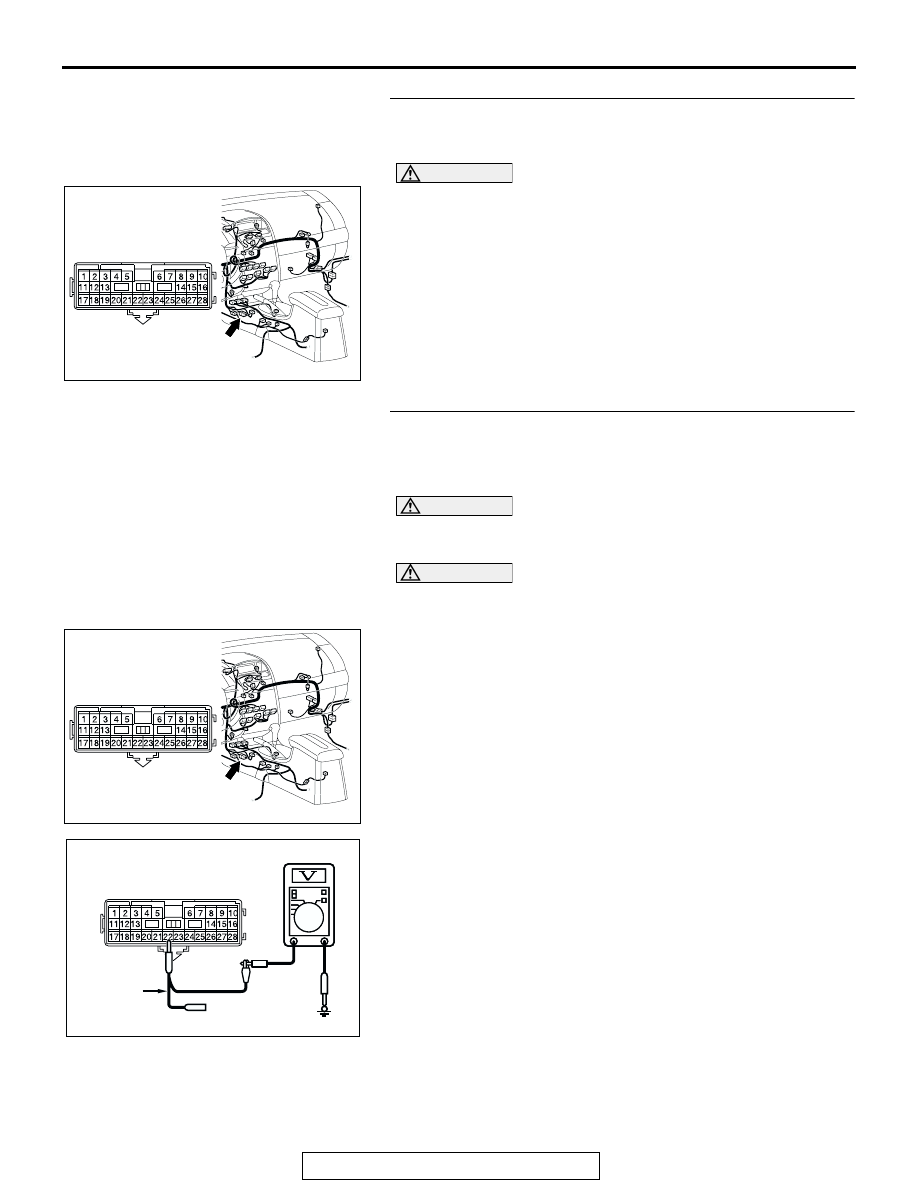

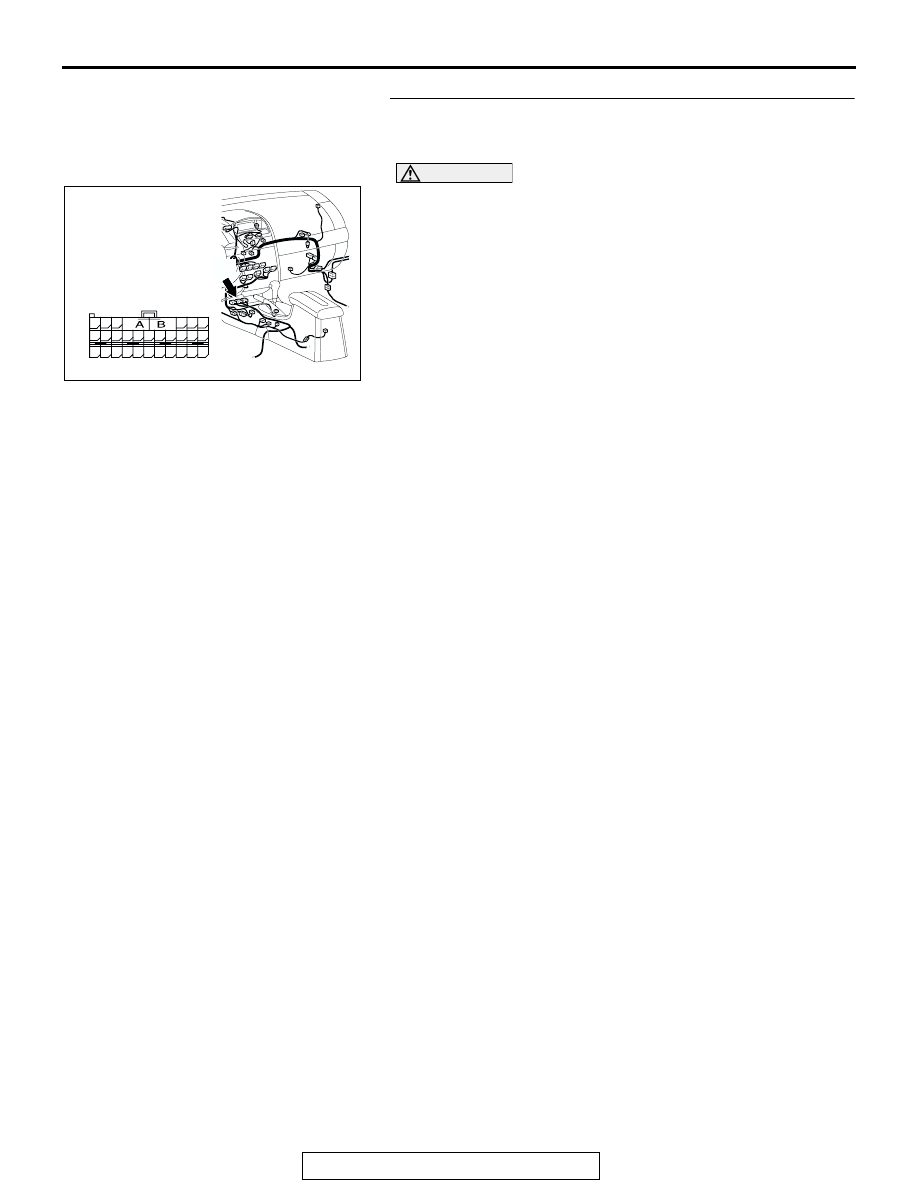

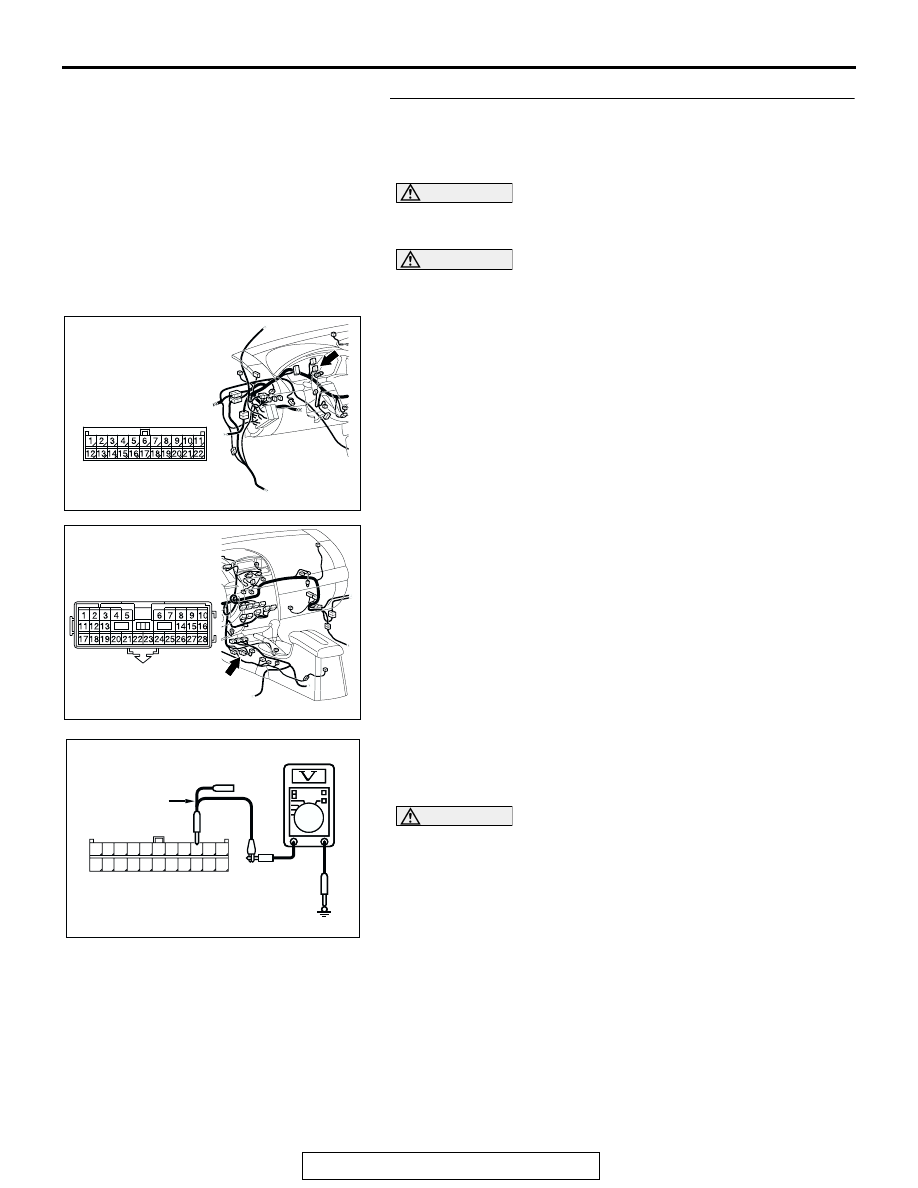

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-91 STEP 16. Check intermediate connector C-22 for loose, CAUTION The strand end of the twisted wire should be within 10 cm Q: Is intermediate connector C-22 in good condition? YES : Go to Step 17. STEP 17. Check the CAN_H-side bus line (communication connector C-22. CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect intermediate connector C-22, and measure the voltage at the male side (at floor wiring harness side). (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between intermediate connector terminal 22 and body ground. OK: 4.0 V or less Q: Does the voltage measure 4.0 V or less? YES : If the voltage measures 4.0 V or less, go to Step 20 . 18. AC305233 AI CONNECTOR: C-22 C-22 (Y) AC305233 AI CONNECTOR: C-22 C-22 (Y) AC209365 AC209365FT MAIL SIDE: C-22 TEST |
