RADIO, CD PLAYER, SPEAKER AND ANTENNA

CHASSIS ELECTRICAL

54A-15

RADIO, CD PLAYER, SPEAKER AND ANTENNA

M2540006000217

RADIO AND CD PLAYER

<LOW/MIDDLE GRADE TYPE>

•

One-disk CD player with an AF/FM radio has
been installed.

<HIGH GRADE TYPE>

•

Exclusive panel design that matches the interior
design has been adopted, and an AM/FM radio
with a 6-disc changer of the Infinity specification
has been installed for a good match.

SPEAKER

ANTENNA

ITEM

LOW GRADE TYPE

MIDDLE GRADE
TYPE

HIGH GRADE TYPE

AM/FM electronically tuned radio

Equipped

Equipped

Equipped

CD player

Equipped

Equipped

−

CD auto changer

−

−

Equipped

Power amplifier with radio

35W

×

 4

35W

×

 4

−

External power amplifier

−

−

45W

×

 6

Steering wheel remote control switch

−

−

Equipped

LOCATION

FOUR SPEAKERS

SIX SPEAKERS

EIGHT SPEAKERS

Instrument panel

−

Equipped (3.5 cm

−



tweeter)

Equipped (8 cm + 3.5 cm

−



speaker)

Front door

Equipped (full range

−

 16 cm) Equipped (full range

−

 16

cm)

Equipped (full range

−

 16

cm) <Infinity speaker>

Rear shelf

Equipped (full range

−

 6"

×



9")

Equipped (full range

−

 6"

×



9")

Equipped (full range

−

 6"

×



9") <Infinity speaker>

ITEM

RADIO AND CD
PLAYER <LOW
GRADE TYPE>

RADIO AND CD
PLAYER <MIDDLE
GRADE TYPE>

RADIO AND CD
PLAYER <HIGH
GRADE TYPE>

Glass antenna

Equipped <Single
glass antenna>

Equipped <Single
glass antenna>

Equipped <Diversity
glass antenna>

RADIO, CD PLAYER, SPEAKER AND ANTENNA

CHASSIS ELECTRICAL

54A-16

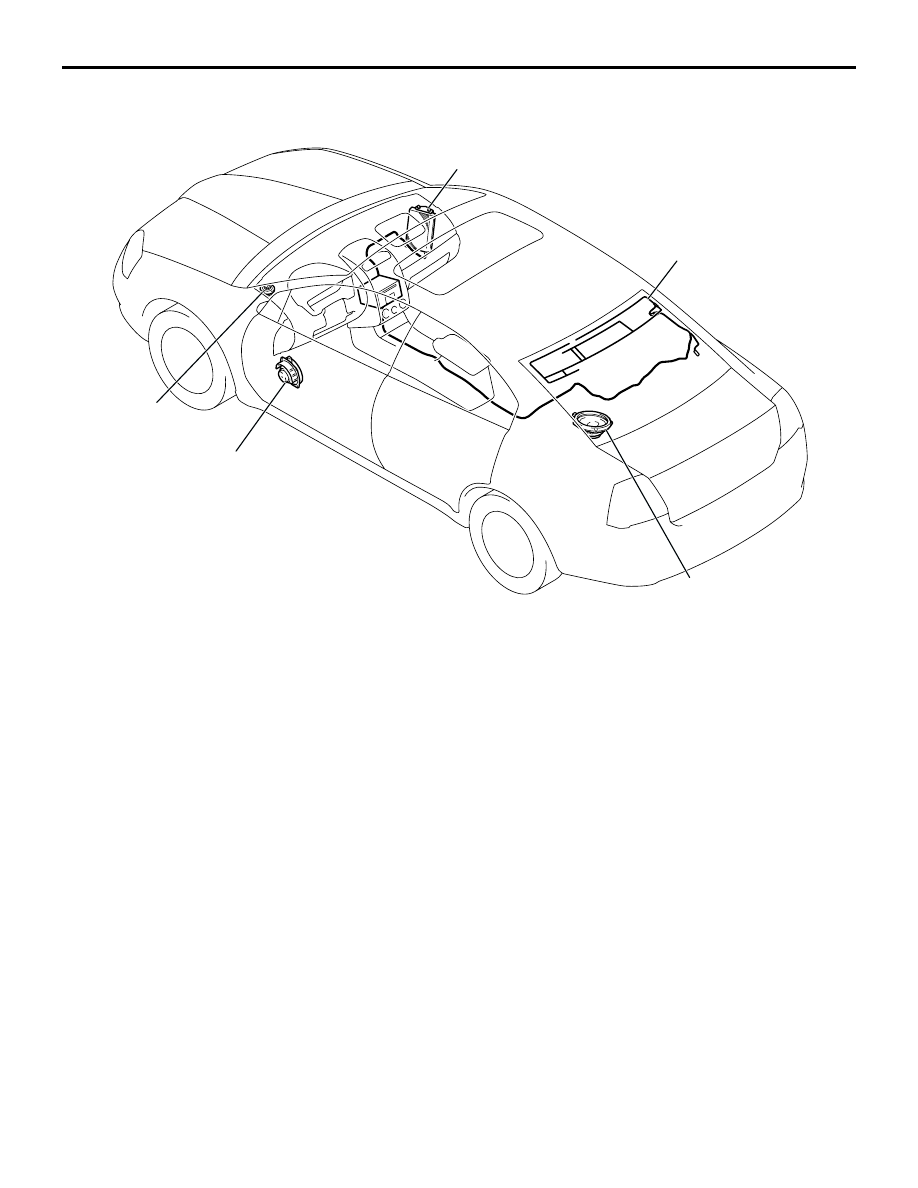

CONSTRUCTION DIAGRAM

.

NOTE: The * indicates equipped on the left and right sides.

.

AC306464

AB

GLASS ANTENNA

REAR SPEAKER*

FRONT DOOR SPEAKER*

TWEETER OR
SPEAKER*

POWER AMPLIFIER

RADIO, CD PLAYER, SPEAKER AND ANTENNA

CHASSIS ELECTRICAL

54A-17

.

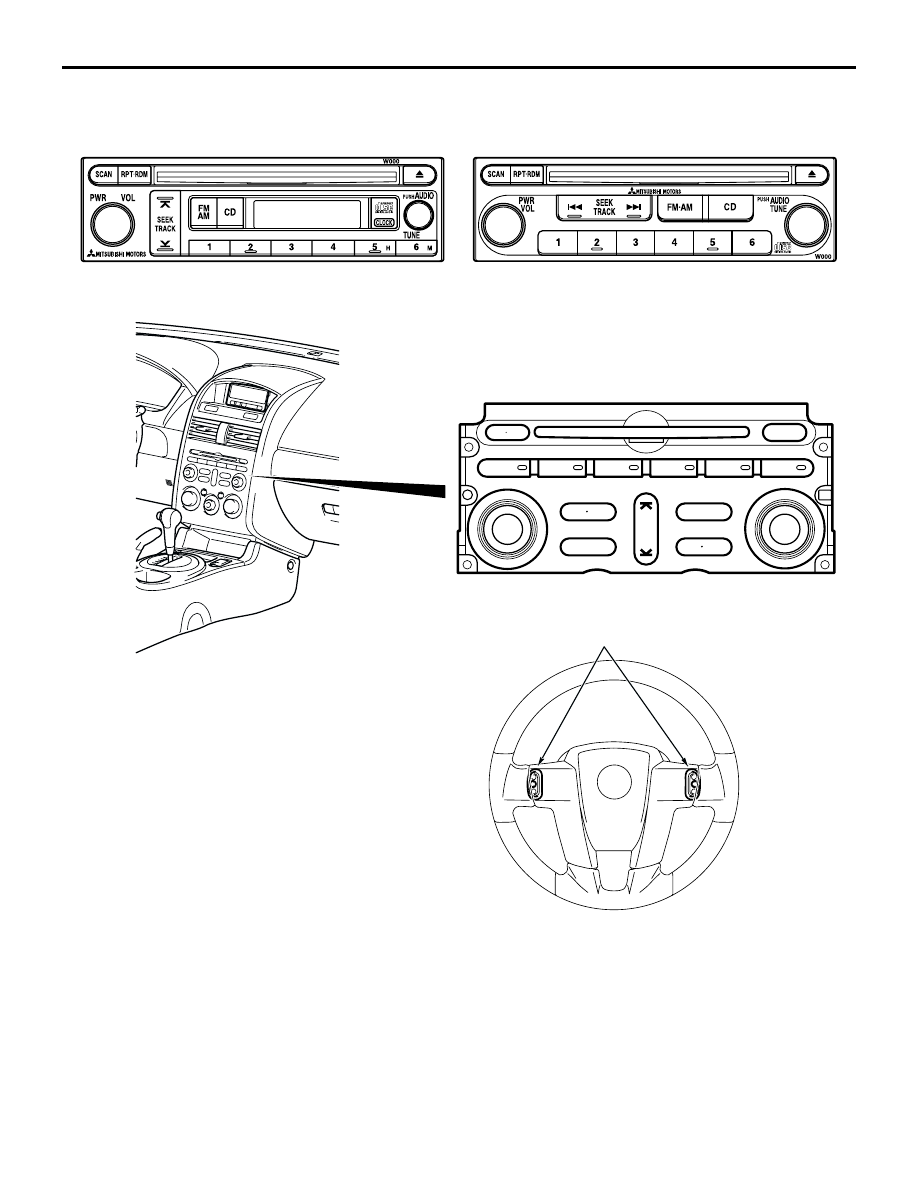

AC306771

6

READY

SCAN

RPT  RDM

C D

SEEK
TRACK

LOAD  EJECT

5

4

3

2

1

FM  AM

VO

L

/

PUSH

PWR

TU

NE

/

PUSH

AUD

IO

AB

<HIGH GRADE TYPE>

REMOTE CONTROL RADIO SWITCH

<LOW GRADE TYPE>

<MIDDLE GRADE TYPE>

MULTI-CENTER DISPLAY

CHASSIS ELECTRICAL

54A-18

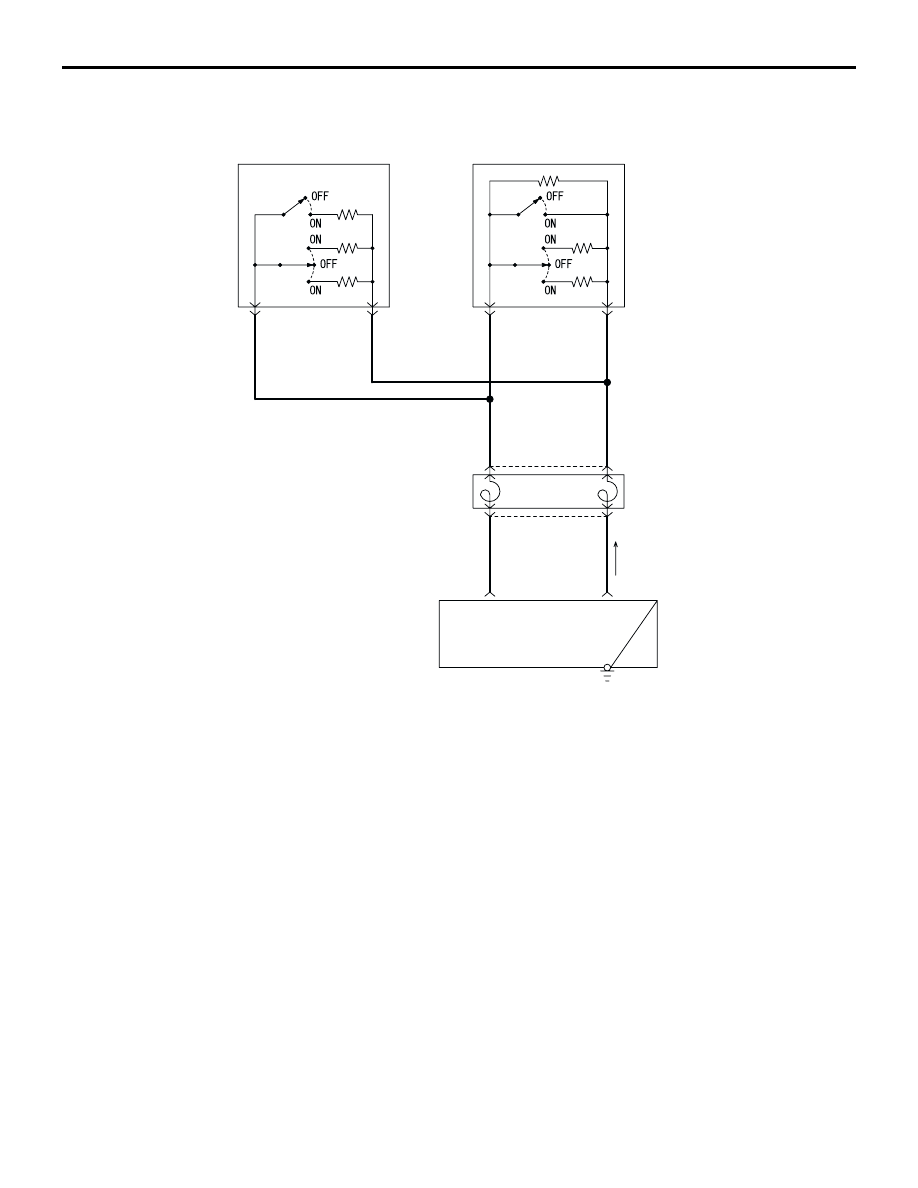

REMOTE CONTROL RADIO SWITCH SYSTEM
CIRCUIT DIAGRAM

MULTI-CENTER DISPLAY

M2540000700025

The multi-center display shows a variety of vehicle
data. The same ice-blue tone as the night illumina-
tion is used as the basic color for instrument panel
switches for a unified effect. The following informa-
tion can be shown on the multi-center display:

•

Clock display

•

Environmental data display (compass, outside
temperature) <middle grade type>

•

Climate control data display (air conditioning inte-
rior/exterior temperature, fan mode, specified
temperature, air volume)

*1

 <middle grade type>

•

Entertainment system data display (Audio vol-
ume, bass, midrange, treble, fader, balance, CD
data, CD changer data, and more)

•

Customized Functions

*1

 <middle grade type>

(Refer to GROUP 54B, Functions and Control of
SWS ECUs

P.54B-10

.)

NOTE:

.

•

The clock is displayed in the screens for all infor-
mation.

•

*1

This signal transmission and reception is per-

formed via CAN communication. For CAN details,
refer to GROUP 54C

P.54C-6

.

RADIO, CD PLAYER
AND CD CHANGER

REMOTE CONTROLLED
RADIO SWITCH (RH)

CLOCK
SPRING

REMOTE CONTROLLED
RADIO SWITCH (LH)

AC306684
