OIL PUMP

POWER STEERING

37A-7

OIL PUMP

M2370004000113

The oil pump is a vane type with a fluid flow control
system. Steering wheel turning effort is reduced at
low speeds and is increased at higher speeds.

STEERING GEAR

M2370003000121

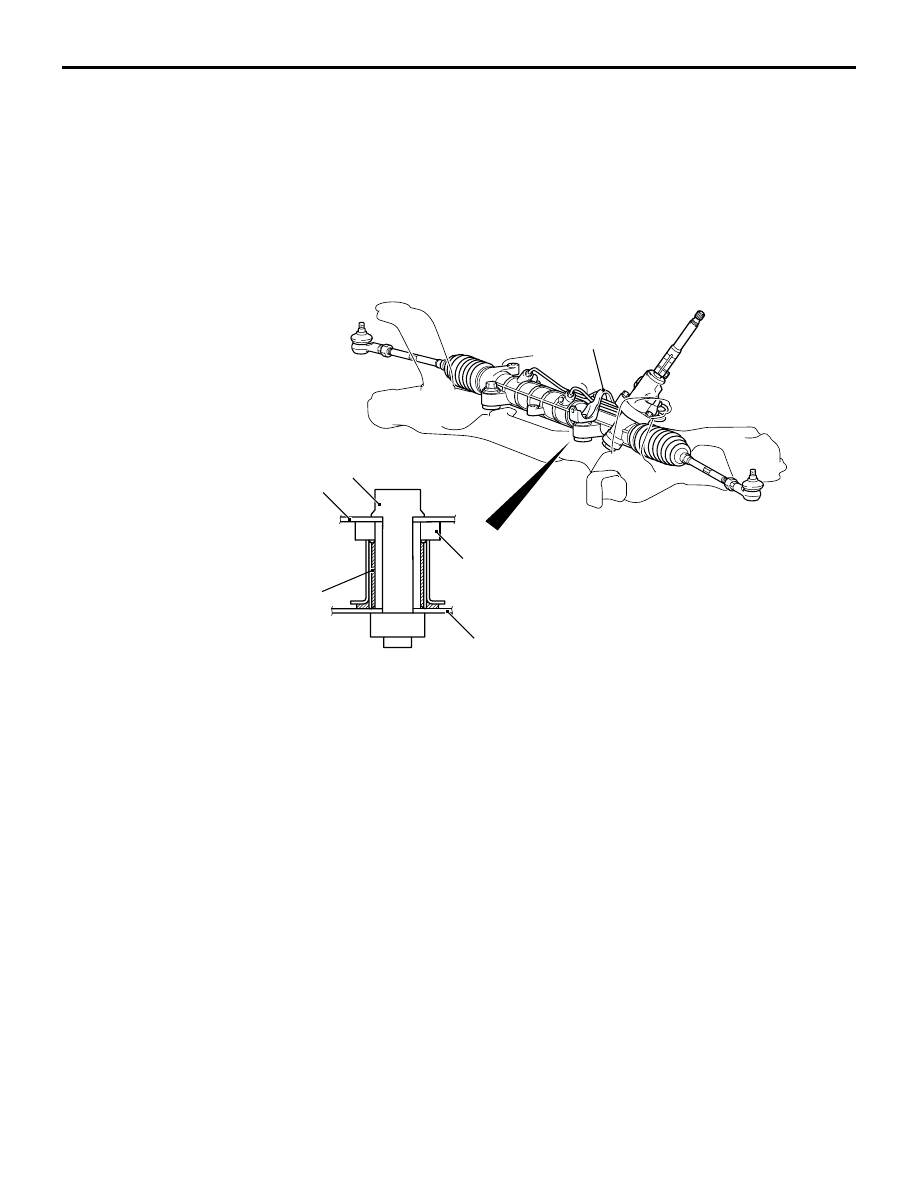

AC308419

POWER STEERING
GEAR BRACKET

CROSSMEMBER

RUBBER PLATE

BOLT

BUSHING

AB

POWER STEERING
GEAR BRACKET

STEERING GEAR

POWER STEERING

37A-8

•

The span for attachment of the steering gear to
the supporting rigidity is increased.

•

The power steering gear bracket is added to the
left side of the section where the steering gear is
attached to the crossmember. This enhances the
steering feel and reduces shimmy vibration, in
conjunction with the rubber bushing (designed to
be soft in the lateral vehicle direction and rigid in
the vertical plane) at the power steering gear
bracket point of attachment.

AC308420

AB

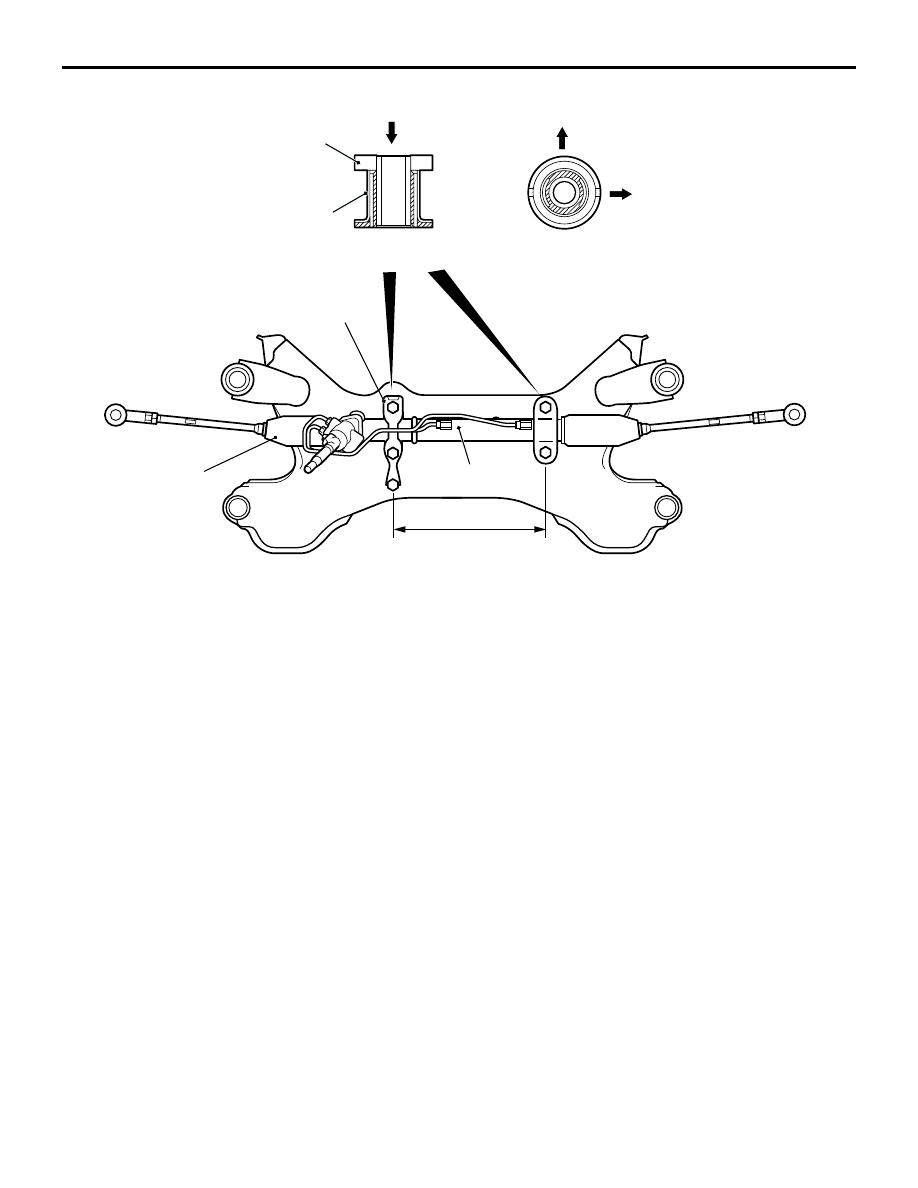

FRONT AXLE No.1
CROSSMEMBER

WIDE SPAN

STEERING GEAR

RUBBER
PLATE

BUSHING

VIEW A

HARD

SOFT

A

POWER STEERING
GEAR BRACKET

OIL RESERVOIR

POWER STEERING

37A-9

OIL RESERVOIR

M2370005000116

A plastic oil reservoir is used to reduce weight. It also allows
the oil reservoir itself to be semi-transparent, and it has a scale
(MAX and MIN lines) which lets you check the fluid level visu-
ally.
Rubber mount at the point of attachment to body is used to
insulate groan noise from oil pump.

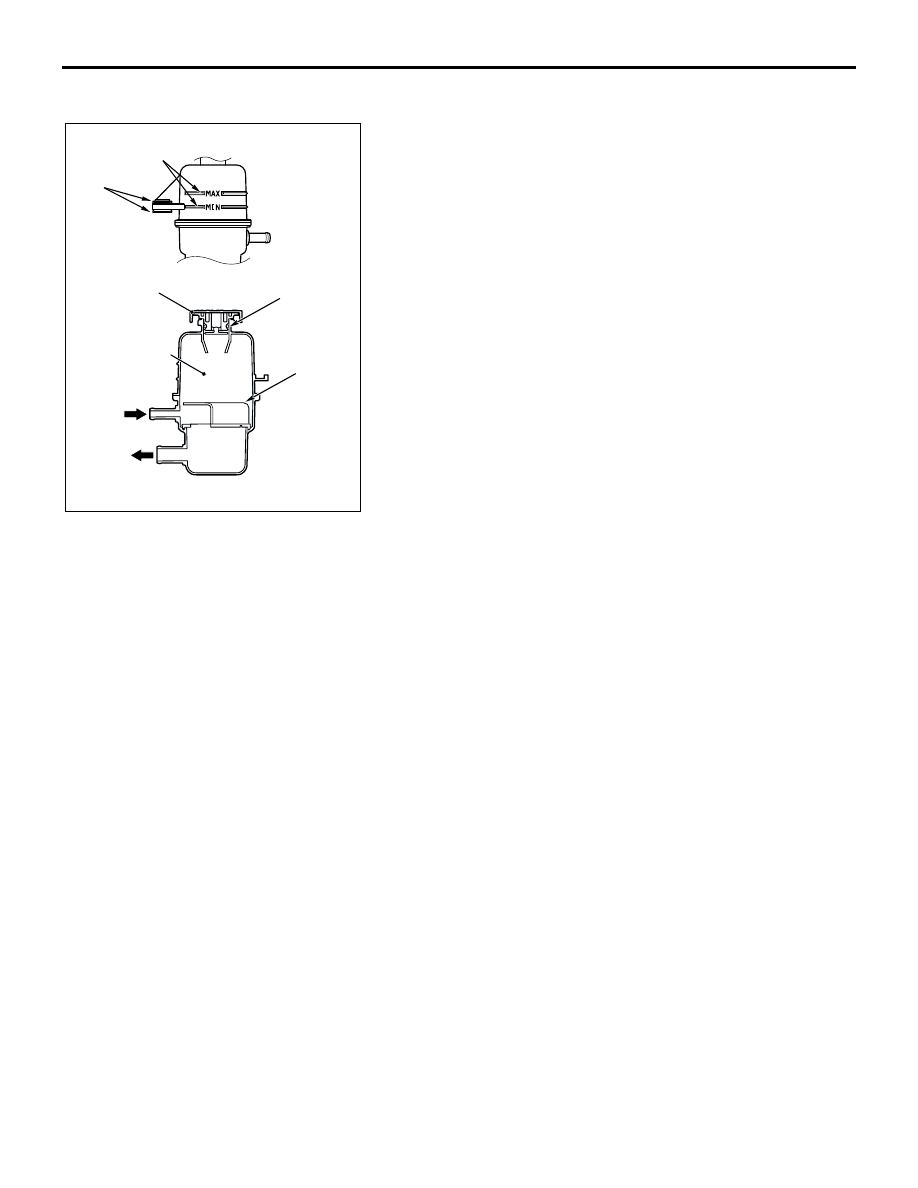

AC306160

AC306161

AC306527

AB

SCALE

CAP

O-RING

FILTER

OIL
RESERVOIR

RETURN

SUCTION

RUBBER
MOUNT
