KEYLESS ENTRY SYSTEM

BODY

42-21

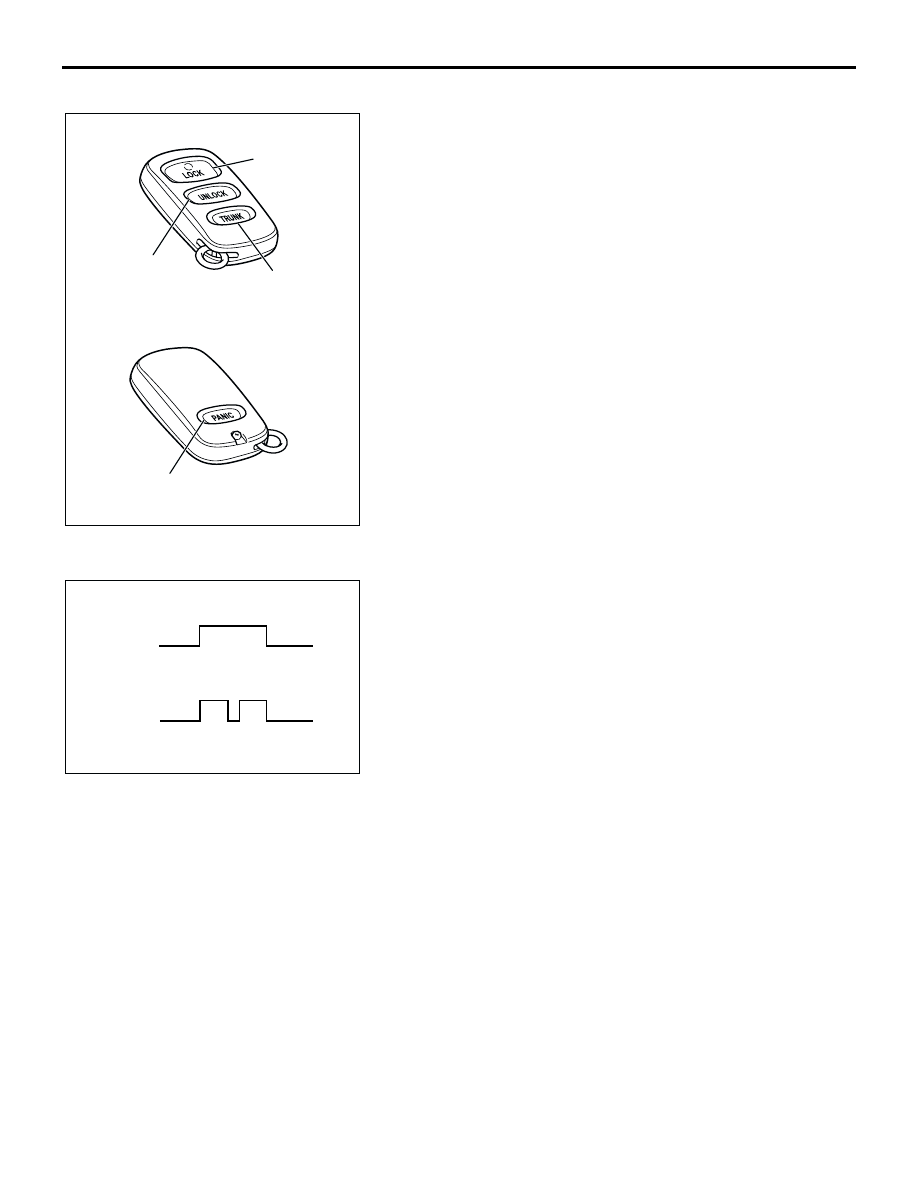

TRANSMITTER

The transmitter, separated from the keys, features three but-
tons lock, unlock and trunk signals <Vehicles without panic
alarm system> or four buttons lock, unlock, trunk and panic sig-
nals <Vehicles with panic alarm system>.
Transmitter operations also function as distinctive cipher codes
that are sent to the ETACS-ECU as electronic signals.

CIPHER CODE
Operating the transmitter once for locking or unlocking will
send a data code twice. The cipher codes that identify users
are made up of combinations of 0 and 1. There are over a mil-
lion combinations. To prevent theft by copying signal codes, the
data code includes a rolling code with the cipher code. The roll-
ing code changes each time a signal is sent.

RECEIVER (PART OF ETACS-ECU)

The ETACS-ECU has a receiver with an antenna.
The receiver compares the code sent from the trans-
mitter with the code retained in the receiver through
the antenna.

•

The ETACS-ECU sends a signal only when those
two codes correspond and the rolling code is
judged correct.

•

All of those output signals are processed inter-
nally in the ETACS-ECU.

•

A maximum of four cipher code (4 transmitters)
can be registered by connecting the data link
connector to the MUT-III sub-assembly
MB991958.

AC305557

AC305558

AC306173 AB

LOCK BUTTON

UNLOCK BUTTON

PANIC BUTTON

<FRONT VIEW >

<REAR VIEW>

TRUNK BUTTON

AC103090 AB

TRANSMITTER LOCK OR UNLOCK BUTTON

OFF

DATA
CODE

KEYLESS ENTRY SYSTEM

BODY

42-22

ANSWERBACK FUNCTIONS

An answerback function is used to notify users after
the receiver receives the stored ID code signal and
the ETACS-ECU sends the lock or unlock signal. The
lights flash or the horn honks to confirm the opera-
tion. The factory-set default answerback setting is
described in the following table. The transmitter and
the multi-center display (middle-grade type) can be
adjusted to change the response after locking and

unlocking. Owners can adjust whether or not the
turn-signal lights, dome light, flash or are illuminated,
as well as whether or not the horn honks. For further
details on using the transmitter to adjust answer-
back, see the section below. For further details on
using the multi-center display (middle-grade type) to
adjust answerback, refer to GROUP 54B, Simplified
Wiring System

P.54B-10

HOW TO USE THE TRANSMITTER TO
ADJUST ANSWERBACK

The hazard answerback function can be enabled or
disabled by the following procedures:

ANSWERBACK ADJUSTMENT DETAILS

ITEM

OPERATION
DOORS LOCKED

DOORS UNLOCKED

ETACS-ECU (receiver)

Sends lock signal

Sends unlock signal

Dome light

Flashes once

Illuminates for 15 seconds

Turn-signal lights (RH and LH)

Flashes once

Flashes twice

Horn

Sounds once

ITEM

ADJUSTMENT ITEM

ADJUSTMENT DETAILS

Keyless entry system
confirmation by turn
signal lights

Adjustment of hazard answerback
when the transmitter is used to
lock doors

When adjusting hazard answerback after the
doors are locked with the transmitter, the
following flashing conditions can be specified.

a. Indication (default)
b. No indication

Adjustment of hazard answerback
when the transmitter is used to
unlock doors

When adjusting hazard answerback after the
doors are unlocked with the transmitter, the
following flashing conditions can be specified.

a. Indication (default)
b. No indication

Keyless entry system
confirmation by horn

Adjustment of horn answerback
when the transmitter is used to
lock doors

When adjusting horn answerback after the
doors are locked or unlocked with the
transmitter, the following honking conditions
can be specified.

a. Horn sounds
b. Horn sounds if doors are already locked

(default)

c. Horn does not sound

KEYLESS ENTRY SYSTEM

BODY

42-23

How to adjust hazard answerback when the
transmitter is used to lock doors
1. Remove the ignition key.
2. Push the “UNLOCK” button and then push the

“lock” button within 4 seconds to 10 seconds.

3. Release the “LOCK” button within 10 seconds

after Step 2 and then release the “UNLOCK”
button. The ETACS-ECU tone alarm will sound,
indicating that the hazard answerback function
can be enabled or disabled when the doors are
locked.

•

Enable the hazard answerback function
when the doors are locked: The
ETACS-ECU tone alarm will sound once.

•

Disable the hazard answerback function
when the doors are locked: The
ETACS-ECU tone alarm will sound twice.

How to adjust hazard answerback when the
transmitter is used to unlock doors
1. Remove the ignition key.
2. Push the “UNLOCK” button and then push the

“LOCK” button within 4 seconds to 10 seconds.

3. Release the “LOCK” button within 10 seconds

after Step 2 and then release the “UNLOCK”
button. The ETACS-ECU tone alarm will sound,
indicating that the hazard answerback function
can be enabled or disabled when the door are
unlocked.

•

Enable the hazard answerback function
when the doors are unlocked: The
ETACS-ECU tone alarm will sound once.

•

Disable the hazard answerback function
when the doors are unlocked: The
ETACS-ECU tone alarm will sound twice.

How to adjust horn answerback when the
transmitter is used to lock doors
1. Remove the ignition key.
2. Push the “UNLOCK” button and then push the

“lock” button within 4 seconds to 10 seconds.

3. Release the ”LOCK” button within 10 seconds

after Step 2 and then release the “UNLOCK”
button. The ETACS-ECU tone alarm will sound,
indicating that the horn answerback function can
be enabled or disabled.

•

Enable the horn answerback function*:
The ETACS-ECU tone alarm will sound
once.

•

Disable the horn answerback function:
The ETACS-ECU tone alarm will sound
twice.

•

Enable the horn answerback function**:
The ETACS-ECU tone alarm will sound
three times.

NOTE:

*: The horn will sound if the doors are already

locked and the keyless entry lock button is
operated.

**: The horn will sound if the doors are locked with

the keyless entry system.

TIMER LOCK FUNCTION

After the transmitter is used to unlock the doors
(including the liftgate), if no door is opened and the
ignition key is not inserted within 30 seconds, the
ETACS-ECU automatically sends a door lock signal
to lock all doors (including the liftgate). This timer
lock function prevents operational error from acci-
dental unlocking of doors and the liftgate. The default

period for the timer lock function is factory-set at 30
seconds, but it can be adjusted to settings of 30, 60,
120, and 180 seconds using the multi-center display
(middle-grade type). For further details on using the
multi-center display (middle-grade type) to adjust the
timer period, refer to GROUP 54B, Simplified Wiring
System

P.54B-10

PROHIBITED OPERATING CONDITION
FOR THE KEYLESS ENTRY SYSTEM

•

When the ignition key is inserted

SUNROOF

BODY

42-24

SUNROOF

M2420016000134

A powered sliding sunroof that can be tilted is avail-
able. The sunroof offers the following advantages:

•

The sunroof opens wide.

•

The sunroof tilts up approximately 30 mm (1.18
inches) to improve ventilation.

•

A single switch is added to the overhead console
for convenient one-touch operation of all position-
ing: sliding the sunroof open and closed, tilting it
up and down, and setting the position.

•

The system features a function to open approxi-
mately 30 mm (1.18 inches) every time the
close/tilt down switch is pressed, until the sunroof
is fully open, by canceling the jam prevention
mechanism:

•

It is possible to operate the sunroof for 30 sec-
onds even after the ignition switch is turned OFF.
(The key-off function stops when the front door is
opened).

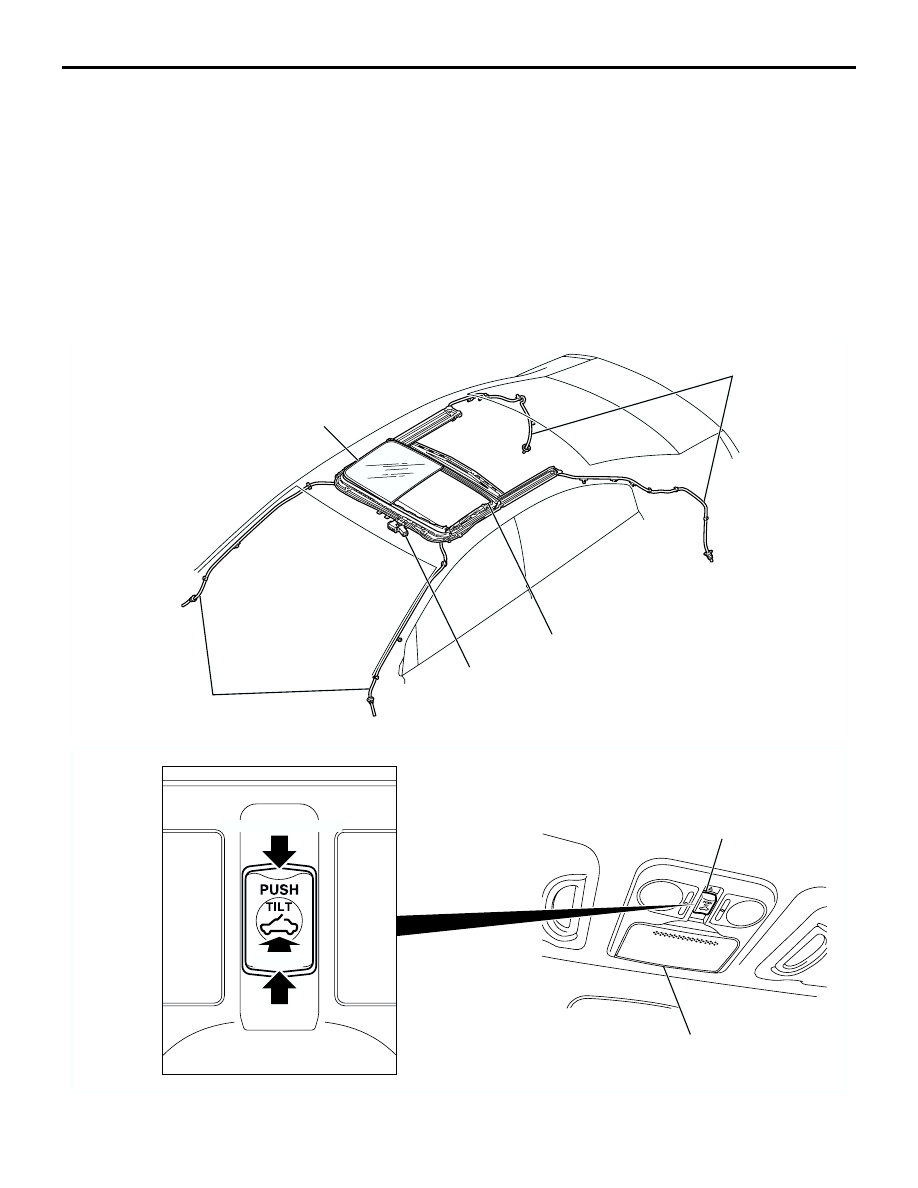

CONSTRUCTION DIAGRAM

AC305508

DRAIN PIPE

ROOF LID GLASS

SUNROOF MOTOR ASSEMBLY
(INTEGRATED INTO SUNROOF-ECU)

SUNSHADE

AC209094

AC306500

AC306368

SUNROOF SWITCH

OPEN

TILT-UP

CLOSE/TILT-DOWN

OVERHEAD CONSOLE
