SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-145

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

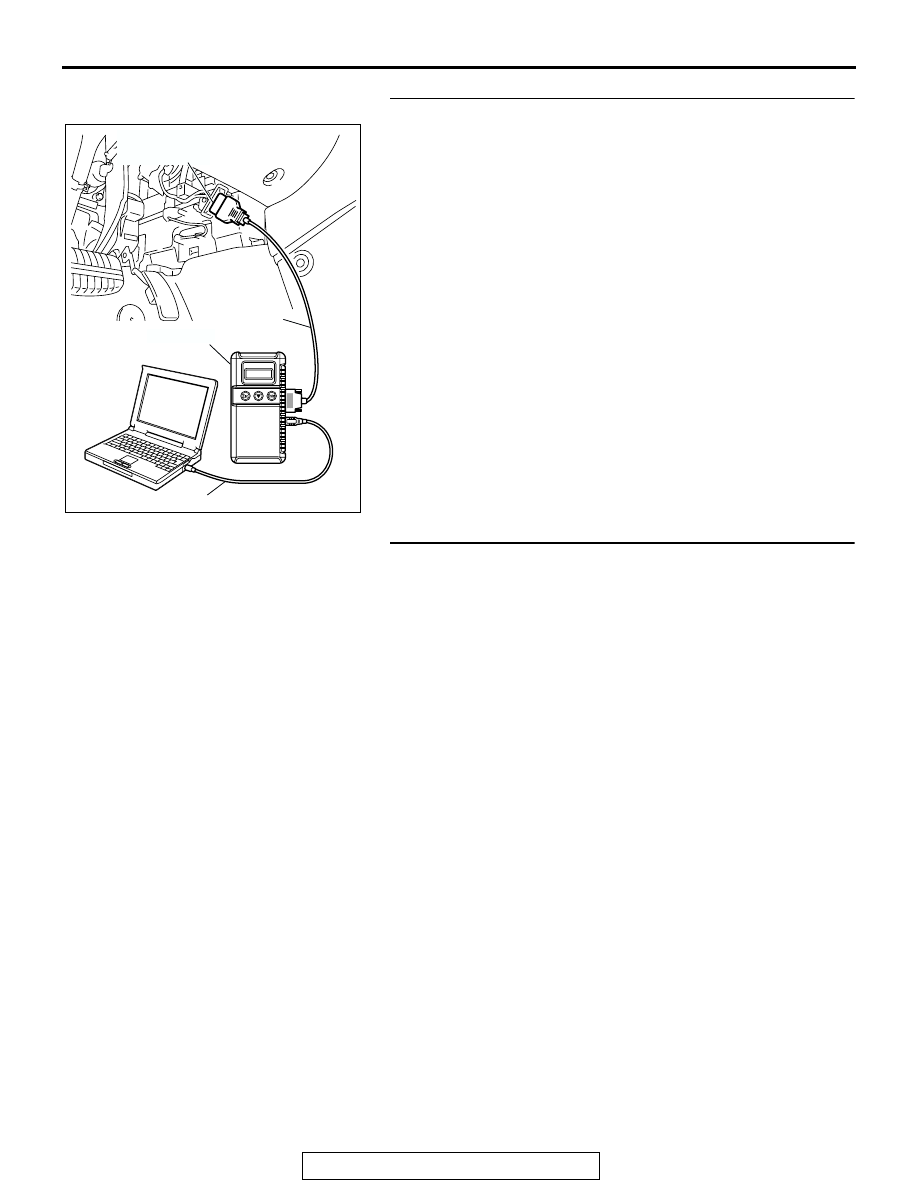

STEP 3. Check the side impact sensor. (Using scan tool
MB991958, read the diagnostic trouble code.)

Replace side impact sensor (RH) (for DTC B1426) and side
impact sensor (LH) (for DTC B1436) (Refer to

P.52B-377

).

Check the diagnostic trouble code.
Q: Is either DTC B1426 or B1436 set?

YES : Replace the SRS-ECU (Refer to

P.52B-365

).

NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-146

DTC B1427: Side Impact Sensor (RH) Power Supply Circuit System

CAUTION

If DTC B1427 is set in the SRS-ECU, always diag-
nose the CAN main bus line.

.

CIRCUIT OPERATION
The side impact sensor includes an analog G sensor
and CPU, etc. The CPU monitors the analog G sen-
sor output signal. If the CPU judges that the
side-airbags should be deployed, it sends a fire sig-
nal to the SRS-ECU to deploy the side-airbags. In
addition, the CPU diagnoses the internal compo-
nents of the side impact sensor. If a malfunction
occurs, it requests the SRS-ECU to set a diagnostic
trouble code.

.

DTC SET CONDITIONS
This DTC will set when the power supply voltage to
the side impact sensor (RH) remains less than a pre-
determined value for five seconds. However, if the
system returns to normal condition, code number
B1427 will be erased automatically and the SRS
warning light will go out.

.

TROUBLESHOOTING HINTS

• Damaged wiring harness or connectors

• Malfunction of the side air bag module (RH)

(squib)

• Malfunction of the SRS-ECU

.

SIDE IMPACT
SENSOR (RH)

INTERFACE
CIRCUIT

SRS-ECU

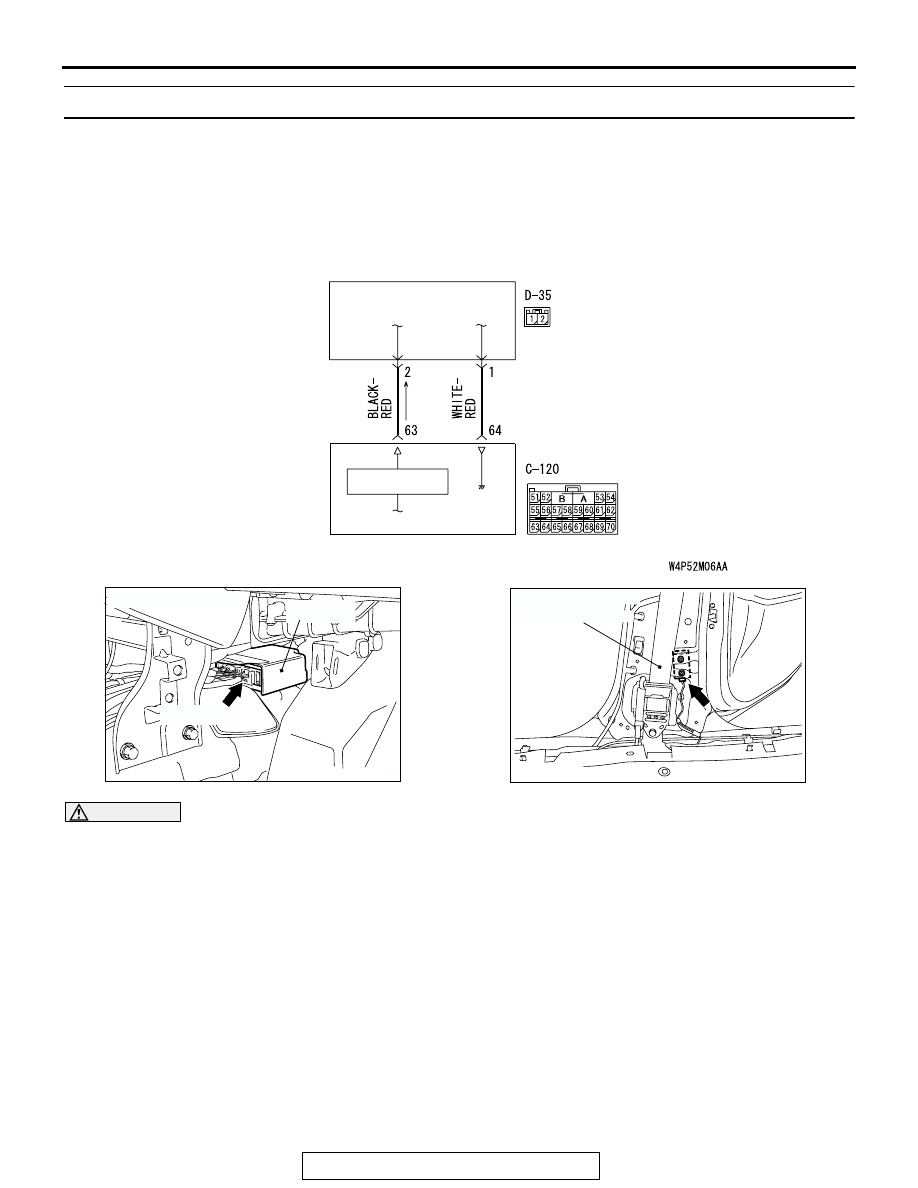

Side Impact Sensor (RH) Circuit

AC305362

CONNECTOR: C-120

C-120 (Y)

AC

SRS-ECU

AC308163

CONNECTOR: D-35

AB

FRONT SEAT BELT

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-147

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

• MB991223 (MB991222): Harness set (Probe)

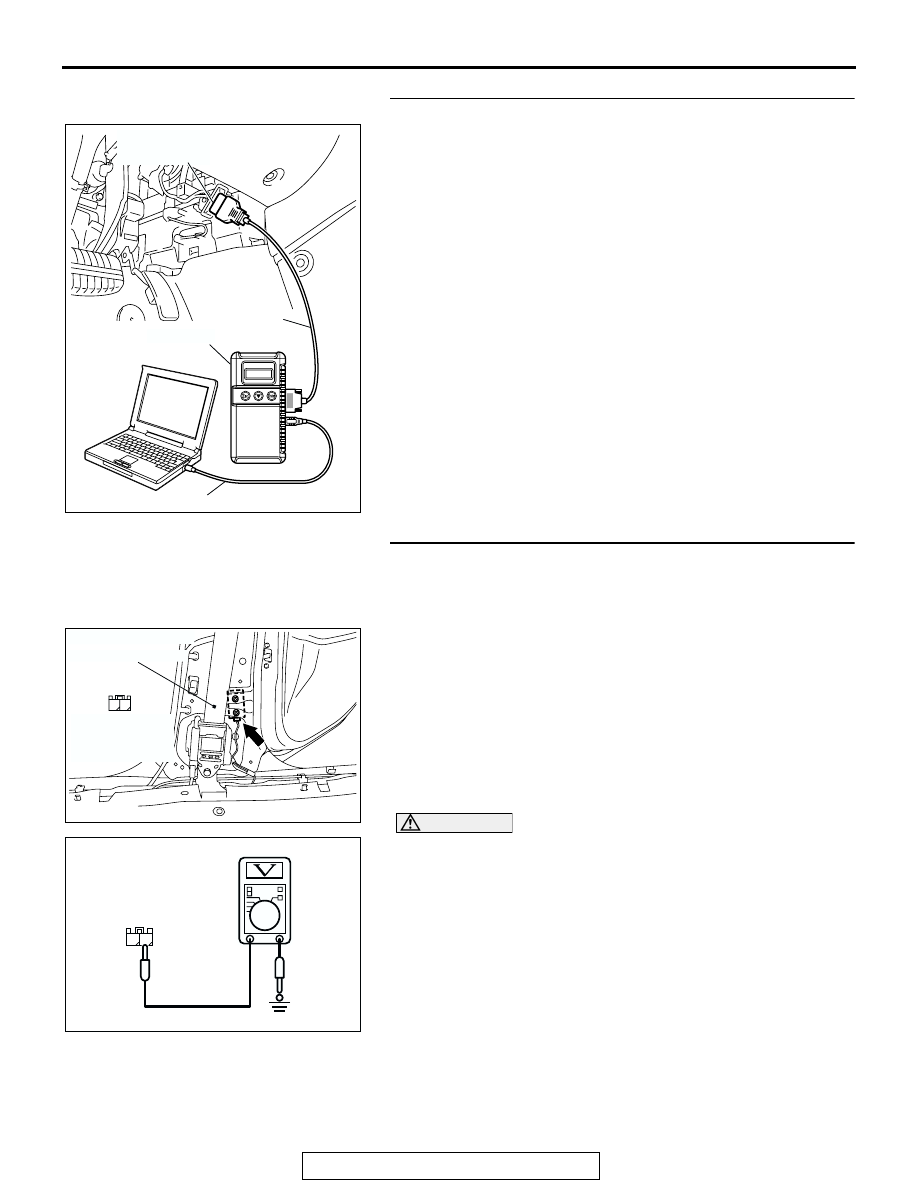

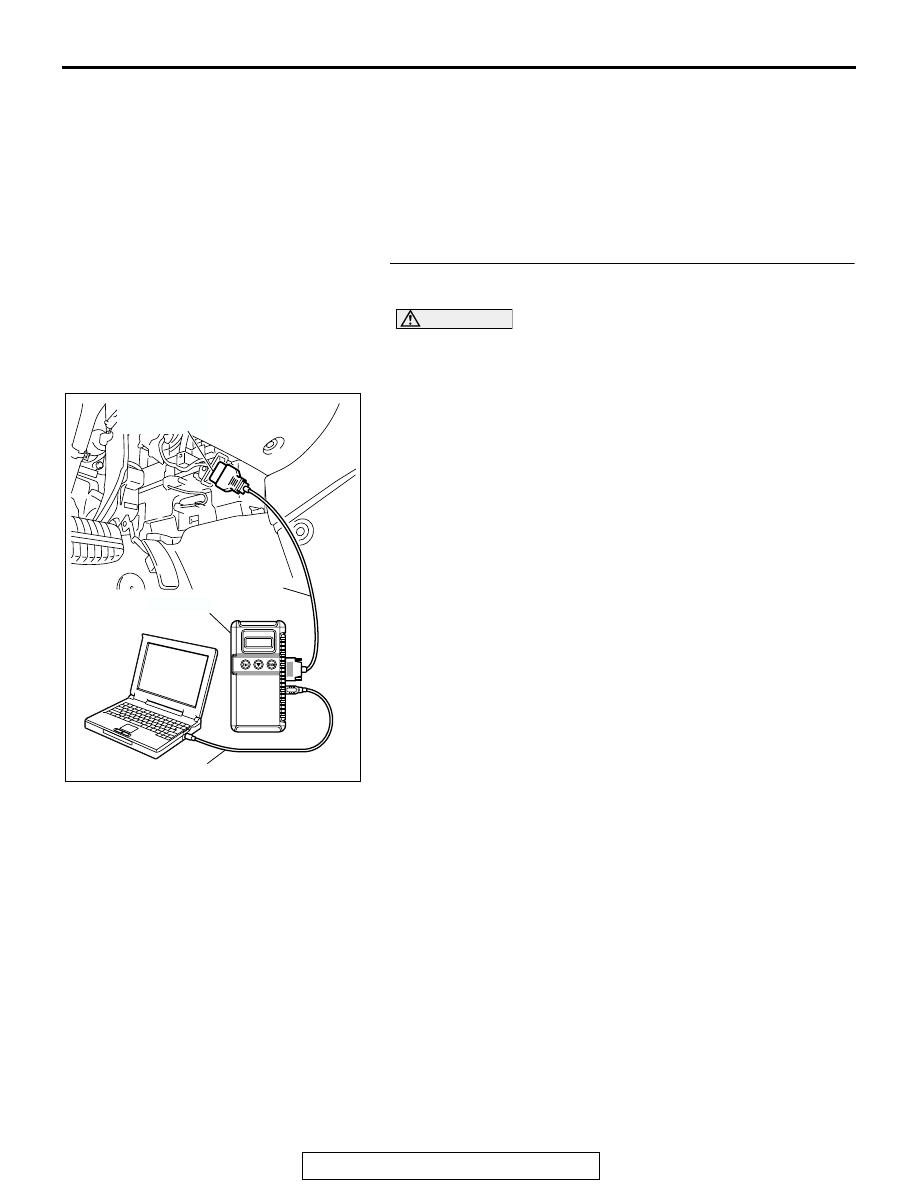

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-30

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-148

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

STEP 3. Check the side impact sensor (RH) power supply
circuit. Measure the voltage at the side impact sensor (RH)
connector D-35.
(1) Disconnect the negative battery terminal.

(2) Disconnect side impact sensor (RH) connector D-35, and

measure at the wiring harness side.

(3) Connect the negative battery terminal.
(4) Turn the ignition switch to the "ON" position.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(5) Measure the voltage between D-35 harness side connector

terminal 2 and ground.

Voltage should measure 9 volts or more

Q: Is the measured voltage within the specified range?

YES : Replace the side impact sensor (RH). (Refer to

P.52B-377

). Then go to Step 5.

NO :  Go to Step 4.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC308163

CONNECTOR: D-35

AC

FRONT SEAT BELT

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

AC201627

1 2

D-35 HARNESS SIDE
CONNECTOR
(REAR VIEW)

AQ
