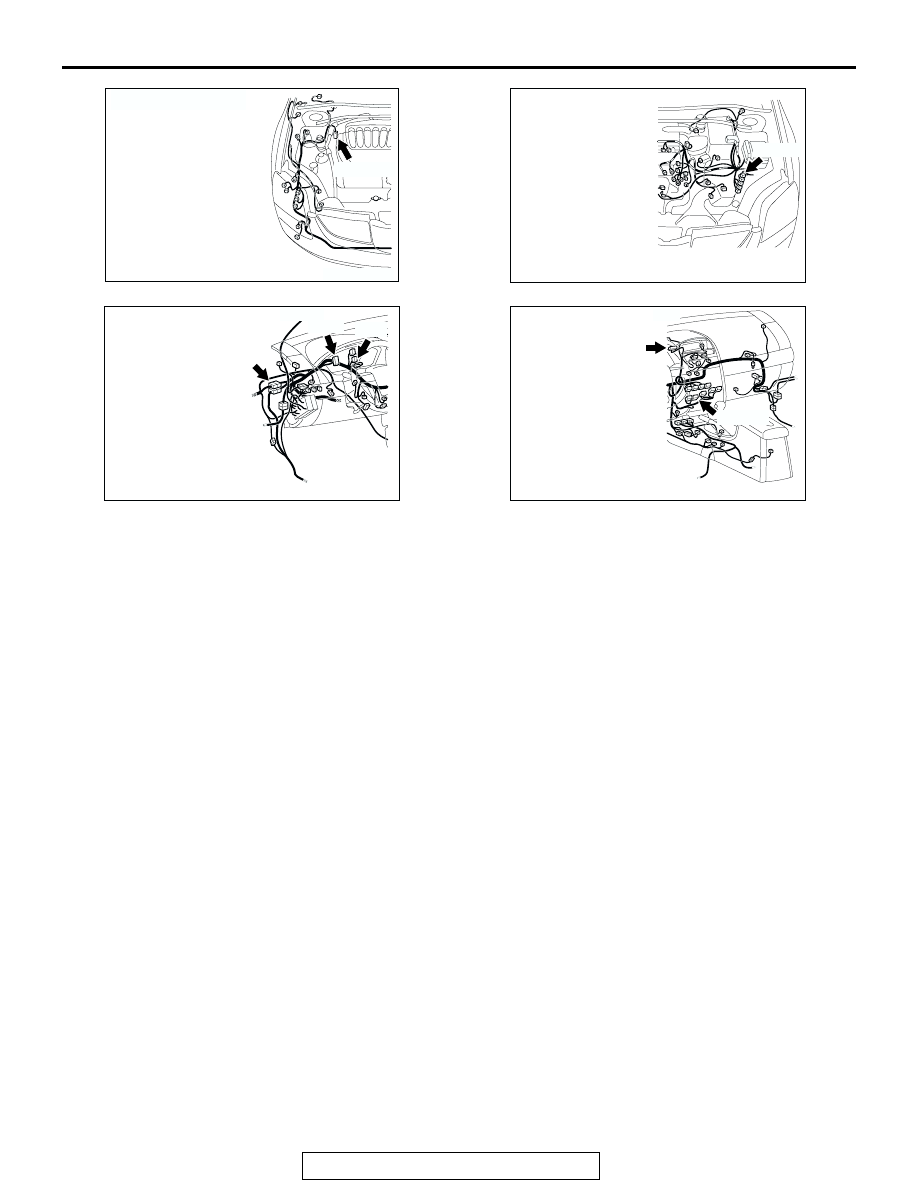

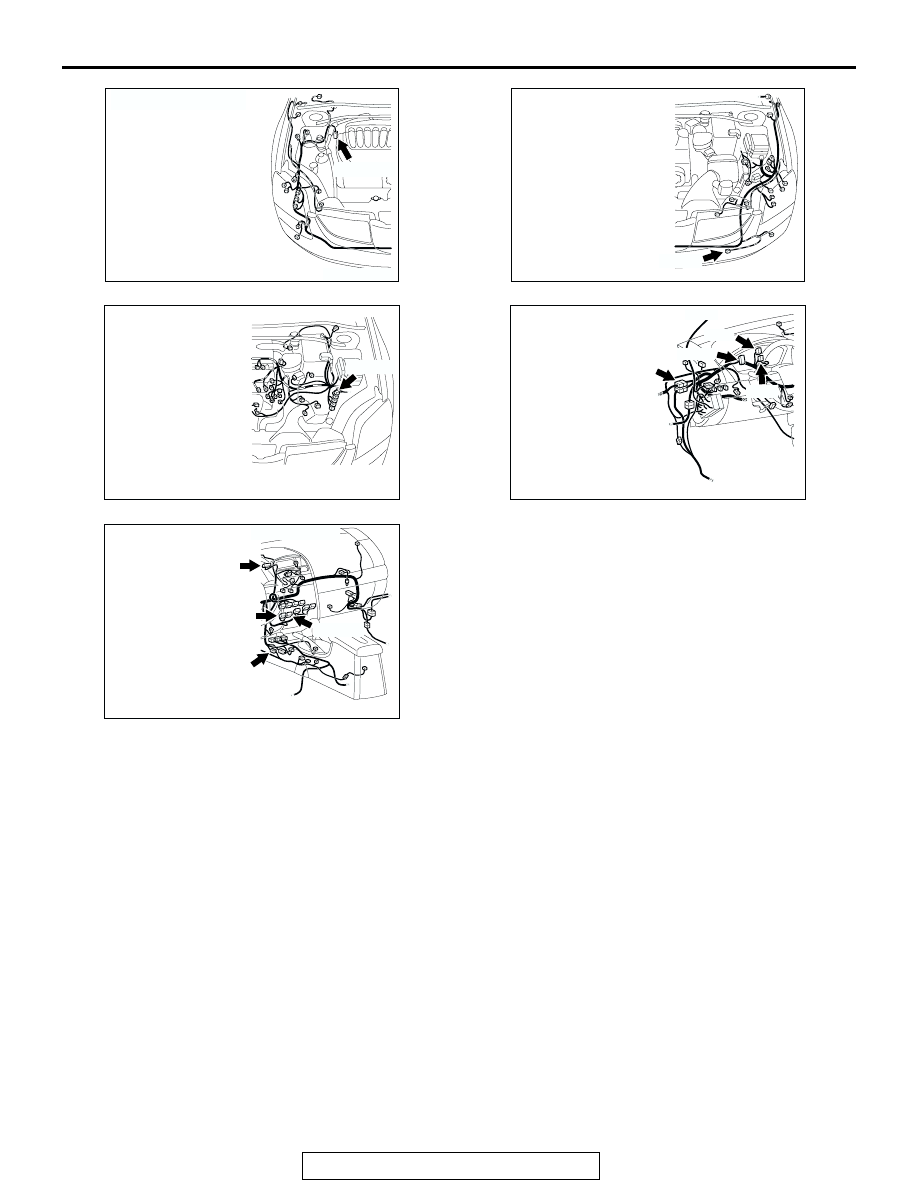

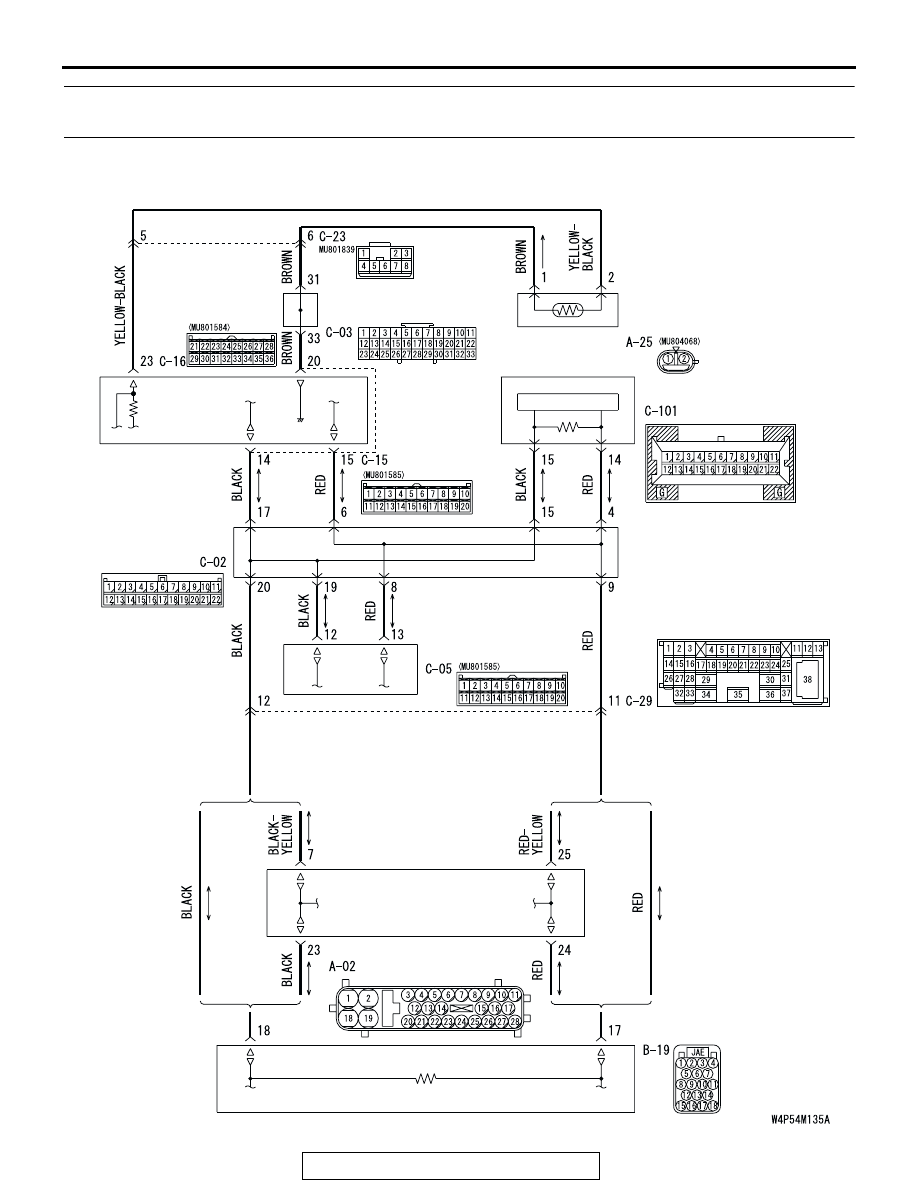

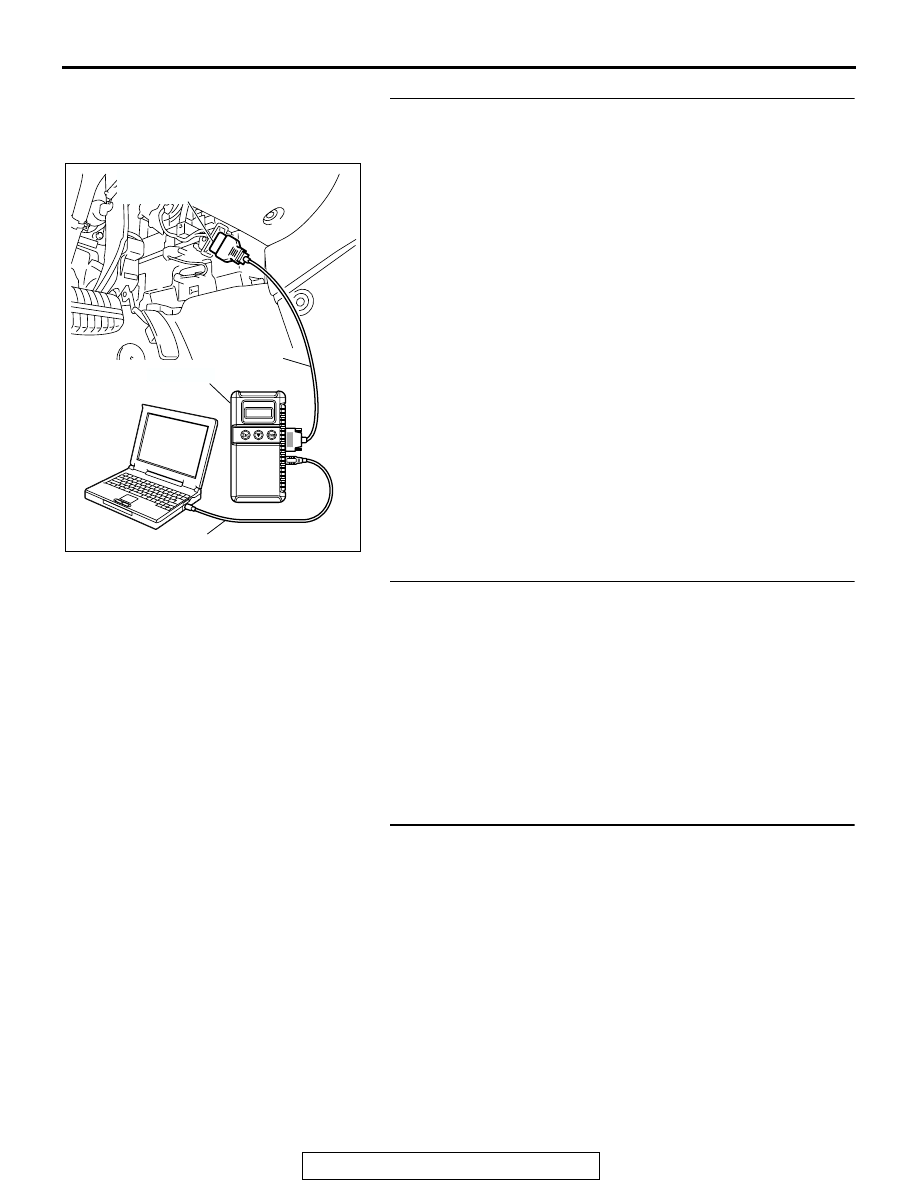

MULTI-CENTER DISPLAY TSB Revision CHASSIS ELECTRICAL 54A-279 . CIRCUIT OPERATION . TECHNICAL DESCRIPTION (COMMENT) . TROUBLESHOOTING HINTS • Malfunction of multi-center display unit (middle grade type) • Malfunction of A/C-ECU • The wiring harness or connectors may have loose, corroded, or damaged terminals, or termi- DIAGNOSIS Required Special Tools: • MB991958: Scan Tool (MUT-III Sub Assembly) • MB991824: Vehicle Communication Interface (V.C.I.) • MB991827: MUT-III USB Cable • MB991911: MUT-III Main Harness A (Vehicles with CAN communication system) AC305206 CONNECTOR: A-02 AO A-02 (GR) AC305216 B-19 (B) CONNECTOR: B-19 AD AC305231 C-02 C-29 C-101 DD CONNECTORS: C-02, C-29, C-101 AC305233 CONNECTORS: C-05, C-15 CQ C-05 (B) C-15 (B) |
