STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-11

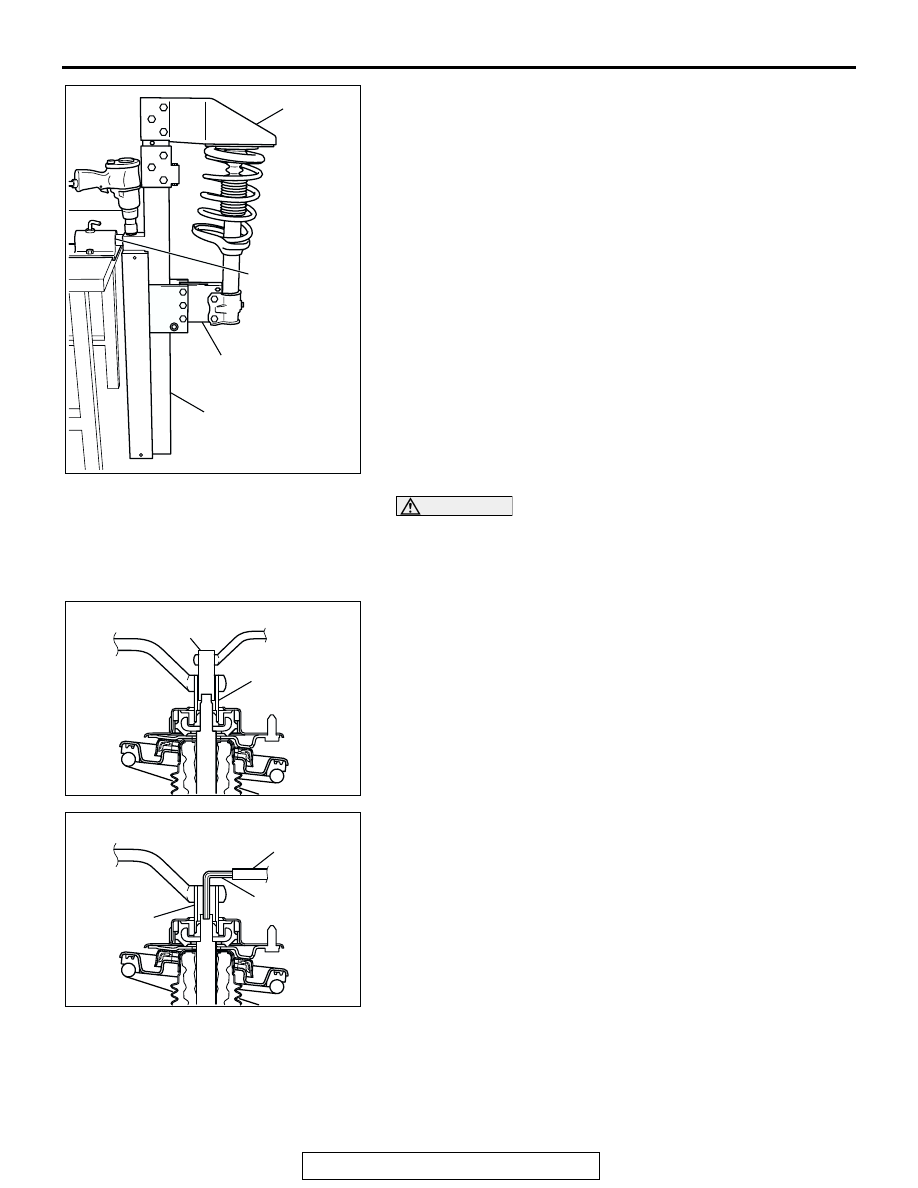

2. Set the strut assembly to the following special tools.

• MB991793: Spring Compressor

• MB991794: Upper Plate

• MB991795: Attachment A

• MB991830: Fixture

NOTE: Set the strut assembly by using the bolt and nut that
are removed from the vehicle. When installing the bolt and
nut, lightly tighten them by hand.

3. Compress the coil spring approximately 5 mm (0.20 inch)

using the spring compressor.

CAUTION

Do not use an impact wrench to tighten the strut nut, oth-
erwise the strut nut will be damaged. Vibration of the
impact wrench will cause the valve inside the strut to drop
out.
4. For 2.4L engine models, use special tool MB991682 to

secure the strut, and then remove the strut nut (self-locking
nut) using special tool MB991681.

For 3.8L engine models, use a hexagon wrench and a pipe

to secure the strut, and then remove the strut nut
(self-locking nut) using special tool MB991681.

.

AC105116 AE

MB991794

MB991830

MB991795

MB991793

AC302425

AC305844

AB

MB991681

MB991682

<2.4L ENGINE MODELS>

AC305844

AC305845

AB

MB991681

HEXAGON
WRENCH

PIPE

<3.8L ENGINE MODELS>

STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-12

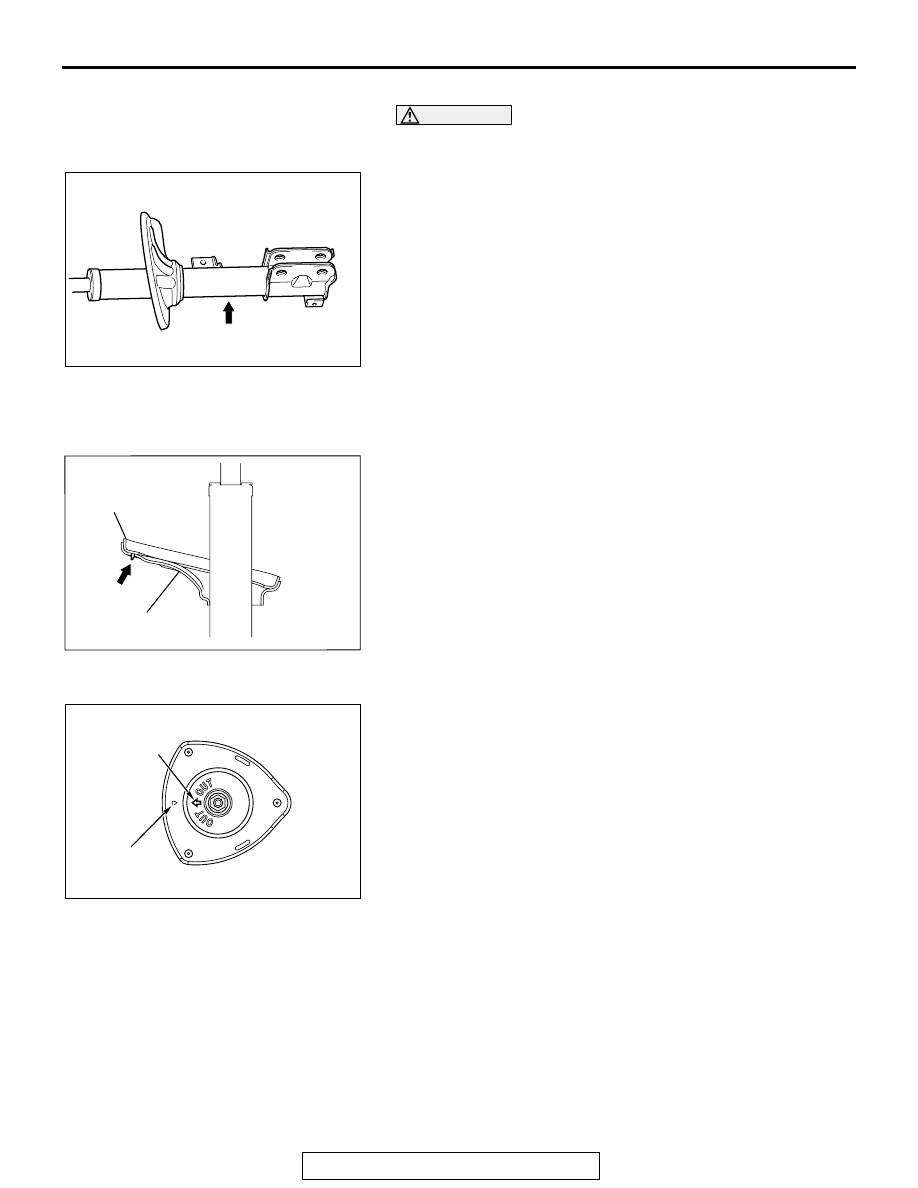

<<B>> FRONT SUSPENSION STRUT DISPOSAL

WARNING

Wear goggles when drilling to protect your eyes from
flying metal debris.

The gas must be discharged from the strut before discarding it.
Place the strut horizontally with its piston rod extended. Then
drill a hole of approximately 3 mm (0.1 inch) in diameter at the
location shown in the illustration and discharge the gas.

ASSEMBLY SERVICE POINTS

.

>>A<< SPRING LOWER PAD INSTALLATION
Engage the three lugs of the spring lower pad into the holes on
the front suspension strut as shown.

.

>>B<< STRUT INSULATOR INSTALLATION
If the upper plate and lower plate of the strut insulator have
been disassembled, assemble them as shown.

.

>>C<< STRUT NUT (SELF-LOCKING NUT) INSTALLATION
1. Ensure that the bearing is seated correctly.

AC210097AB

AC205614AB

SPRING LOWER
PAD

FRONT SUSPENSION
STRUT

AC210098AB

ARROW ON THE
UPPER PLATE

ARROW ON THE
LOWER PLATE

STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-13

WARNING

When the strut piston rod is positioned to the hole of
strut insulator with compressing the coil spring, be
careful not that your hand is jammed by the coil
spring.

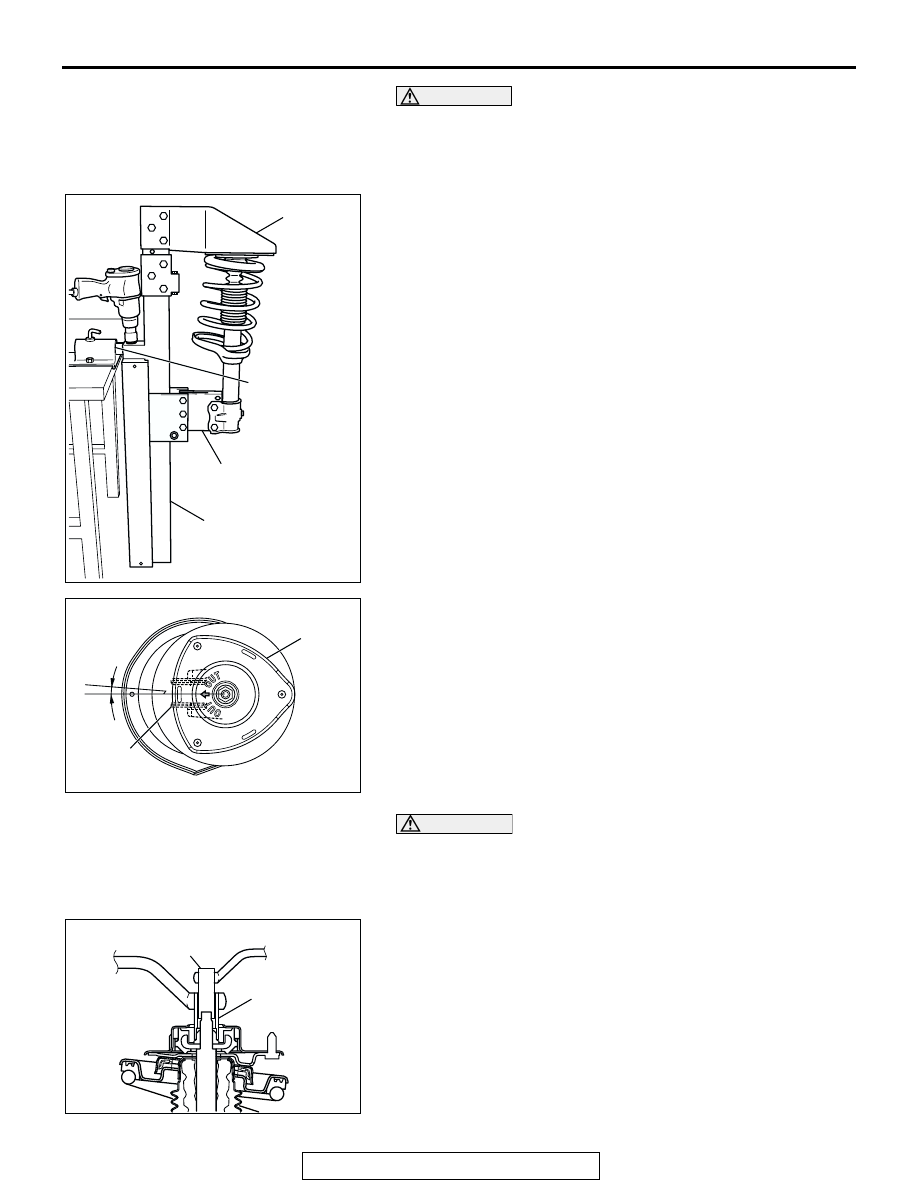

2. Compress the coil spring slowly using the following special

tools, penetrating the strut piston rod to the hole of strut
insulator.

• MB991793: Spring Compressor

• MB991794: Upper Plate

• MB991795: Attachment A

• MB991830: Fixture

3. While the coil spring is being compressed by the special

tools, temporarily tighten the strut nut (self-locking nut).

4. Ensure that the arrows on the strut bracket center and the

strut insulator are positioned as shown.

CAUTION

Do not use an impact wrench to tighten the strut nut, oth-
erwise the strut nut will be damaged. Vibration of the
impact wrench will cause the valve inside the strut to drop
out.
5. For 2.4L engine models, using special tools MB991681 and

MB991682, tighten the strut nut (self-locking nut) to 65

± 5

N

⋅m (48 ± 4 ft-lb).

AC105116 AE

MB991794

MB991830

MB991795

MB991793

AC205613

STRUT
INSULATOR

AC

0˚ ± 2˚

STRUT
BRACKET

AC302425

AC305844

AB

MB991681

MB991682

<2.4L ENGINE MODELS>

STRUT ASSEMBLY

TSB Revision

FRONT SUSPENSION

33-14

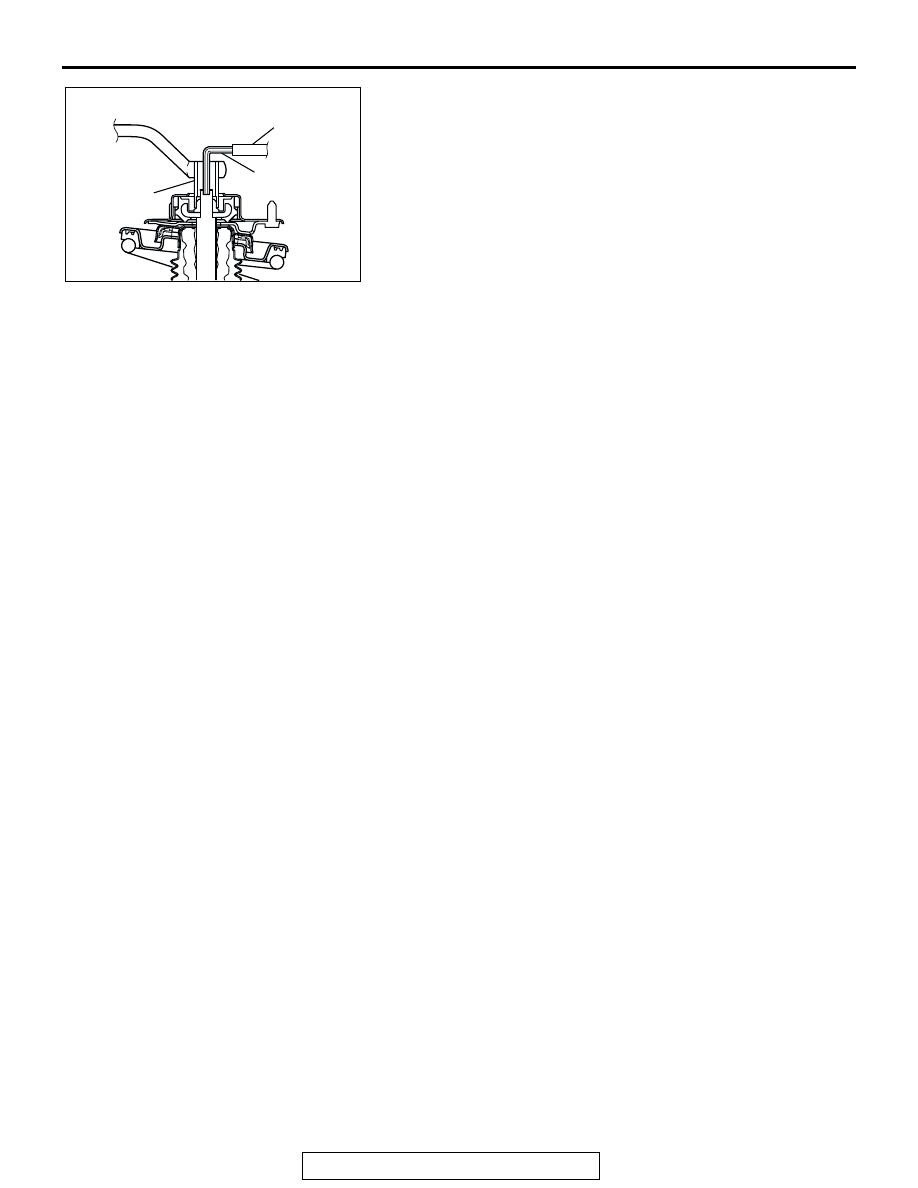

For 3.8L engine models, using special tool MB991681, a

hexagon wrench and a pipe, tighten the strut nut
(self-locking nut) to 65

± 5 N⋅m (48 ± 4 ft-lb).

INSPECTION

M1332001400207

• Check the strut bearing for wear.

• Check the rubber parts for damage or deterioration.

• Check the coil spring for deformation, deterioration or dam-

age.

• Check the front suspension strut for deformation.

AC305844

AC305845

AB

MB991681

HEXAGON
WRENCH

PIPE

<3.8L ENGINE MODELS>
