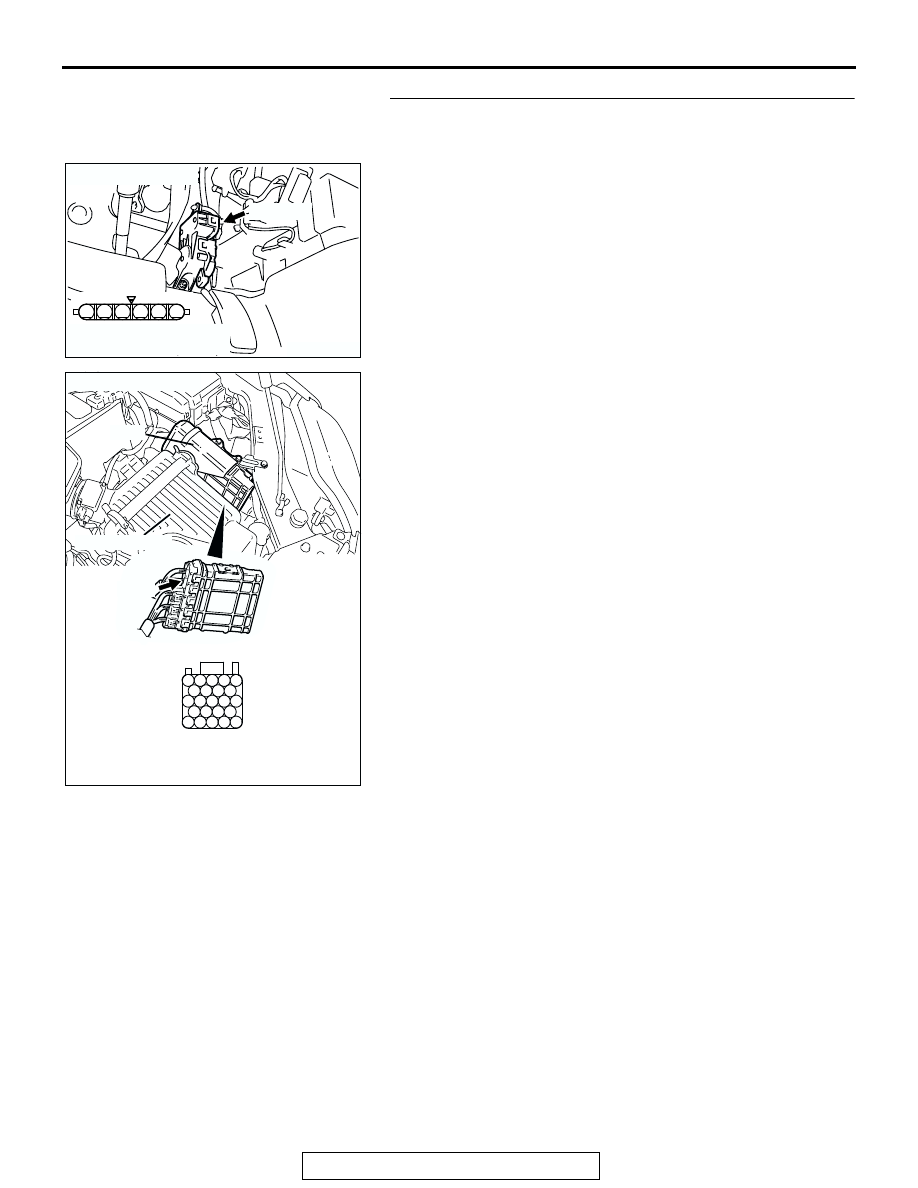

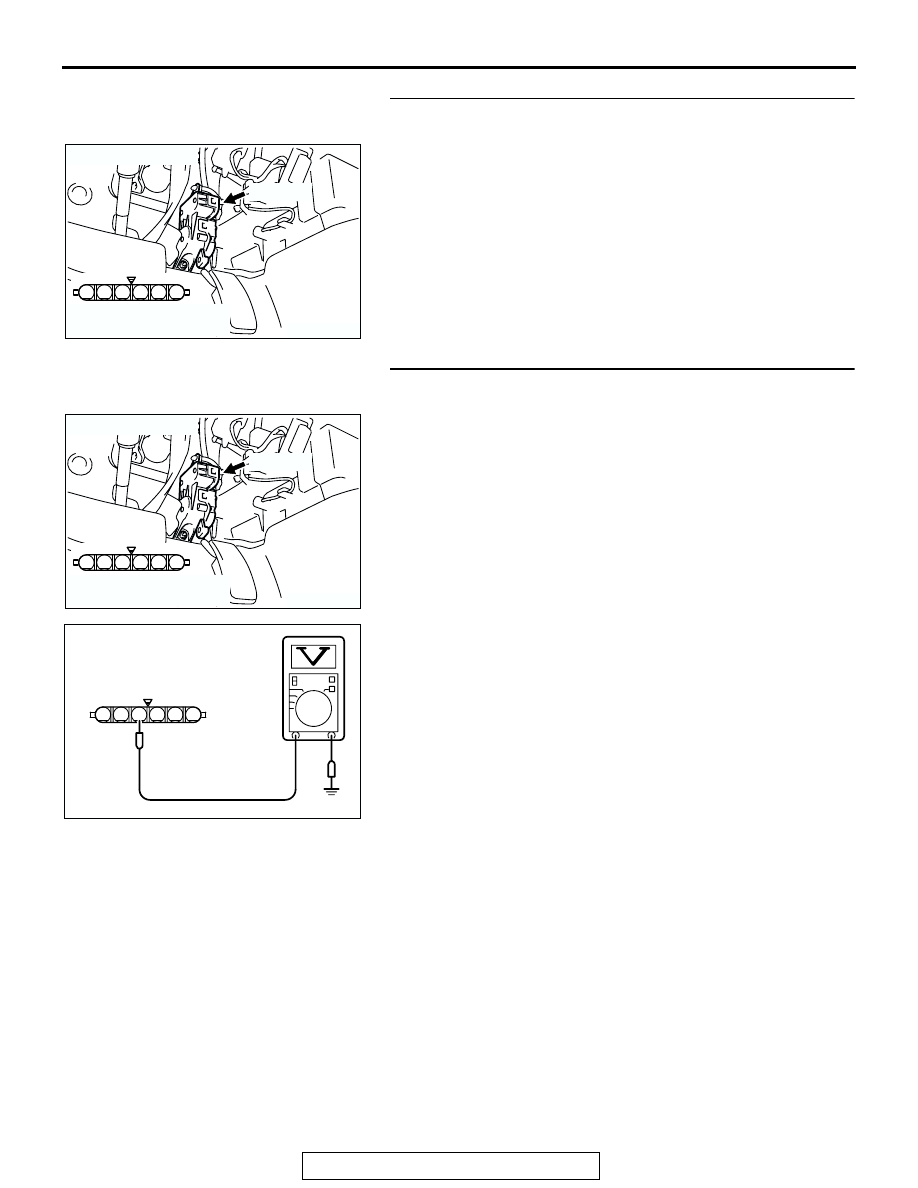

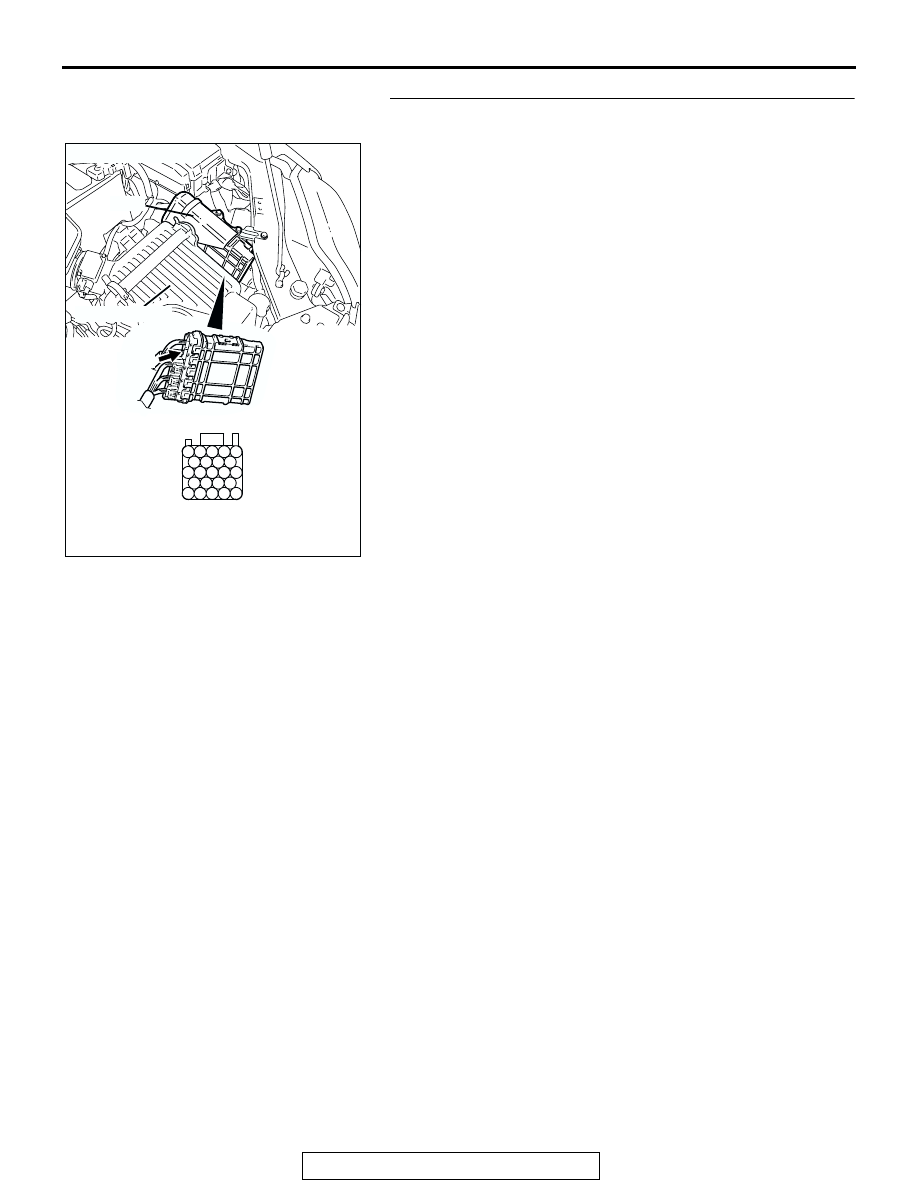

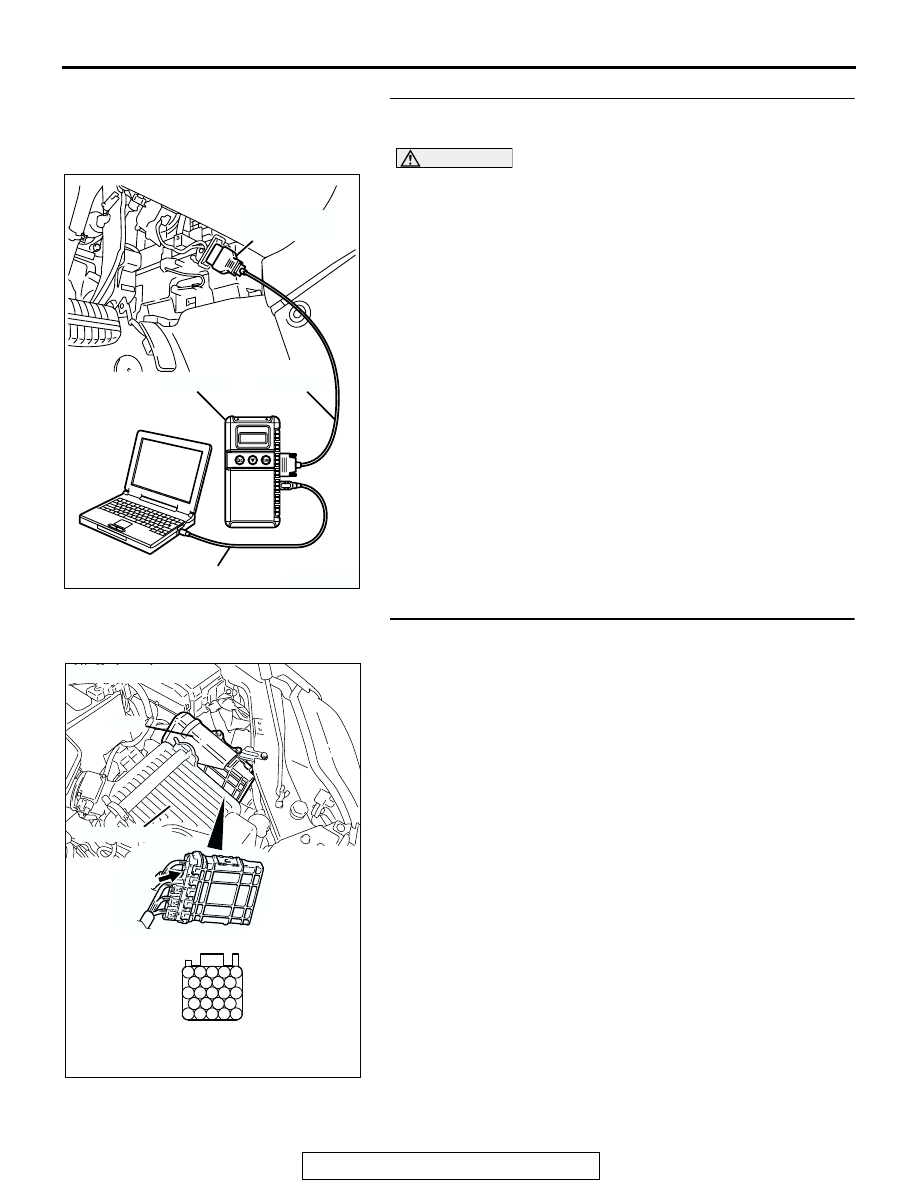

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-885 STEP 2. Check harness connector C-24 at accelerator Q: Is the harness connector in good condition? YES : Go to Step 3. Connector Inspection . Then go to Step 11. STEP 3. Measure the sensor supply voltage at accelerator (1) Disconnect the connector C-24 and measure at the harness side. (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between terminal No. 4 and ground. • Voltage should be between 4.9 and 5.1 volts. (4) Turn the ignition switch to the "LOCK"(OFF) position. YES : Go to Step 7. AK303906 1 6 5 4 3 2 AB C-24 (B) CONNECTOR: C-24 HARNESS CONNECTOR: AK303906 1 6 5 4 3 2 AB C-24 (B) CONNECTOR: C-24 HARNESS CONNECTOR: 1 6 5 4 3 2 AK203019 C-24 HARNESS AC |
