POWER PLANT MOUNT –

Transmission Mounting

32-3

TRANSMISSION MOUNTING

REMOVAL AND INSTALLATION

Caution
Mounting locations marked by * should be provisionally tightened, and then fully tightened when
the body is supporting the full weight of the engine.

Pre-removal and Post-installation Operation
Air Cleaner Assembly Removal and Installation

90 Nm*

54 Nm

3

1

2

50 Nm

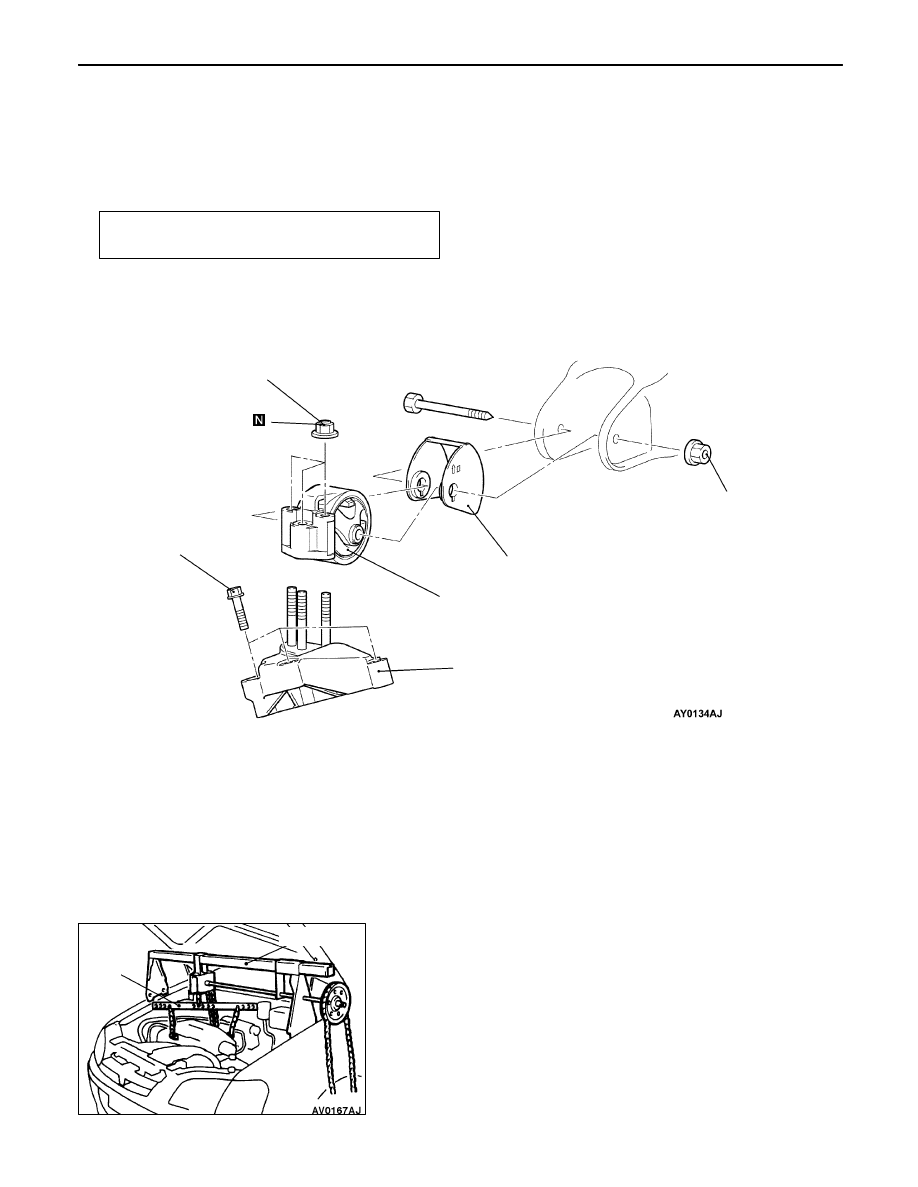

Removal steps



Centermember mounting bolt



A



1. Transmission mount bracket



A



2. Transmission mount stopper
3. Transmission mount lower bracket

REMOVAL SERVICE POINT



A



TRANSMISSION MOUNT BRACKET REMOVAL

1.

Install the special tool to the vehicle body to support the
engine and transmission assembly.

2.

Remove the centermember mounting bolts.

3.

Remove the bolt and nuts of the transmission mount
bracket.

4.

After lowering the engine and transmission assembly,
remove the transmission mount bracket.

MB991453

MZ203827

POWER PLANT MOUNT –

Transmission Mounting

32-4

INSTALLATION SERVICE POINT



A



TRANSMISSION MOUNT STOPPER INSTALLATION

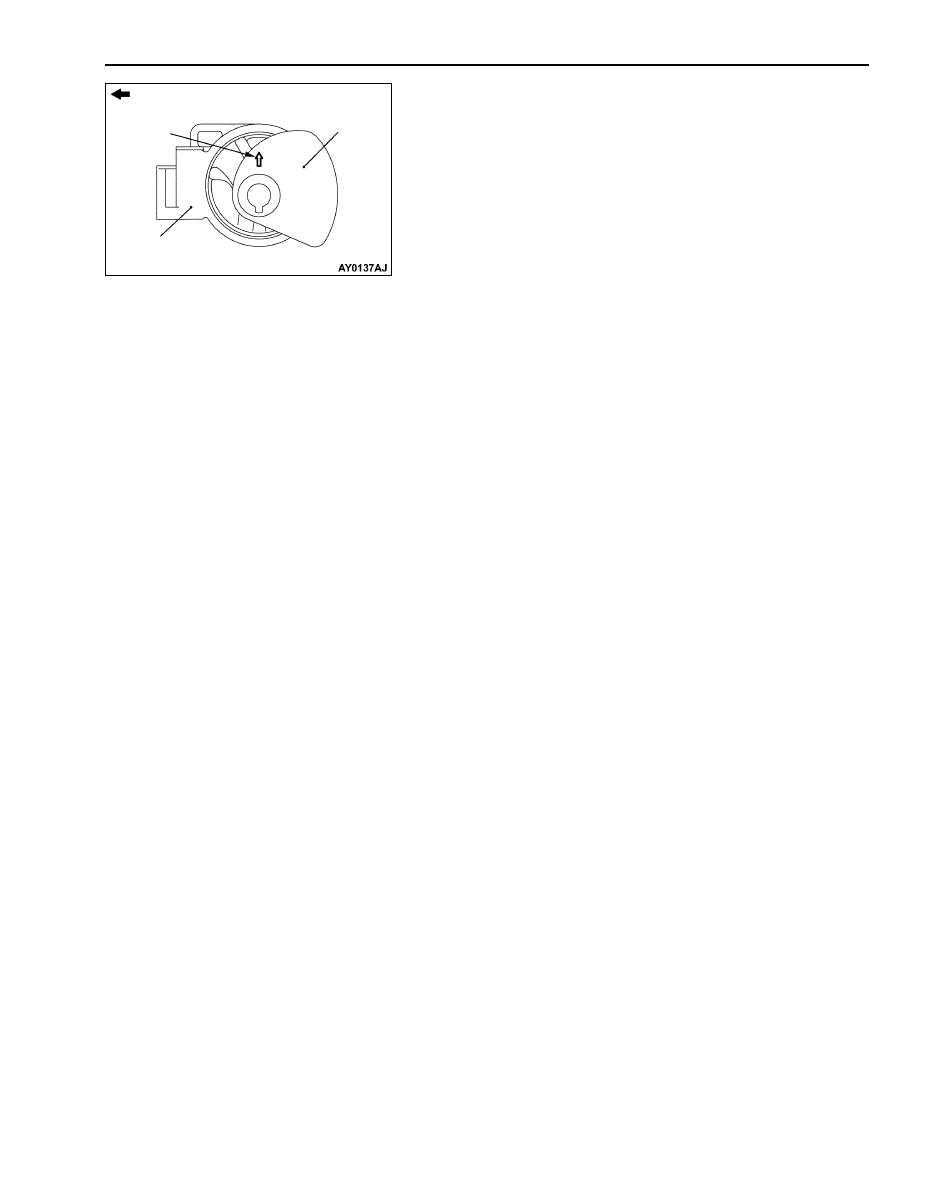

Install the transmission mount stopper so that the arrow mark
points toward the shown direction.

Engine side

Arrow

Transmission
mount stopper

Transmission
mount bracket

POWER PLANT MOUNT –

Engine Roll Stopper, Centermember

POWER PLANT MOUNT –

Engine Roll Stopper, Centermember

32-5

ENGINE ROLL STOPPER, CENTERMEMBER

REMOVAL AND INSTALLATION

Caution
Mounting locations marked by * should be provisionally tightened, and then fully tightened when
the body is supporting the full weight of the engine.

39 Nm

54 Nm*

54 Nm*

69 Nm

4

3

5

6

2

5

69 Nm

1

39 Nm

7

1

6

7

10 Nm

8

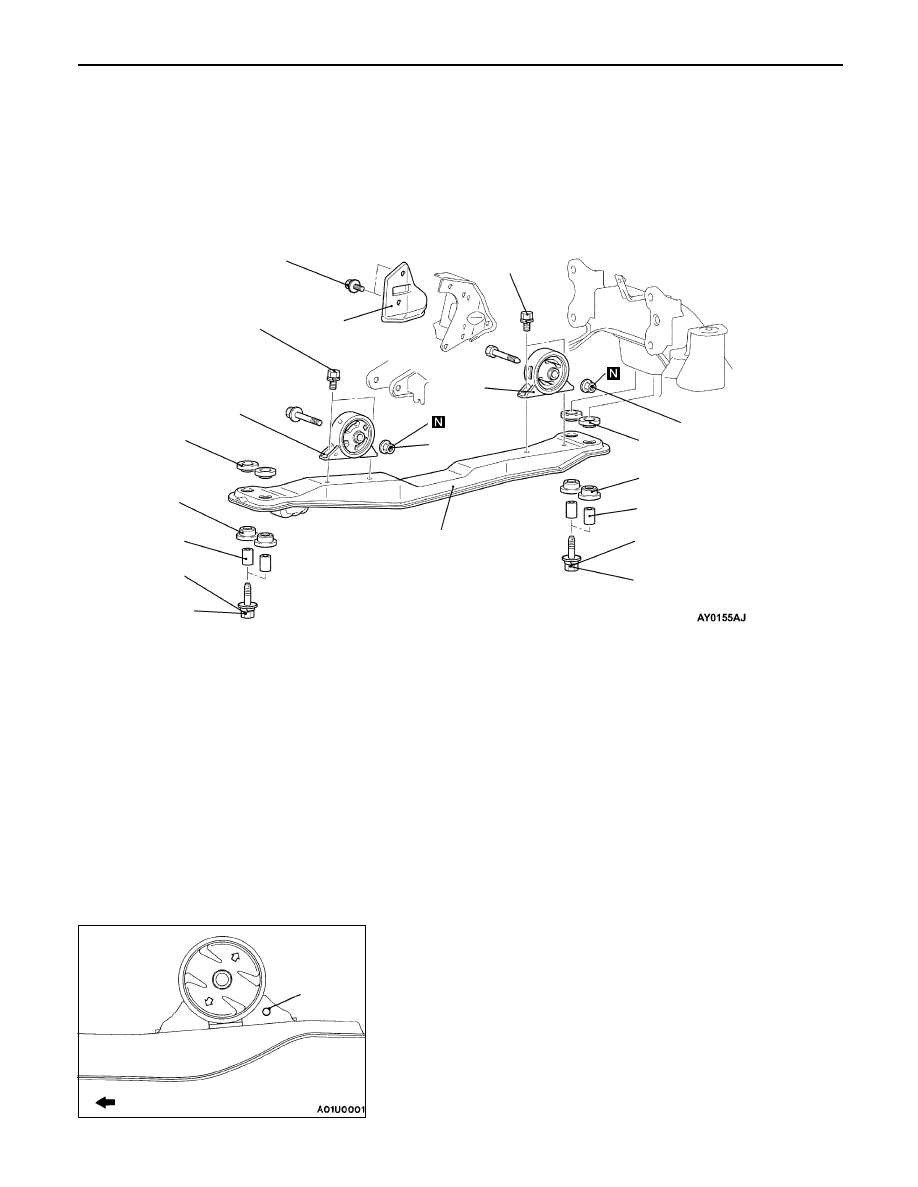

Removal steps

1. Bolt



B



2. Front roll stopper bracket assembly
3. Rear roll stopper heat protector



A



4. Rear roll stopper bracket assembly

5. Bushing (lower)
6. Bushing (upper)
7. Collar
8. Centermember

INSTALLATION SERVICE POINTS



A



REAR ROLL STOPPER BRACKET ASSEMBLY
INSTALLATION

Install so that the hole in the rear roll stopper bracket is facing
towards the rear of the vehicle.

Hole

Front of vehicle

POWER PLANT MOUNT –

Engine Roll Stopper, Centermember

32-6



B



FRONT ROLL STOPPER BRACKET ASSEMBLY
INSTALLATION

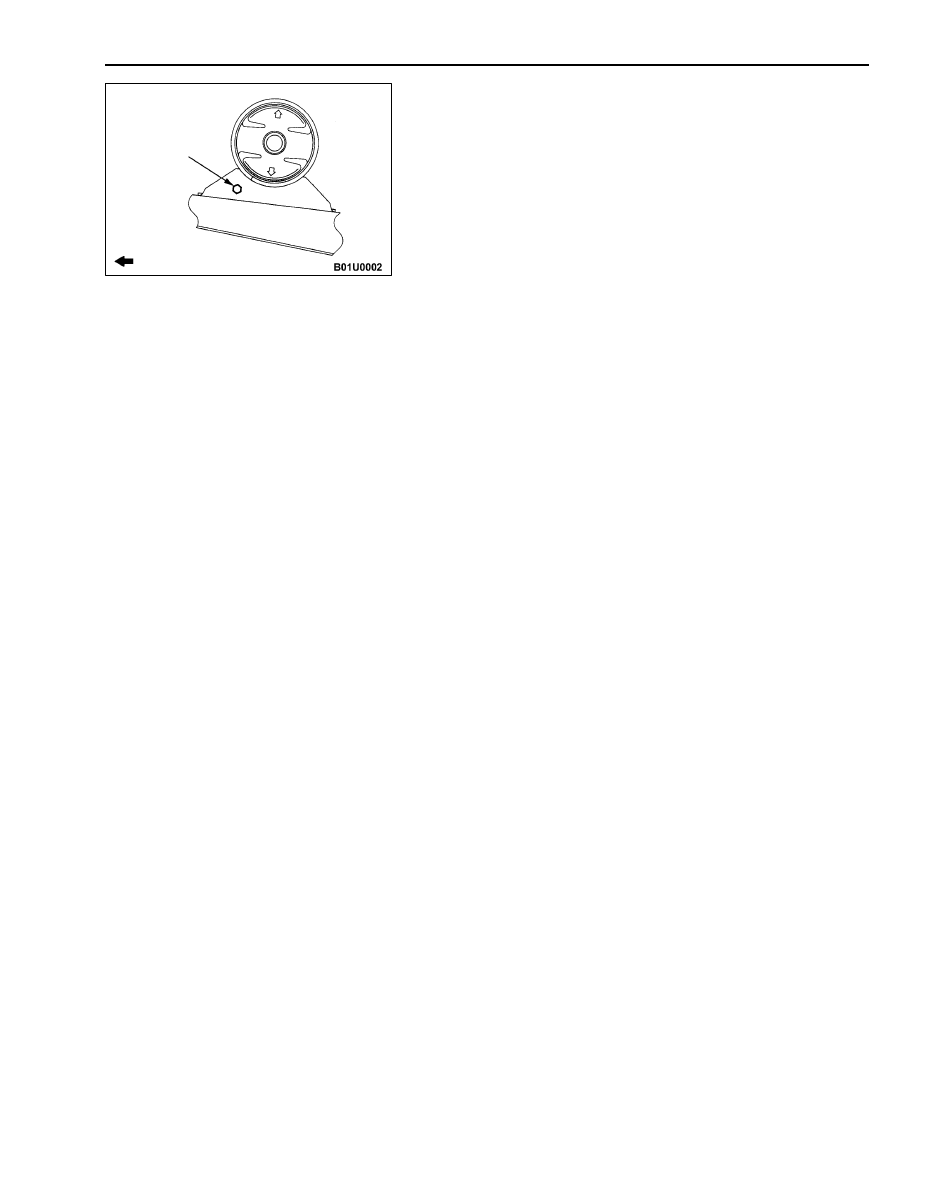

Install so that the hole in the front roll stopper bracket is facing
towards the front of the vehicle.

Hole

Front of vehicle
