AUTOMATIC TRANSMISSION –

Transmission Assembly

23-71

INSTALLATION SERVICE POINTS



A



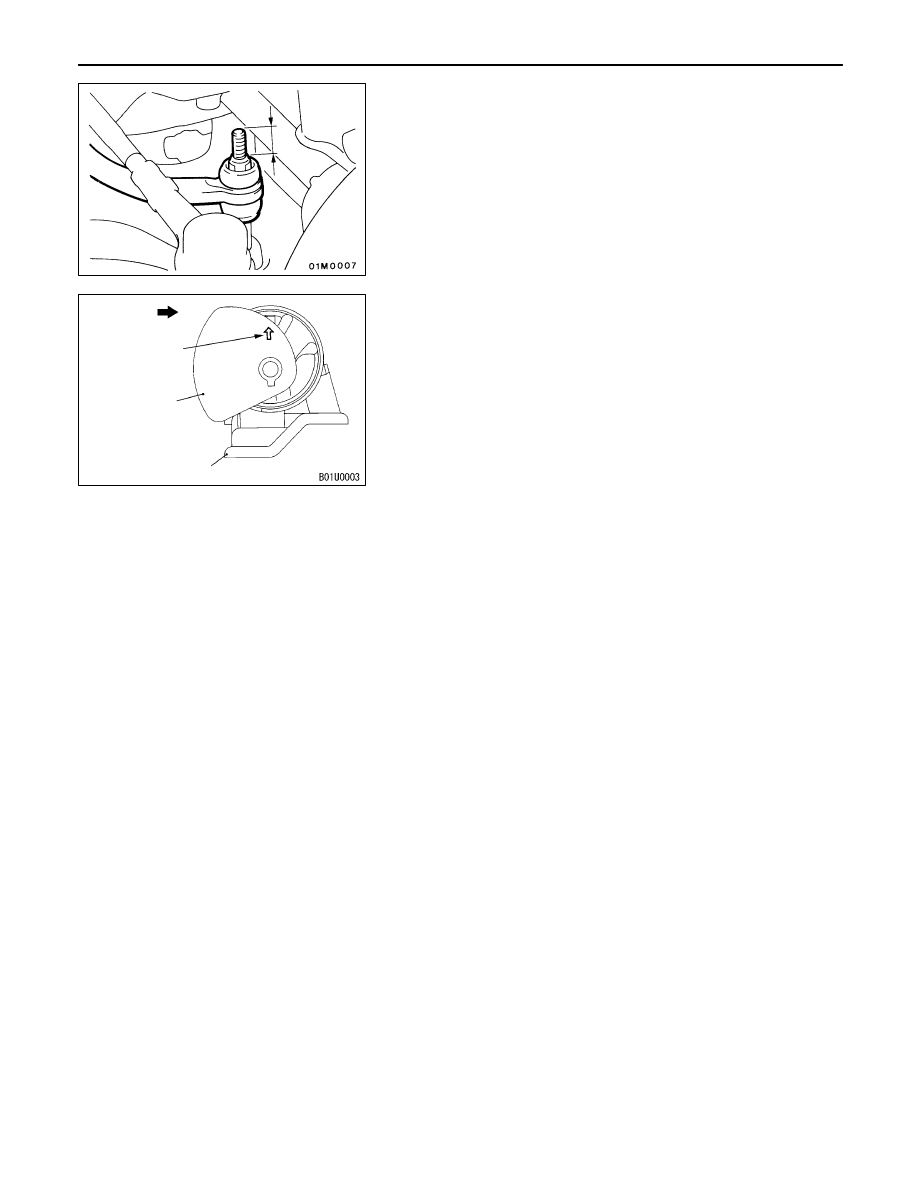

STABILIZER BAR INSTALLATION

Tighten the self-locking nut so that the stabilizer bar mounting
bolt protrudes as shown.

Standard value (A): 22 mm



B



TRANSMISSION MOUNT STOPPER INSTALLATION

Install the transmission mount stopper so that the arrow points
as shown in the illustration.

A

Engine side

Transmission mount bracket

Arrow

Transmission
mount stopper

NOTES

FRONT AXLE –

General/Drive Shaft <F9Q1>

26-1

GROUP 26

FRONT AXLE

GENERAL

OUTLINE OF CHANGES

Due to the addition of the vehicle with the F9Q1 engine, the service procedures for the front axle have
been established.

DRIVE SHAFT <F9Q1>

REMOVAL AND INSTALLATION

Caution:
Do not strike the ABS rotors installed to the R.J. outer race of drive shaft against other parts when
removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.

Pre-removal and Post-installation Operation



Brake Hose Clamp, Speed Sensor Cable
Connection.



Stabilizer Link Connection Removal and
Installation.



Side Under Cover Removal and Installation

1

2

3

4

5

6

7

216  – 255 Nm

90 Nm

29 Nm

25 Nm

50 Nm

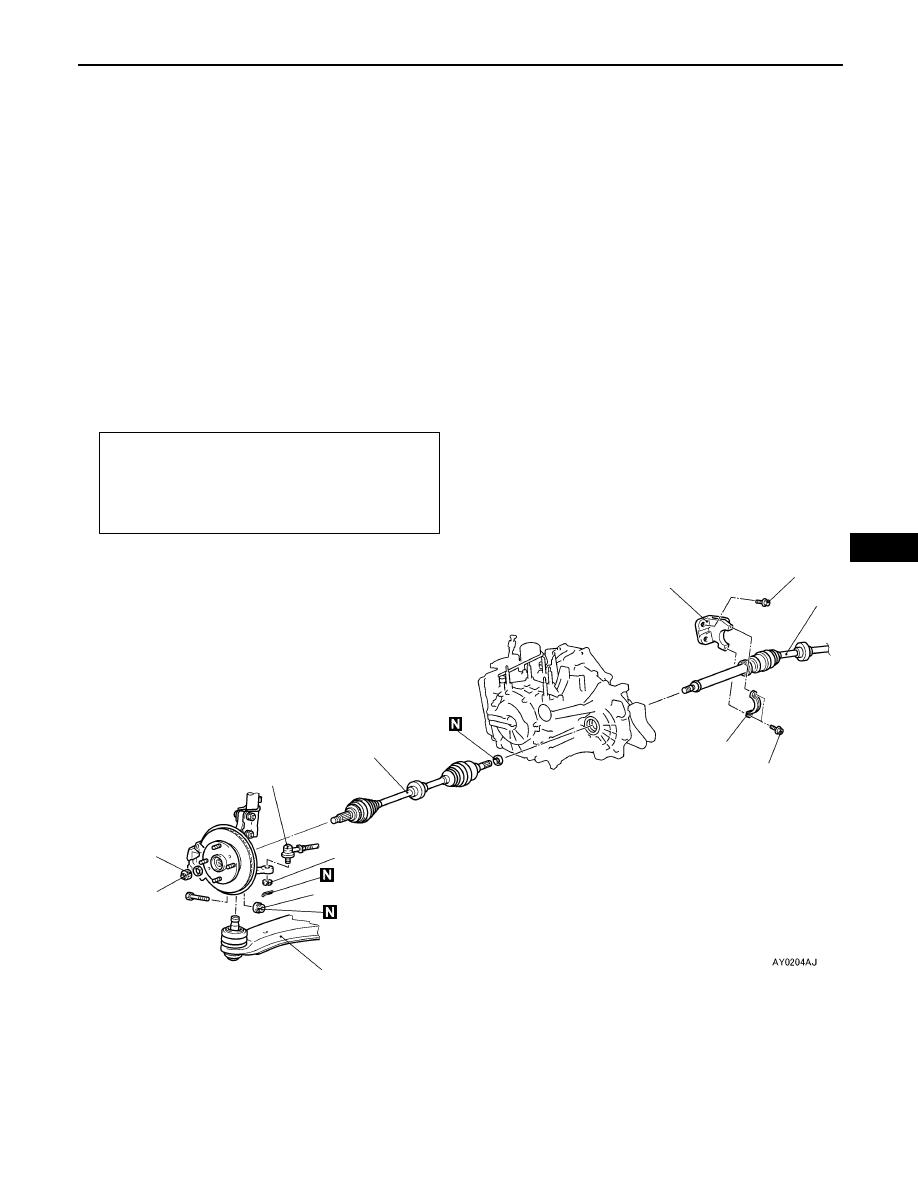

Removal steps



A



A



1. Drive shaft nut
2. Lower arm ball joint connection



B



3. Tie rod end connection



C



4. Drive shaft (L.H.)
5. Bearing bracket cap



C



6. Drive shaft and transmission side

shaft (R.H.)

7. Bearing bracket

NOTE
The service points for removal and installation are the
same procedures as before.

FRONT AXLE –

Drive Shaft <F9Q1>

26-2

DISASSEMBLY AND REASSEMBLY

Caution
1.

R.J. assembly cannot be disassembled.

2.

Be sure not to damage the rotor attached to the R.J. outer race.

T.J. repair kit

T.J. boot repair kit

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

9

1

2

5

7

9

<R.H.>

<L.H.>

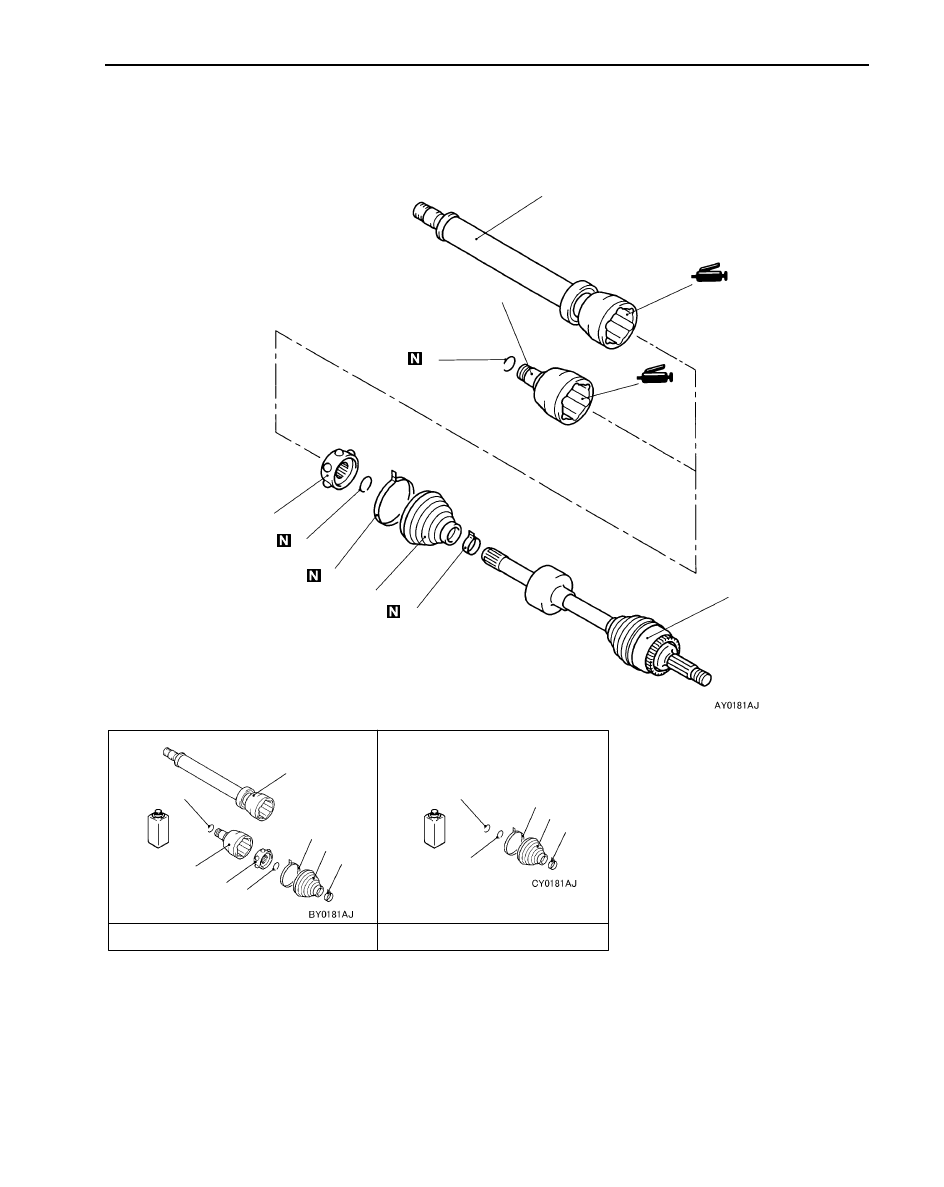

Disassembly steps

1. T.J. boot band (large)
2. T.J. boot band (small)



A



3. T.J. case (L.H.)



A



4. T.J. assembly (R.H.)
5. Snap ring



A



6. Joint assembly



B



7. T.J. boot
8. R.J. assembly
9. Circlip (L.H.)
