TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-17

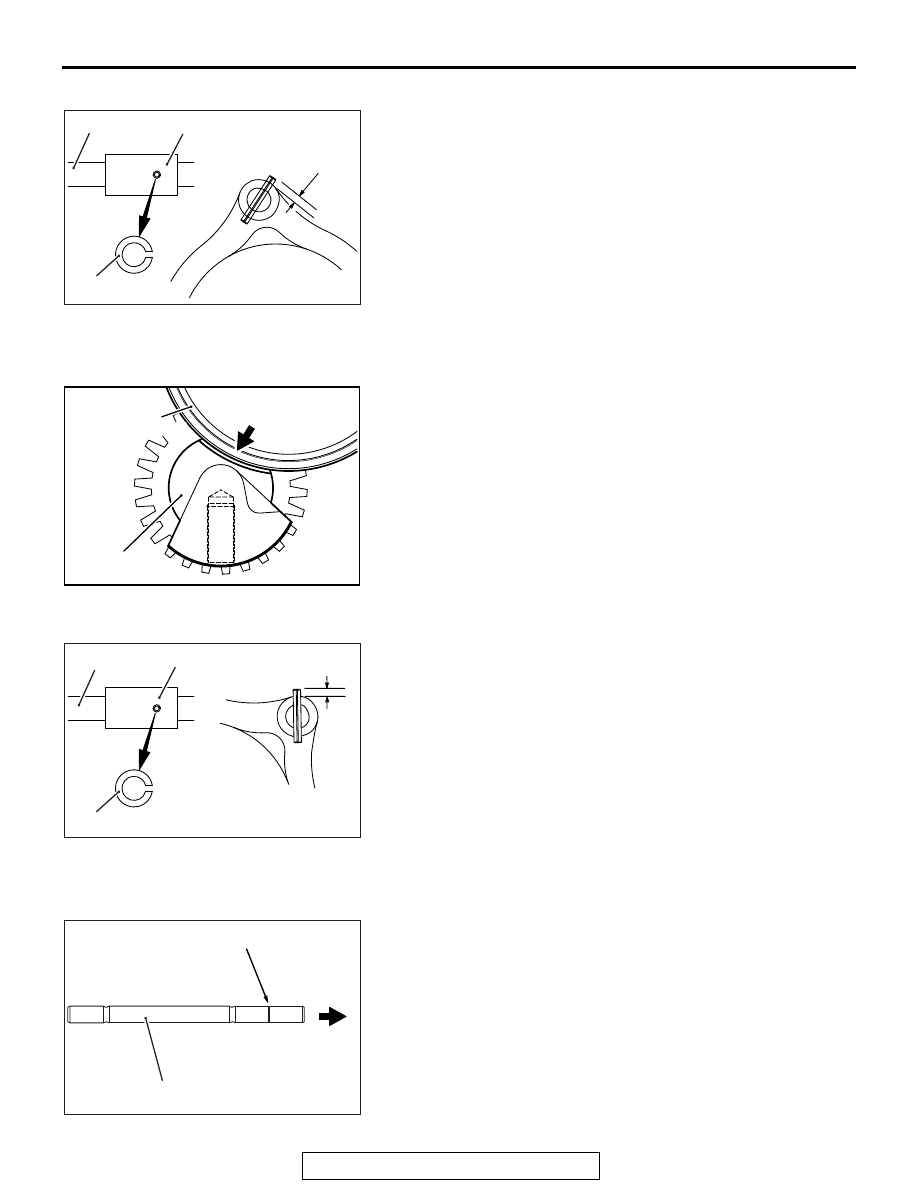

>>B<< SPRING PIN INSTALLATION

Install the spring pin to the shift rail so that the slit of the spring
pin aligns with the center axis of the rail as shown.

>>C<< REVERSE IDLER GEAR ASSEMBLY
INSTALLATION

Install the reverse idler gear assembly so that the notch of the
reverse idler gear shaft and 1st-2nd speed synchronizer sleeve
meet at the illustrated position.

>>D<< SPRING PIN INSTALLATION

Install the spring pin to the shift rail so that the slit of the spring
pin aligns with the center axis of the rail as shown.

>>E<< 5TH-REVERSE SPEED SHIFT RAIL
INSTALLATION

Install the 5th-reverse speed shift rail, with its identification
groove to the clutch housing side.

AK703408

2.5 mm
(0.10 inch)

Shift rail

Shift fork

Spring pin

AK703681

Reverse idler
gear assembly

1st-2nd speed
synchronizer sleeve

AK703409

2.5 mm
(0.10 inch)

Shift rail

Shift fork

Spring pin

AK703410AC

Identification groove

Installation
direction

5th-reverse speed shift rail

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-18

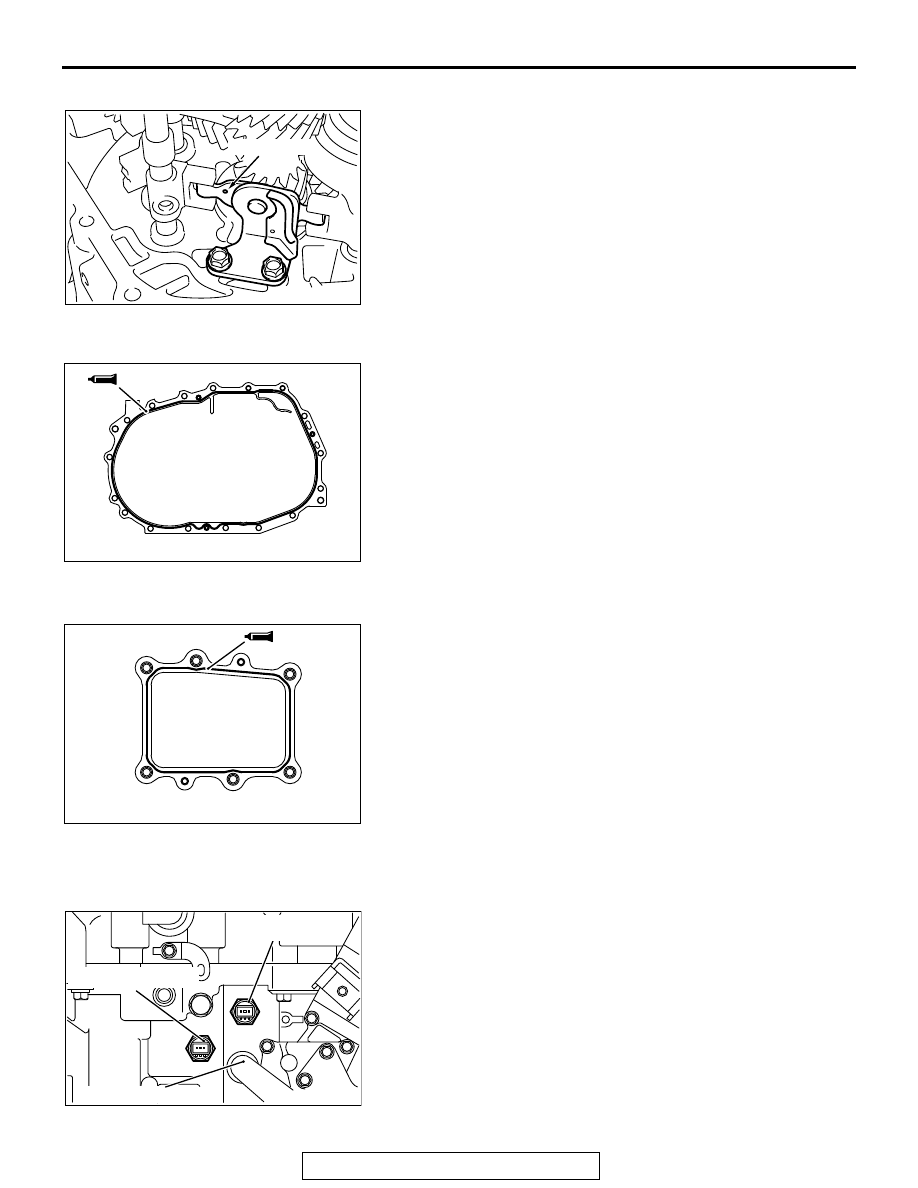

>>F<< REVERSE SHIFT LEVER INSTALLATION

Install the reverse shift lever so that its identification mark is
located at the illustrated position.

>>G<< TRANSAXLE CASE INSTALLATION

1. Completely degrease the FIPG-applied surface so that

water and oil including the old sealant cannot adhere to the
surface coated with the sealant.
Never touch the degreased surface by hand.

2. Apply a bead (approximately 2.5 mm (0.10 inch) thick) of

specified sealant to the transaxle case as shown.

Specified sealant: Mitsubishi Part No. MD997740 or
equivalent

>>H<< CONTROL HOUSING INSTALLATION

1. Completely degrease the FIPG-applied surface so that

water and oil including the old sealant cannot adhere to the
surface coated with the sealant.
Never touch the degreased surface by hand.

2. Apply a bead (approximately 3.5 mm (0.14 inch) thick) of

specified sealant to the control housing as shown.

Specified sealant: Mitsubishi Part No. MD997740 or
equivalent

>>I<< BACK-UP LIGHT SWITCH / 1ST-2ND SPEED
RAIL SWITCH INSTALLATION

Install the back-up light switch and 1st-2nd speed rail switch at
the illustrated positions.

AK703326 AC

Addition mark

AK703818AD

AK703819AC

AK703332

Back-up light switch

Control shaft

1st-2nd speed
rail switch

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-19

>>J<< SHIFT CABLE BRACKET INSTALLATION

1. Install the shift cable bracket loosely.
2. Put the control shaft into neutral.
3. Position the shift cable bracket so that the distance between

the control shaft and shift cable bracket is within the
standard value. Then fix the bracket securely.

Standard value: 154 − 156 mm (6.063 − 6.141 inch)

4. Install the select lever bracket loosely.
5. Put the select lever into the 3rd-4th speed position.
6. Position the select lever bracket so that the distance

between the select lever and shift cable bracket is within the
standard value. Then fix the bracket securely.

Standard value: 139.2 − 140.8 mm (5.481 − 5.543 inch)

INSPECTION

M1222016600049

BACKUP LIGHT SWITCH / 1-2 speed rall switch

Check for continuity between terminals.

TRANSAXLE ADJUSTMENT

M1222013800129

ADJUSTMENT BEFORE ASSEMBLY

SPACER SELECTION FOR INPUT SHAFT PRE-
LOAD / OUTPUT SHAFT PRELOAD / CENTER DIF-
FERENTIAL PRELOAD ADJUSTMENT

<Measurement using solder>

• If soft solder is not available, select the spacer in accor-

dance with Plastigage method.

• If the spacer appropriate for the standard value cannot be

selected using soft solder, select the spacer in accordance
with Plastigage method.

AK703153AF

154 - 156 mm

(6.063 - 6.141 inch)

Control

shaft

Shift cable

bracket

AK703154AF

139.2 - 140.8 mm

(5.481 - 5.543 inch)

Select lever bracket

Select lever

Shift cable

bracket

Switch Condition

Continuity

Pressed

Open

Released

Conductive

AK201630

TRANSAXLE

TSB Revision

MANUAL TRANSAXLE OVERHAUL

22B-20

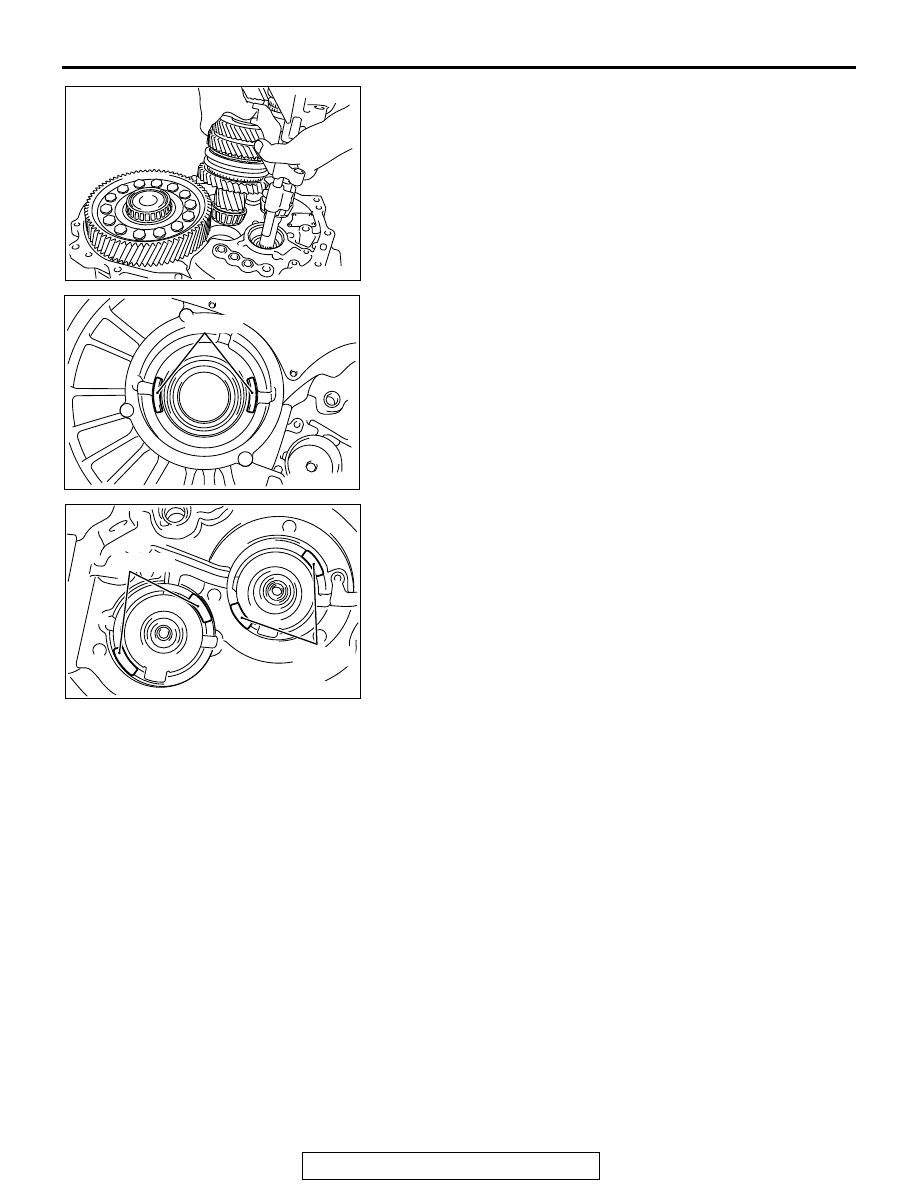

1. Install the input shaft, output shaft and center differential as

a set to the clutch housing.

2. Put a piece of solder [1.6 mm (0.06 in) diameter, 10 mm

(0.39 in) long] on the transaxle case at the positions shown
in the illustration.

3. Install the bearing outer races on the pieces of solder.
4. Install the clutch housing to the transaxle case and tighten

the bolts to the specified torque.

5. Remove the clutch housing, then remove the bearing outer

races and take out crushed pieces of solder.
NOTE: If the pieces of solder have not crushed, use thicker
solders and repeat steps 2 to 3.

6. Measure the thickness of crushed solder with a micrometer,

select the spacers that provide the standard preload values
and install them.

• Input shaft

Input shaft preload

Spacer thickness: [T + 0.10 mm (0.0039 inch)] − [T +

0.17 mm (0.0067 inch)]
T: Thickness of crushed solder mm (inch)

Standard value: 0.10 − 0.17 mm (0.0039 − 0.0067 inch)

• Output shaft

Output shaft preload

Spacer thickness: [T + 0.15 mm (0.0059 inch)] − [T +

0.21 mm (0.0083 inch)]
T: Thickness of crushed solder mm (inch)

Standard value: 0.15 − 0.21 mm (0.0059 − 0.0083 inch)

• Center differential

Center differential preload

Spacer thickness: [T + 0.06 (0.0024 inch)] − [T + 0.12

mm (0.0047 inch)]
T: Thickness of crushed solder mm (inch)

Standard value: 0.06 − 0.12 mm (0.0024 − 0.0047 inch)

AK703323

AK703327

Solders

AK703329

Solders
