CYLINDER HEAD GASKET

TSB Revision

ENGINE MECHANICAL

11A-65

>>G<< FUEL HIGH-PRESSURE HOSE
CONNECTION

CAUTION

• When pushing in the retainer of the fuel high-pressure

hose connector, pay attention to avoid damage to the
retainer.

• After the installation of the fuel high-pressure hose,

slightly pull the fuel high-pressure hose to check that it
is connected securely. At this time, also check that
there is approximately 1 mm (0.04inch) play.

1. Securely insert the fuel rail stopper into the fuel

high-pressure hose connector groove to install the fuel
high-pressure hose to the fuel rail.

2. Push in the retainer of the fuel high-pressure hose

connector to lock the fuel high-pressure hose and fuel rail.

.

>>H<< RADIATOR LOWER HOSE/RADIATOR
UPPER HOSE CONNECTION

1. Insert radiator hose as far as the projection of the water inlet

fitting or water outlet fitting.

2. Align the mating marks on the radiator hose and hose

clamp, and then connect the radiator hose.

AC506794 AB

Fuel high-pressure
hose

Fuel rail

Retainer

Stopper

AC606082

Protrusion

Pipe, fitting, or etc.

BD

Mating marks

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL

11A-66

TIMING CHAIN

REMOVAL AND INSTALLATION

M1112007201372

Pre-removal operation
• Engine Room Under Cover Front A, B, Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Removal (Refer to GROUP 51, Under Cover

P.51-15

).

• Strut Tower Bar Removal (Refer to GROUP 42A, Strut

Tower Bar

P.42A-14

).

• Rocker Cover Assembly Removal (Refer to

P.11A-25

).

• Engine Oil Pan Removal (Refer to

P.11A-48

).

Post-installation operation
• Engine Oil Pan Installation (Refer to

P.11A-48

).

• Rocker Cover Assembly Installation (Refer to

P.11A-25

).

• Engine Oil Refilling (Refer to GROUP 12, On-vehicle Ser-

vice − Engine Oil Replacement

P.12-4

).

• Strut Tower Bar Installation (Refer to GROUP 42A, Strut

Tower Bar

P.42A-14

).

• Engine Room Under Cover Front A, B, Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Installation (Refer to GROUP 51, Under Cover

P.51-15

).

AC708523AC

1

2

3

4

6

8

9

10

11

12

5

N

7

N

24 ± 4 N·m
18 ± 3 ft-lb

45 ± 5 N·m
34 ± 3 ft-lb

48 ± 7 N·m
36 ± 5 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

9.0 ± 1.0 N·m
80 ± 9 in-lb

23 ± 2 N·m
17 ± 1 ft-lb

10 ± 2 N·m
89 ± 17 in-lb

Apply engine oil to all
moving parts before
installation.

48 ± 7 N·m
36 ± 5 ft-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

10 ± 2 N·m
89 ± 17 in-lb

Removal steps

<<

A

>>

•

Power steering oil pump assembly
(Refer to GROUP 37, Power
Steering Oil Pump

P.37-45

)

•

Headlight support panel cover
(Refer to GROUP 51, Front
Bumper Assembly and Radiator
Grille

P.51-3

)

<<

B

>>

•

Engine and transaxle assembly
holding

•

Engine mounting bracket (Refer to
GROUP 32, Engine Mounting

P.32-4

)

<<

C

>>

•

Crankshaft pulley (Refer to

P.11A-21

)

>>

E

<<

1.

Water pump pulley

2.

Idler pulley

<<

D

>>

3.

Auto-tensioner

4.

Cylinder block engine front
mounting bracket

Removal steps (Continued)

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL

11A-67

Required Special Tools:

• MB991454: Engine Hanger Balancer
• MB991895: Engine Hanger

• MB991928: Engine Hanger
• MB991448: Bush Remover And Installer Base

REMOVAL SERVICE POINTS

.

<<A>> POWER STEERING OIL PUMP ASSEMBLY
REMOVAL

1. Remove the power steering oil pump assembly with hose on

it.

2. Tie the removed power steering oil pump with a string at a

position where it will not interfere with the removal and
installation of timing chain.

.

<<B>> ENGINE AND TRANSAXLE ASSEMBLY
HOLDING

Install a special tool for holding the engine and transaxle
assembly.
1. <Engine hanger MB991928 is used>

(1) Assemble the engine hanger (special tool MB991928).

Set the following parts on the base hanger.

• Slide bracket (HI)
• Foot x 4 (standard) (MB991932)
• Joint x 2 (140) (MB991931)

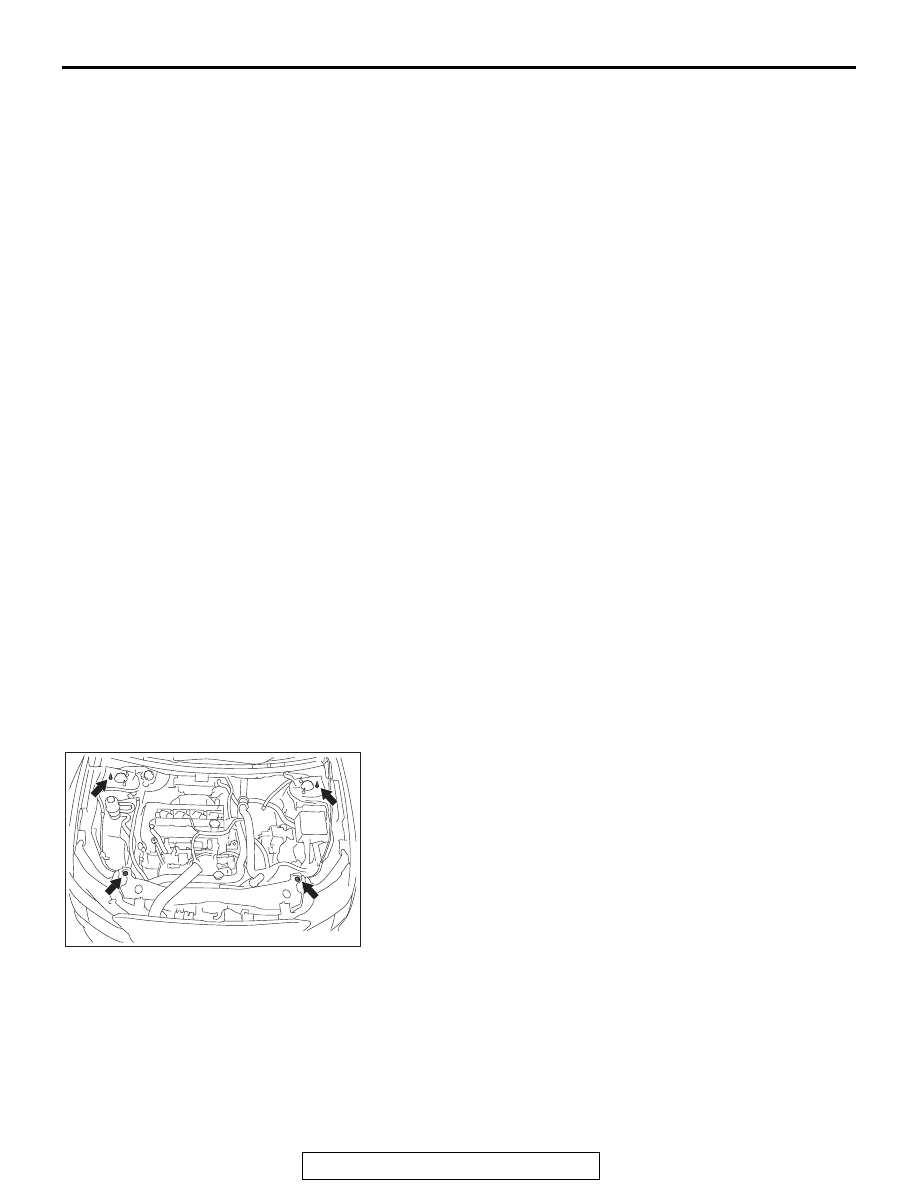

(2) Set the foot of the special tool as shown in the figure.

NOTE: Slide the slide bracket (HI) to adjust the engine
hanger balance.

5.

Gasket

<<

E

>>

>>

D

<<

6.

Timing chain case assembly

>>

C

<<

7.

Crankshaft front oil seal

8.

Timing chain upper guide

<<

F

>>

>>

B

<<

9.

Timing chain tensioner

10. Timing chain tension side guide

>>

A

<<

11. Timing chain
12. Timing chain loose side guide

Removal steps (Continued)

AC704730AC

TIMING CHAIN

TSB Revision

ENGINE MECHANICAL

11A-68

(3) Mount special tool MB991454 to the power steering oil

pump bracket and the engine hanger, and set it to special
tool MB991928 to support the engine and transaxle
assembly.

2. <Engine hanger MB991895 is used>

(1) Set the foot of special tool MB991895 as shown in the

figure.
NOTE: Slide the foot to adjust the engine hanger bal-
ance.

AC706145AC

MB991454

Power steering
oil pump bracket

AC705461

MB991454

AC

MB991928

AC704730AC
