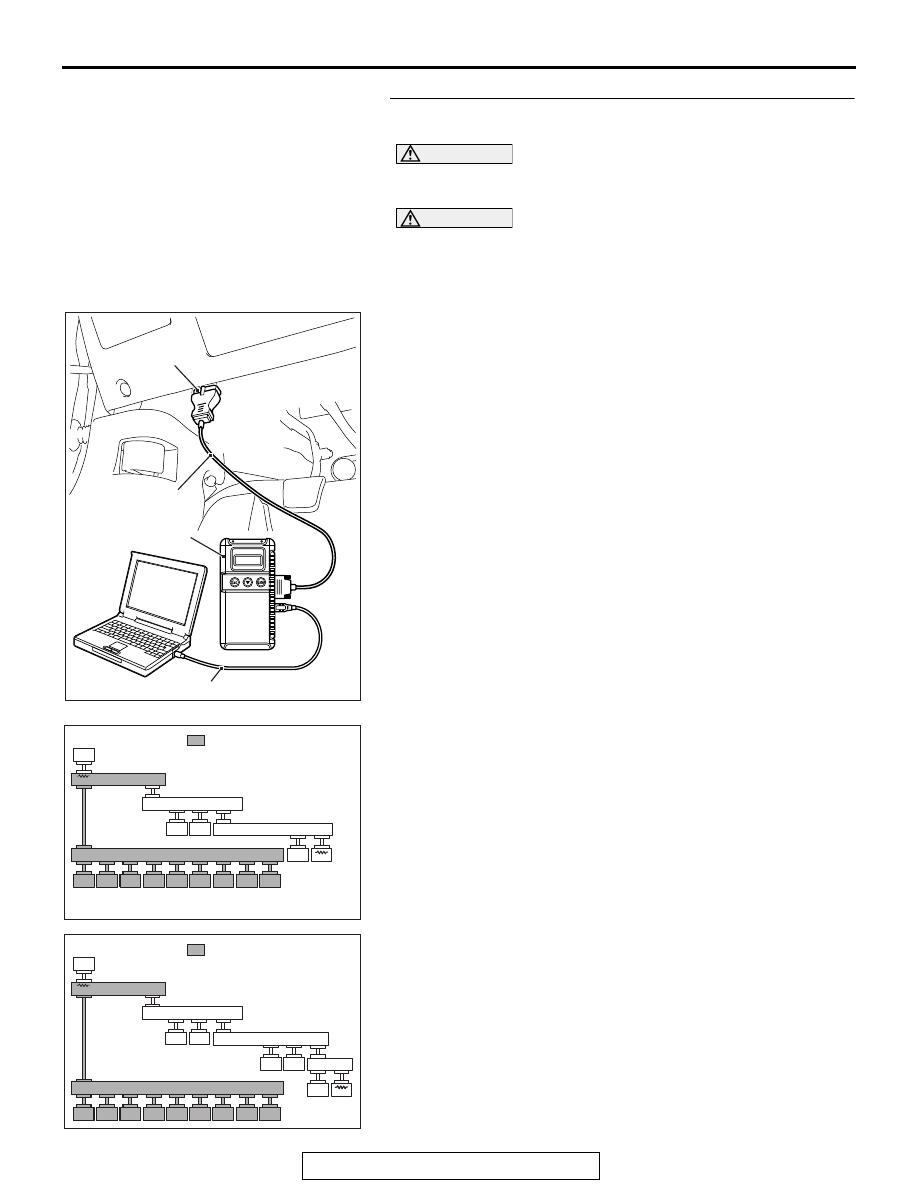

DIAGNOSIS TSB Revision CONTROLLER AREA NETWORK (CAN) 54C-253 (4) Diagnose CAN bus lines, and check if the scan tool MB991958 screen is as shown in the figure. OK: The display of the scan tool MB991958 is as Q: Does scan tool MB991958 screen correspond to the illustration? (CAN1) C-105 and combination meter connector NO : Check combination meter connector C-04, and repair if necessary. If the combination meter connector is in AC709542 AD : Red section on screen M.U.T. J/C (3) J/C (2) ASC ENGINE ETACS <M/T> SAS S-AWC J/C (1) KOS/WCM SRS A/C AUDIO MMCS Sat Radio HFM OCM METER AC709543 AD : Red section on screen M.U.T. J/C (3) J/C (2) ASC LEVER ETACS <TC-SST> SAS S-AWC J/C (4) TC-SST ENGINE J/C (1) KOS/WCM SRS A/C AUDIO MMCS Sat Radio HFM OCM METER |
