TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-75

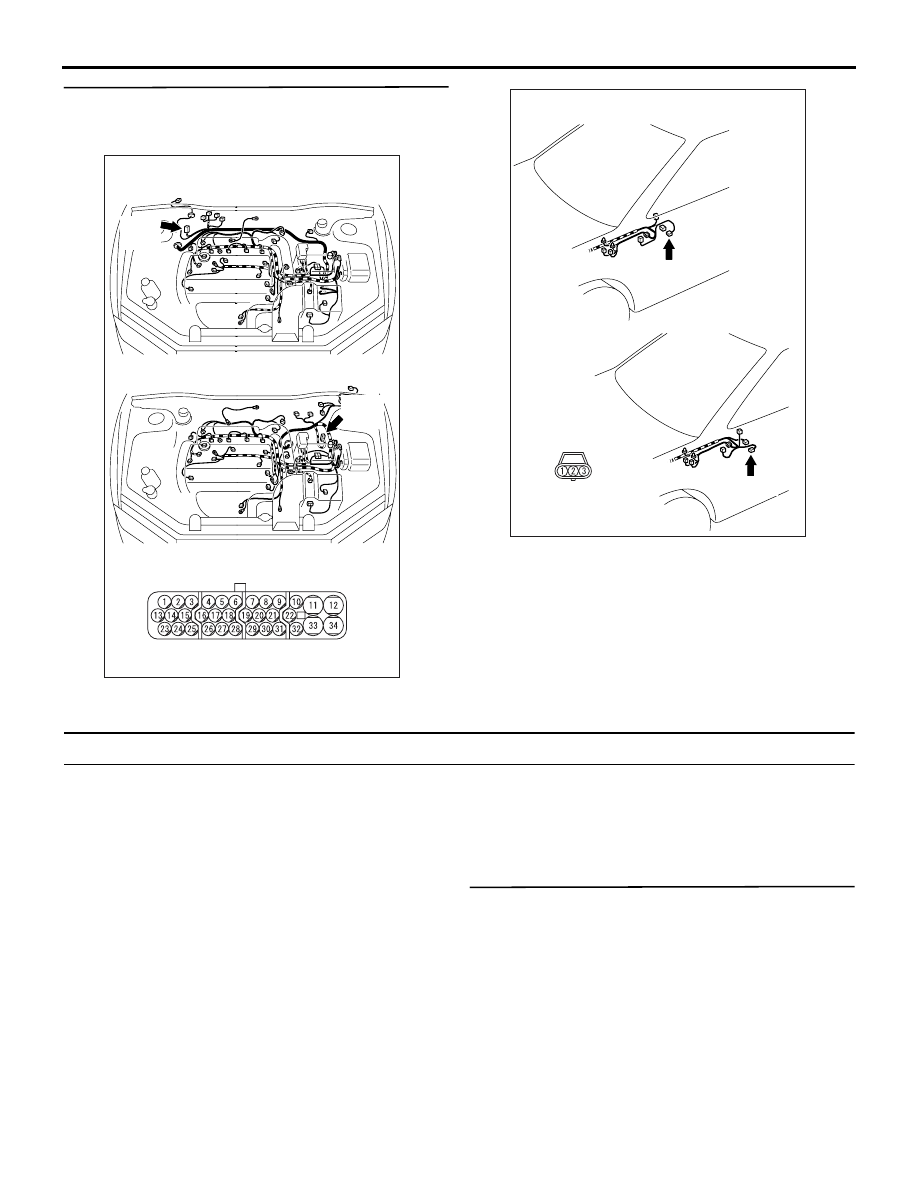

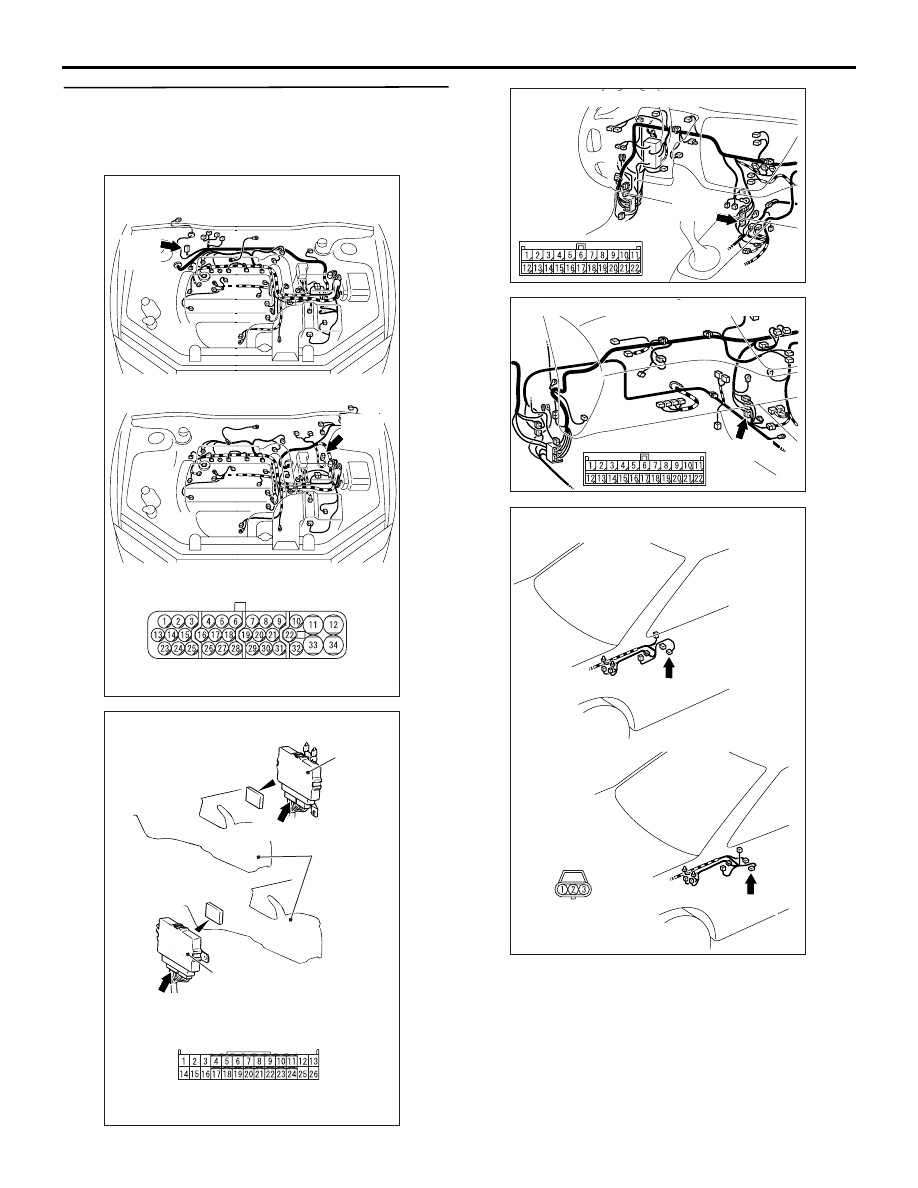

STEP 13. Connectors check: B-118 ABS-ECU
connector, C-25 4WD-ECU connector, C-122
intermediate connector, D-37 lateral G-sensor
connector.

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

AC311020

Harness side

B-118
(B)

AB

Connector: B-118

<LH drive vehicles>

<RH drive vehicles>

B-118
(GR)

B-118

AC311002

4WD-ECU

Harness side

C-25 (Y)

AB

Connector: C-25

4WD-ECU

C-25 (Y)

Rear console
assembly

<LH drive vehicles>

<RH drive vehicles>

AC311015AC

Connector: C-122 <LH drive vehicles>

C-122

AC311016AE

Connector: C-122 <RH drive vehicles>

C-122 (L)

AC311048

<LH drive vehicles>

Sensor side

D-37 (B)

AC

Connector: D-37

<RH drive vehicles>

D-37 (B)

TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-76

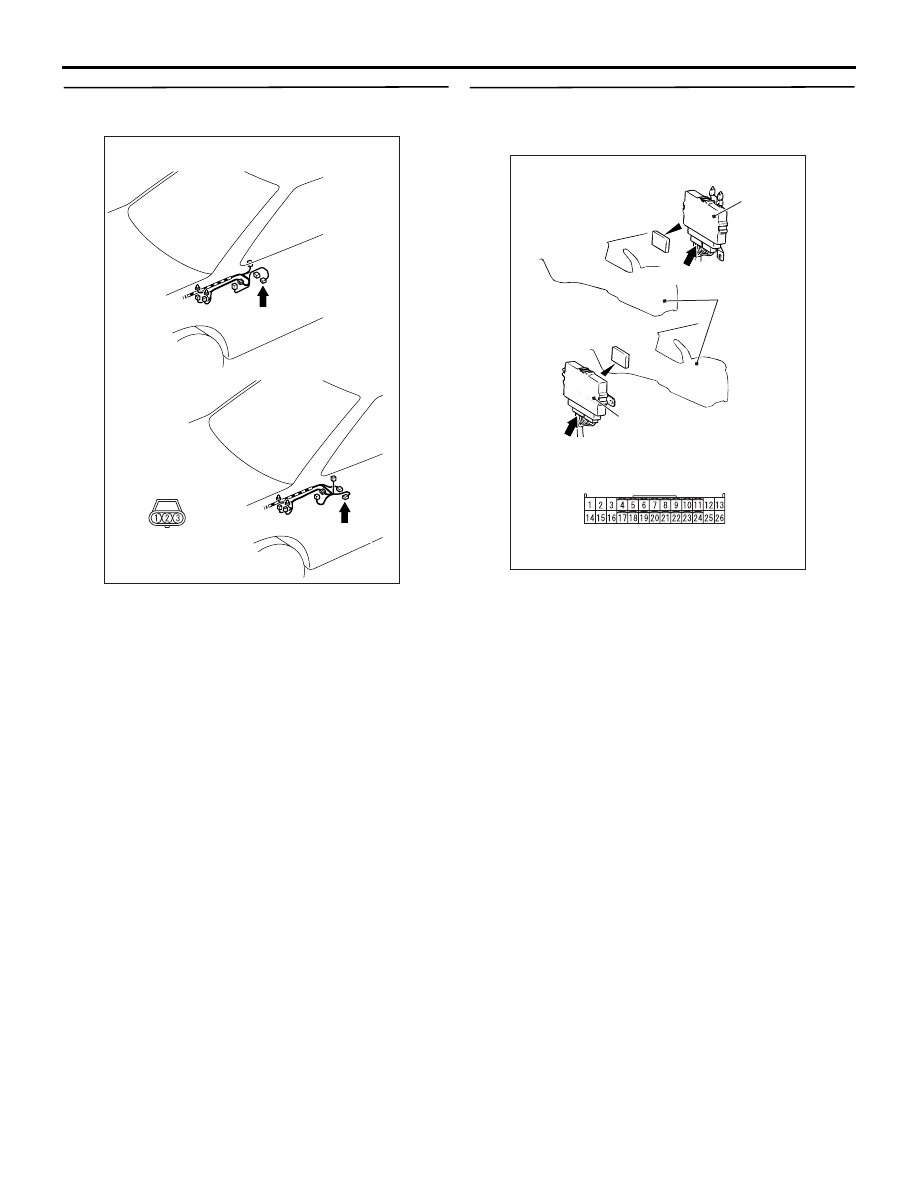

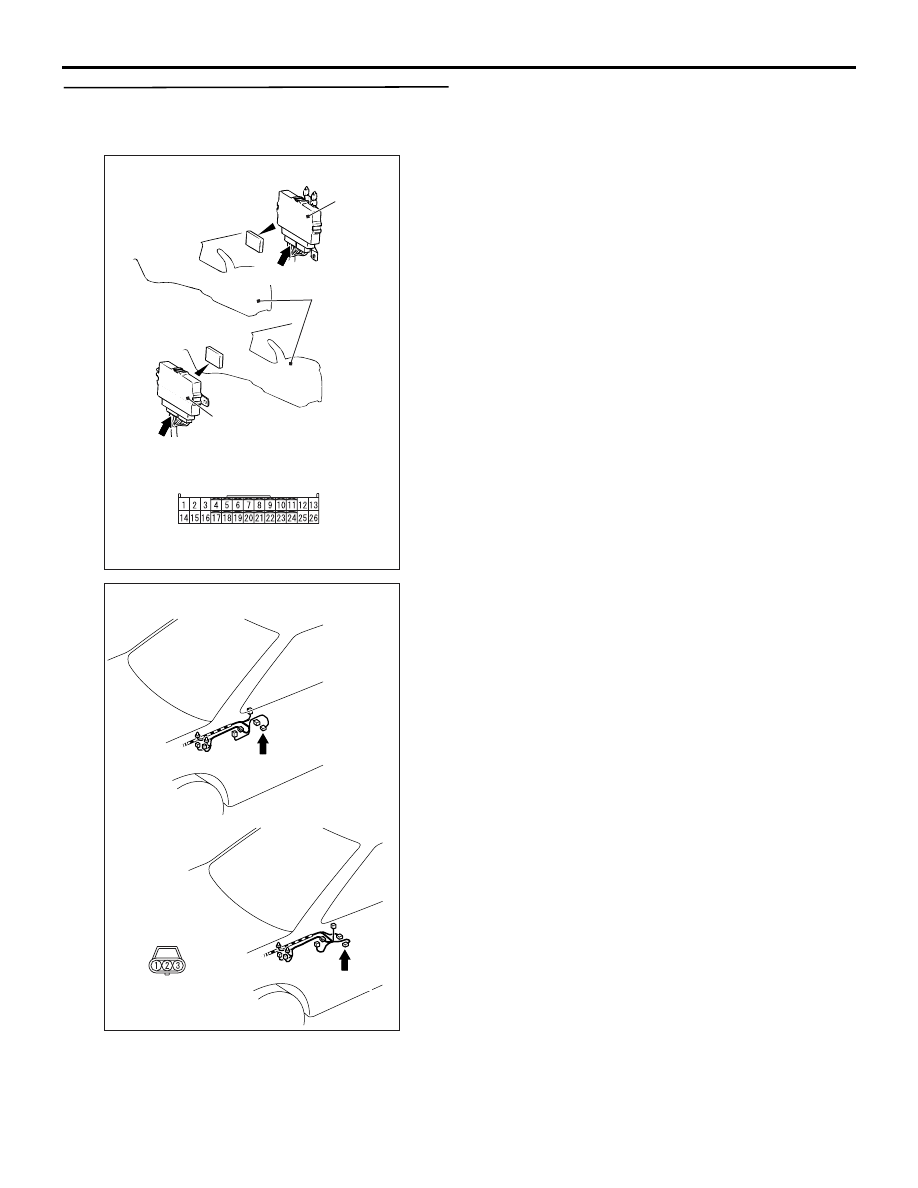

STEP 14. Check the harness between 4WD-ECU
connector C-25 terminal No.11 and lateral
G-sensor connector D-37 terminal No.2.

Check the output line for short or open circuit.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the wiring harness.

AC311002

4WD-ECU

Harness side

C-25 (Y)

AB

Connector: C-25

4WD-ECU

C-25 (Y)

Rear console
assembly

<LH drive vehicles>

<RH drive vehicles>

AC311048

<LH drive vehicles>

Sensor side

D-37 (B)

AC

Connector: D-37

<RH drive vehicles>

D-37 (B)

TROUBLESHOOTING <ACD>

MANUAL TRANSMISSION (FF)

22A-77

STEP 15. Check the harness between ABS-ECU
connector B-118 terminal No.14 and lateral
G-sensor connector D-37 terminal No.2.

Check the output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Code No.57 Lateral G-sensor system (abnormal sensor)

G-SENSOR (LATERAL) SYSTEM CIRCUIT

Refer to

P.22A-53

.

OPERATION

Refer to

P.22A-53

.

DIAGNOSIS CODE SET CONDITIONS

Code No.57 is set when the G-sensor has exceeded
the specified value in a state where the ABS and
brake are not operating above the vehicle speed of
10 km/h.

PROBABLE CAUSES

• Malfunction of the lateral G-sensor

• Damaged harness wires and connectors

• Malfunction of the ABS-ECU

• Malfunction of the 4WD-ECU

DIAGNOSIS

STEP 1. M.U.T.-II/III data list
Item 15: Lateral G-sensor voltage (Refer to data list
reference table

P.22A-142

).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Go to Step 2.
