GENERAL DESCRIPTION

FRONT SUSPENSION

33-2

GENERAL DESCRIPTION

M1332000100311

A MacPherson strut independent suspension-type
suspension is used for the front suspension. Aggres-
sive use of special components that include Mitsubi-
shi Motor’s own inverted struts and forged aluminium
parts reduces weight to create a suspension that
gives superior performance made with competition
use in mind.

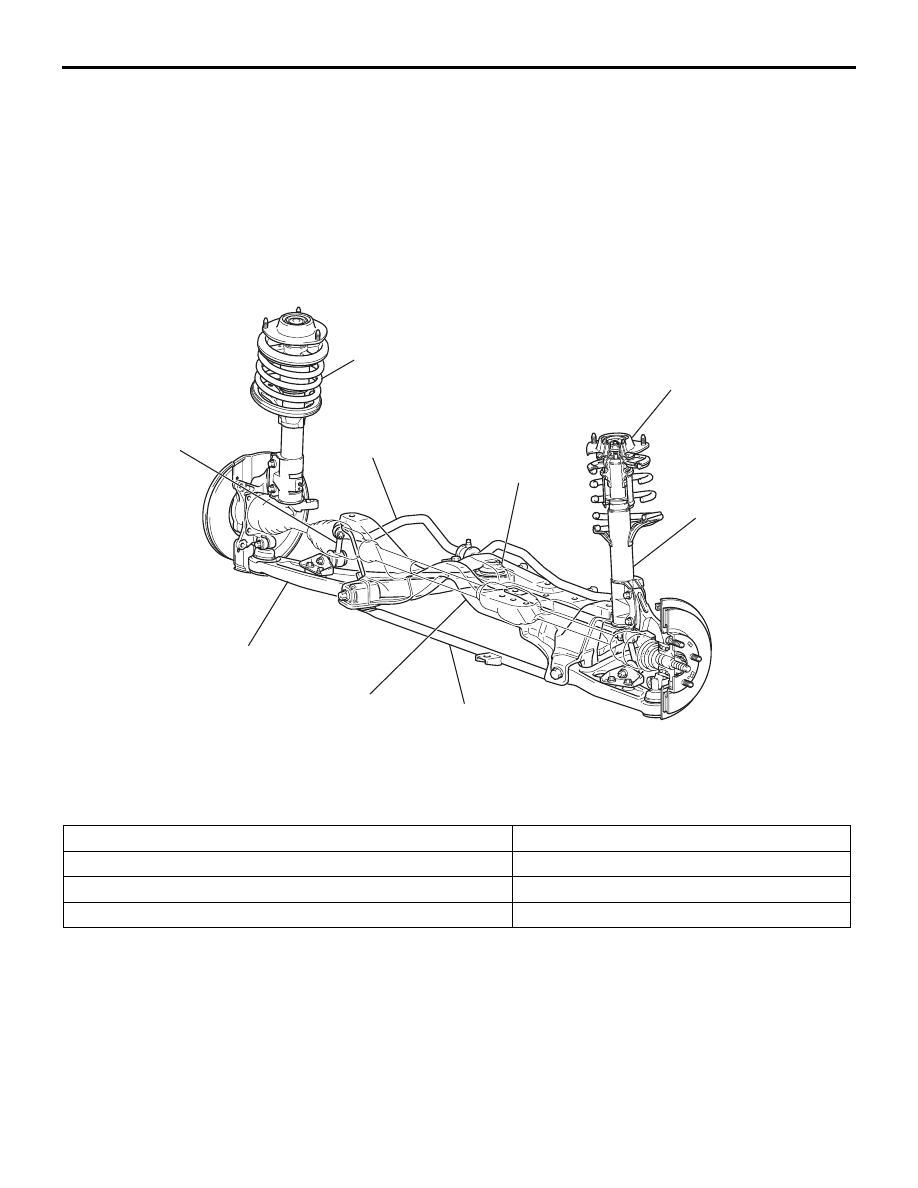

CONSTRUCTION DIAGRAM

AC211383AC

Stabilizer bar

Lower arm assembly
(forged aluminium)

Front axle No.1
crossmember

Strut (inverted strut)

Strut insulator

Coil spring

Stabilizer link
(pillow ball bushing)

Front axle
crossmember bar

Lower arm bushing
(pillow ball bushing)

SPECIFICATIONS

COIL SPRING

Item

Specification

Wire diameter mm

14

Average diameter mm

155

Free length mm

286

SERVICE SPECIFICATIONS

FRONT SUSPENSION

33-3

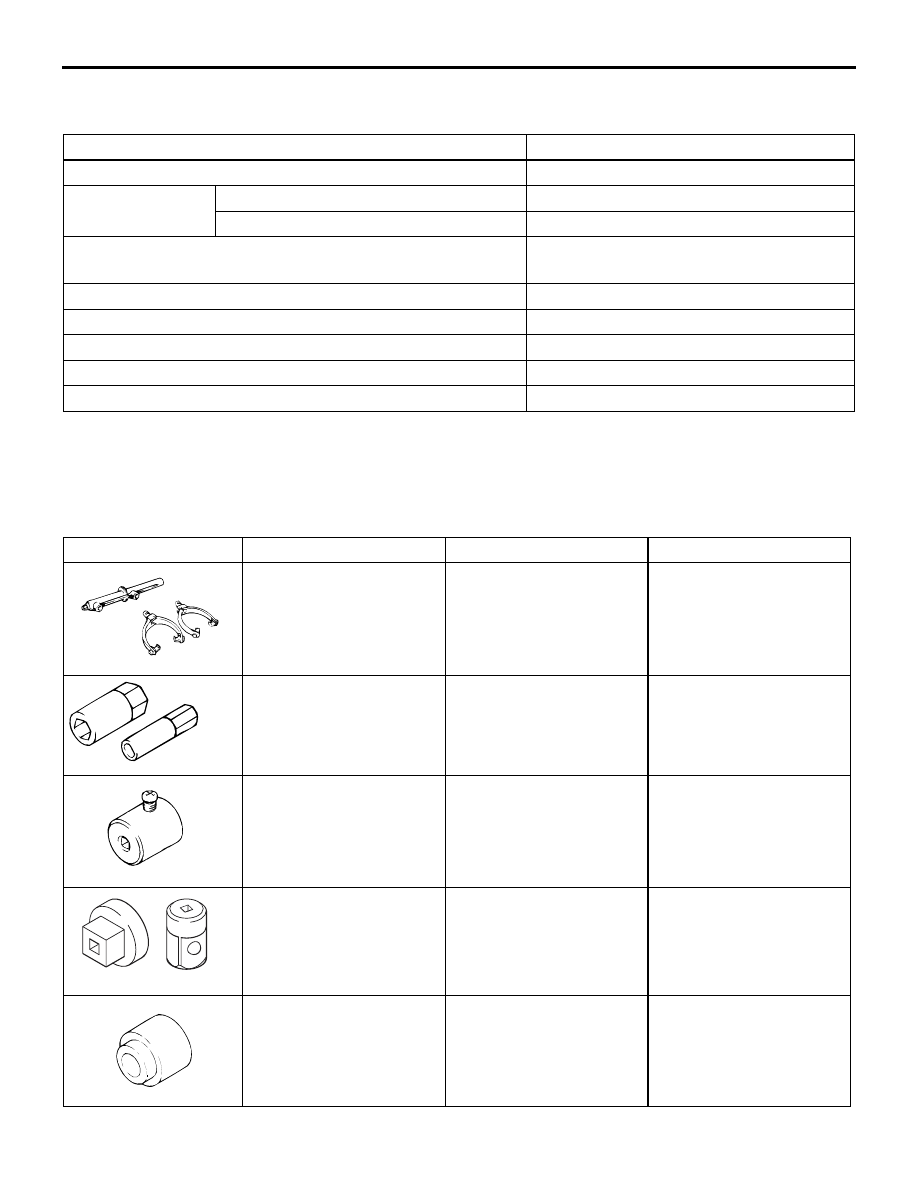

SERVICE SPECIFICATIONS

M1332000300735

Item

Specification

Toe-in mm

0

± 2

Steering angle

Inner wheel

31

°45' ± 1°30'

Outer wheel (reference)

27

°15'

Camber (selectable from 2 options)

−1°00' ± 0°30'* or −2°00’ ± 0°30’ (Left/right
deviation within 30')

Caster

3

°55' ± 0°30' (Left/right deviation within 30')

Kingpin inclination

13

°45' ± 1°30'

Lower arm ball joint starting torque N

⋅m

0.5

− 3.4

Lower arm pillow ball bushing starting torque N

⋅m

0.5

− 3.0

Stabilizer link ball joint turning torque N

⋅m

1.7

− 3.2

NOTE: *: Default factory setting

SPECIAL TOOLS

M1332000600532

Tool

Number

Name

Use

MB991237

A

B

A: MB991237
B: MB991238

A: Spring compressor

body

B: Arm set

Coil spring compression

MB991680

A

B

MB991680

A: MB991681
B: MB991682

Wrench set

A: Wrench
B: Socket

Strut assembly
disassembly and
reassembly

MB991006

MB991006

Preload socket

Lower arm ball joint
starting torque
measurement

MB990326

MB990326

Preload socket

Lower arm ball bushing
starting torque
measurement

MB990800

MB990800

Ball joint dust cover
installer

Lower arm ball joint dust
cover press-in

MB990883

ON-VEHICLE SERVICE

FRONT SUSPENSION

33-4

ON-VEHICLE SERVICE

FRONT WHEEL ALIGNMENT CHECK AND
ADJUSTMENT

M1331000900875

Measure wheel alignment with alignment equipment
on a level surface. The front suspension, steering
system, wheels, and tires should be serviced to nor-
mal condition before measuring wheel alignment.

TOE-IN

Standard value: 0

± 2 mm

AC006074 AD

Lock nut

Clip

1. Adjust the toe-in by undoing the clip and lock nut,

and turning the left and right tie rod turnbuckles by
the same amount (in opposite directions).
NOTE: The toe will move out as the left turnbuckle
is turned toward the front of the vehicle and the
right turnbuckle is turned toward the rear of the
vehicle.

2. Install the clip and tighten the lock nut to the

specified torque.

Tightening torque: 52

± 2 N⋅m

3. Confirm that the toe-in is at the standard value.
4. Use a turning radius gauge to check that the

steering angle is at the standard value.

Standard value:

Inner wheel

31

°45' ± 1°30'

Outer wheel (for
reference)

27

°15'

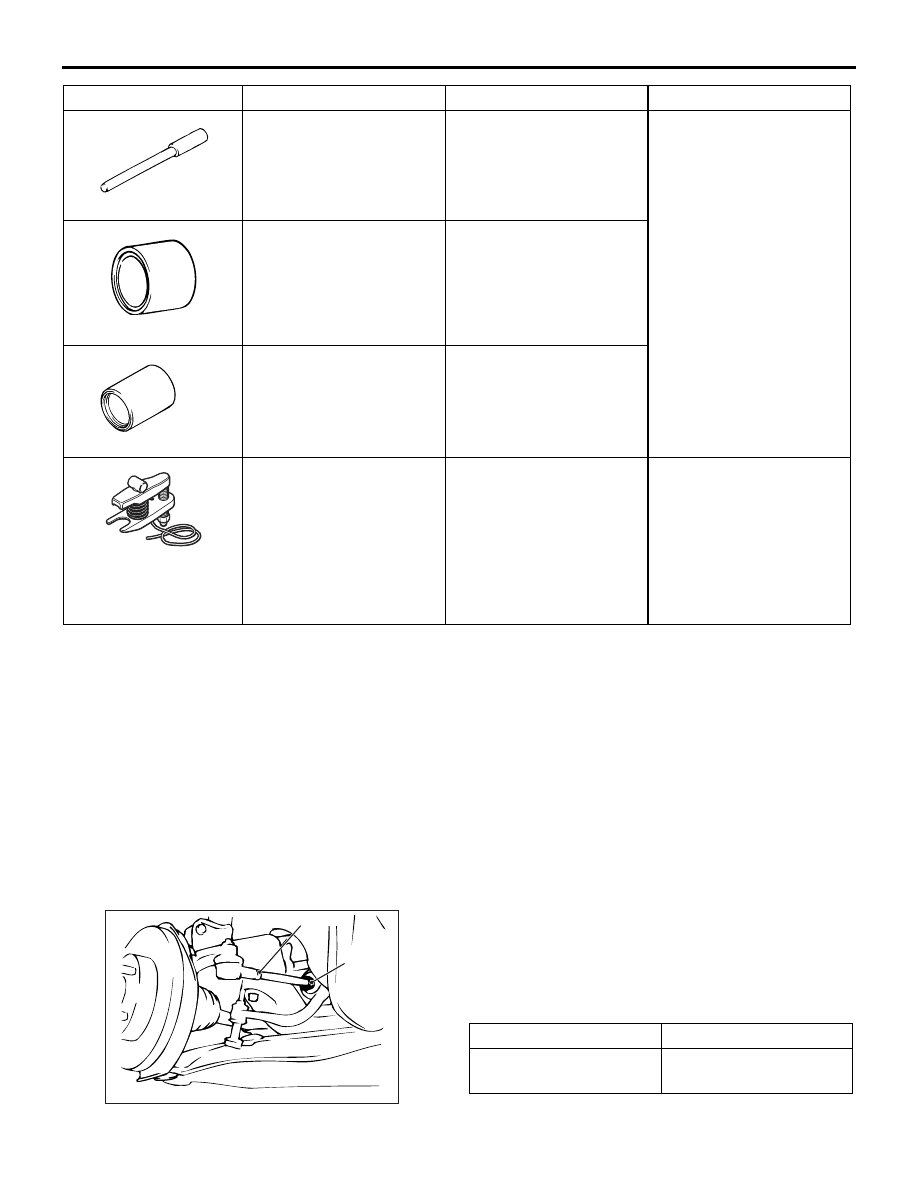

MB990651

Bar

Lower arm pillow ball
bushing removal and
press-fitting

MB991816

Bushing remover &
installer base

MB991576

MB991576

Base

AC106827

MB991897 or MB992011

Ball joint remover

Knuckle and tie rod end
ball joint disconnection
NOTE: Steering linkage
puller (MB990635 or
MB991113) is also
available to disconnect
knuckle and tie rod end
ball joint.

Tool

Number

Name

Use
