TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-99

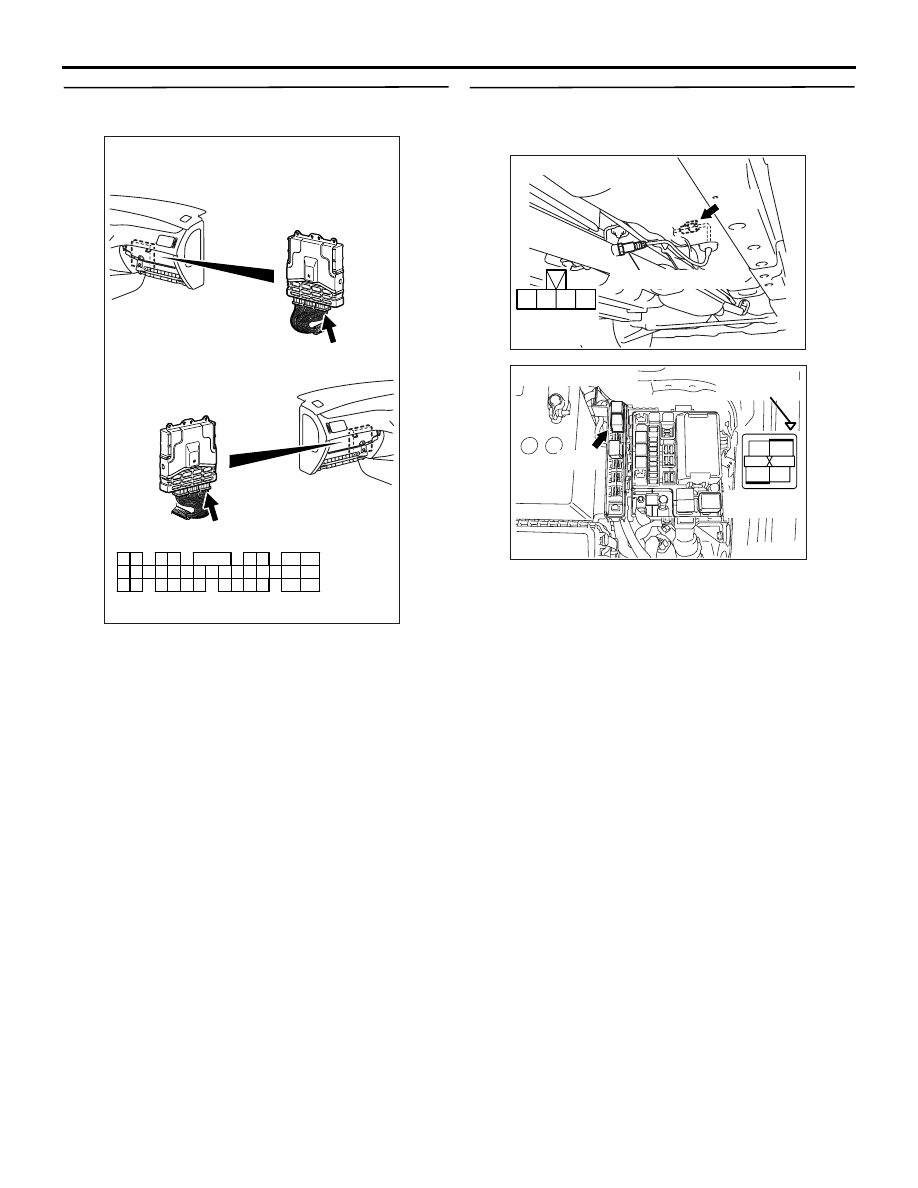

STEP 8. Connector check: C-121 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair or replace the connector.

STEP 9. Check harness between C-137 (terminal
No. 3) oxygen sensor (rear) connector and B-12X
(terminal No. 4) engine control relay connector.

NOTE: Before checking harness, check intermediate
connector C-105, and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair the damaged harness wire.

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

AK305013

2 1

3

4

AB

Oxygen sensor(rear)

Connector : C-137

Harness side
connector

C-137

AK305003

2

1

3

4

AB

Connector : B-12X

B-12X

Harness side
connector

Relay box’s
triangle marks

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-100

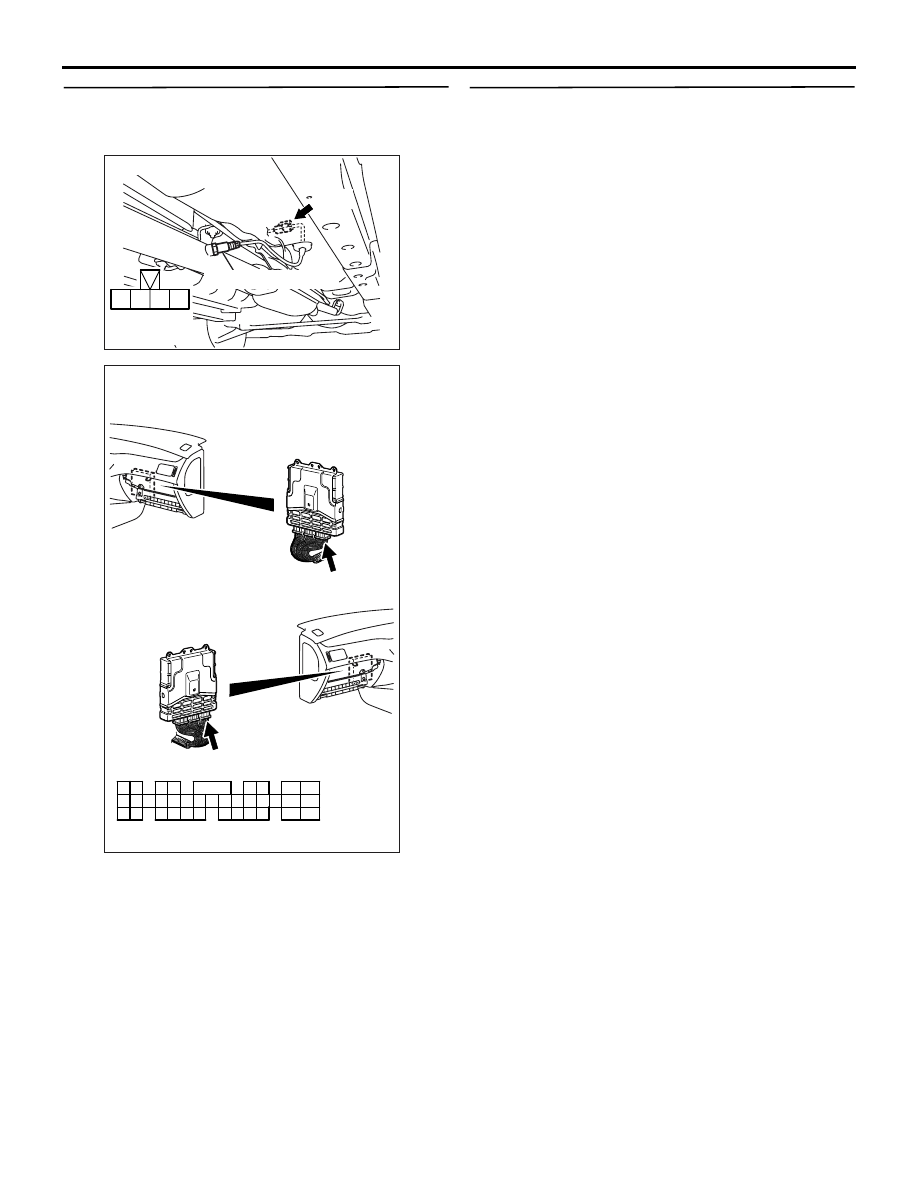

STEP 10. Check harness between C-137 (terminal
No. 4) oxygen sensor (rear) connector and C-121
(terminal No. 26) engine-ECU connector.

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair the damaged harness wire.

STEP 11. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace the engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

AK305013

2 1

3

4

AB

Oxygen sensor(rear)

Connector : C-137

Harness side
connector

C-137

AK501995

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

AB

Connector: C-121

C-121 (GR)

C-121 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-101

Code No. P0170: Abnormal Fuel System

OPERATION

• Refer to P0201 injector circuit

P.13A-105

.

• Refer to P0202 injector circuit

P.13A-111

.

• Refer to P0203 injector circuit

P.13A-117

.

• Refer to P0204 injector circuit

P.13A-123

.

FUNCTION

• If the fuel system goes out of order, the fuel cor-

rection value will become larger.

• The engine-ECU checks whether the fuel correc-

tion value is within the standard limits.

TROUBLE JUDGMENT

Check Condition

• In learning air-fuel ratio

Judgment Criteria

• Fuel injection amount correction value remains

unusually low for more than 5 seconds.

or

• Fuel injection amount correction value remains

unusually high for more than 5 seconds.

PROBABLE CAUSES

• Failed fuel supply system

• Failed oxygen sensor (front)

• Failed intake air temperature sensor

• Failed air flow sensor

• Failed purge control solenoid valve

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-II/III diagnosis code

Q: Is any other diagnosis code than P0170 output?

YES :

Inspection Chart for Diagnosis Code (Refer

to

P.13A-17

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-II/III data list

• Refer to Data List Reference Table

P.13A-372

.

a. Item No. 12: Air flow sensor
b. Item No. 13: Intake air temperature sensor

c. Item No. 21: Engine coolant temperature sen-

sor

d. Item No. 22: Barometric pressure sensor

Q: Are the check results normal?

YES :

Go to Step 3 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Codes

P.13A-17

).

STEP 3. Check for intake of air from intake hose
and intake manifold.

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair.

STEP 4. Check for leakage of exhaust emission
from exhaust manifold.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair.

STEP 5. Check throttle body (throttle valve
portion) for contamination.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Clean throttle body (throttle valve portion)
(Refer to

P.13A-395

).

STEP 6. M.U.T.-II/III data list

• Refer to Data List Reference Table

P.13A-372

.

a. Item No. 11: Oxygen sensor (front)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Check oxygen sensor (front) system (Refer
to Code No. P0130

P.13A-75

).

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-102

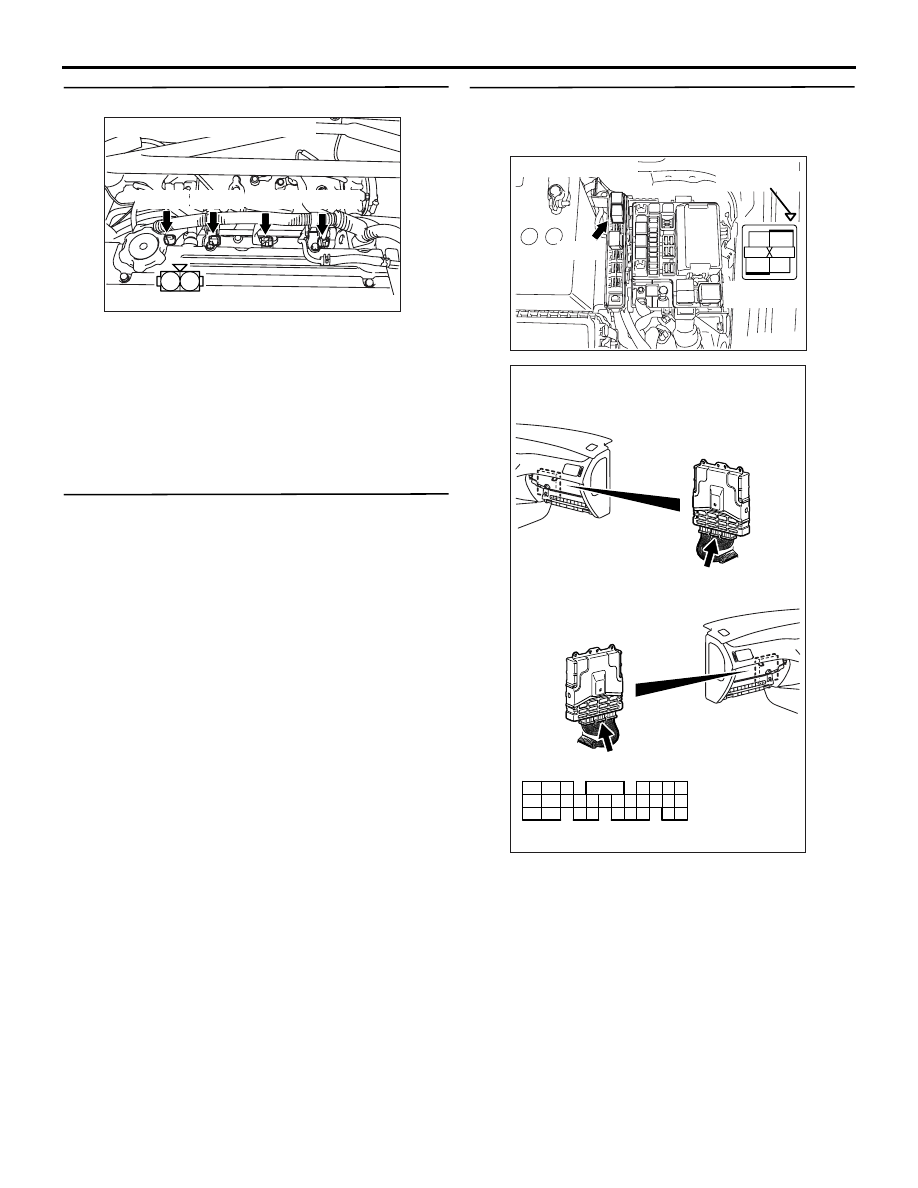

STEP 7. Connector Check: Injector connector

a. B-22 (No. 1 injector connector).
b. B-20 (No. 2 injector connector).

c. B-18 (No. 3 injector connector).

d. B-17 (No. 4 injector connector).

Q: Are the check results normal?

YES :

Go to Step 8 .

NO :

Repair or replace the connector.

STEP 8. Check injector itself.

• Check Injector itself (Refer to

P.13A-406

).

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Replace the injector.

STEP 9. Connector check: B-12X engine control
relay connector and C-119 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace the connector.

AK305012

1

2

Connector : B-17,B-18,B-20,B-22

Harness side connector

B-22(B) B-20(B) B-18(B) B-17(B)

AB

AK305003

2

1

3

4

AB

Connector : B-12X

B-12X

Harness side
connector

Relay box’s
triangle marks

AK501994

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

AB

Connector: C-119

C-119 (GR)

C-119 (GR)

Harness side connector

<L. H. drive vehicles>

<R. H. drive vehicles>
