EXTERIOR

51-25

MARK

REMOVAL AND INSTALLATION

M1511011801424

AC504528

1

2

3

4

AC

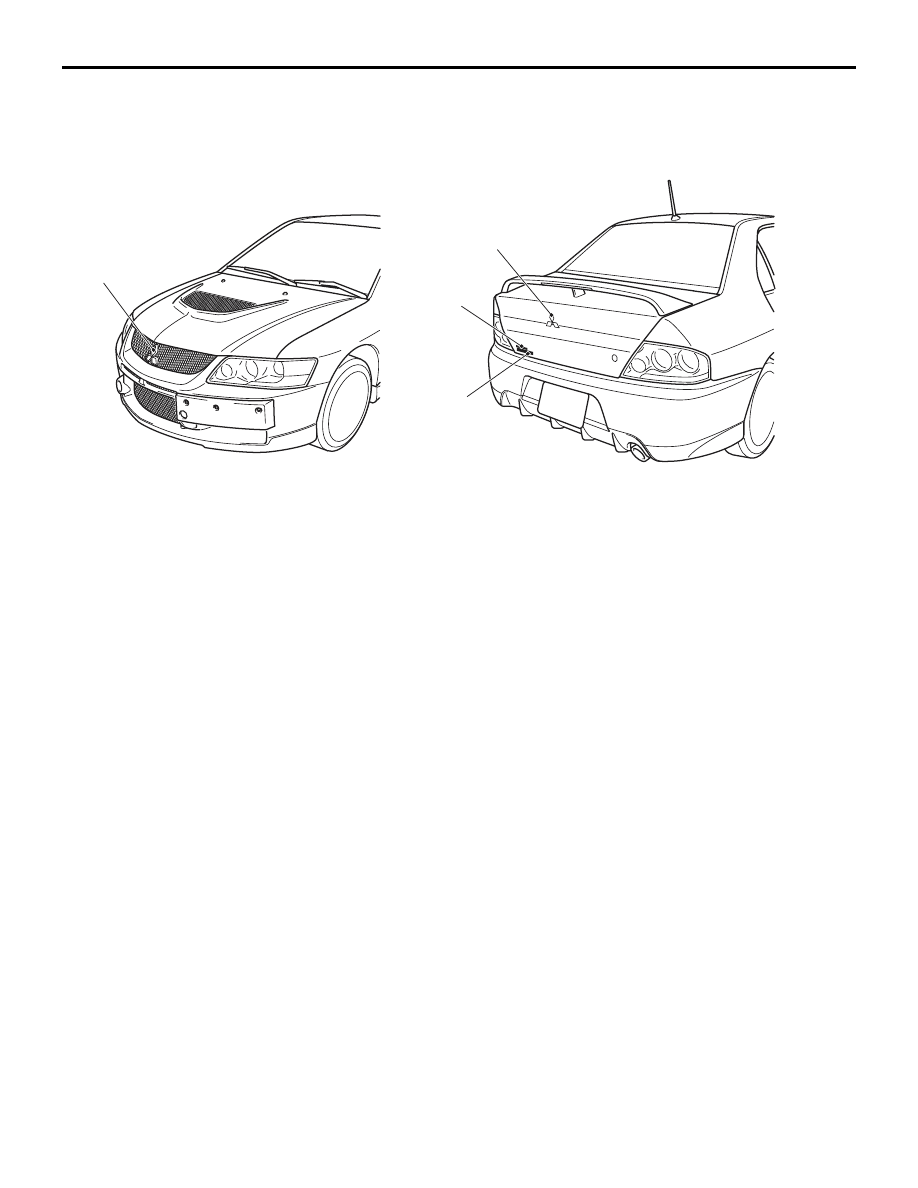

Removal

1. Front three-diamond mark (Refer to

P.51-3

).

>>

A

<< 2. Rear three-diamond mark

>>

A

<< 3. LANCER mark

>>

A

<< 4. Evolution mark

Removal (Continued)

MARK

EXTERIOR

51-26

INSTALLATION SERVICE POINT

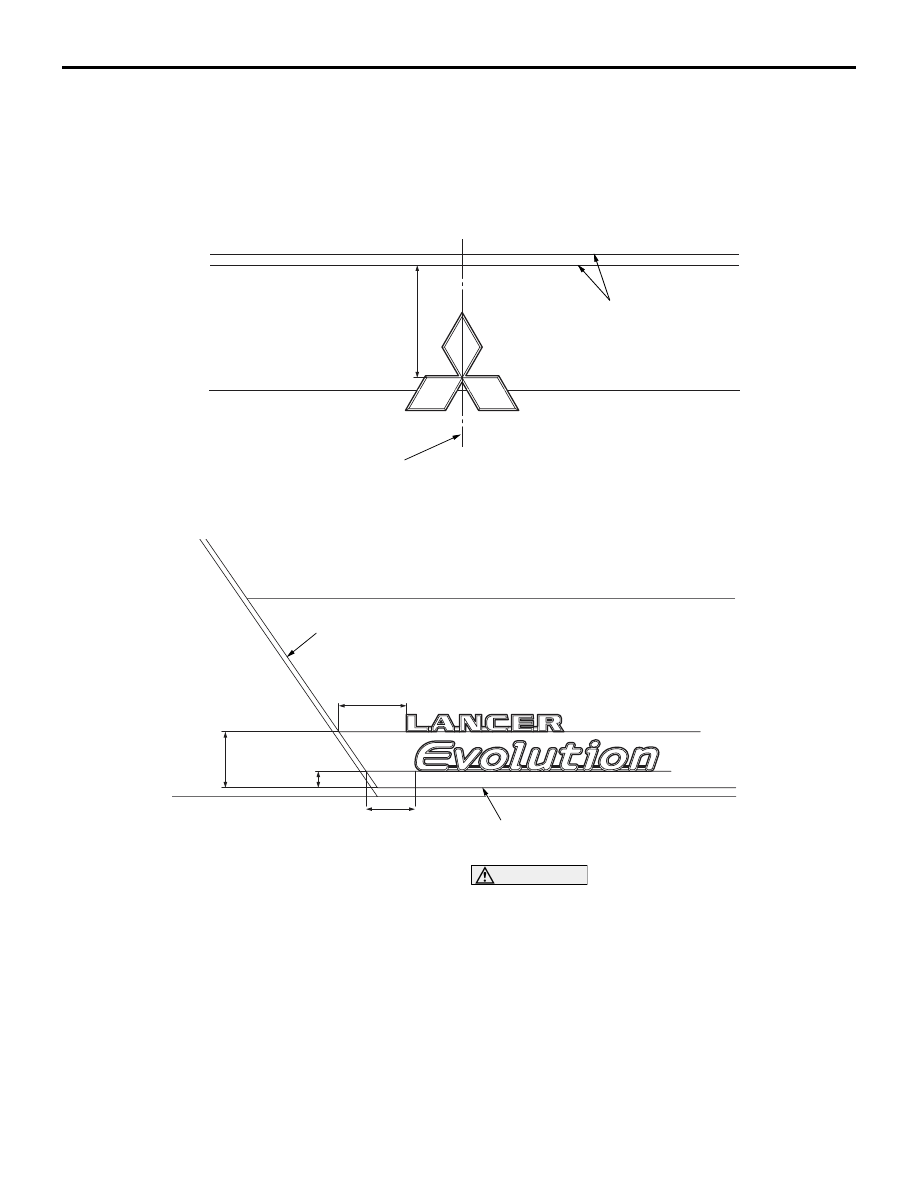

>>A<< MARK APPLICATION

1. Installation position

Attach each mark to the position shown in the
illustration.

AC309915

Rear three-diamond mark

AF

Trunk lid press line

84 ± 1 mm

Centre line of vehicle

AC210731

LANCER mark, Evolution mark

Trunk lid end line

AE

Trunk lid end line

48 ± 1 mm

41 ± 1 mm

12 ± 1 mm

35 ± 1 mm

2. Installation procedure

(1) Use 3M ATD Part number 8906 or equivalent

to clean the mark installation surfaces on the
body.

CAUTION

When attaching the marks, the ambient tempera-
ture should be 20

− 38°C and the air should be

completely free of dust. If the ancient tempera-
ture is lower than 20

°C, the marks and the places

on the vehicle body where the marks are to be
attached should be heated to 20

− 38°C.

(2) Peel off the protection sheet on the back of the

marks to paste it on the installation position.

DOOR MIRROR

EXTERIOR

51-27

DOOR MIRROR

SERVICE SPECIFICATION

M1511000300347

Item

Standard value

Heated door mirror operation current

Ω

5.9

− 7.8

SPECIAL TOOL

M1511000601103

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

Removal of remote controlled
mirror switch

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1511014600169

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

P.00-5

.

TROUBLE SYMPTOM CHART

M1511015000245

Symptom

Inspection
procedure

Reference
page

All heated door mirrors do not operate

1

P.51-28

Right or left heated door mirror does not operate

2

P.51-29

DOOR MIRROR

EXTERIOR

51-28

SYMPTOM PROCEDURES

Inspection Procedure 1: All Heated Door Mirrors do not Operate

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

REAR WINDOW
DEFOGGER RELAY

REAR WINDOW
DEFOGGER

REMOTE
CONTROLLED
MIRROR (RH)

REMOTE
CONTROLLED
MIRROR (LH)

MIRROR
HEATER

MIRROR
HEATER

NOTE

LH drive vehicles
RH drive vehicles

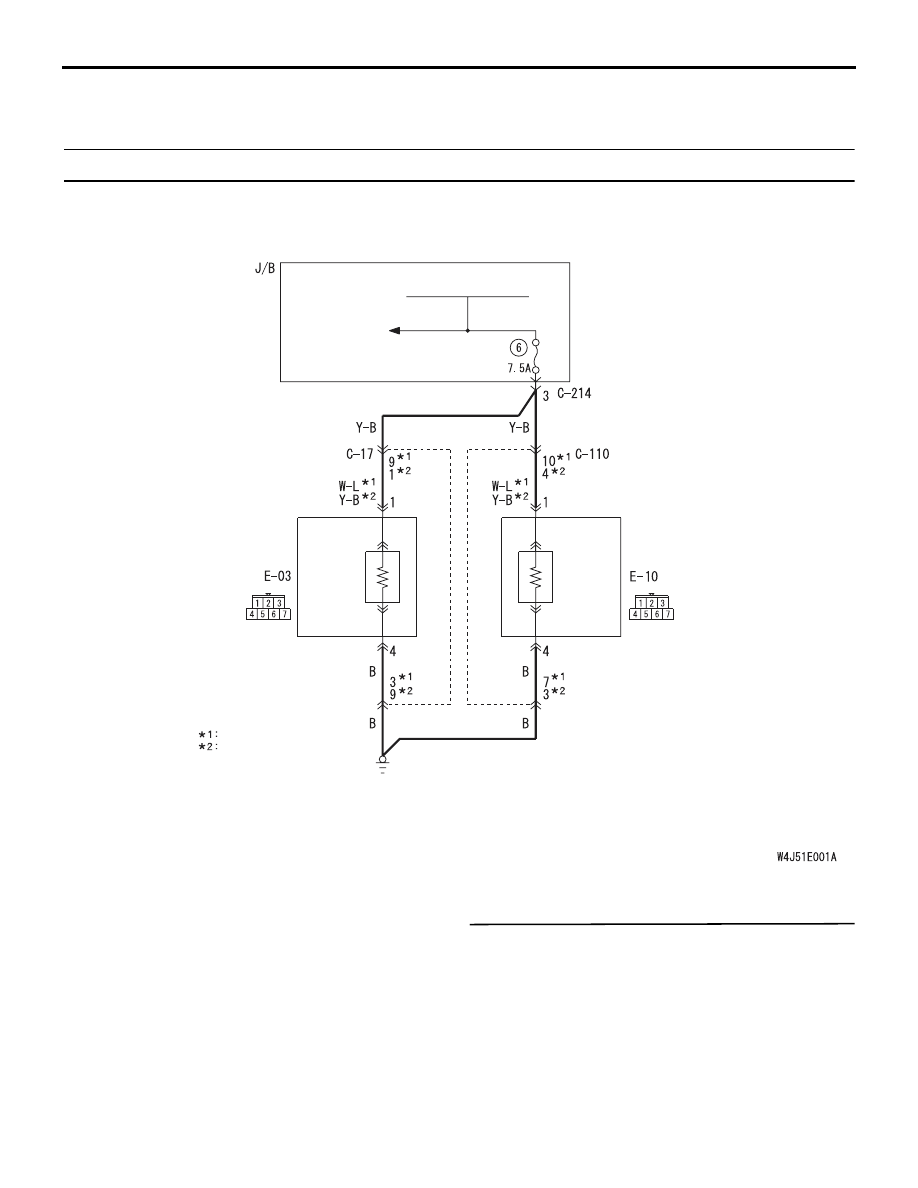

Heated door mirror circuit

COMMENTS ON TROUBLE SYMPTOM

The heated door mirrors should works for approxi-
mately 11 minutes when the rear defogger switch is
turned on. If the mirror heater does not work for the
specified period, the defogger relay circuit (heated
door mirror power supply circuit) may be defective.

PROBABLE CAUSE

• Damaged harness wire and connector

DIAGNOSIS PROCEDURE

STEP 1. Check the rear window defogger.
Check that the rear window defogger system should
work normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the rear window defogger
(Refer to GROUP 55, Troubleshooting

P.55-63

).
