PROPELLER SHAFT

PROPELLER SHAFT

25-7

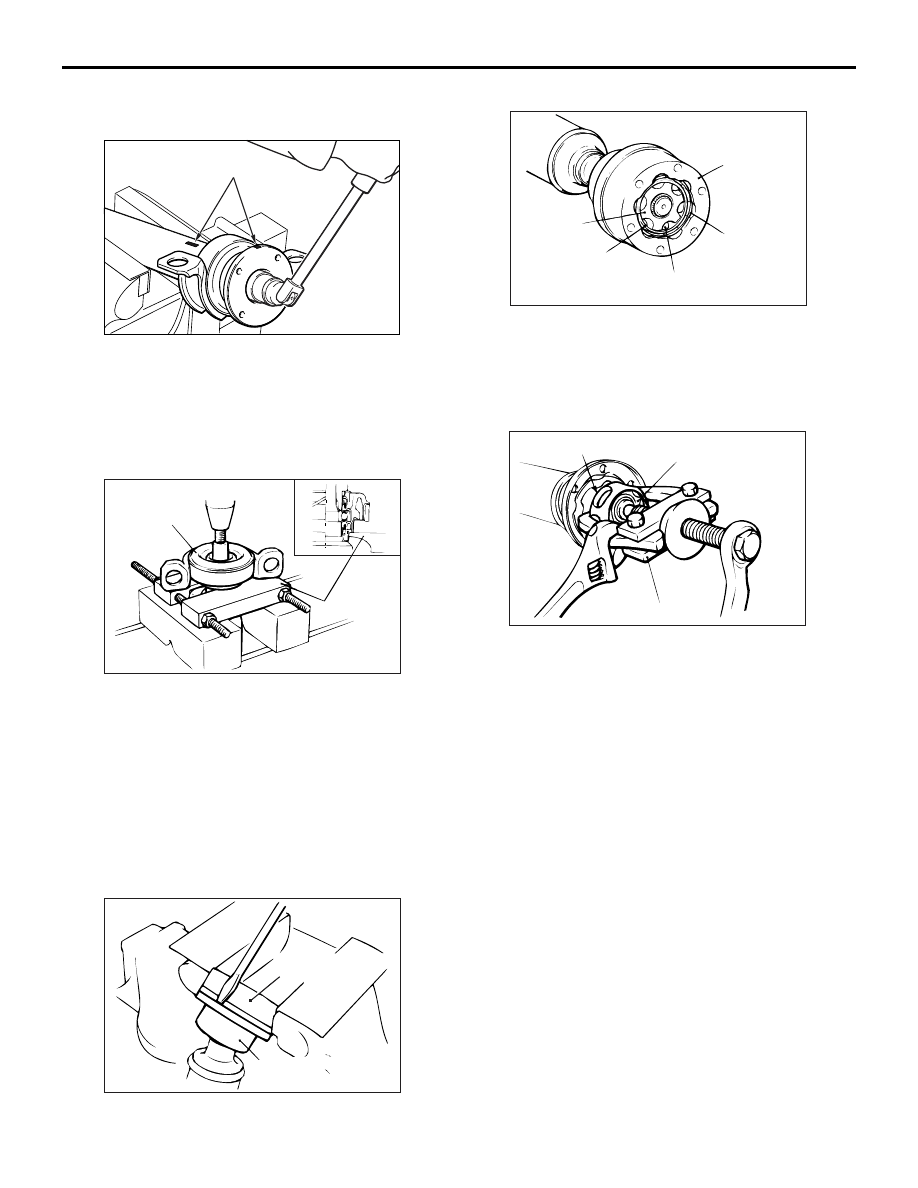

DISASSEMBLY SERVICE POINTS
<<A>> COMPANION FLANGE REMOVAL

AC211610

Mating marks

AC

Make mating marks on the companion flange and
centre propeller shaft, and then remove the compan-
ion flange.

<<B>>CENTRE BEARING ASSEMBLY
REMOVAL

AC101273

Centre bearing
assembly

MD998801

AD

Use special tool bearing remover (MD998801) to
remove the centre bearing assembly from the centre
propeller shaft.

<<C>> BOLT REMOVAL

Make mating marks on the rear propeller shaft, LJ
assembly and companion flange, and then remove
the bolt.

<<D>>LJ ASSEMBLY REMOVAL

AC101274

LJ assembly

LJ boot

AE

1. Remove the LJ boot from the LJ assembly.

AC101275 AC

Outer race

Circlip

Ball

Cage

Inner
race

2. Make mating marks on the outer race, cage and

inner race, and then remove the circlip, outer race
and ball.
NOTE: Note the positions of the balls so that they
can be reinstalled in their original positions.

AC101276

Inner race

Puller

Cage

AC

3. Remove the inner race with cage from the centre

propeller shaft assembly by using a puller
(commercially available).

4. Wipe off the grease and clean the outer race,

inner race, cage and balls.

<<E>> LJ BOOT REMOVAL

When the LJ boot is reused, tape the spline part on
the centre propeller shaft and then remove the LJ
boot.

REASSEMBLY SERVICE POINTS
>>A<< LJ BOOT INSTALLATION

1. Install the boot band.
2. Wrap a plastic tape around the spline part on the

centre propeller shaft and then install the LJ boot.

PROPELLER SHAFT

PROPELLER SHAFT

25-8

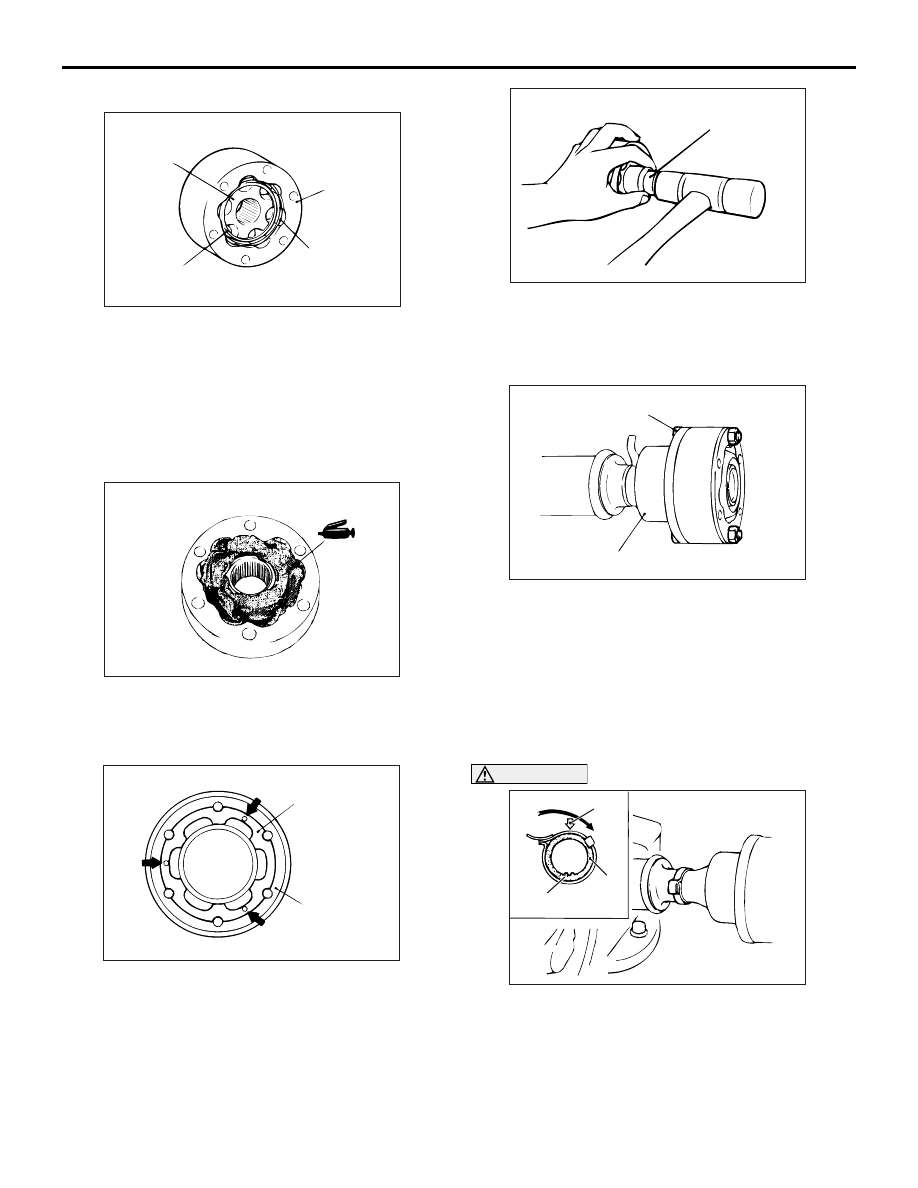

>>B<< LJ ASSEMBLY INSTALLATION

AC101277AC

Outer race

Circlip

Cage

Inner
race

1. Apply a thin coat of the specified grease to the

ball grooves of the inner and outer races.

Specified grease: Repair kit grease

2. Assemble the LJ assembly as follows:

(1) Assemble the outer race, cage, balls, and

inner race with their mating marks aligned.

(2) Install the circlip.

AC101278 AC

3. Apply specified grease to the LJ assembly.

Specified grease: Repair kit grease
Amount to use: 75

± 5 g

AC101279

Rubber packing

LJ assembly

AE

4. Apply a thin coat of specified adhesive to the

groove side of LJ assembly (shown by arrows in
the figure) and install the rubber packing.

Specified adhesive: 3M Stud Locking 4170 or
equivalent

5. Set the groove side of LJ assembly (for packing)

toward the LJ boot side and install them.

AC101280

Socket wrench

AC

6. Lining up the mating marks on the LJ assembly

and the centre propeller shaft and using the
socket wrench, install the LJ assembly to the
centre propeller shaft.

AC101281

Bolt

LJ boot

AE

7. Using the bolt, align the bolt holes of the LJ boot

and the LJ assembly and install LJ boot to the LJ
assembly.

8. Install the rubber packing of the companion flange

side in the same manner as described in (4)
above.

>>C<< BOOT BAND INSTALLATION

CAUTION

•

AC107071AB

Vent plug

Mark

Boot

Clamp the boot by holding down the lever at a

position nearly opposite to the vent groove
provided in the LJ boot (at arrow marked
position on boot).

• Be sure to remove grease, if present, from

around the vent groove. Grease obstructs the
ventilation air passage.

PROPELLER SHAFT

PROPELLER SHAFT

25-9

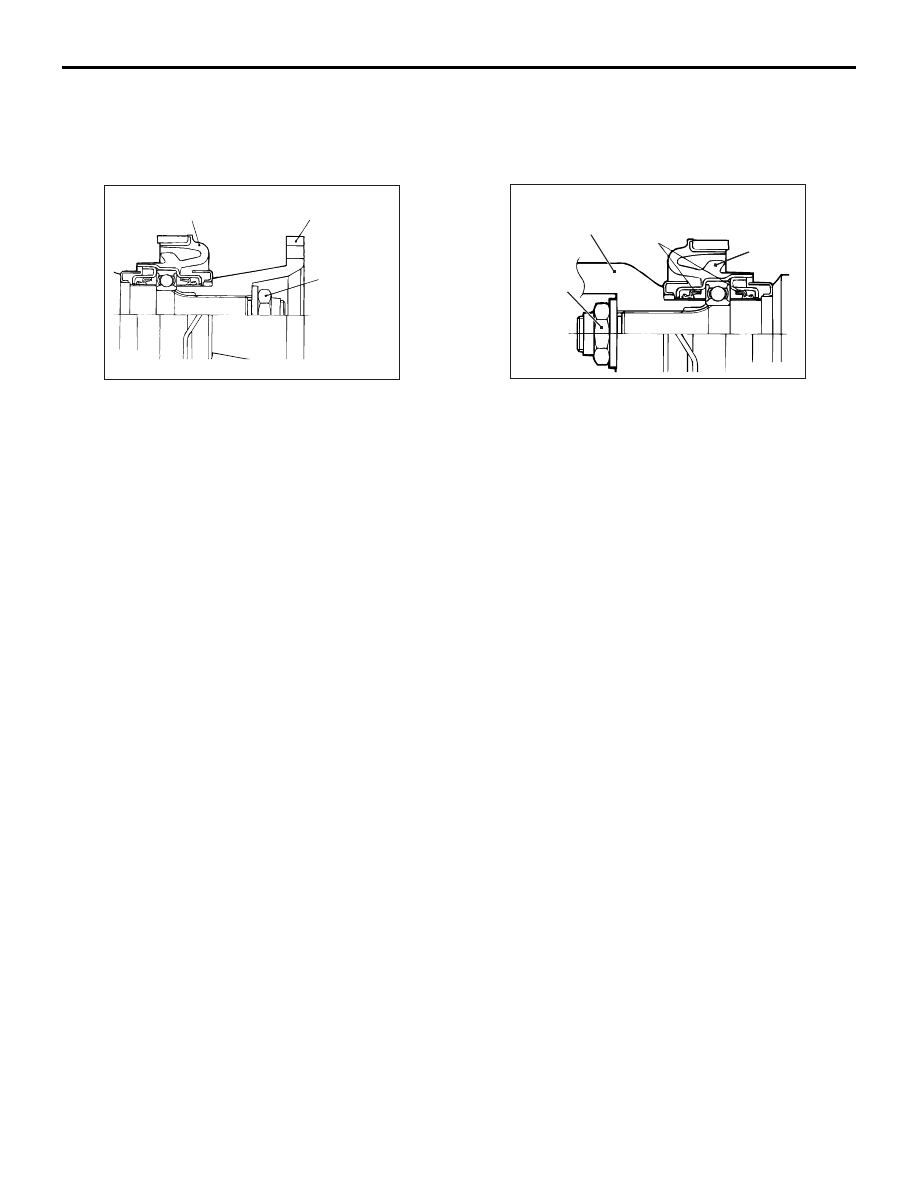

>>D<< CENTRE BEARING
ASSEMBLY/COMPANION
FLANGE/SELF-LOCKING NUT
INSTALLATION

AC101283 AD

Companion flange

Self-locking
nut

Centre bearing
assembly

1. Set the centre bearing assembly in the direction

shown in the figure and install it to the centre
propeller shaft.

2. Install, lining up the mating marks on the

companion flange and the centre propeller shaft.

3. While tightening the self-locking nut, install the

centre bearing assembly with the companion
flange.

>>E<<CENTRE BEARING
ASSEMBLY/COMPANION
FLANGE/SELF-LOCKING NUT
INSTALLATION

AC101284

Rubber
mount

Dust seal

Companion
flange

Self-
locking
nut

AE

1. Set the centre bearing assembly in the direction

shown in the figure and install it to the centre
propeller shaft.

2. Align the mating marks on the companion flange

and the centre propeller shaft.

3. While tightening the self-locking nut, install the

centre bearing assembly with the companion
flange.
