SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-143

COMMENTS ON TROUBLE SYMPTOM

The windshield wiper motor, the column switch or the
front-ECU may be defective. If a problem is found in
the ECU check by using the SWS monitor, also
check the wiper backup circuit (between C-203 col-
umn switch connector terminal No.8 and A-11X
front-ECU connector terminal No.26) and repair if
necessary.

POSSIBLE CAUSES

• Malfunction of the windshield wiper motor

• Malfunction of the column switch

• Malfunction of the front-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. ECU check on the SWS monitor
Check that the power supply and earth lines to the
column switch (column-ECU) and the front-ECU and
the SWS communication lines are normal.

• Turn the ignition switch to the ON position.

ECUS TO BE CHECKED

• COLUMN ECU

• FRONT ECU

OK: "OK" is displayed for all the items

Q: Is the check result normal?

"OK" is displayed for all the items :

Go to Step 2.

"NG" is displayed on the "COLUMN ECU" menu. :

Refer to Inspection Procedure A-2
"Communication with the column switch
(column-ECU) is not possible

P.54C-30

."

"NG" is displayed on the "FRONT ECU" menu. :

Refer to Inspection Procedure A-4
"Communication with the front-ECU is not
possible

P.54C-42

."

Step 2. Function diagnosis by using the SWS
monitor
Check the SWS communication signal, which are
related to the windshield wiper function.

<Selected item> F.WIPER INT

• Turn the ignition switch to the ACC position.

• Windshield wiper switch: INT

OK: Normal conditions are displayed for all
the items.

Q: Is the check result normal?

Normal conditions displayed for all the items :

Go

to Step 3.

Normal condition is not displayed for item No.05 :

Replace the column switch.

Normal condition is not displayed for item No.31 :

Refer to Inspection Procedure L-1 "The
ignition switch (ACC) signal is not received

P.54C-258

."

Normal condition is not displayed for item No.70 :

Replace the front-ECU.

Item No. Item name

Normal condition

Item 05

INT WIPER SW

ON

Item 31

IGNITION SW
ACC

ON

Item 70

FRONT ECU ACK NORMAL ACK or

HI-BEAM ACK

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-144

Step 3. Connector check: B-01 windshield wiper
motor connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

Step 4. Check the windshield wiper motor
assembly.
Refer to GROUP 51

− Windshield wiper

P.51-21

.

Q: Is the check result normal?

YES :

Go to Step 5

NO :

Replace the windshield wiper motor
assembly.

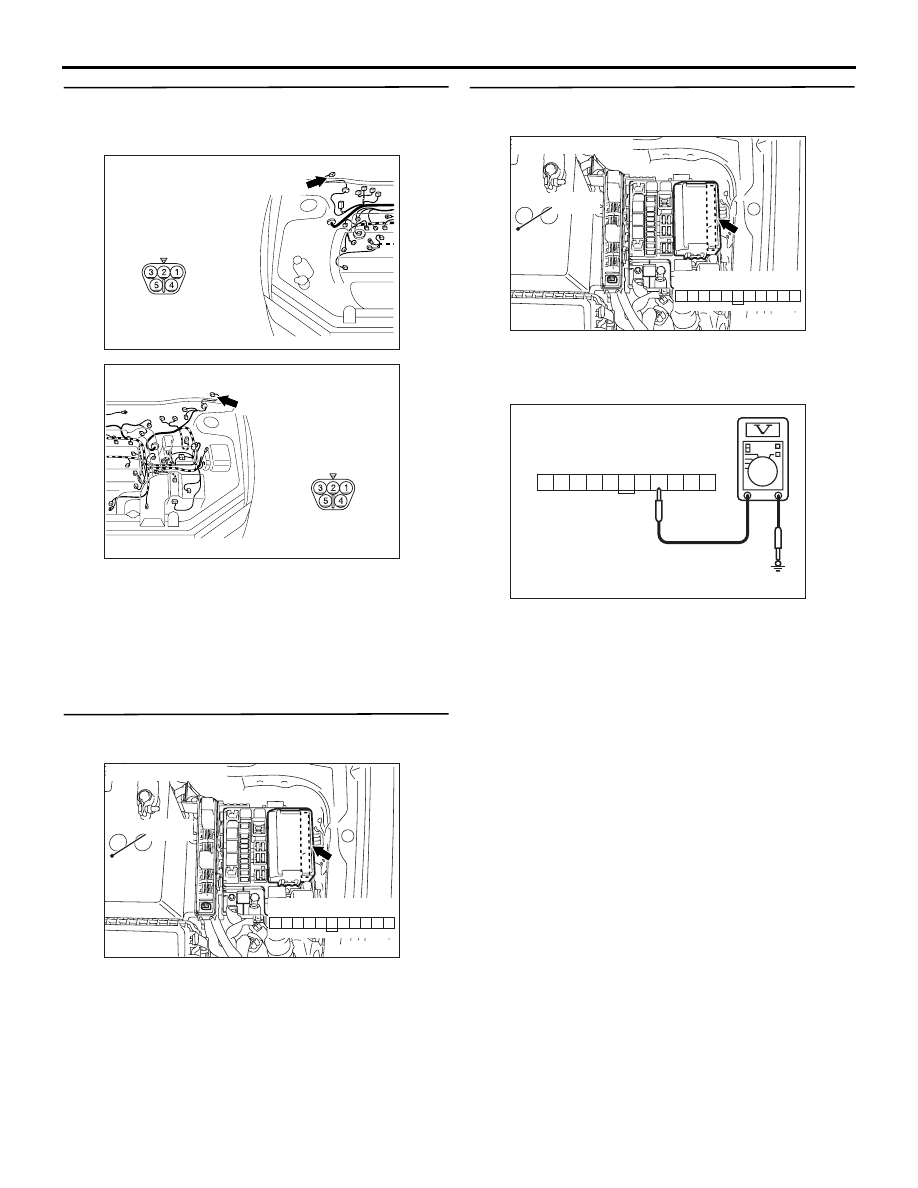

Step 5. Resistance measurement at the B-01
windshield wiper motor connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Continuity between B-01 windshield wiper motor

connector terminal No.5 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Go to Step 6.

AC310437

Connector: B-01 <LHD>

AB

Harness side

B-01 (GR)

AC310477

Connector: B-01 <RHD>

AD

Harness side

B-01 (GR)

AC310437

Connector: B-01 <LHD>

AB

Harness side

B-01 (GR)

AC310477

Connector: B-01 <RHD>

AD

Harness side

B-01 (GR)

4

1

2

5

3

AC301635

Connector B-01
(Harness side)

AC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-145

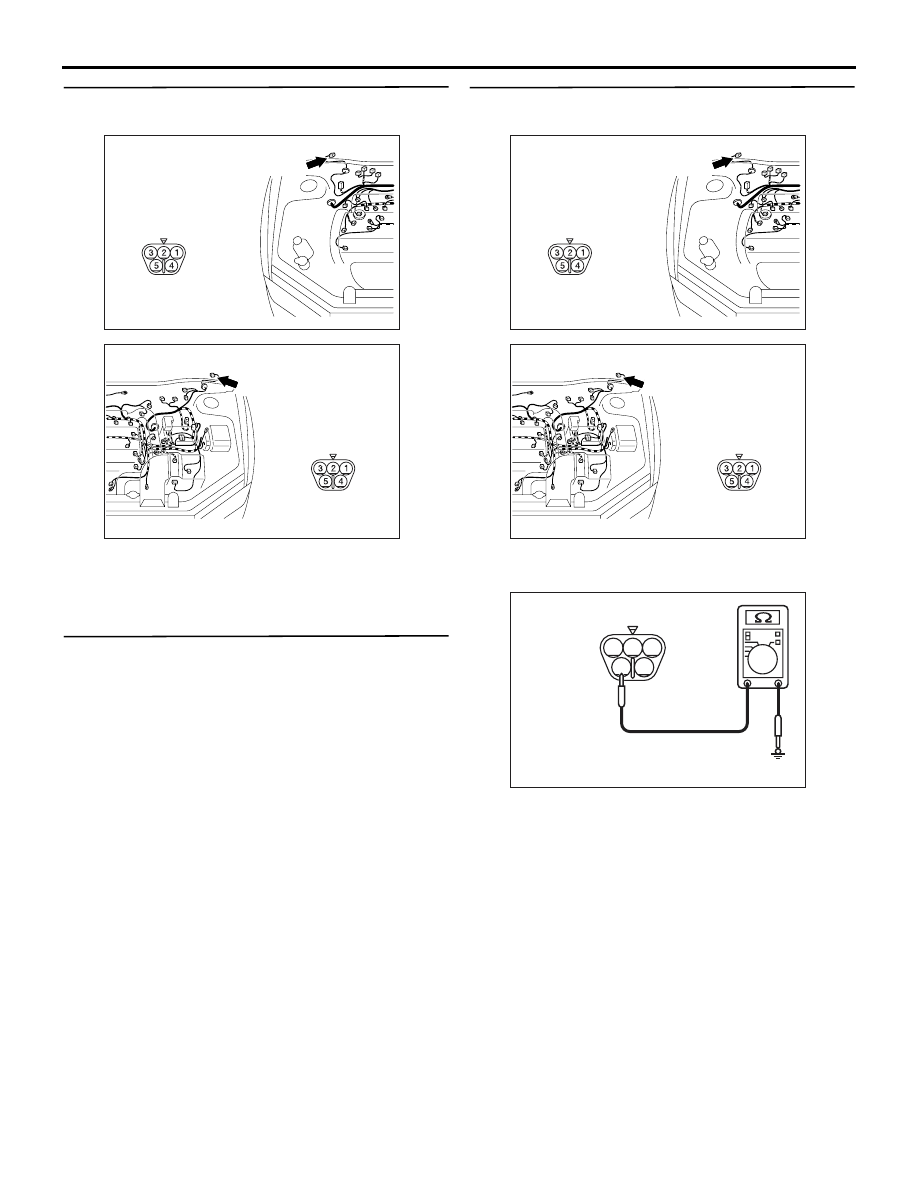

Step 6. Check the wiring harness between B-01
windshield wiper motor connector terminal No.5
and body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 7. Connector check: A-11X front-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

Step 8. Voltage measurement at the A-11X
front-ECU connector

(1) Remove the front-ECU, and measure at the relay

box side.

(2) Ignition switch: ACC

(3) Check the voltage between the A-11X front-ECU

connector terminal No.24 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Go to Step 9.

AC310437

Connector: B-01 <LHD>

AB

Harness side

B-01 (GR)

AC310477

Connector: B-01 <RHD>

AD

Harness side

B-01 (GR)

AC310572AC

Connector: A-11X

Relay box side

Battery

29

31 30

28 27

25

26

24

21

22

23

AC310572AC

Connector: A-11X

Relay box side

Battery

29

31 30

28 27

25

26

24

21

22

23

24

29

30

31

2827

25

26

21

2322

AC304768

Connector A-11X
(Relay box side)

AB

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-146

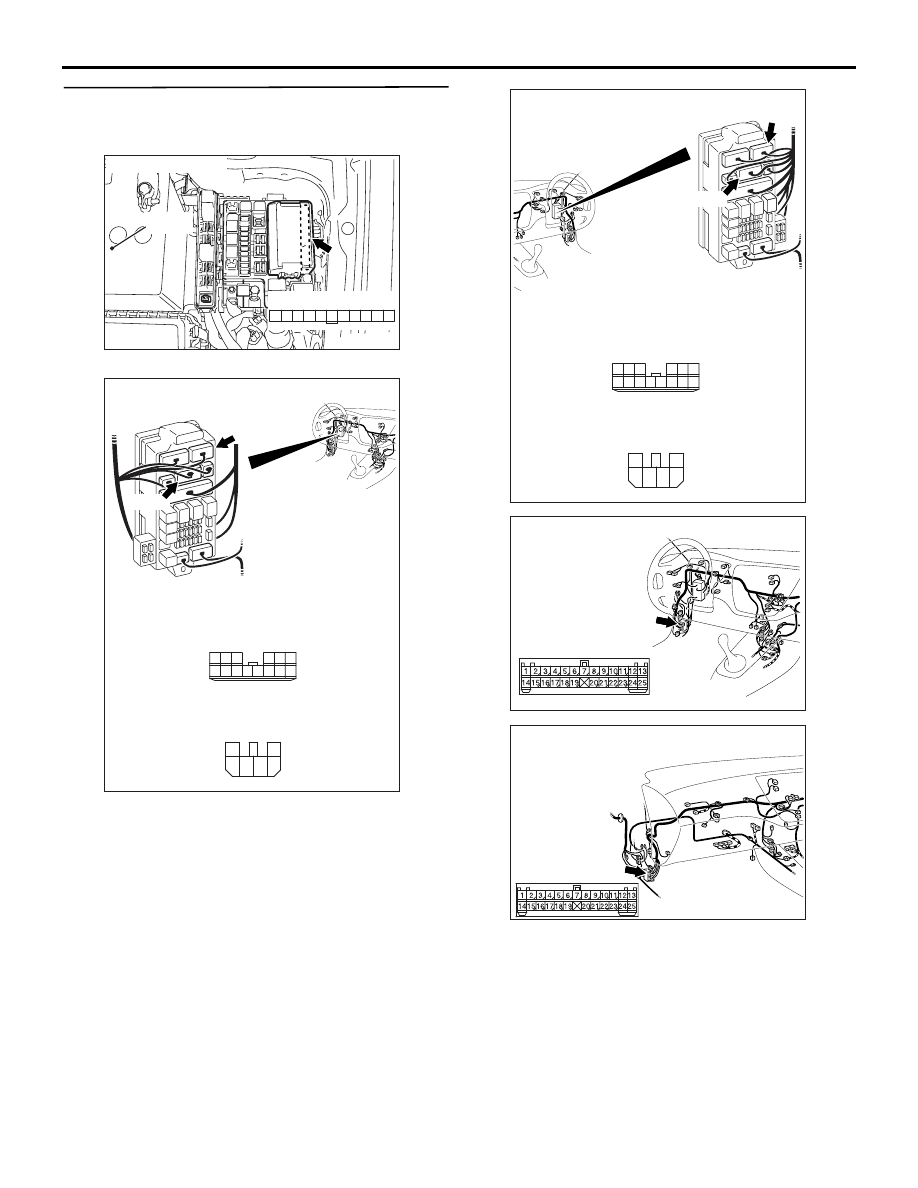

Step 9. Check the wiring harness between A-11X
