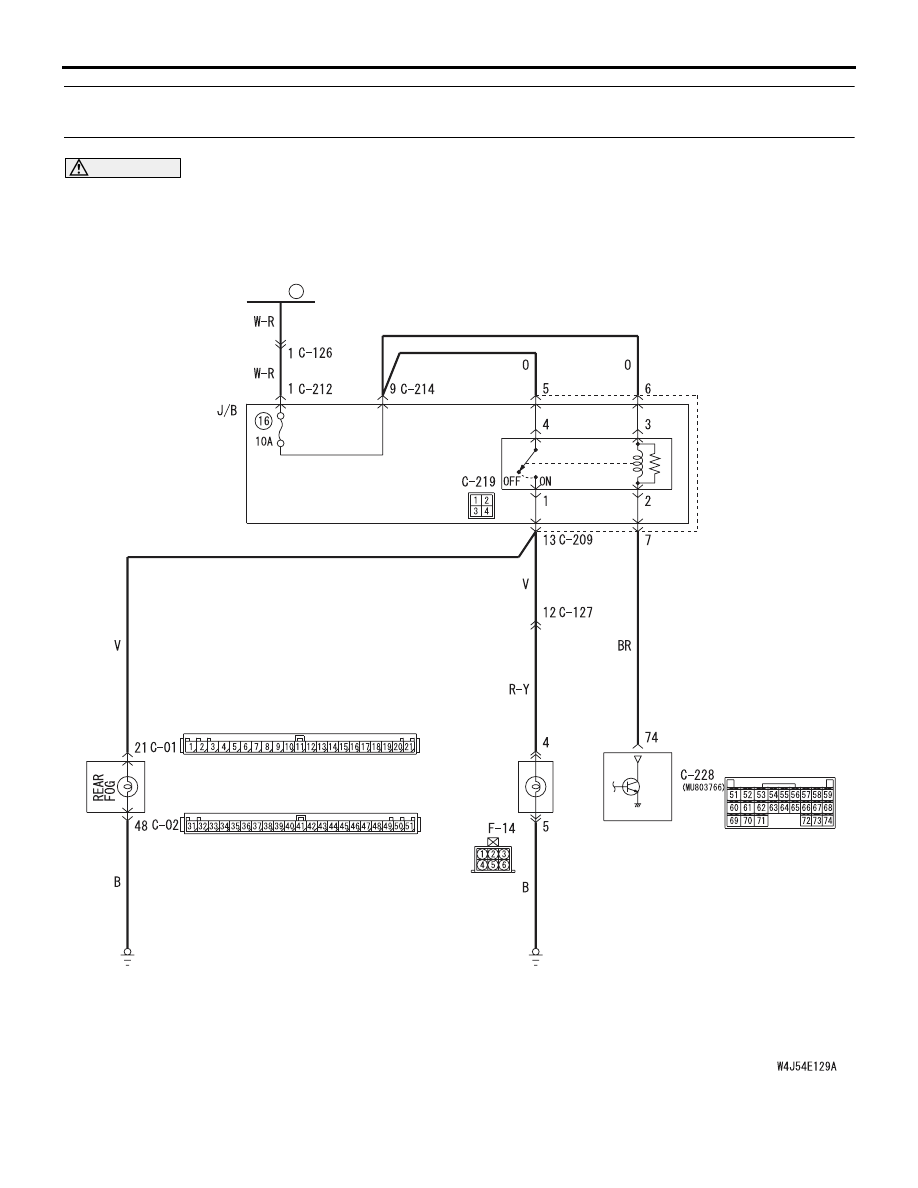

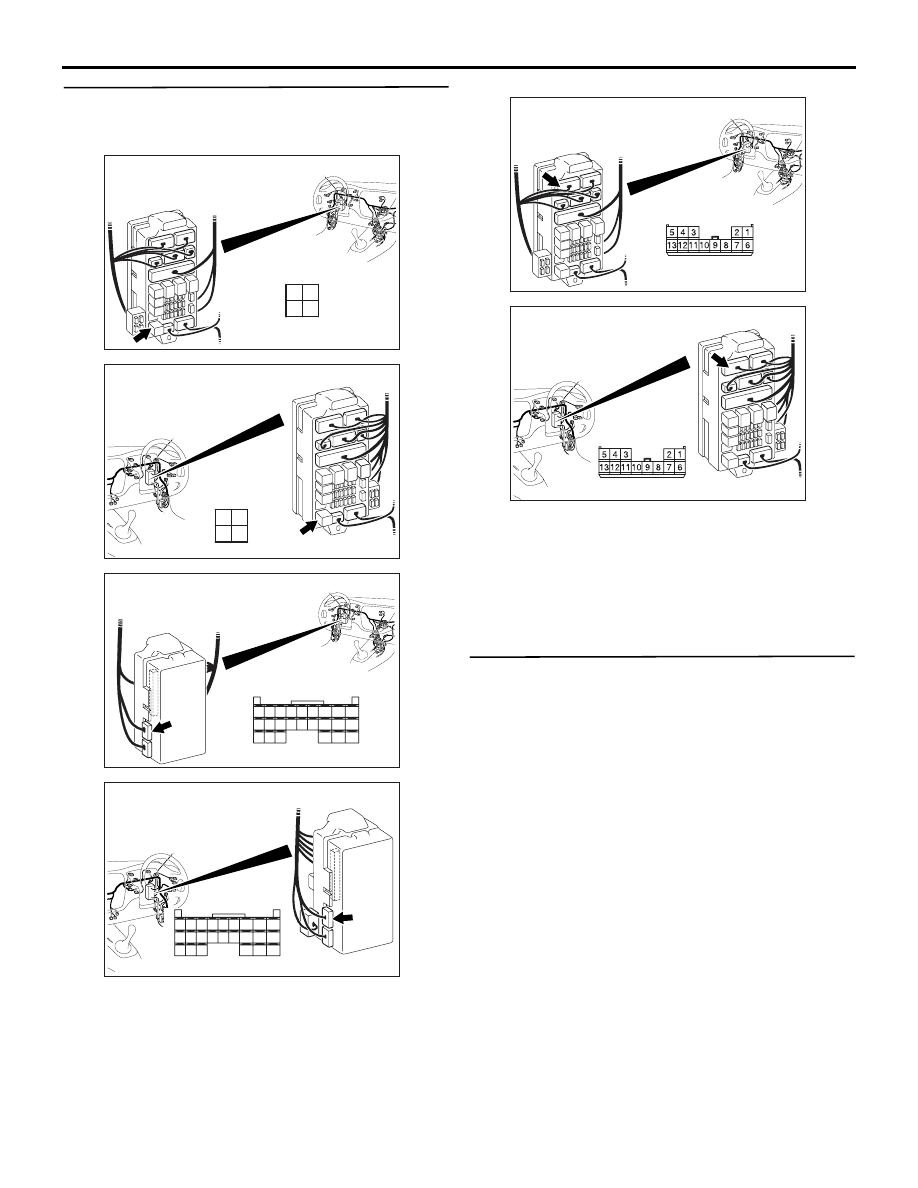

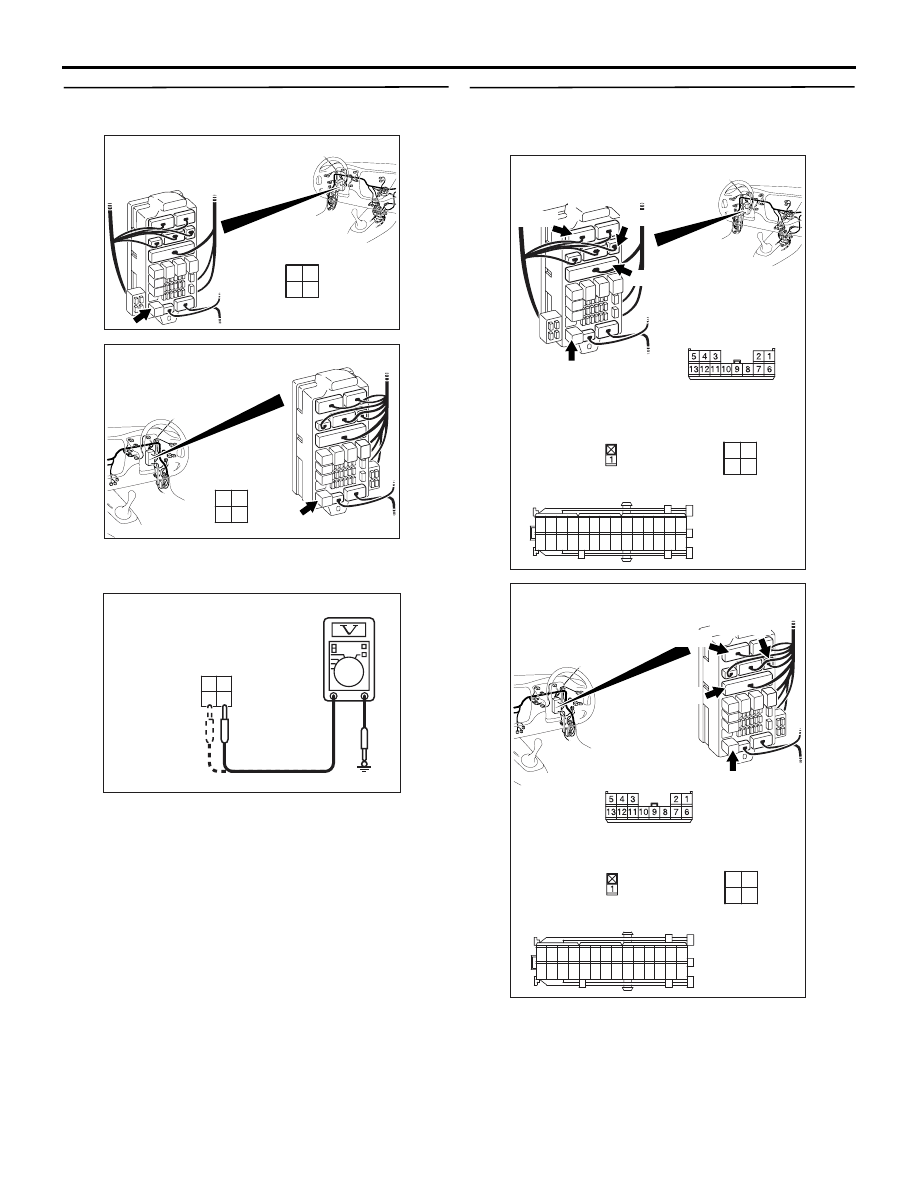

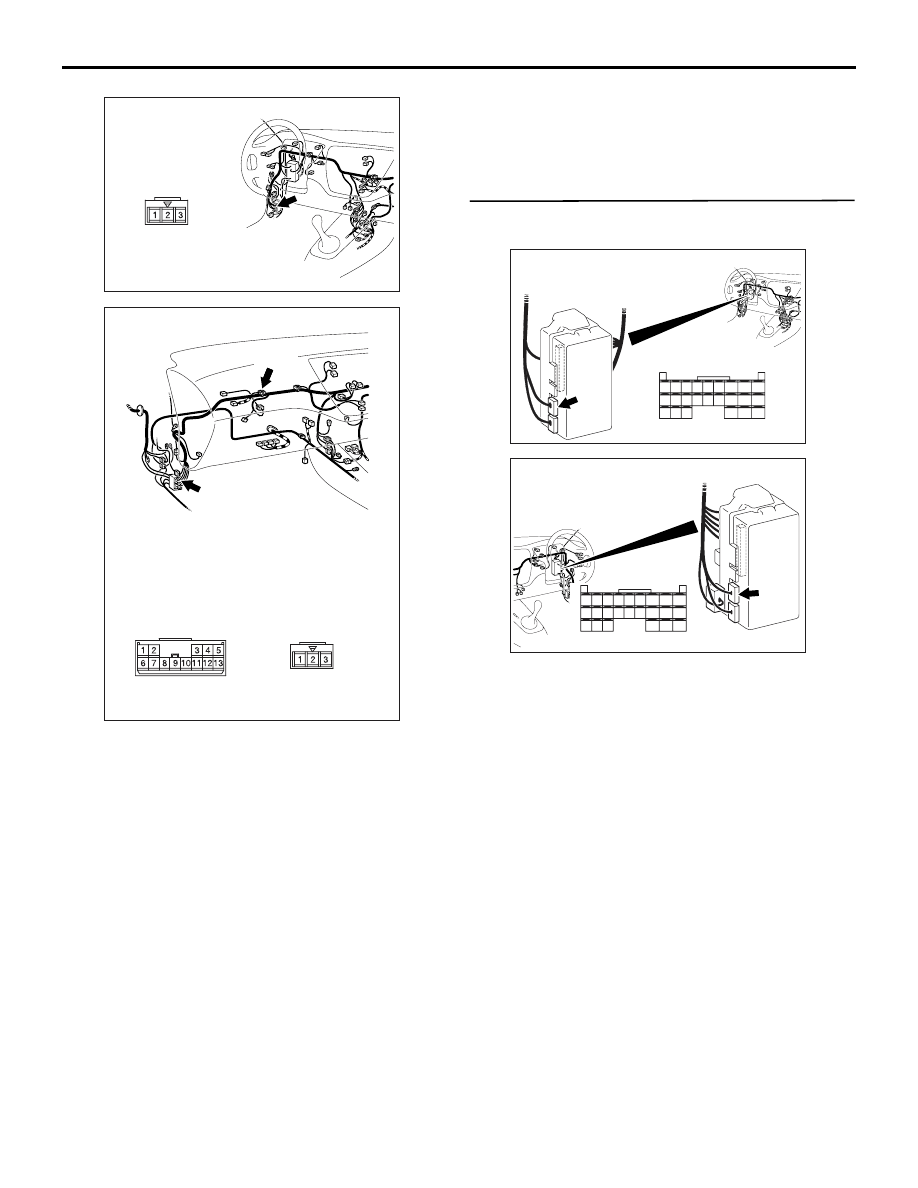

SYMPTOM PROCEDURES SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR 54B-215 Step 5. Voltage measurement at the C-219 rear (1) Remove the rear fog lamp relay, and measure at the junction block side. (2) Check the voltage between the rear fog lamp relay connector and body earth. • Voltage between C-219 rear fog lamp relay connector terminal No.3 and body earth • Voltage between C-219 rear fog lamp relay connector terminal No.4 and body earth OK: System voltage Q: Is the check result normal? YES : Go to Step 7. NO : Go to Step 6. Step 6. Check the wiring harness between C-219 AC310448 Junction block (front view) Connector: C-219 AN <LHD> Junction block side 3 1 2 AC310458 Junction block (front view) Connector: C-219 AK <RHD> Junction block side 3 1 2 AC301541HC Connector C-219 4 2 1 3 AC310449 Connectors: C-209, C-212, C-214, C-219 AC C-219 <LHD> C-209 Junction block side 3 1 2 C-209 Harness side C-219 C-214 Harness side 21 7 16 15 17 18 20 19 1 2 3 4 5 6 23 22 24 25 28 26 27 9 8 10 11 14 12 13 C-212(B) C-214 C-212 Harness side Junction block (front view) AC310459 Connectors: C-209, C-212, C-214, C-219 AC C-219 <RHD> C-209 Junction block side 3 1 2 C-209 C-219 C-214 Harness side 21 7 16 15 17 18 20 19 1 2 3 4 5 6 23 22 24 25 28 26 27 9 8 10 11 14 12 13 C-212(B) C-214 C-212 Junction block (front view) |
