Mitsubishi Lancer Evolution IX. Manual - part 138





SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-115

COMMENTS ON TROUBLE SYMPTOM

The revolution detection sensor, which is incorpo-
rated in the power window regulator motor, may be
defective.

POSSIBLE CAUSES

• Malfunction of the power window regulator motor

DIAGNOSIS PROCEDURE

Step 1. Check the power window operating
current.
Check that the power window operating current is
normal (Refer to GROUP 42

− Door − On-vehicle

Servic

P.42-24

).

Q: Is the check result normal?

YES :

Adjust the door window glass (Refer to

GROUP 42

− Door − On-vehicle service

P.42-23

), and then go to Step 2.

NO :

Replace the defective power window
regulator motor assembly which operating
current are abnormal.

Step 2. Confirm the power window learning
function.
Check that the power window switch has learned the
fully closed position of the windows (Refer to
GROUP 42

− Door

P.42-29

).

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Make the power window switch learn the

fully closed position of the windows (Refer

to GROUP 42

− Door

P.42-29

).

Step 3. Determine a trouble spot.

Q: Which door does the power window anti-trap

function fail on?
Driver's door <LH drive vehicles> :

Go to Step 4.

Driver's door <RH drive vehicles> :

Go to Step 7.

Front passenger's door <LH drive vehicles> :

Go

to Step 10.

Front passenger's door <RH drive vehicles> :

Go

to Step 16.

Rear right door :

Go to Step 22.

Rear left door :

Go to Step 28.

POWER
WINDOW SUB
SWITCH (REAR: LH)

CPU

CPU

POWER
WINDOW MOTOR
(REAR: LH)

POWER
WINDOW MOTOR
(REAR: RH)

HALL IC

HALL IC

HALL IC

HALL IC

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

POWER
WINDOW SUB
SWITCH (REAR: RH)

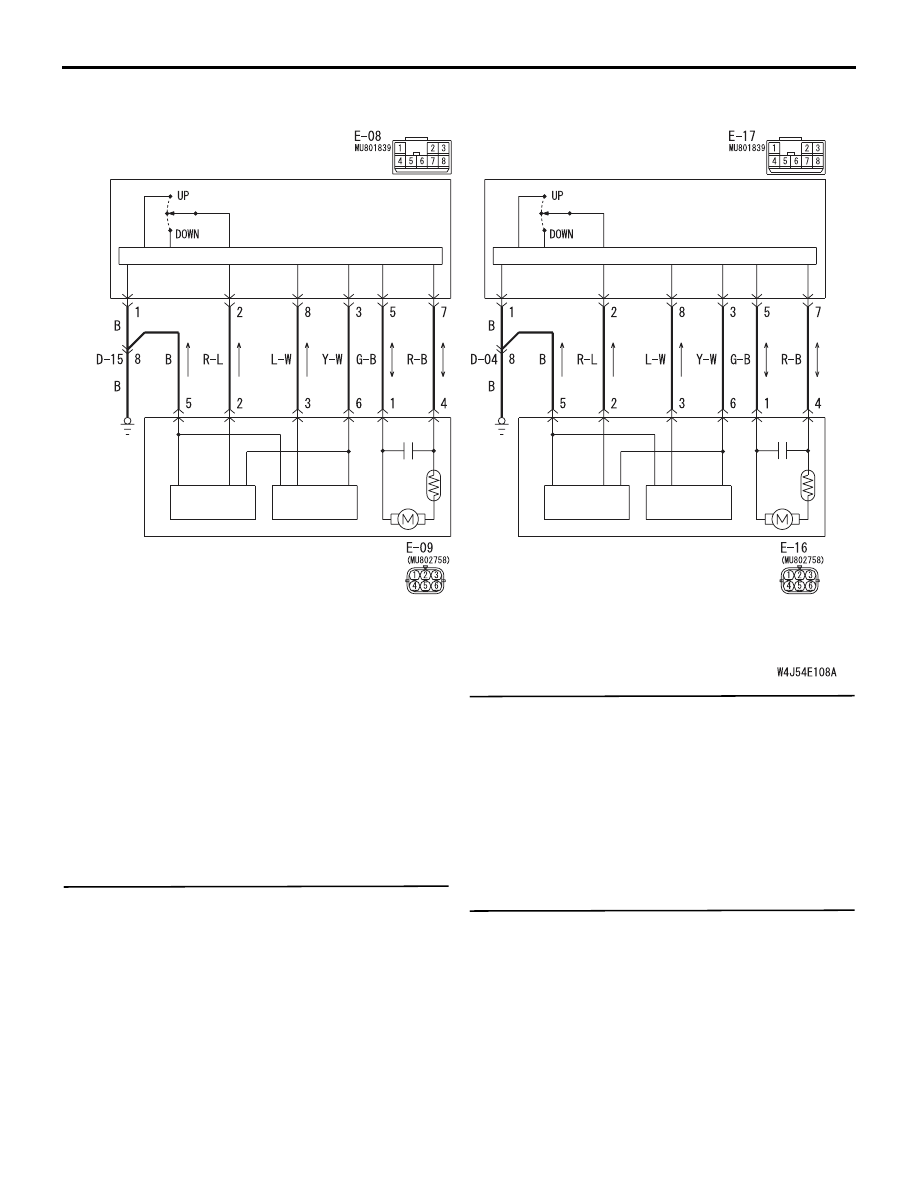

Power Window (rear) Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

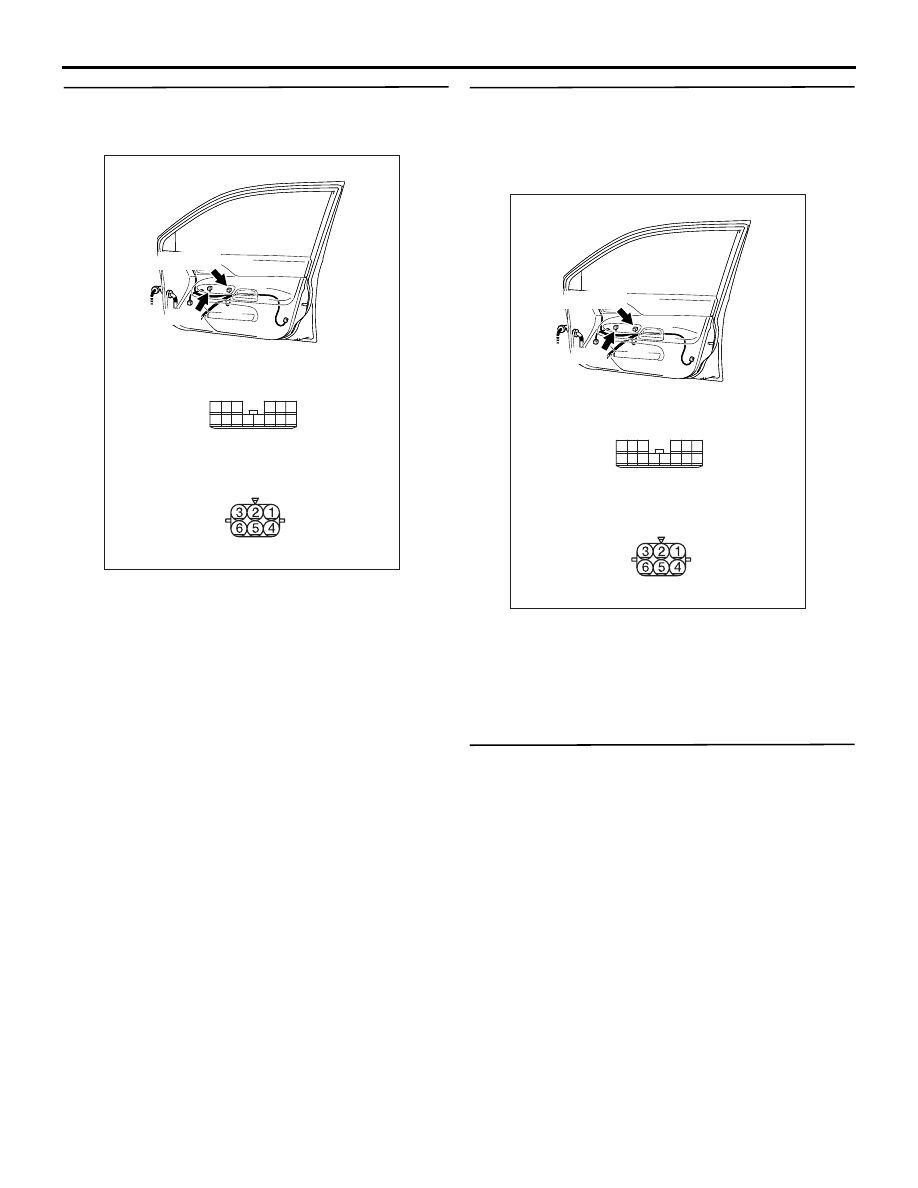

54B-116

Step 4. Connector check: E-05 power window
main switch connector and E-02 front power
window regulator motor (LH) connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

Step 5. Check the wiring harness from E-05
power window main switch connector terminal
Nos.8, 9, 10 and 12 to E-02 front power window
regulator motor (RH) connector terminal Nos.5, 2,
3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Retest the system.
After the power window main switch is replaced,
check that the driver's power window anti-trap func-
tion works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the front power window regulator
motor assembly (LH).

AC310485

Connectors: E-02, E-05 <LHD>

E-02

E-05

Harness side

Harness side

E-05

E-02 (GR)

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

AC310485

Connectors: E-02, E-05 <LHD>

E-02

E-05

Harness side

Harness side

E-05

E-02 (GR)

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Front door (LH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

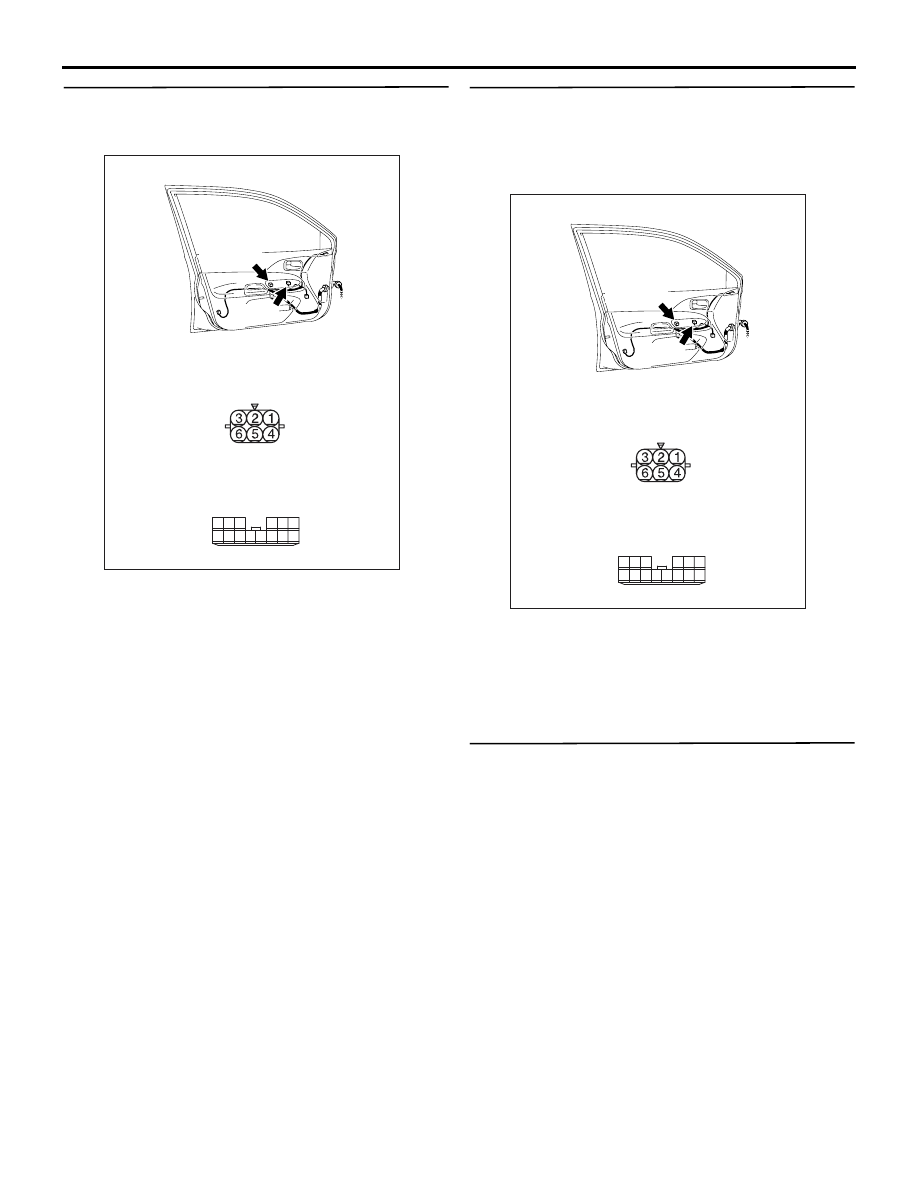

54B-117

Step 7. Connector check: E-05 power window
main switch connector and E-11 front power
window regulator motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

Step 8. Check the wiring harness from E-05
power window main switch connector terminal
Nos.8, 9, 10 and 12 to E-11 front power window
regulator motor (RH) connector terminal Nos.5, 2,
3 and 6.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

Step 9. Retest the system.
After the power window main switch is replaced,
check that the driver's power window anti-trap func-
tion works.
(1) Replace the power window main switch.
(2) Check that the driver's power window anti-trap

function works.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

Cope with Intermittent Malfunction

P.00-5

).

NO :

Replace the front power window regulator
motor assembly (RH).

AC310494

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310494

Connectors: E-05, E-11 <RHD>

E-11

E-05

Harness side

Harness side

E-05

E-11 (GR)

AB

Front door (RH)

AC310494

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC310494

Connectors: E-05, E-11 <RHD>

E-11

E-05

Harness side

Harness side

E-05

E-11 (GR)

AB

Front door (RH)

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

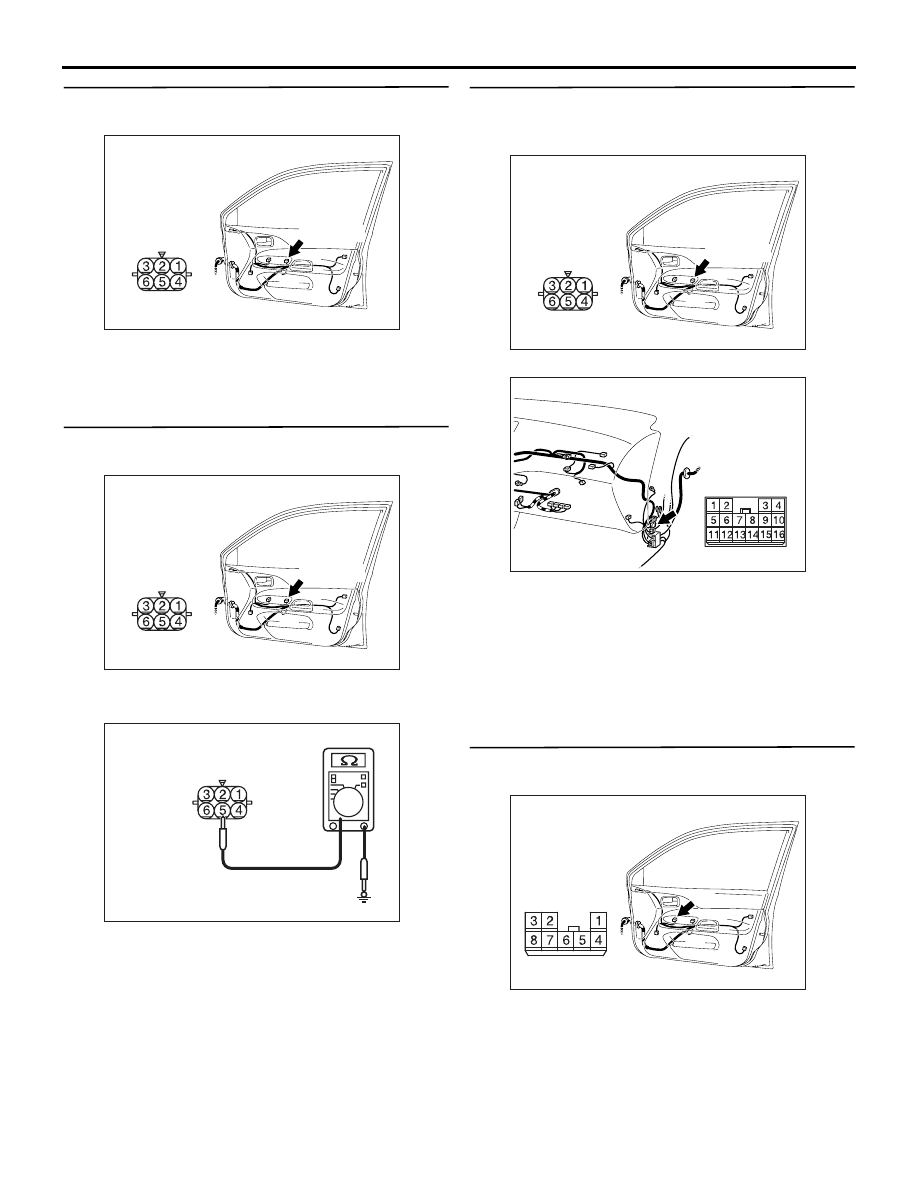

54B-118

Step 10. Connector check: E-11 front power
window regulator motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

Step 11. Resistance measurement at E-11 front
power window regulator motor (RH) connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-11 front power window

regulator motor (RH) connector terminal No.5
and body earth.

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Go to Step 12.

Step 12. Check the wiring harness from E-11
front power window regulator motor (RH)
connector terminal No.5 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-110, and repair if necessary.

• Check the input and output lines to the revolution

detection sensor for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the wiring harness.

Step 13. Connector check: E-14 front power
window sub switch (RH) connector

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310506

Connector E-02
(Harness side)

AG

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310452

Connector: C-110 <LHD>

AC

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)
