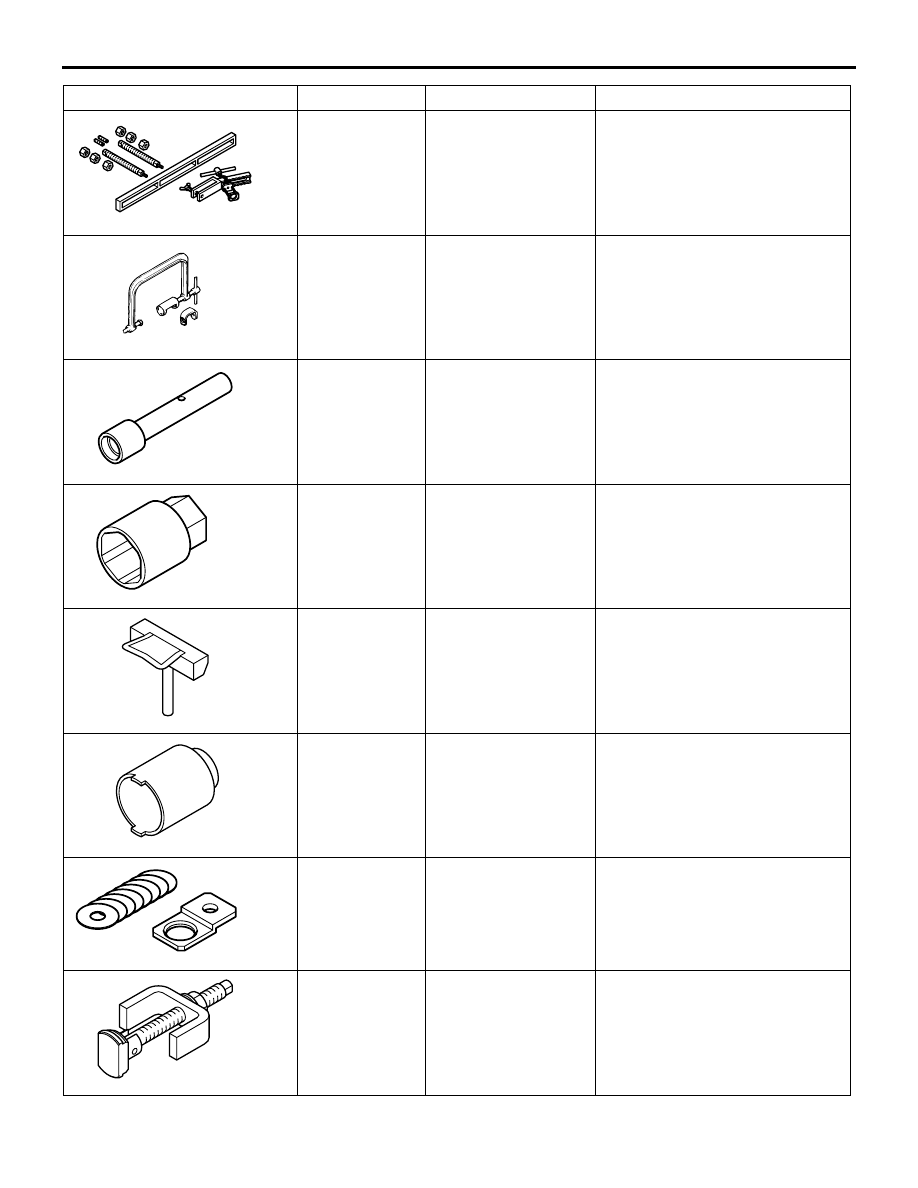

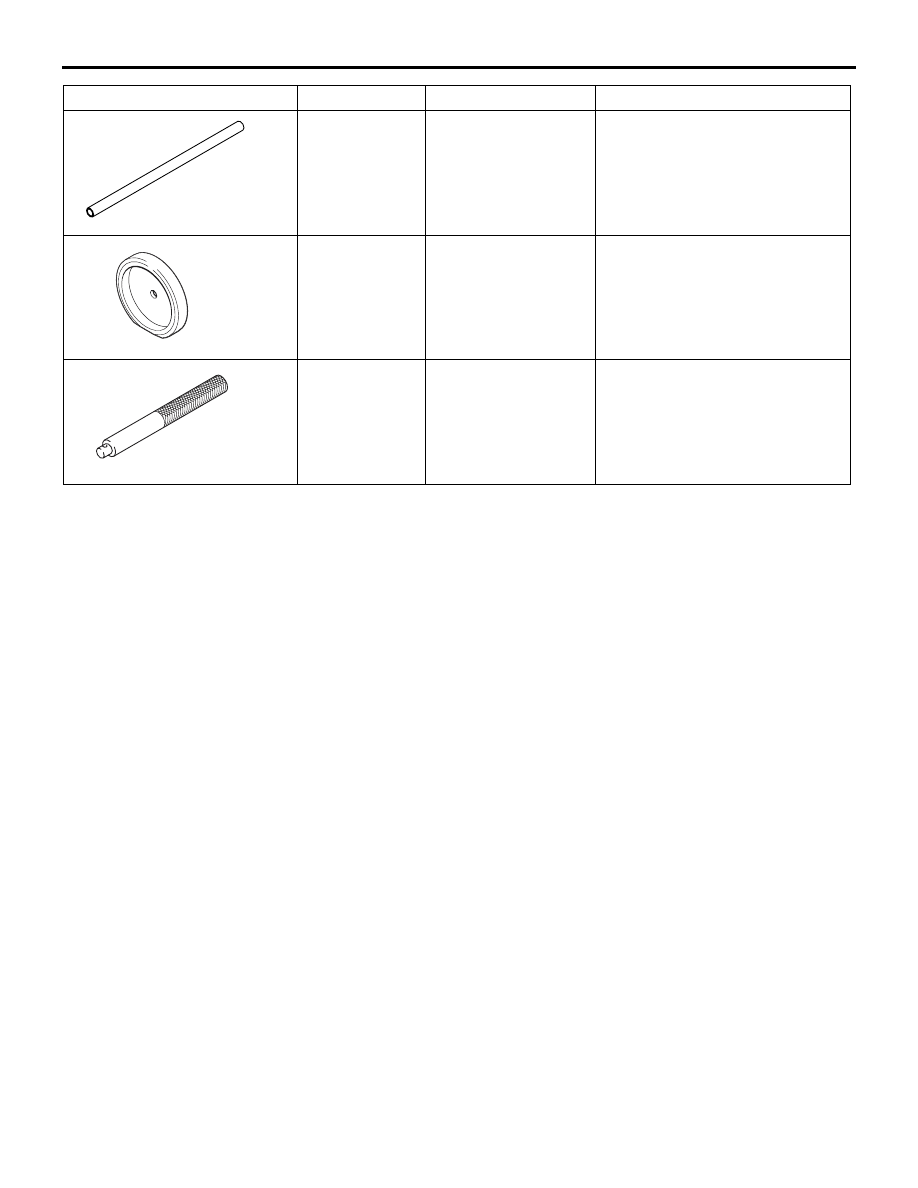

SPECIAL TOOLS

ENGINE OVERHAUL

11B-11

MD998772

Valve spring
compressor

Compression of valve spring

MD998735

Valve spring
compressor

Compression of valve spring

MD998737

Valve stem seal
installer

Installation of valve stem seal

MD998012

Oil pressure socket
wrench

Removal and installation of oil
pressure switch

MD998727

Oil pan cutter

Removal of oil pan

MD998162

Plug wrench

Removal and installation of front
case plug cap
(Use with MD998783)

MD998783

Plug wrench retainer

Removal and installation of front
case plug cap
(Use with MD998162)

MD998371

Silent shaft bearing
puller

Removal of counterbalancer shaft
front bearing

Tool

Number

Name

Use

D998727

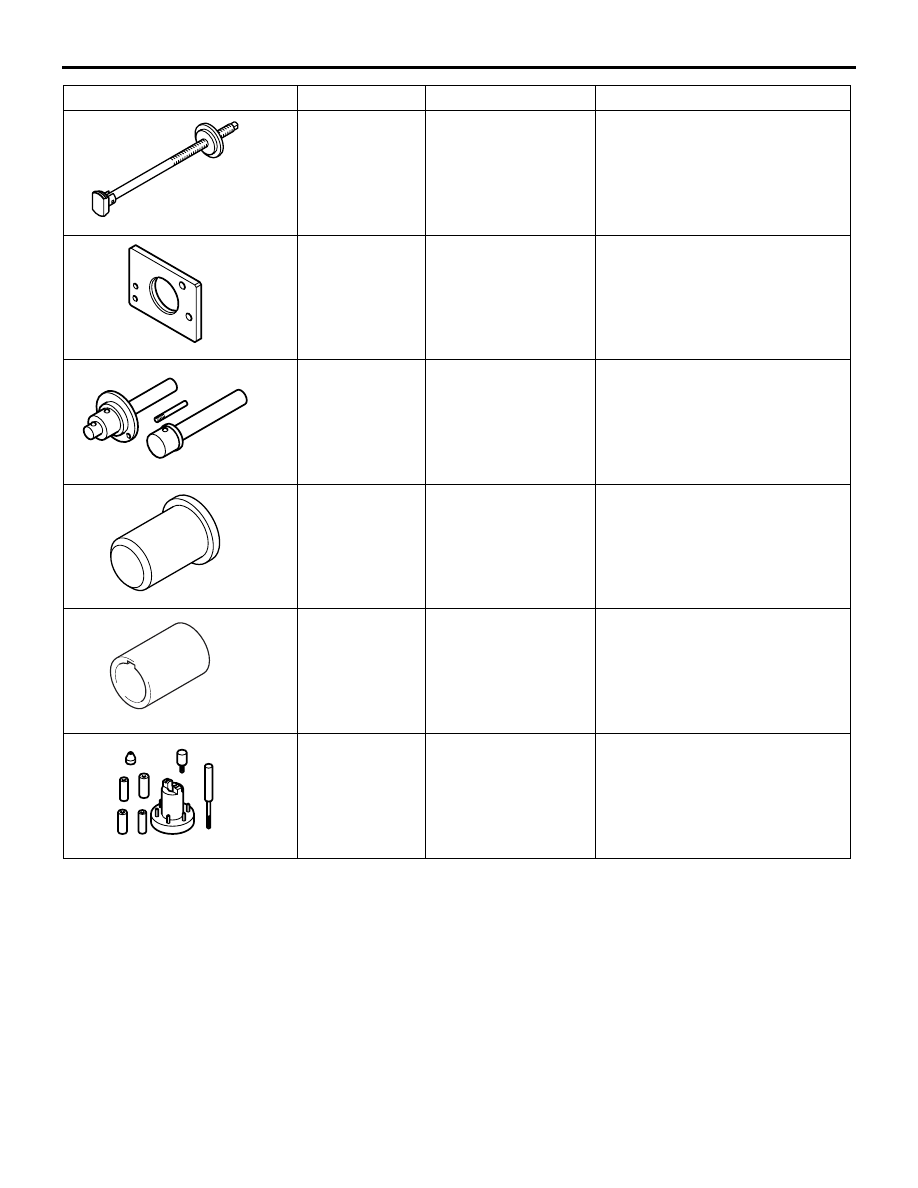

SPECIAL TOOLS

ENGINE OVERHAUL

11B-12

MD998372

Silent shaft bearing
puller

Removal of counterbalancer shaft
front and rear bearings

MB991603

Silent shaft bearing
installer stopper

Guide and stopper for removal
and press-fitting of
counterbalancer shaft rear
bearing

MD998705

Silent shaft bearing
installer

Press-fitting of counterbalancer
shaft front and rear bearings

MD998375

Crankshaft front oil
seal installer

Installation of crankshaft front oil
seal

MD998285

Crankshaft front oil
seal guide

Guide for installation of
crankshaft front oil seal

MD998780

Piston pin setting tool Removal and press-fitting of

piston pin

Tool

Number

Name

Use

D998285

SPECIAL TOOLS

ENGINE OVERHAUL

11B-13

MB992010

Bolt guide

Removal and installation of piston
and connecting rod assembly

MD998776

Crankshaft rear oil
seal installer

Installation of crankshaft rear oil
seal

MB990938

Handle

Installation of crankshaft rear oil
seal
(Use with MD998776)

Tool

Number

Name

Use

D998776

ALTERNATOR AND IGNITION SYSTEM

ENGINE OVERHAUL

11B-14

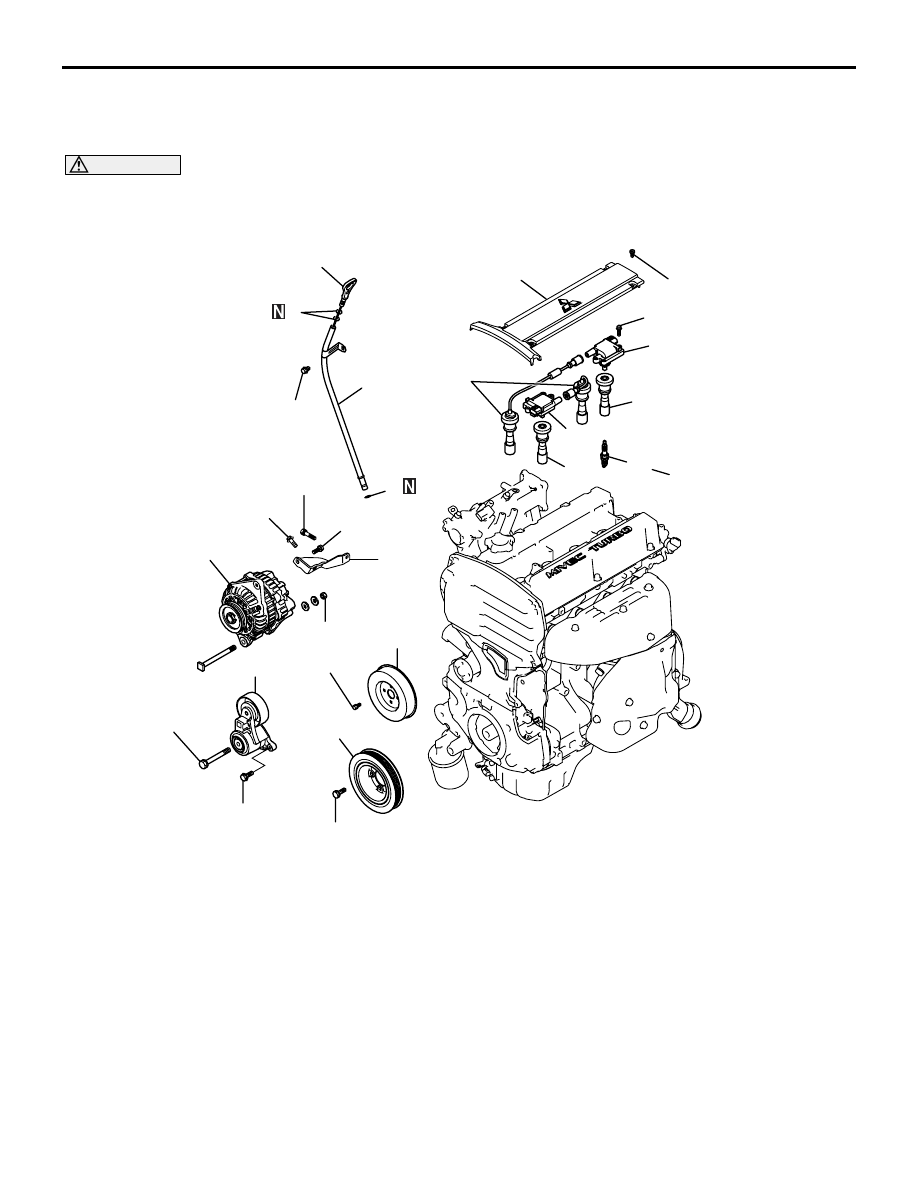

ALTERNATOR AND IGNITION SYSTEM

REMOVAL AND INSTALLATION

M1113001000983

CAUTION

Do not remove the ignition coil boot from the ignition coil except the replacement. When removing
the ignition coil boot, always replace it with the new one.

AK501687AB

4

5

9

44 ± 10 N·m

25 ± 4 N·m

24 ± 4 N·m

44 ± 10 N·m

1

2

3

10

11

12

13

14

12

13

7

8

22 ± 4 N·m

20 ± 2 N·m

24 ± 4 N·m

13 ± 1 N·m

3.0 ± 0.5 N·m

10 ± 2 N·m

25 ± 5 N·m

8.8 ± 1.0 N·m

6

Removal steps

1. Oil level gauge
2. O-ring
3. Oil level gauge guide
4. O-ring
5. Water pump pulley
6. Auto-tensioner assembly
7. Alternator bracket

8. Alternator
9. Crankshaft pulley
10. Centre cover
11. Spark plug cable
12. Ignition coil

>>

A

<< 13. Ignition coil boot

14. Spark plug

Removal steps (Continued)
