CIGARETTE LIGHTER

CIRCUIT DIAGRAMS

90-187

CIGARETTE LIGHTER



<RH drive vehicles>

M1901007801086

IGNITION
SWITCH (ACC)

CIGARETTE
LIGHTER

ASHTRAY
ILLUMINATION
LAMP

CIGARETTE LIGHTER
ILLUMINATION LAMP

FRONT-ECU

RELAY
BOX

TAIL LAMP
RELAY

TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING MONITOR
BUZZER

·METER AND GAUGE
·TAIL LAMP, POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING MONITOR
 BUZZER

CLOCK

CIRCUIT DIAGRAMS

90-188

CLOCK

CLOCK <LH drive vehicles>

M1901007701056

IGNITION
SWITCH (ACC)

RELAY
BOX

FRONT-ECU

TAIL LAMP
RELAY

BATTERY

CLOCK

·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP,  LICENCE PLATE
 LAMP  AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER

·AUDIO SYSTEM SPARE
 CONNECTOR
·ROOM LAMP, LUGGAGE
 COMPARTMENT LAMP,
 IGNITION KEY CYLINDER
 ILLUMINATION LAMP  AND
 DOOR AJAR WARNING
 LAMP

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

CLOCK

CIRCUIT DIAGRAMS

90-189

CLOCK <RH drive vehicles>

M1901007701067

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

IGNITION
SWITCH (ACC)

RELAY
BOX

FRONT-ECU

TAIL LAMP
RELAY

BATTERY

CLOCK

·HEADLAMP
·HEADLAMP
 LEVELLING SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP,  LICENCE PLATE
 LAMP  AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

·HEADLAMP
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP,  LICENCE PLATE
 LAMP  AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP AND
 HAZARD WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

TAIL LAMP, POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER

·METER AND GAUGE
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE LAMP
 AND LIGHTING
 MONITOR BUZZER

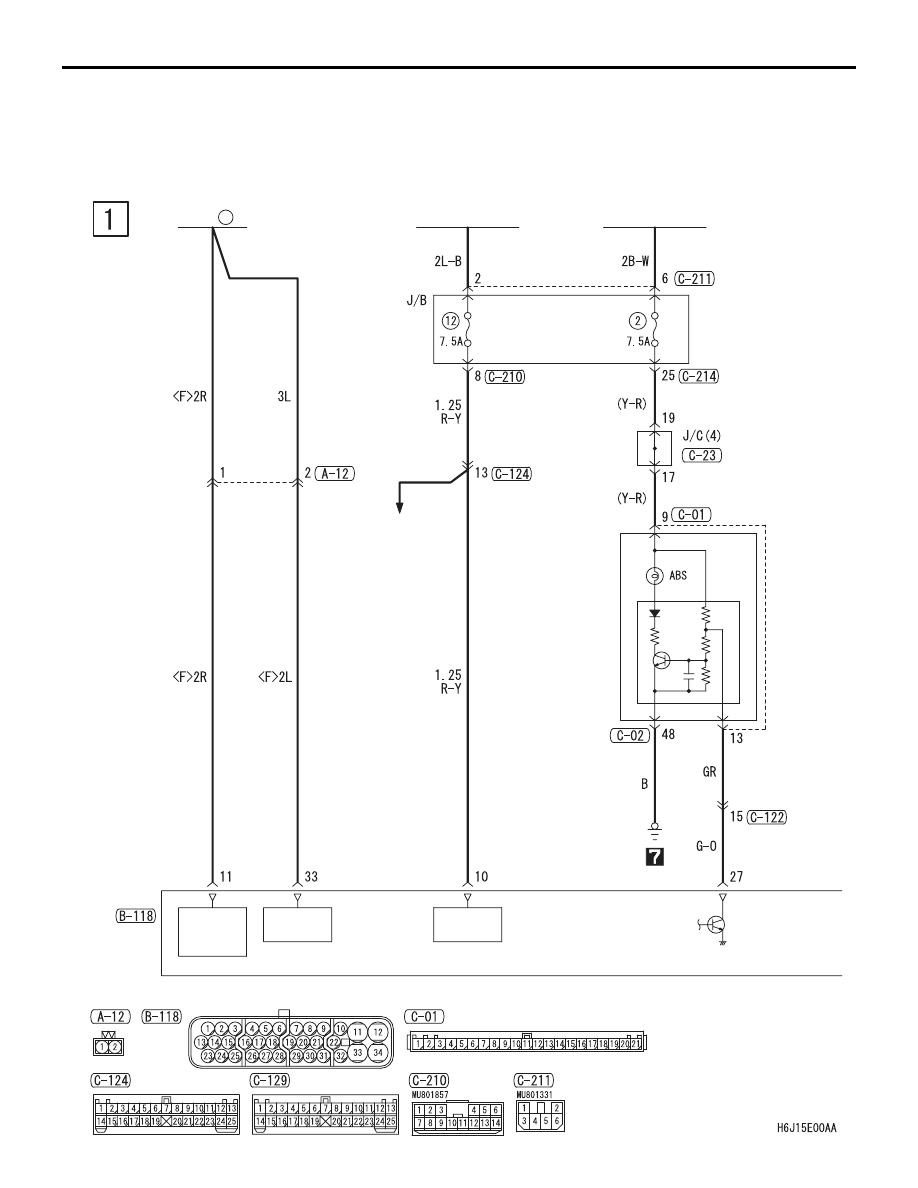

ANTI-SKID BRAKING SYSTEM (ABS)

CIRCUIT DIAGRAMS

90-190

ANTI-SKID BRAKING SYSTEM (ABS)

ANTI-SKID BRAKING SYSTEM (ABS)



<LH drive vehicles>

M1901008401304

ABS-ECU

COMBINATION
METER

IGNITION
SWITCH (IG2)

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

3

SOLENOID
VALVE
POWER
SOURCE

MOTOR
POWER
SOURCE

POWER
SOURCE

ACD AND AYC
