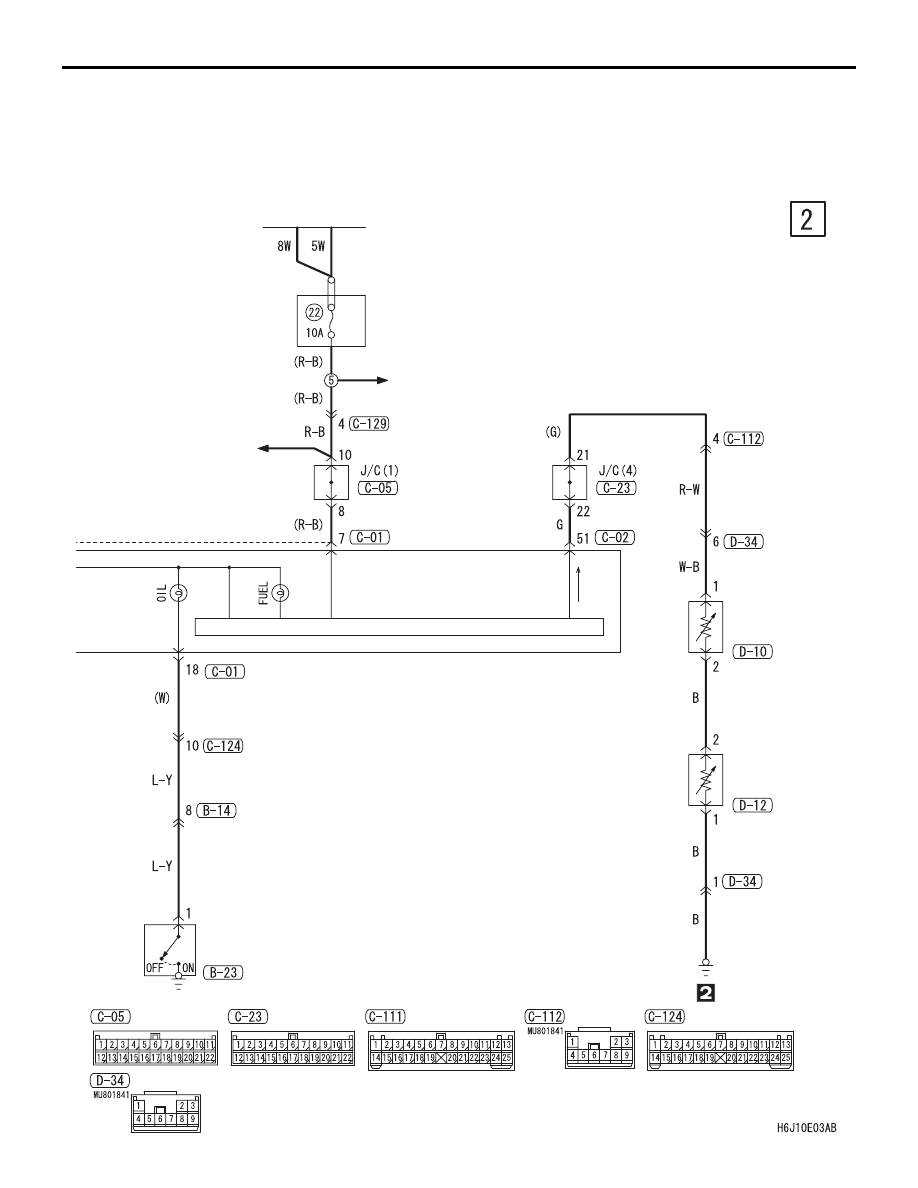

BRAKE WARNING LAMP, OIL PRESSURE WARNING LAMP AND FUEL WARNING LAMP

CIRCUIT DIAGRAMS

90-123

BATTERY

CONTROL CIRCUIT

OIL
PRESSURE
SWITCH

FUEL
GAUGE
UNIT (SUB)

FUEL PUMP
AND GAUGE
UNIT (MAIN)

·HEADLAMP
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD WIPER
 AND WASHER

·HEADLAMP
·HEADLAMP LEVELLING
 SYSTEM
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD
 WIPER AND WASHER

RELAY
BOX

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ENGINE OIL LEVEL WARNING LAMP

CIRCUIT DIAGRAMS

90-124

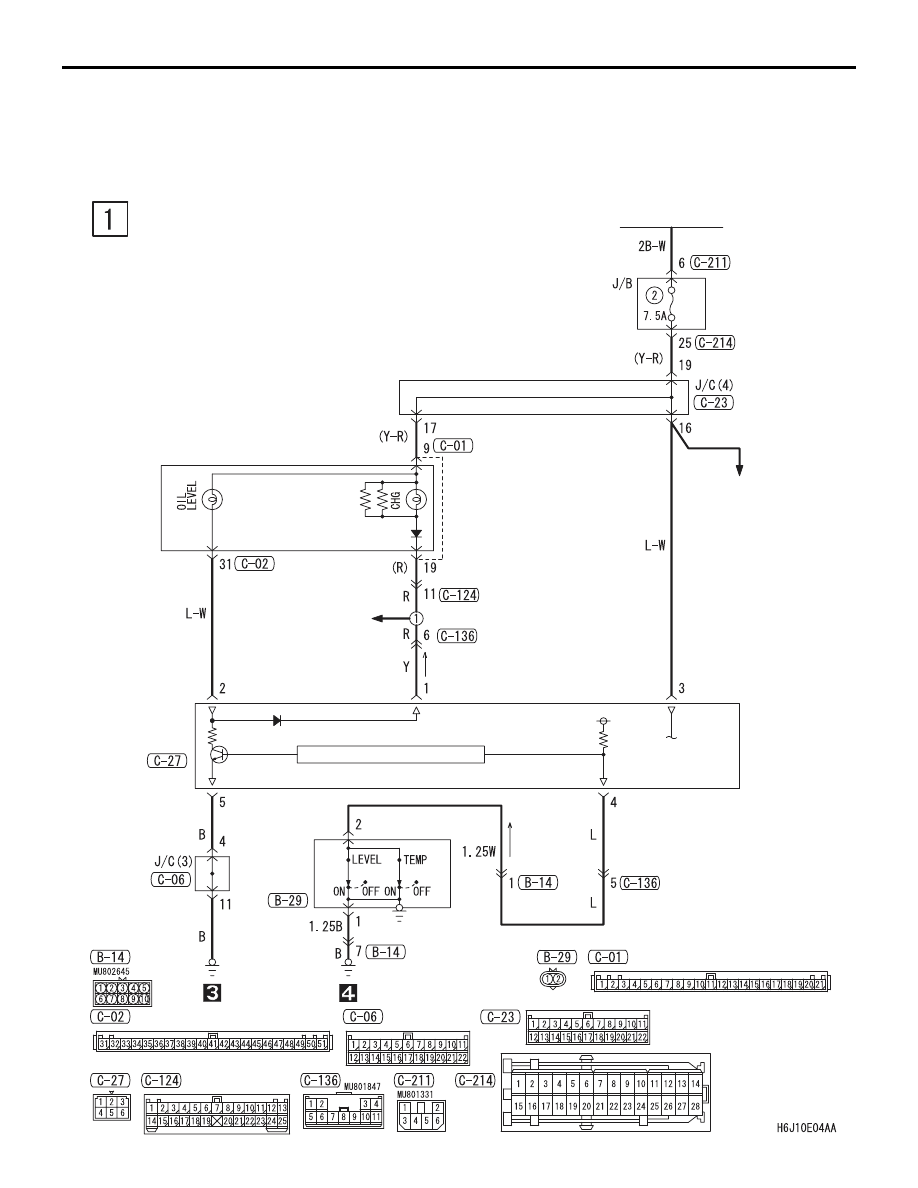

ENGINE OIL LEVEL WARNING LAMP

ENGINE OIL LEVEL WARNING LAMP



<LH drive vehicles>

M1901023500082

IGNITION
SWITCH (IG1)

COMBINATION
METER

ENGINE
OIL LEVEL
RELAY

ENGINE
OIL
LEVEL
SENSOR

DELAY CIRCUIT

CHARGING
SYSTEM

ACD AND AYC

ENGINE OIL LEVEL WARNING LAMP

CIRCUIT DIAGRAMS

90-125

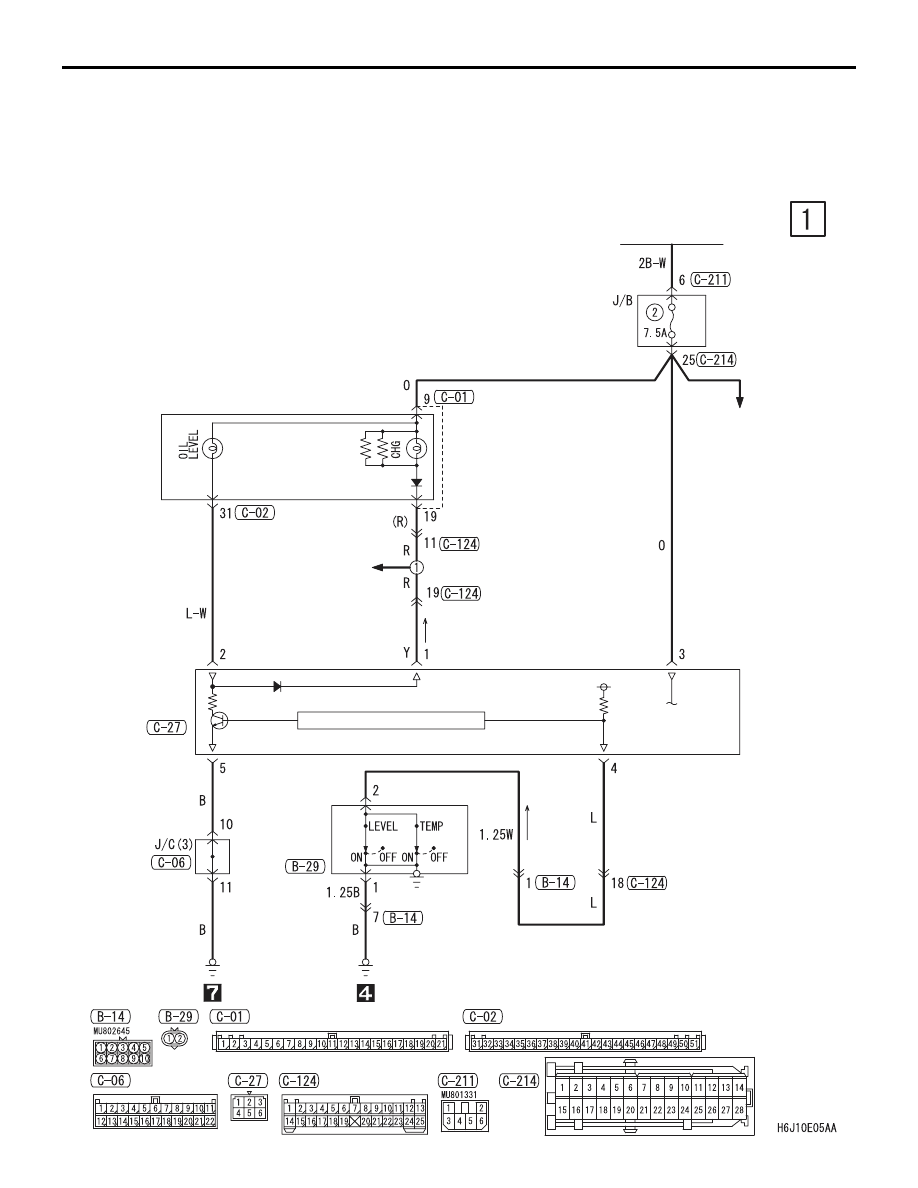

ENGINE OIL LEVEL WARNING LAMP



<RH drive vehicles>

M1901023500093

IGNITION
SWITCH (IG1)

COMBINATION
METER

ENGINE
OIL LEVEL
RELAY

ENGINE
OIL
LEVEL
SENSOR

DELAY CIRCUIT

CHARGING
SYSTEM

·ENGINE CONTROL
 SYSTEM
·HEADLAMP
·METER AND GAUGE
·REAR FOG LAMP
·TAIL LAMP, POSITION
 LAMP, LICENCE
 PLATE LAMP AND
 LIGHTING MONITOR
 BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD WARNING
 LAMP
·WINDSHIELD WIPER
 AND WASHER

TRANSMISSION OIL TEMPERATURE WARNING LAMP

CIRCUIT DIAGRAMS

90-126

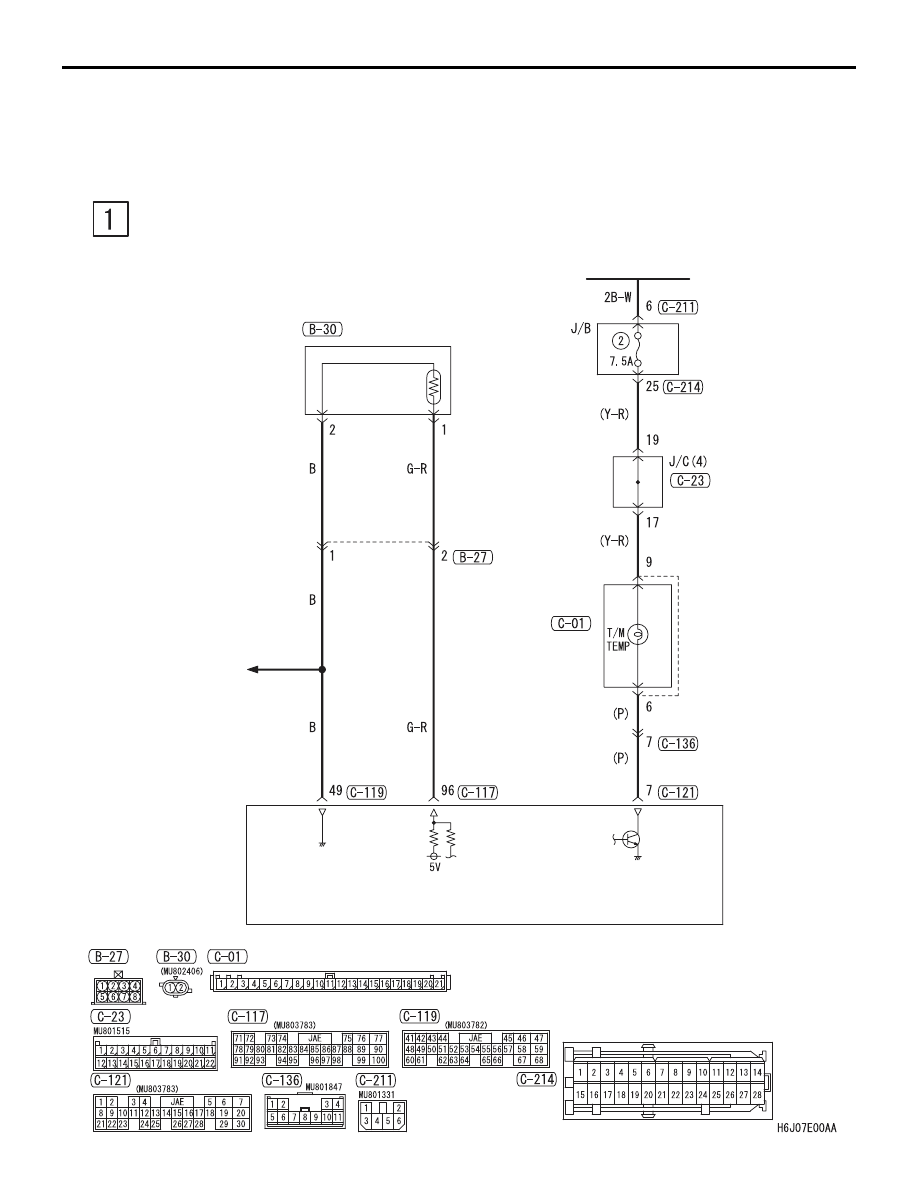

TRANSMISSION OIL TEMPERATURE WARNING LAMP

TRANSMISSION OIL TEMPERATURE WARNING LAMP <LH drive vehicles>

M1901023900024

IGNITION
SWITCH (IG1)

COMBINATION
METER

ENGINE-ECU

ENGINE CONTROL
SYSTEM

TRANSMISSION OIL
TEMPERATURE
SENSOR
