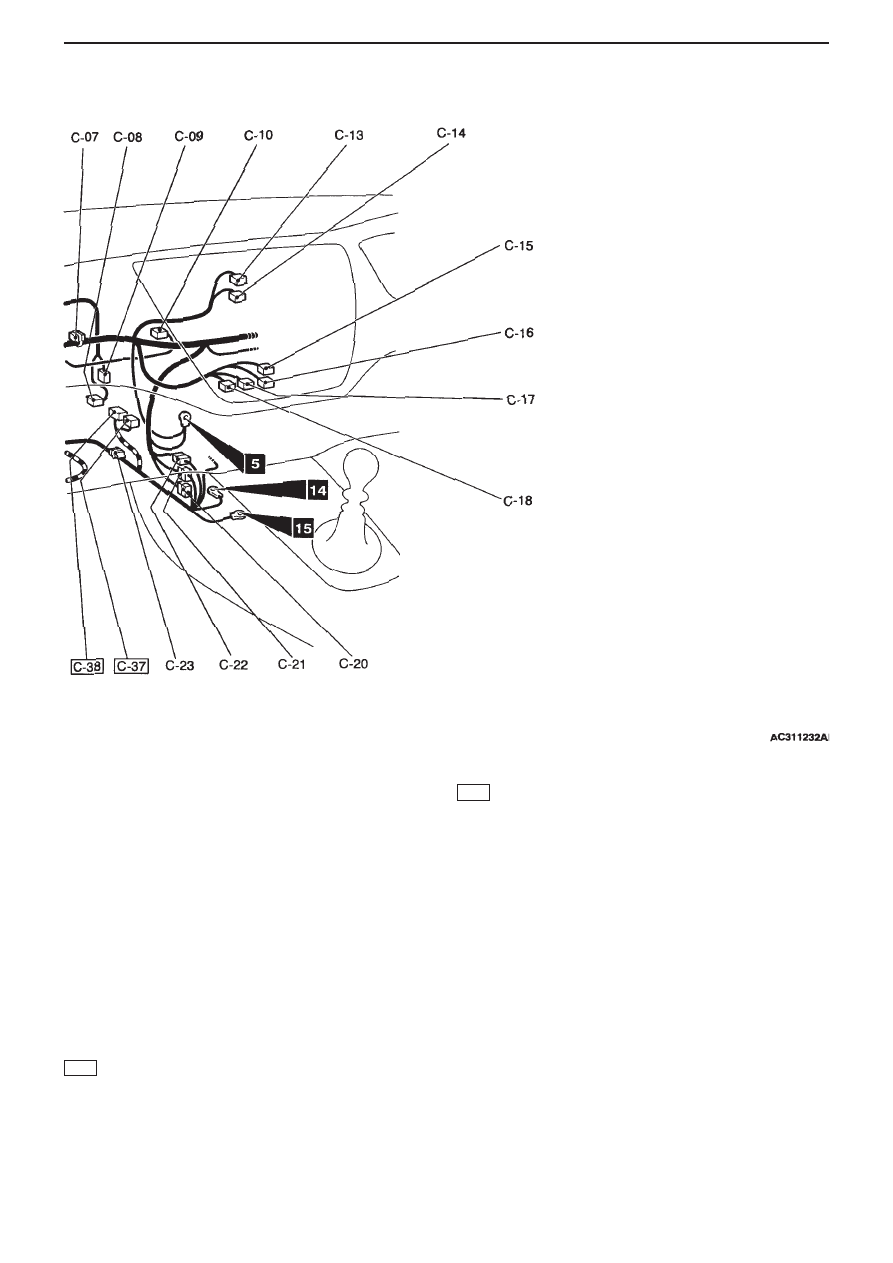

WIRING DIAGRAMS - INSTRUMENT PANEL

1-4

INSTRUMENT PANEL

C-01

(4)

Register (vehicle not fitted with full auto
A/C)

C-02

(2-red)

Front pass. seat airbag module (squib)

C-03

(7)

Internal / external air changeover damper
motor

C-04

(7)

Junction between instrument panel
harness and A/C harness (vehicle not
fitted with full auto A/C)

(13)

Junction between instrument panel
harness and A/C harness (vehicle fitted
with full auto A/C)

C-05

(2)

Air thermo sensor (vehicle fitted with full
auto A/C)

C-06 (13)

J/C

(5)

C-07 (22-grey)

J/C

(1)

C-08

(6)

Air mix door motor and potentiometer
(vehicle with full auto A/C)

C-09

(2)

Heater water temperature sensor (vehicle
with full auto A/C)

C-10

(5)

Blower outlet changeover damper motor
& potentiometer (vehicle with full auto
A/C)

C-13 (4)

Clock

C-14 (4)

Hazard

switch

C-15 (6)

Blower

switch

(vehicle not fitted with full auto A/C)

C-16

(12-black) Heater control unit

(vehicle with heater) or A/C-ECU
(vehicle with manual A/C)

C-17

(20-black) A/C-ECU (vehicle with full auto A/C)

C-18

(16-black) A/C-ECU (vehicle with full auto A/C)

C-20

(22-blue)

Junction between instrument panel
harness and control harness

C-21

(10-grey)

Junction between instrument panel
harness and control harness

C-22

(25)

Junction between instrument panel
harness and control harness

Connector
symbol

Front passenger’s side

Instrument panel harness

Tweeter sub-harness

Front
harness (LH)

Front door
harness (LH)

Floor
harness (LH)

A/C harness

Control

harness

WIRING DIAGRAMS - INSTRUMENT PANEL

1-5

C-23 (33)

J/C

(6)

C-28 (2)

Blower

motor

(Vehicle not fitted with full auto A/C)

(6)

Blower pulse controller
(Vehicle fitted with full auto A/C)

C-29

(13)

Junction between instrument panel
harness & floor harness (LH)

C-30

(11-grey*) Junction between instrument panel

harness & floor harness (LH)

C-31

(25)

Junction between instrument panel
harness & front harness (LH)

C-32

(3)

Junction between instrument panel
harness & front harness (LH)

C-33

(16)

Junction between instrument panel
harness & front door harness (LH)

C-34

(16)

Junction between control harness & front
harness (LH)

(22)

4WD-ECU

(26)

4WD-ECU

C-43

(1-grey)

Junction between control harness and
floor harness (LH)

C-44

(2)

Junction between instrument panel
harness and tweeter sub-harness

C-45 (2)

Tweeter

(LH)

C-49 (35-grey)

Engine

ECU

C-50 (28-grey)

Engine

ECU

C-51 (30-grey)

Engine

ECU

C-55 (2)

Spare

connector

Note :
• A connector colour marked * indicates the male connector.

The female connector is black.

• Boxed connector numbers indicate connectors in harness

routes that have been changed.

C-38

C-37

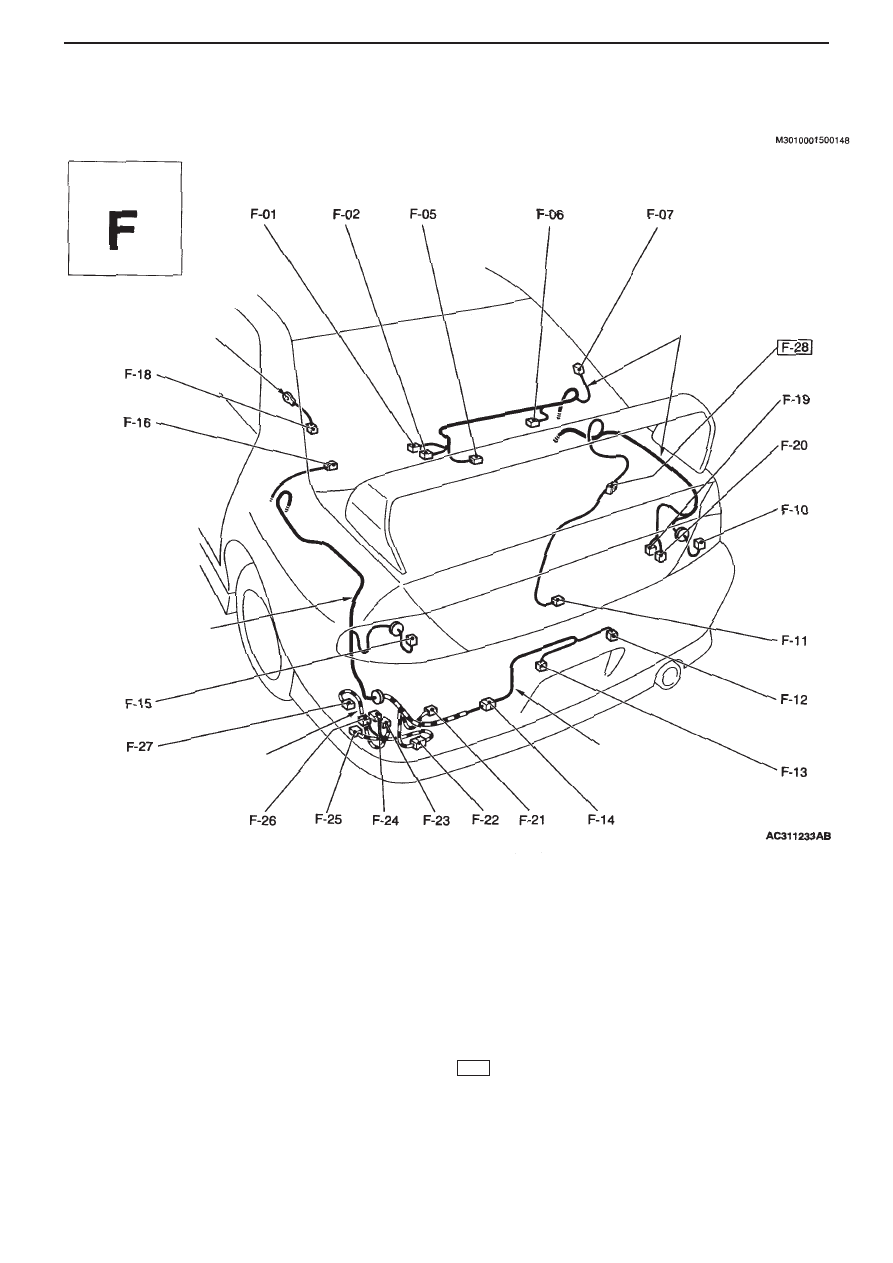

WIRING DIAGRAMS - BOOT INTERIOR

1-6

BOOT INTERIOR

F-01

(2)

Boot interior light

F-02

(2-grey)

High-mount stop light

F-05

(4)

Rear wiper motor

F-06

(2)

Rear speaker (RH)

F-07 (1)

Demister

(+)

F-10

(6-black)

Rear combination light (RH)

F-11

(1)

Book interior light switch

F-12

(2-grey)

Licence plate light (RH)

F-13

(2-grey)

Licence plate light (LH)

F-14

(2-grey)

Junction between floor harness (LH) &
bumper harness

F-15

(6-black)

Rear combination light (LH)

F-16

(2)

Rear speaker (LH)

F-18 (1-black)

Demister

(-)

F-19

(2)

Windscreen washer motor

F-20

(2-green)

Rear washer motor

F-21 (2-black)

Electrical

pump

F-22

(8-grey)

Junction between floor harness (LH) and
4WD harness (vehicle with AYC)

F-23

(2-black)    Directional valve (left) (vehicle with AYC)

F-24

(2-black)    Directional valve (right) (vehicle with AYC)

F-25

(3-black)

Proportional valve (for ACD)

F-26

(3-black)

Proportional valve (for AYC) (vehicle with
AYC)

F-27 (3-black)

Pressure

sensor

(2)

Spare connector

• Boxed connector numbers indicate newly added connectors.

F-28

Demister earth

Floor
harness (LH)

4WD
harness

Bumper
harness

Floor harness
(RH)

Connector

symbol
