SWS -

Troubleshooting

SWS -

Troubleshooting

54B-37

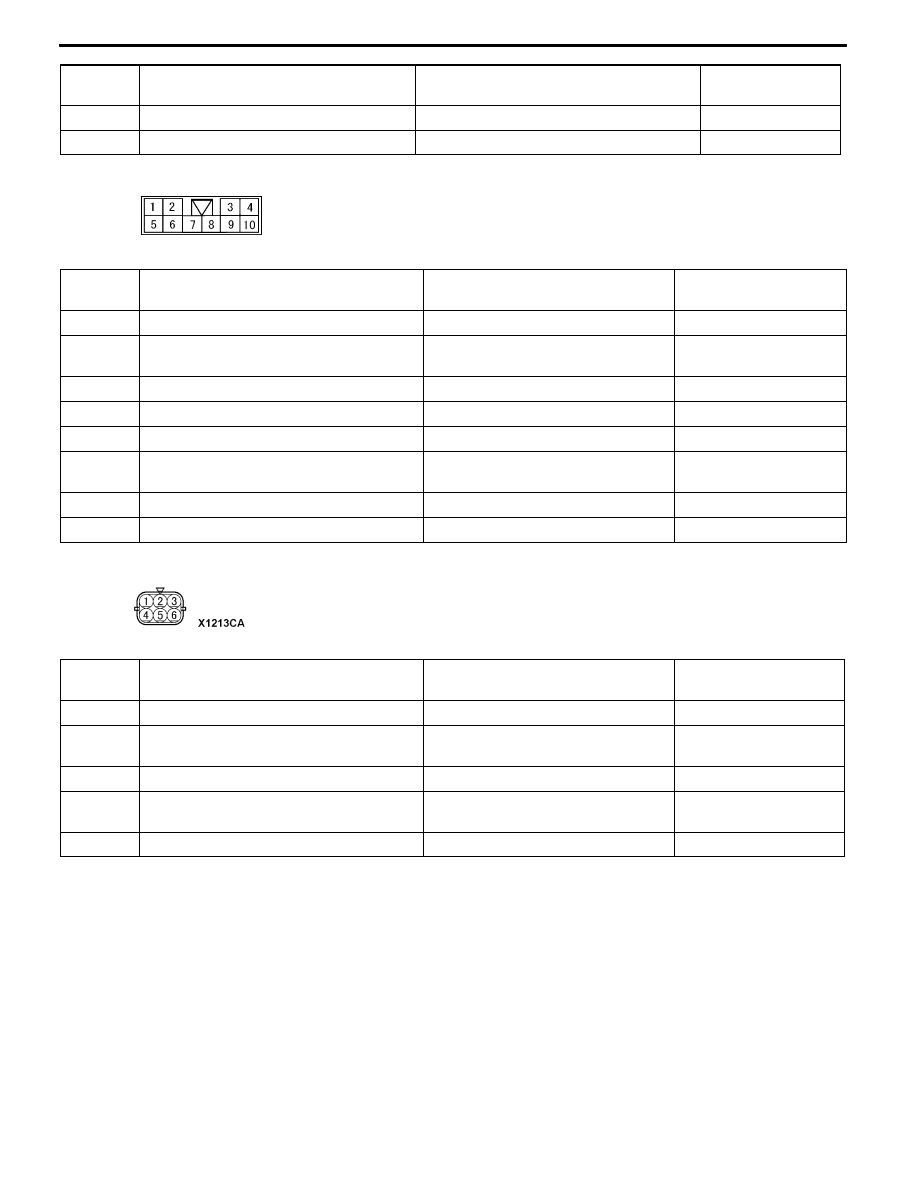

Terminal

No.

Normal condition

Checking requirements

Check item

30

Ignition switch (IG2) power supply

Ignition switch: ON

System voltage

31

Earth

Any time

0 V

POWER WINDOW MAIN SWITCH

Y0794AU

Terminal

No.

Check item

Checking requirements

Normal condition

1

-

-

-

2

SWS communication line (with power

window motor assembly)

Power window relay: ON

0 - 12 V (pulse signal)

3 - 5

-

-

-

6

Power supply

Power window relay: ON

System voltage

7

-

-

-

8

SWS communication line (with

ETACS-ECU)

Any time

0 - 12 V (pulse signal)

9

Earth

Any time

0 V

10

-

-

-

POWER WINDOW MOTOR ASSEMBLY

Terminal

No.

Check item

Checking requirements

Normal condition

1

Earth

Any time

0 V

2

Power window sub-switch (DOWN)

input (passenger’s and rear doors only)

Power window sub-switch: DOWN

0 V

3

Power supply

Power window relay: ON

System voltage

4

Power window sub-switch (UP) input

(passenger’s and rear doors only)

Power window sub-switch: UP

0 V

6

SWS communication line

Power window relay: ON

0 - 12 V (pulse signal)

NOTES

55-1

HEATER, AIR

CONDITIONER AND

VENTILATION

CONTENTS

SERVICE SPECIFICATIONS

2

. . . . . . . . . . . . . . . . .

LUBRICANTS

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

3

. . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

14

. . . . . . . . . . . . . . . . . . . .

Refrigerant Level Test through Performance Test 14

.

Magnetic Clutch Test

14

. . . . . . . . . . . . . . . . . . . . . . . . .

Receiver Drier Test

14

. . . . . . . . . . . . . . . . . . . . . . . . . .

Compressor Drive Belt Adjustment

15

. . . . . . . . . . . . .

Dual Pressure Switch Check

15

. . . . . . . . . . . . . . . . . .

Charging

16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Correcting Low Refrigerant Level in case the Service

can used

18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Discharging System

19

. . . . . . . . . . . . . . . . . . . . . . . . . .

Refilling of Oil in the A/C System

19

. . . . . . . . . . . . . . .

Performance Test

20

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Refrigerant Leak Repair

21

. . . . . . . . . . . . . . . . . . . . . .

Blower Relay Continuity Check

22

. . . . . . . . . . . . . . . .

A/C Compressor Relay Continuity Check

22

. . . . . . . .

Condenser Fan Relay (LO) Check

23

. . . . . . . . . . . . .

Condenser Fan Relay (HI) Check

23

. . . . . . . . . . . . . .

Idle-up Operation Check

24

. . . . . . . . . . . . . . . . . . . . .

HEATER CONTROL ASSEMBLY (A/C-ECU)

AND A/C SWITCH

25

. . . . . . . . . . . . . . . . . . . . . . . .

HEATER UNIT AND BLOWER ASSEMBLY

28

.

REGISTOR, BLOWER MOTOR AND

INSIDE/OUTSIDE AIR CHANGE OVER

DAMPER MOTOR

32

. . . . . . . . . . . . . . . . . . . . . . . . .

EVAPORATOR AND AIR THERMO SENSOR

34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMPRESSOR

36

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

CONDENSER ASSEMBLY AND CONDENSER

FAN ASSEMBLY

40

. . . . . . . . . . . . . . . . . . . . . . . . . . .

REFRIGERANT LINES

42

. . . . . . . . . . . . . . . . . . . . .

DUCTS

44

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

VENTILATION

45

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Specifications/Lubricants/
Special Tools

HEATER, AIR CONDITIONER AND VENTILATION

-

55-2

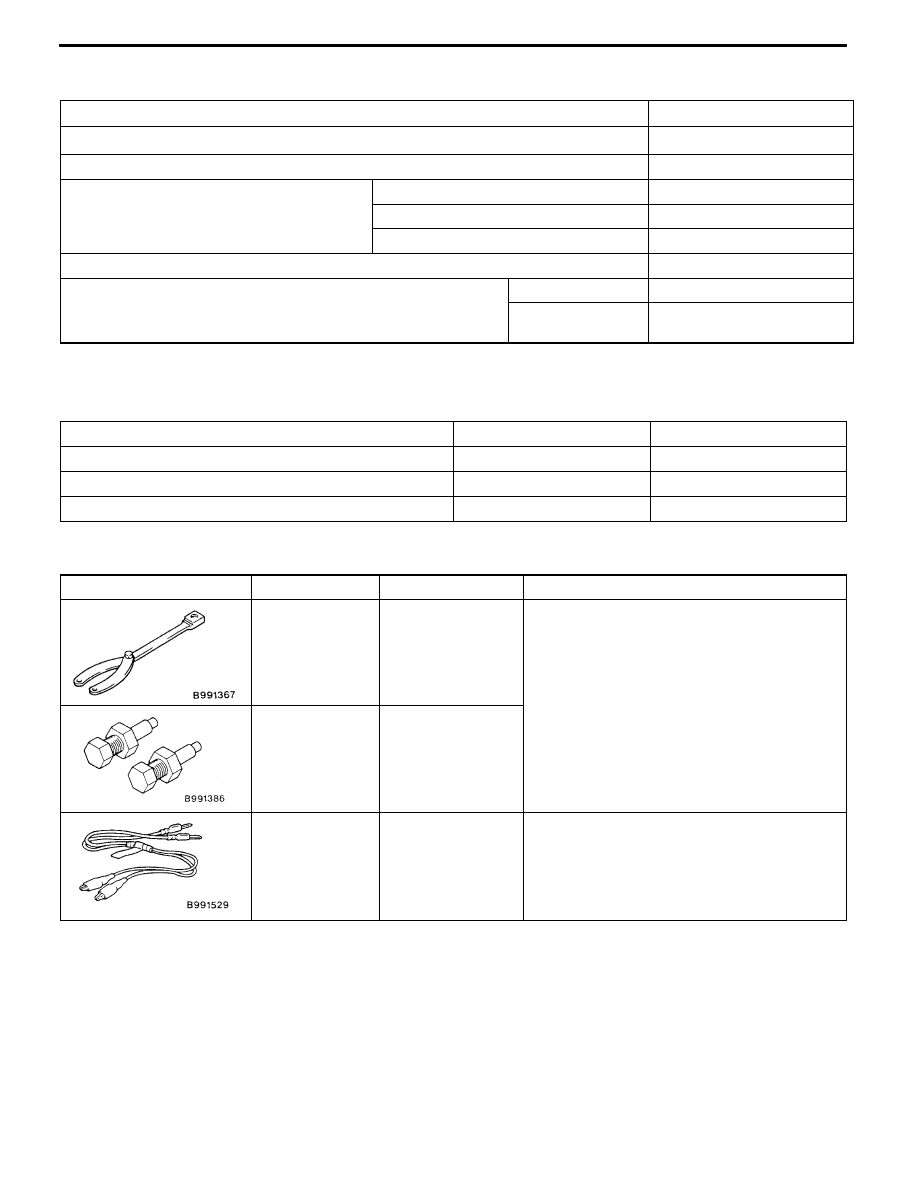

SERVICE SPECIFICATIONS

Item

Standard value

Idli

d (

) N

P

850 50

Idling speed (rpm): N or P range

850 ± 50

Idling speed (rpm): N or P range

850 ± 50

Idling speed (rpm): N or P range

850 ± 50

Idle-up speed (rpm): N or P range

850 ± 50

Register resistance (for blower motor) Ω

HI - LO (between terminals 1 and 3)

2.54

g

(

)

HI - ML (between terminals 1 and 6)

1.24

HI - MH (between terminals 1 and 4)

0.6

Air conditioner compressor air gap mm

0.3 – 0.5

Refrigerant temperature switch operating temperature (_C)

Continuity

Slightly below 150

g

p

p

g

p

(

)

No continuity

150 or higher (until tempera-

ture falls to 120 when OFF)

NOTE* : When disconnected the compressor connector at A/C ON

LUBRICANTS

Items

Specified lubricants

Quantity

Compressor oil mL

SUN PAG 56

130 ± 10

Pipe coupling

SUN PAG 56

As required

Refrigerant (g)

R134a (HFC-134a)

550 ± 20

SPECIAL TOOLS

Tool

Number

Name

Use

MB991367

Special spanner

For use on the air conditioner compressor

armature locknut

MB991386

Pin

MB991529

Diagnosis

code

check harness

For inspecting the air conditioner using a

voltmeter
