MPI -

Engine

-

ECU

13A-147

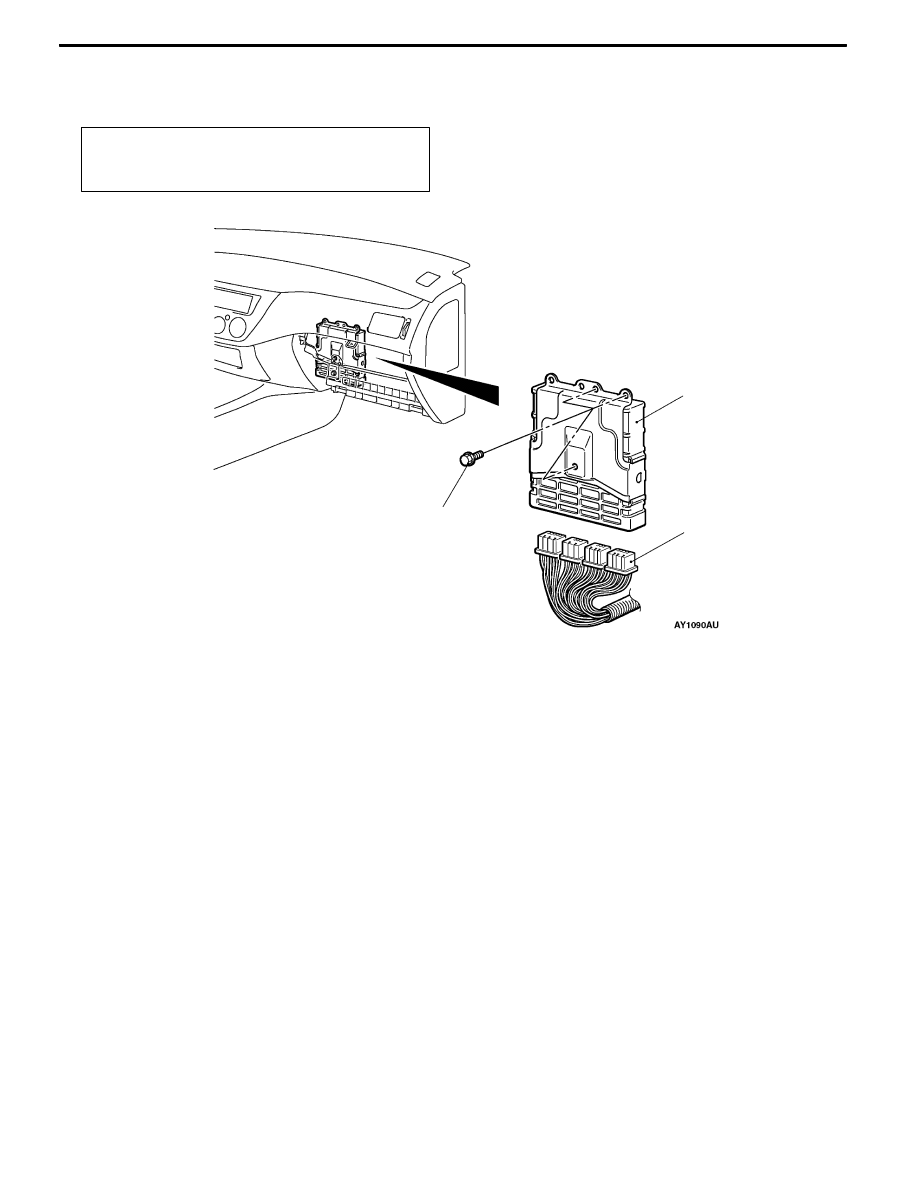

ENGINE-ECU

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operations

Glove Box Assembly Removal and Installation (Refer

to GROUP 52A - Instrument Panel.)

1

5.0 ± 1.0 N·m

2

Removal steps

1. Engine-ECU connector

2. Engine-ECU

NOTES

FUEL SUPPLY - General Information/On-vehicle Service

13B-2

GENERAL INFORMATION

D

The steel fuel tank is located under the floor of the rear seats to provide increased safety and increase

the amount of luggage compartment space.

D

The fuel tank has been equipped with a valve assembly which incorporates a fuel cut-off valve to

prevent fuel from leaking out in the event of a collision for adjusting the pressure inside the fuel

tank.

D

The fuel pump module contains a fuel pump, fuel filter, and fuel pressure regulator.

ON-VEHICLE SERVICE

FUEL PUMP AND GAUGE ASSEMBLY (FUEL

PUMP)

1. FUEL PUMP OPERATION CHECK

Refer to GROUP 13A - On-vehicle service

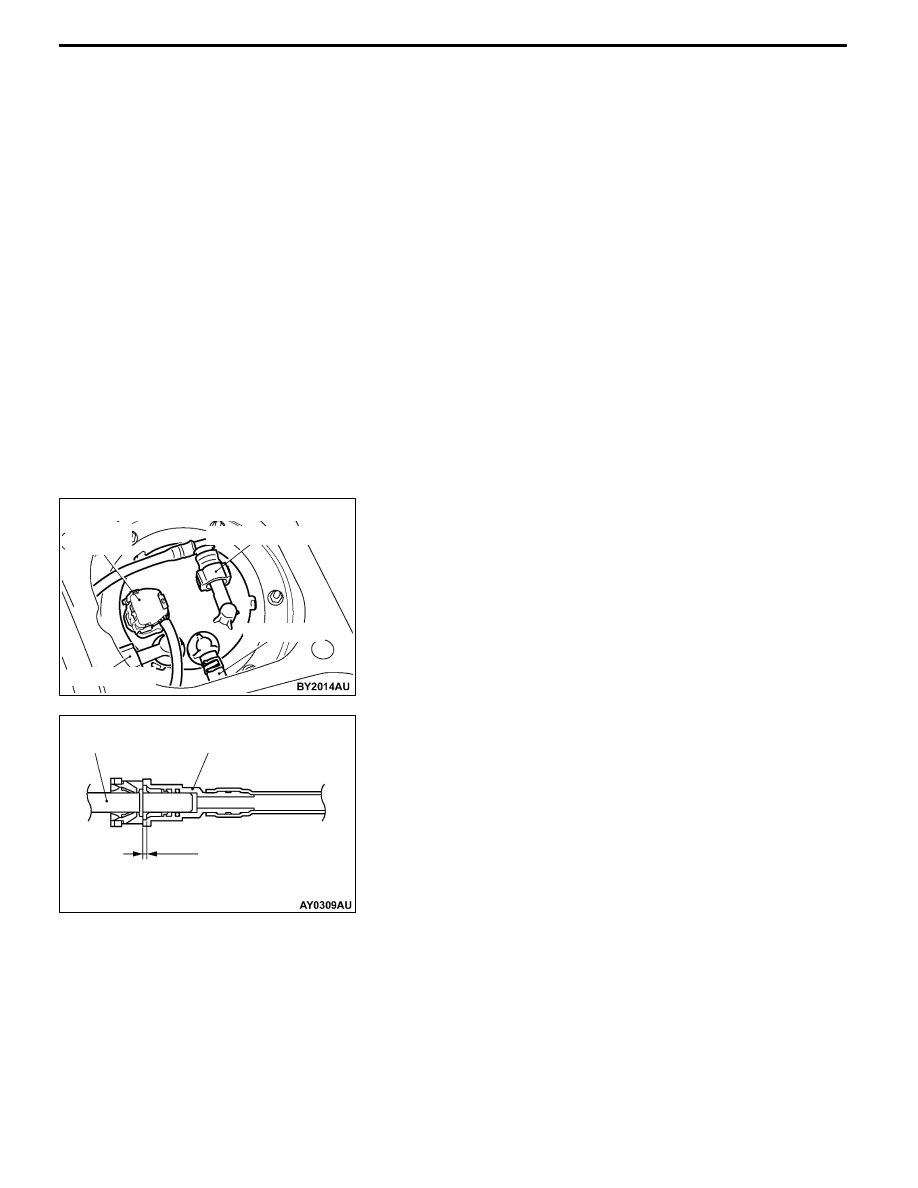

2. FUEL PUMP REPLACEMENT

(1) Remove the rear seat cushion assembly.

(Refer to GROUP 52A.)

(2) Remove the service hole cover.

(3) Disconnect the harness connector, high-pressure fuel

tube, suction hose and return hose.

(4) Unscrew the mounting nuts to remove the fuel pump

and gauge assembly.

(5) Replace the fuel pump. (Refer to P.13B-7.)

(6) Install the fuel pump and gauge assembly. Tighten

the mounting nuts to the specified torque.
Specified torque: 2.5

± 0.5 N·m

(7) Connect the harness connector, high-pressure fuel

tube, suction hose, and return hose.
Caution

1) Snap the high-pressure fuel hose or suction

hose one-touch joint into place, then pull back

slightly on the hose to assure it is securely

fitted. However, the connection should have

a play of approx. 3 mm.

2) Insert the return hose for 20 - 30 mm for

connection.

(8) Install the service hole cover.

(9) Install the rear seat cushion assembly.

(Refer to GROUP 52A.)

Harness

connector

High-pressurefuel tube

Suction hose

Return hose

<Fuel pump and gauge assembly>

3 mm

Corresponding

side

High-pressure fuel tube
