ENGINE -

Timing Belt and Timing Belt B

11A-41

2. Rotate the crankshaft counterclockwise for 1/4 round.

3. Rotate the crankshaft clockwise and mate timing marks

with each other to position No.1 cylinder at compression

TDC.

4. Loosen the temporarily tightened tensioner pulley

mounting bolt.

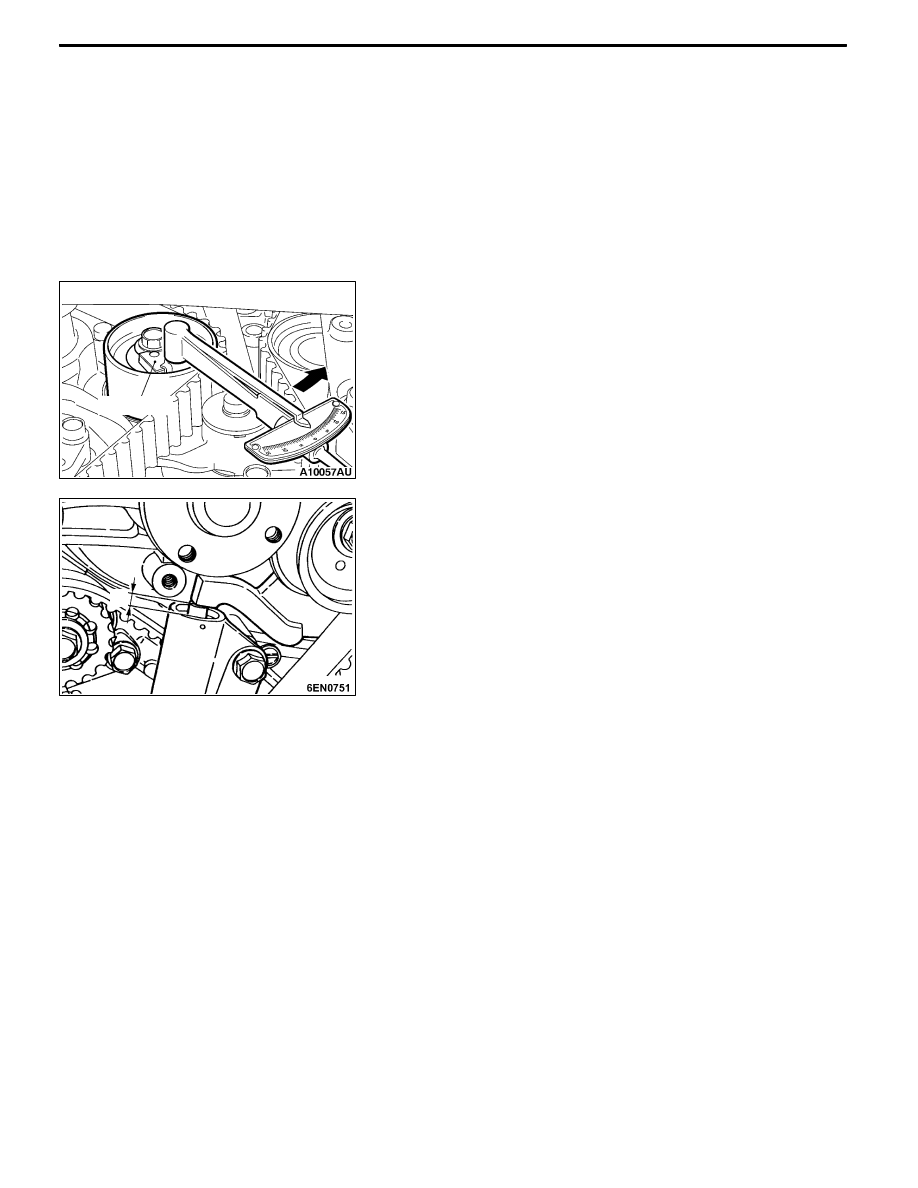

5. Use the special tool and torque wrench to apply tension

torque (3.5 N m) to the timing belt in the direction indicated

in the figure and tighten the tensioner pulley mounting bolt

to the specified torque.
Tightening Torque: 48 ± 5 N·m
Caution

Be careful not to let the tensioner pulley rotate together

when tightening the mounting bolt. If the tensioner

rotates together, belt tension becomes too loose.

6. Remove a wire or a pin inserted during installation of

the automatic tensioner.

7. Remove the special tool installed in the above-mentioned

1 with a hand.

8. Rotate the crankshaft clockwise for two rounds and leave

it alone for approximately 15 minutes.

9. Insert the removed wire or pin in the above-mentioned

6 again to check that it can be removed easily.

If either wire or pin can be removed easily, the timing

belt tension is correct and remove a wire or a pin. Then,

check that projection of the automatic tensioner rod is

within the standard value.
Standard value (A): 3.8 - 4.5 mm

10. If a wire or a pin cannot be easily removed, repeat the

above-mentioned operations 1 - 8 to obtain the correct

timing belt tension.

11. Check that timing marks of each sprocket are aligned

with each other.
Caution

After turning the crankshaft bolt counterclockwise,

always check the tightening torque of the crankshaft

bolt and tighten it again if it becomes loose.

MD998767

A

ENGINE -

Timing belt and timing belt B

11A-42

INSPECTION

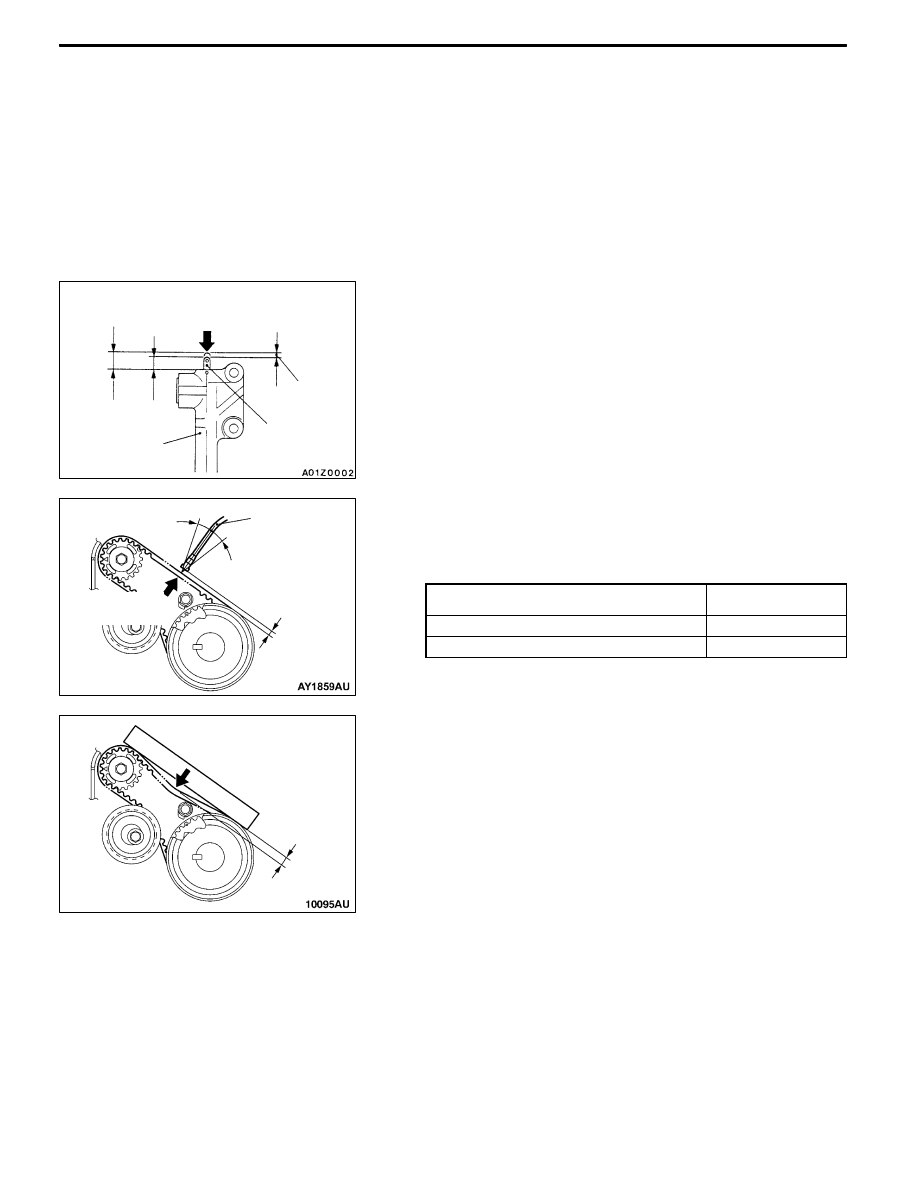

AUTO-TENSIONER CHECK
1. Check the sealant for oil leakage and replace if necessary.

2. Check the rod end for wear or damage and replace if

necessary.

3. Measure the deflection of the rod end pressed against

the metal (cylinder block, etc) with the force of 98 - 196

N while holding the auto-tensioner with a hand.
Standard value: Within 1 mm

A: Length in the released state

B: Length in the pressed state

A - B: Deflection

4. If the value is outside the standard value, replace the

auto-tensioner.

TIMING BELT B TENSION CHECK
1. Measure the tension of timing belt B by following

procedures.
Standard value:

Item

When checked

Vibration frequency Hz

52 - 92

Deflection mm (Reference)

5 - 10

<When using MUT-II>

Tap the center of the belt between the pulleys (arrow),

and check that the belt vibration frequency is within the

standard values.
NOTE

For the vibration frequency measurement using the

MUT-II, refer to P11A-37.

<When checking the deflection>

Apply a force of approx.100N to the middle (arrow part)

of pulley shown in the figure, and check that the deflection

is within the standard value.

2. If it is outside the standard value, re-adjust belt tension.

(Refer to P.11A-36.)

A

B

Auto-tensioner

98 - 196 N

Deflection

Rod

MB991668

10 - 20 mm

15_

15_

Gently tap with

your finger

Deflection

Approx.

100 N

ENGINE -

Engine Assembly

11A-43

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

Caution
1. If the vehicle is equipped with the Brembo disc brake, during maintenance, take care not to

contact the parts or tools to the caliper because the paint of caliper will be scratched.

2. Tightening sections indicated in the mark (*) should be finally tightened with engine weight

applied on the body after lightly tightening.

Pre-removal and Post-installation Operation
D

Fuel Outflow Preventive Operation (Refer to GROUP 13A - On-vehicle Service.) <Before removal only>

D

Fuel Leak Check <After installation only>

D

Removal and Installation of Hood (Refer to GROUP 42.)

D

Removal and Installation of Strut Tower Bar (Refer to GROUP 42.)

D

Removal and Installation of Under Cover (Refer to GROUP 51 - Front Bumper.)

D

Removal and Installation of Side Cover.

D

Drive Belt Tension Check (Refer to P.11A-7.) <After installation only>

D

Accelerator Cable Adjustment (Refer to GROUP 17 - On-vehicle Service.) <After installation only>

D

Drainage and Refilling Engine Oil(Refer to GROUP 12 - On-vehicle Service.)

D

Drainage and Refilling of Engine Coolant (Refer to

GROUP 14 - On-vehicle Service.)

D

Air Cleaner Removal and Installation (Refer to GROUP 15)

D

Removal and Installation of Air Pipe C, Air Pipe B and Air Hose A (Refer to GROUP 15 - Intercooler.)

D

Battery and Battery Tray Removal and Installation

D

Removal and Installation of Center Cover (Refer to P.11A-17.)

D

Removal and Installation of Accelerator Cable (Refer to GROUP 17.)

D

Removal and Installation of Radiator (Refer to GROUP 14.)

D

Removal and Installation of Crossmember Bar (Refer to GROUP 32 - Engine Roll Stopper, Centermember.)

D

Removal and Installation of Front Exhaust Pipe (Refer to GROUP 15.)

D

Removal and Installation of Air Outlet Fitting (Refer to GROUP 15 - Exhaust manifold.)

ENGINE -

Engine Assembly

11A-44

1

2

3

4

5

6

7

8

9

10

11

12

13

14

26 ± 5 N·m

14 ± 3 N·m

15

16

18

5.0 ± 1.0 N·m

1

5.0 ± 1.0 N·m

11 ± 1 N·m

17

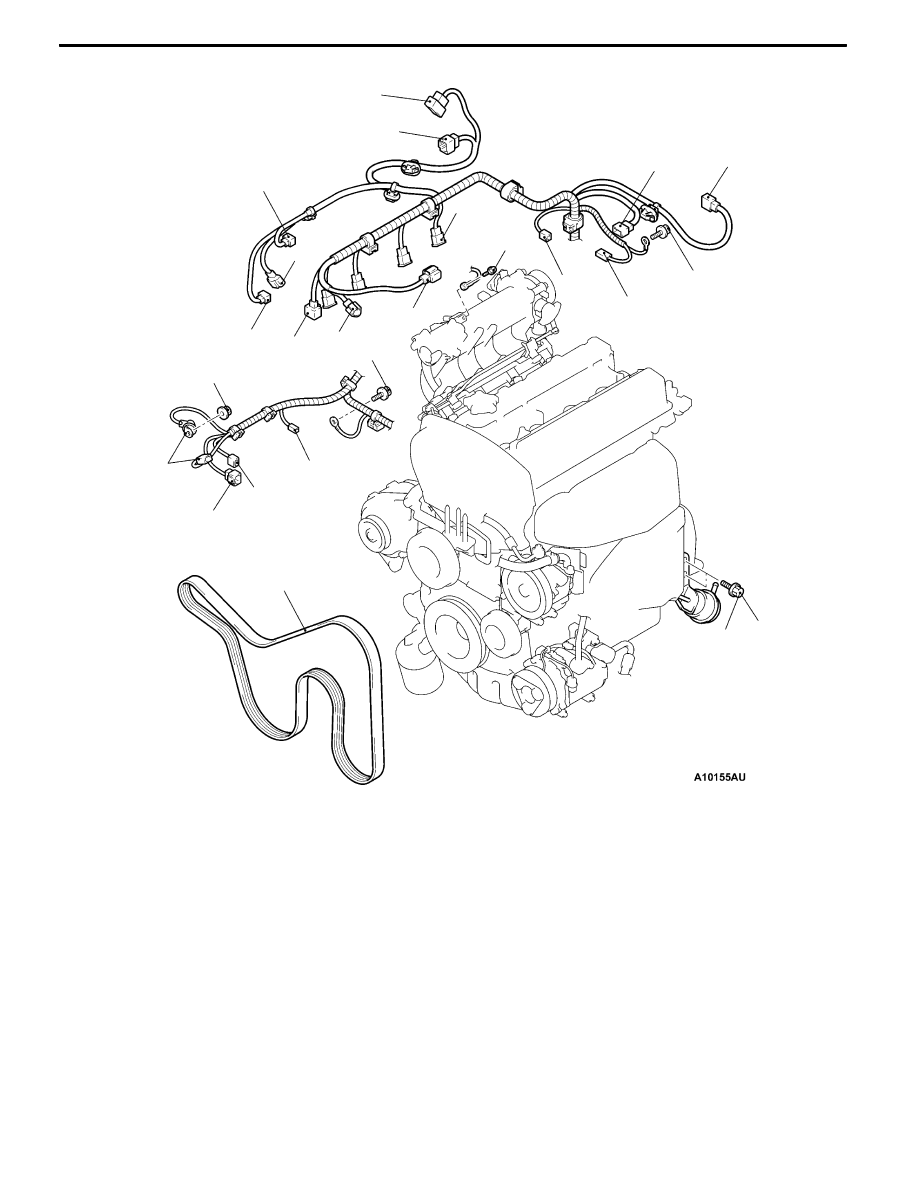

Removal steps

1. Ignition coil connector

2. Crank angle sensor connector

3. Oxygen sensor connector

4. Fuel pressure solenoid valve

connector

5. Detonation sensor connector

6. Purge control solenoid valve

connector

7. Throttle position sensor connector

8. Idle speed control servo connector

9. Injector connector

10. Camshaft position sensor connector

11. Engine coolant temperature gauge

unit connector

12. Engine coolant temperature sensor

connector

13. Alternator connector

14. EGR solenoid valve connector

15. Secondary air control solenoid valve

connector

16. Engine oil pressure switch

connector

17. Waste gate actuator mounting bolt

A

A"

18. Drive belt
