REAR AXLE

  – Sensor Relay <Vehicles with AYC> / AYC-ECU

27-42

INSPECTION

1.

LONGITUDINAL AND LATERAL ACCELERATION
SENSOR CHECK

Refer to GROUP 35B – Acceleration Sensor.

2.

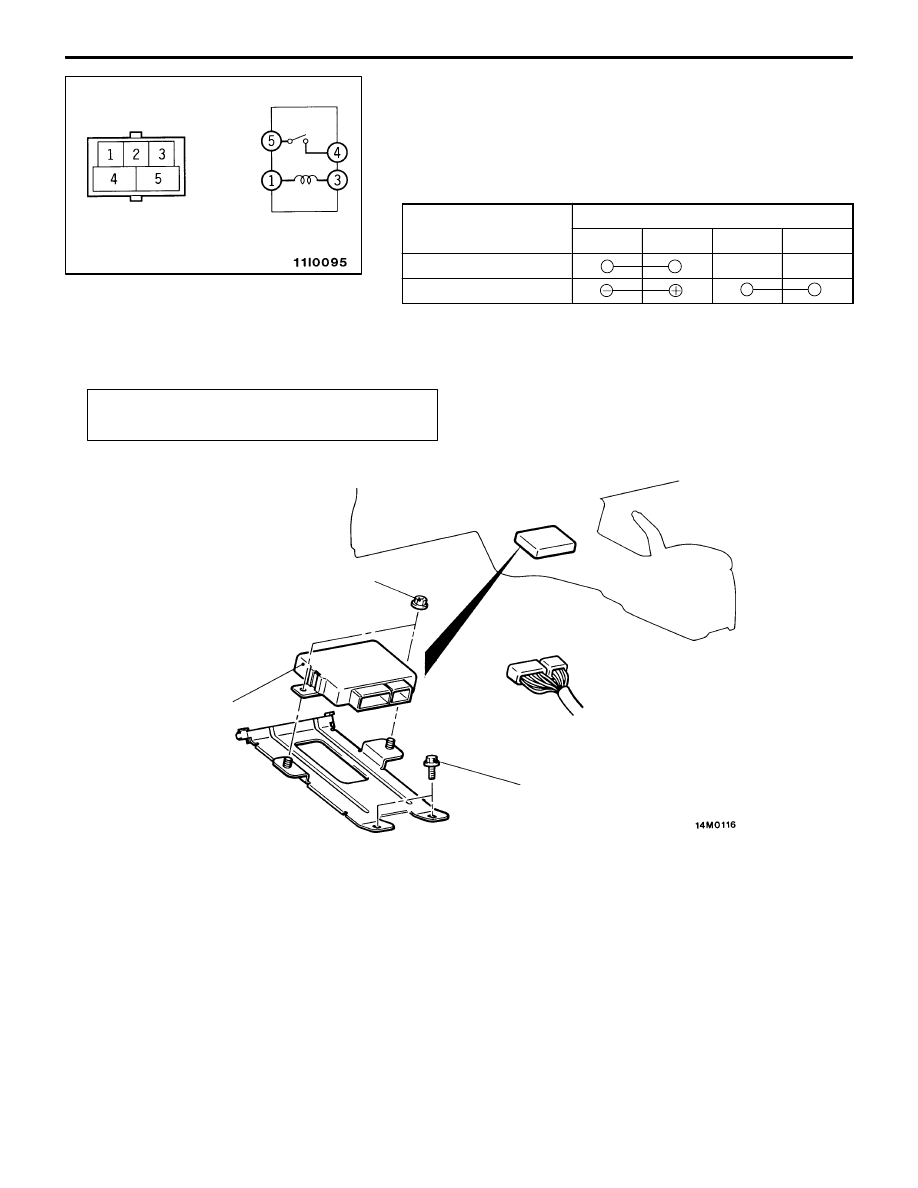

AYC RELAY CONTINUITY CHECK

Battery voltage

Terminal No.

1

3

4

5

When not energized

When energized

AYC-ECU

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

D

Front Floor Console Removal and Installation

5 Nm

AYC-ECU

5 Nm

FRONT SUSPENSION –

General / Lower Arm <EVOLUTION-VI>

33A-1

GROUP 33A

FRONT SUSPENSION

GENERAL

OUTLINE OF CHANGE

D

The installation method of the ball joint between the knuckle and the lower arm has been changed,
and accordingly the removal and installation procedures of the lower arm have been revised.
<EVOLUTION-VI>

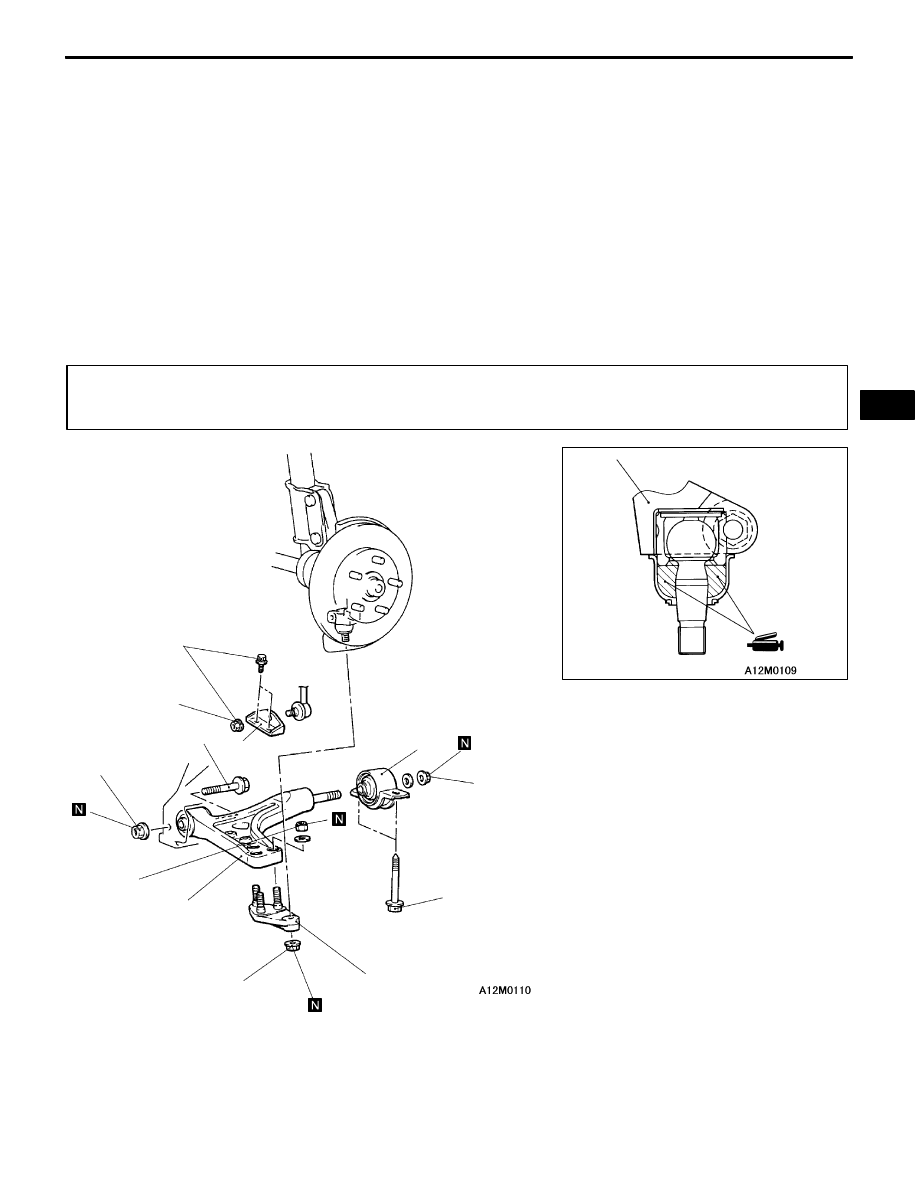

LOWER ARM <EVOLUTION-VI>

REMOVAL AND INSTALLATION

Caution
The part marked with * should be first temporarily tightened, then torqued to specification with the vehicle
on the ground in unloaded condition.

Post-installation Operation

D

Push the Dust Cover of the Lower Arm and Stabilizer Link Ball Joint with a Finger to Check for Possible Cracks or Damage.

D

Wheel Alignment Check and Adjustment

1

2

3

4

5

6

39 Nm

106 Nm*

5

98 – 118 Nm

74 – 87 Nm

88 Nm

137 Nm

Removal steps

1. Stabilizer link mounting nut
2. Bolt
3. Stabilizer bracket

"

A

A

4. Bushing assembly
5. Lower arm assembly

6. Lower arm bracket assembly

NOTE
Follow the conventional procedures for installation service
points.

NOTES

35B-1

ANTI-SKID

BRAKING

SYSTEM (ABS)

CONTENTS

GENERAL

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Outline of Change

2

. . . . . . . . . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

2

. . . . . . . . . . . . . .

SPECIAL TOOLS

2

. . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

3

. . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

35

. . . . . . . . . . . . . . . .

Wheel Speed Sensor Output Voltage
Check

35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hydraulic Unit Check

37

. . . . . . . . . . . . . . . . . . . . .

Remedy for a Flat Battery

38

. . . . . . . . . . . . . . . .

ABS Motor Relay Continuity Check

39

. . . . . . . .

ABS Valve Relay Continuity Check

39

. . . . . . . .

MASTER CYLINDER AND BRAKE
BOOSTER 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Master Cylinder

40

. . . . . . . . . . . . . . . . . . . . . . . . . .

HYDRAULIC UNIT

41

. . . . . . . . . . . . . . . . . . . . .

WHEEL SPEED SENSOR

44

. . . . . . . . . . . . . .

ACCELERATION SENSOR*

46

. . . . . . . . . . . .

ABS-ECU*

47

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING!

(1) Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to personal

injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and passenger (from rendering
the SRS inoperative).

(2) Service or maintenance of any SRS component or SRS-related component must be performed only at an authorized

MITSUBISHI dealer.

(3) MITSUBISHI dealer personnel must throughly review this manual, and especially its GROUP 52B – Supplemental

Restraint System (SRS) before begining any service or maintenance of any component of the SRS or any SRS-related
component.

NOTE
The SRS includes the following components: SRS-ECU, SRS warning lamp, air bag module, clock spring and interconnecting
wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or maintenance) are
indicated in the table of contents by an asterisk (*).
