Mitsubishi Lancer Evolution VI. Manual - part 45

MPI  –

On-vehicle Service

13-68

ON-VEHICLE SERVICE

FUEL PUMP RESISTOR CHECK
<EVOLUTION-VI>

Standard value: 0.45 – 0.65

Ω

The inspection procedures are the same as for the preceding
year-models.

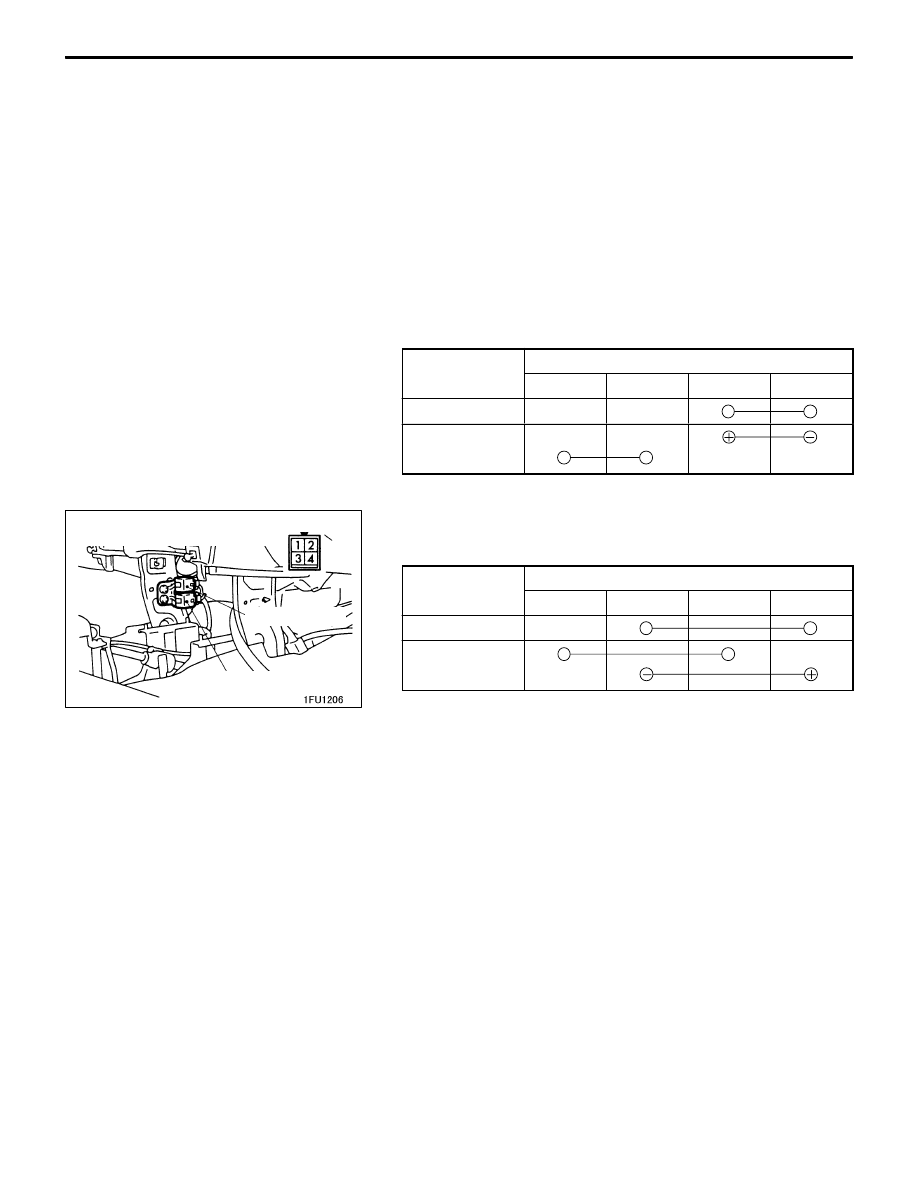

FUEL PUMP RELAY No.2 CONTINUITY CHECK
<EVOLUTION-VI>

Battery voltage

Terminal No.

1

2

3

4

Not supplied

Supplied

ENGINE CONTROL RELAY AND FUEL PUMP
RELAY CONTINUITY CHECK

Battery voltage

Terminal No.

1

2

3

4

Not supplied

Supplied

Equipment side connector for engine
control relay and fuel pump relay

Fuel pump relay

Engine control relay

FUEL SUPPLY –

General / Fuel Tank

13-69

FUEL SUPPLY

GENERAL

OUTLINE OF CHANGE

The service procedures have been revised as shown below because of change in the fuel pump & gauge
assembly and the fuel gauge unit. <EVOLUTION-VI>

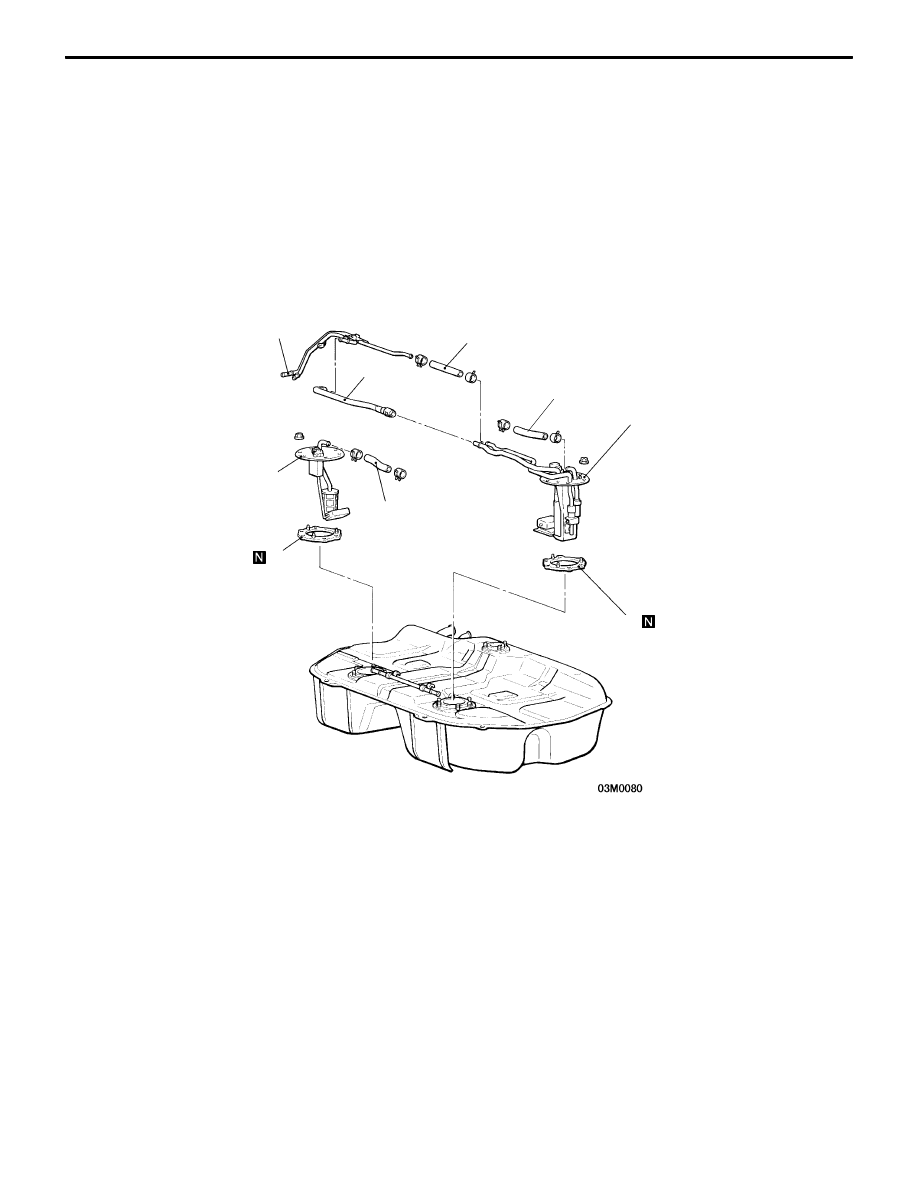

FUEL TANK <EVOLUTION-VI>

REMOVAL AND INSTALLATION

4

3

2

1

6

5

7

1

1

Removal steps

1. Fuel hose
2. Fuel pump & gauge assembly
3. Packing

"

A

A

4. High-pressure fuel hose

5. Fuel pipe assembly
6. Fuel gauge unit
7. Packing

NOTE
The service procedures other than those mentioned above
remain unchanged.

INSTALLATION SERVICE POINT

"

A

A

HIGH-PRESSURE FUEL HOSE INSTALLATION

Caution
After connecting the quick-release joint of the
high-pressure fuel hose, pull it gently in the direction
of removal to check that the hose is firmly connected
with a play of about 3 mm.
