Mitsubishi Fuso Canter. Manual - part 17

Spec. No. FG83, 5/9

¡2 access handles

¡2 combination switches

¡2 door switches

¡2 exterior rear view mirrors

¡A4 document box

¡Access step, each side

¡Armrest (each door)

¡Ashtray (each door)

¡Box with lid

¡Card holder

¡Coat hook

(except for FG83PE6W)

¡Cup holder

¡Driver's sun visor

¡Duplicate key of starter,

fuel stop and door

¡Engine idling control

button

¡Floor vinyl mat

¡Forced ventilator

¡Front emblem

"MITSUBISHI FUSO"

"CANTER"

¡Grip, for cab tilt/down

(assistseat side)

¡Insulator under cab floor

¡Multi pocket

¡Room lamp (10W x 1),

Room lamp (10W + 10W,

only for FG83PE6W)

¡Ticket holder

¡Tray (instrument panel)

Appointments

SERIES

BASIC CHASSIS SPECIFICATIONS (continued)

Mounting

Fixed type, isolated 4 points (isolated 6 points for FG83PE6W)

Construction

Tilt type with torsion bar, all steel welded construction (fixed cab for FG83PE6W)

Windshield

One piece type of laminated glass

Windshield wipers

Dual blades, high & low speeds and intermittent wiping with washer and water tank

3 lits. (dm

) (0.66 Imp.gals. or 0.79 U.S.gals.)

Driver's seat

High back type (seat pan and urethane foam rubber cushioned),

20-stage reclining, 20-stage sliding, vinyl leather

Cab

FG83P

Passenger seat

Rear seat

Center: Low back bench type (spring and urethane foam rubber cushioned), vinyl leather
Window side: High back type combined with center seat, 14-stage reclining

Only for FG83PE6W. Low back type (spring and urethane

foam rubber cushioned), vinyl leather

Paint

Finish coat, Natural White

Chassis Equipment

¡One hook each at front and rear

¡Tools for changing tire including 4 ton hydraulic jack

Caution Plate

English

Measurement

Metric

Spec. No. FG83, 6/9

Cooling System

Pressure type with thermostat, forced circulation by centrifugal pump

Coolant capacity

14.5 lits. (dm

) (3.2 Imp.gals. or 3.8 U.S.gals.)

Fan

P. P. blade

Fuel System

Fuel filter

Full-flow filter with paper element, throwaway type

Injection pump

Bosch type, 4 plungers in line

Governor

All-speed mechanical type

Fuel

Diesel fuel oil (cetane number 45 and more)

Air Cleaner

Dry paper element

Alternator

24 Volt, 50 Amp.

Starter

DC 24 Volt, 3.7 kW

Vacuum Pump

Vane type

Displacement

90 cc (5.4 cu.in.)

Engine Dust-proof

Includes dust-proof alternator, crankcase breather and dipstick

Caution Plate

English

STANDARD

BARO. PRESSURE

TEMP. OF INLET AIR

ACCESSORIES*

JIS

JIS D1004

760 mmHg (101.3 kPa), dry

15.0 °C

Fan**, Air cleaner

Fan**, Intake and

DIN

DIN 70020

760 mmHg (101.3 kPa)

20.0 °C

exhaust system of vehicle***

SAE, Gross

SAE J1349

742.6 mmHg (99 kPa), dry

25.0 °C

──

CHASSIS MODEL

BASIC ENGINE SPECIFICATIONS

Engine Model

MITSUBISHI FUSO 4D34

-3A

Type

4 stroke-cycle, water-cooled direct injection diesel engine

No. of Cylinders

4 in line

Bore x Stroke

104 mm x 115 mm (4.09 in. x 4.53 in.)

Piston Displacement

3.907 L (238.4 cu.in.)

Compression Ratio

17.5 : 1

Max. Output

80 kW (109 PS) (JIS)
78 kW (106 PS) (DIN)
76 kW (102 hp) (SAE, Gross)
at 3,200 rpm (53.3 r/s) (1)

FG83P

255 N·m (26.0 kgf·m, 188 lb·ft) (JIS)
251 N·m (25.6 kgf·m, 185 lb·ft) (DIN)

Max. Torque

240 N·m (24.5 kgf·m, 177 lb·ft) (SAE, Gross)

at 1,800 rpm (30.0 r/s)

Weight

325 kg (716 lb) in dry

Oil System

Oil filter

Full-flow filter with paper element, throwaway type

Oil cooler

Water-cooled

Oil pan capacity

9 lits. (dm

) (1.98 Imp.gals. or 2.38 U.S.gals.)

Recommended oil grade

API service classification CC or CD

ANNOTATION
(1) Max. speed of 4D34–3A engine is 3,400 rpm (56.6 r/s).

REMARKS
(1) Output and torque represent performance of run-in engine operating under the standard ambient conditions and

accessories specified below.

(2) Rated output is guaranteed within 5% under the standard ambient conditions.

* Other than built-in accessories essential to engine operation.

** 4D34

-3A, 430 mm dia. 8 blade, P. P., fan ratio 1.27

*** Output (DIN) is based on the assumptions that max. inlet restriction is 350 mm H

O (3.4 kPa) and max. exhaust back

pressure is 150 mmHg (19.9 kPa).

Spec. No. FG83, 7/9

OUTPUT

kW(PS): JIS & DIN

kW(hp): SAE, Gross

lb·ft

g/kW·h

(g/PS·h)

lb/hp·h

272

(200)

0.45

0.40

0.35

245

(180)

218

(160)

N·m

(kgf·m)

255

(26)
235

(24)
216

(22)
196

(20)

1400

1800

2200

2600 3000

3400

ENGINE SPEED (rpm)

BRAKE SPECIFIC FUEL CONSUMPTION

TORQUE

3200

B. S. F. C

SAE

DIN

JIS

(109)

(95)

(82)

(68)

(54)

(41)

145

155

165

175

185

4500

4200

3900

3600

3300

3000

2700

2400

2100

1800

1500

1200

900

600

300

100 110 120

1000

ENGINE SPEED (rpm)

RUNNING RESISTANCE AND TRACTION (kg)

4D34-3A

80kW (109PS)/3200rpm

255N·m (26.0 kgf·m)/1800rpm

5500kg

7.50-16-10

0.383m

G/RATIO

5.380
3.028
1.700
1.000
0.722
5.380

T/F

HIGH

LOW

G/RATIO

1.090
1.987

ENGINE MODEL
MAX.   OUTPUT
MAX.   TORQUE
GROSS WEIGHT
TIRE SIZE
TIRE RADIUS
  T/M

1st

2nd

3rd
4th
5th

Rev.

FINAL G/RATIO

6.166

100%
95%
90%

85%

80%
75%

70%

65%

60%

55%

50%

45%

40%

35%

30%

25%

20%

15%

10%

5%
3%

L2 H1

H2 L4

VEHICLE SPEED (km/h)

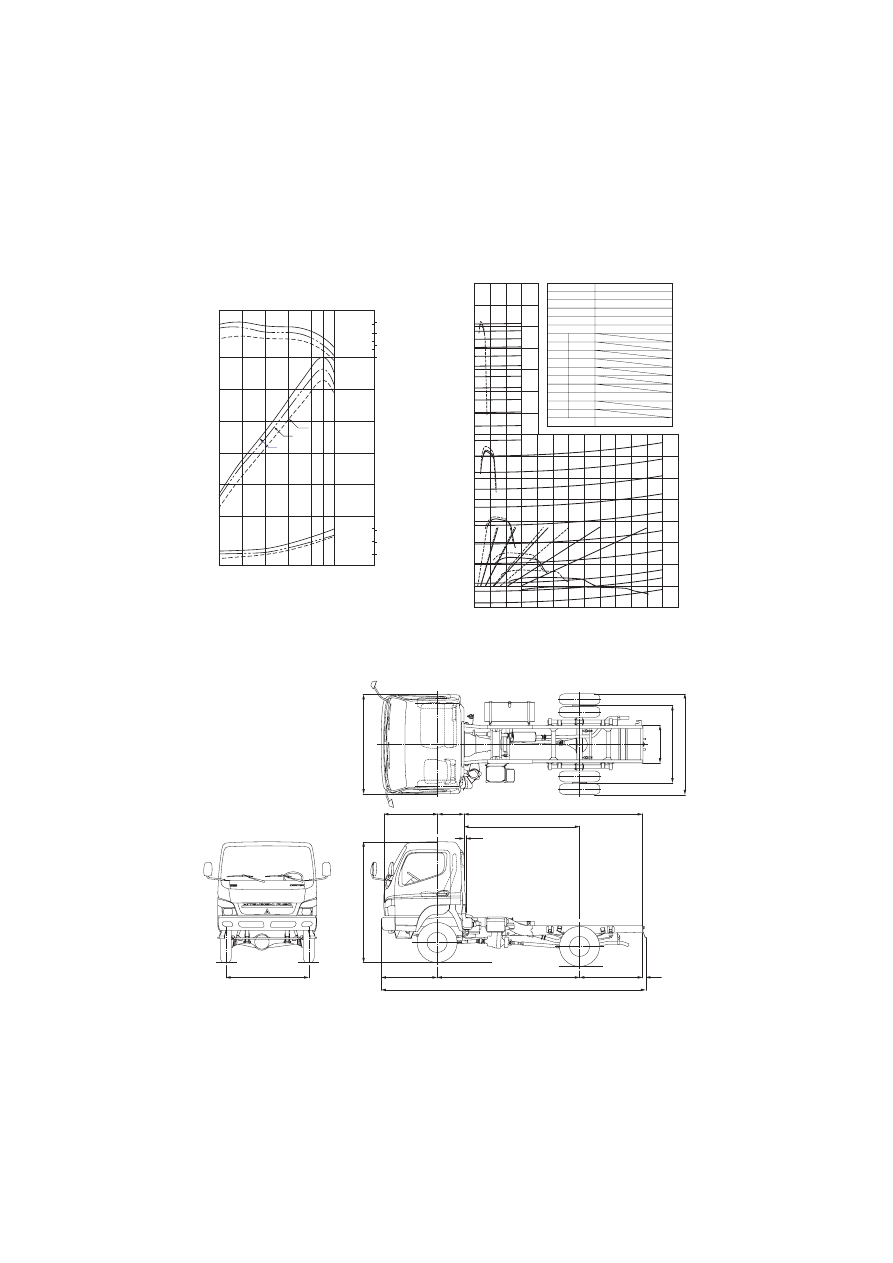

ENGINE PERFORMANCE CURVES

VEHICLE PERFORMANCE CURVES

FG83PC6

／FG83PE6／FG83PE6W

MITSUBISHI FUSO 4D34-3A DIESEL ENGINE

CHASSIS LAYOUT

FG83PC6L

7.50-16-10PR

2860

1130

1260

5305

2435 (APPROX)

1665

1995

750

1560

2035

1073

540

3580

2320

Spec. No. FG83, 8/9

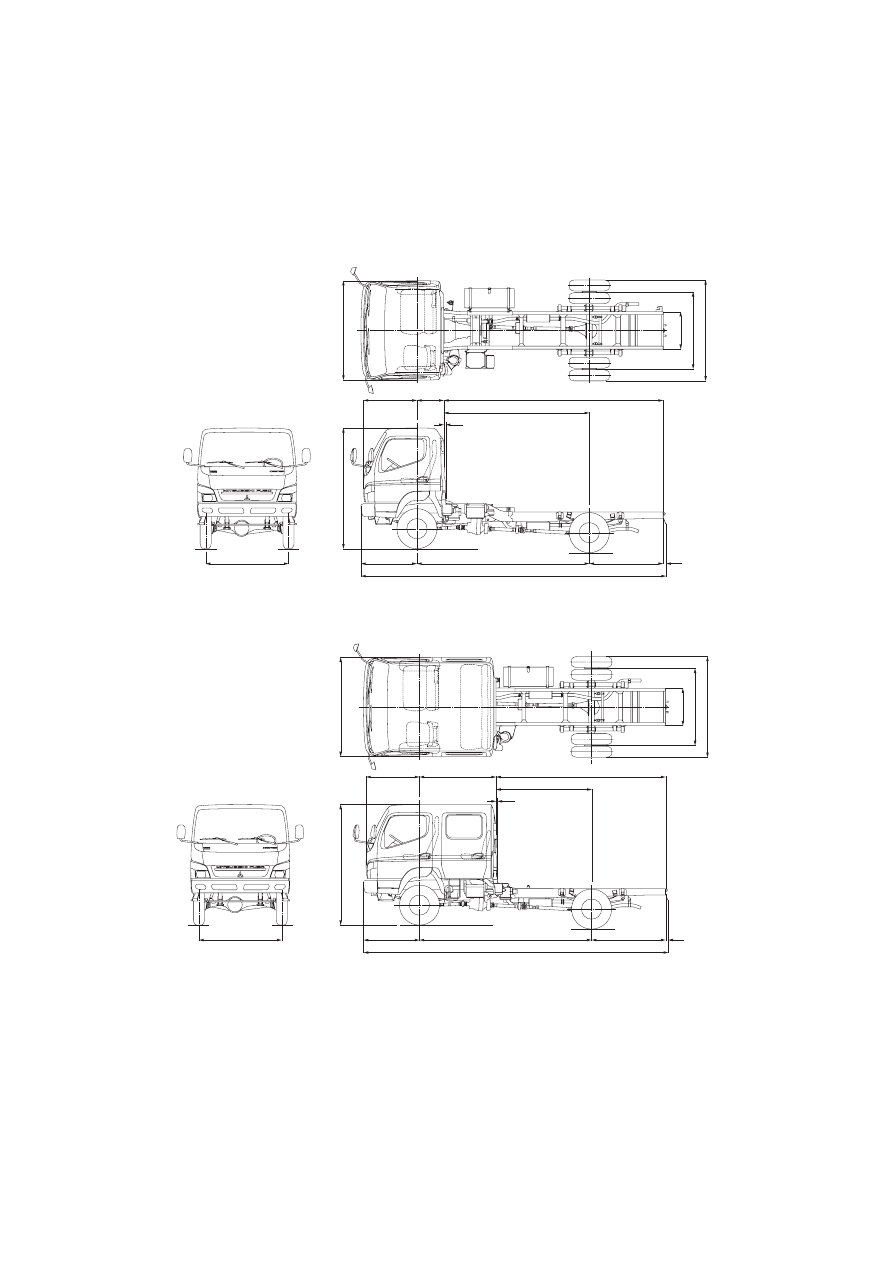

CHASSIS LAYOUT

FG83PE6L

FG83PE6WL

NOTE :
These drawings show left hand drive model. For right hand drive model, exterior rear view mirror and windsheld wiper on
left and right sides are symmetric with respect to the chassis center line.

FG83PE6L

7.50-16-10PR

3460

1130

1475

6120

2435 (APPROX)

1995

750

1560

2035

1665

1073

540

4395

2920

7.50-16-10PR

1130

2495 (APPROX)

3460

1475

6120

1665

1995

750

1560

2035

1073

1540

3395

1920
