9 Technical  data

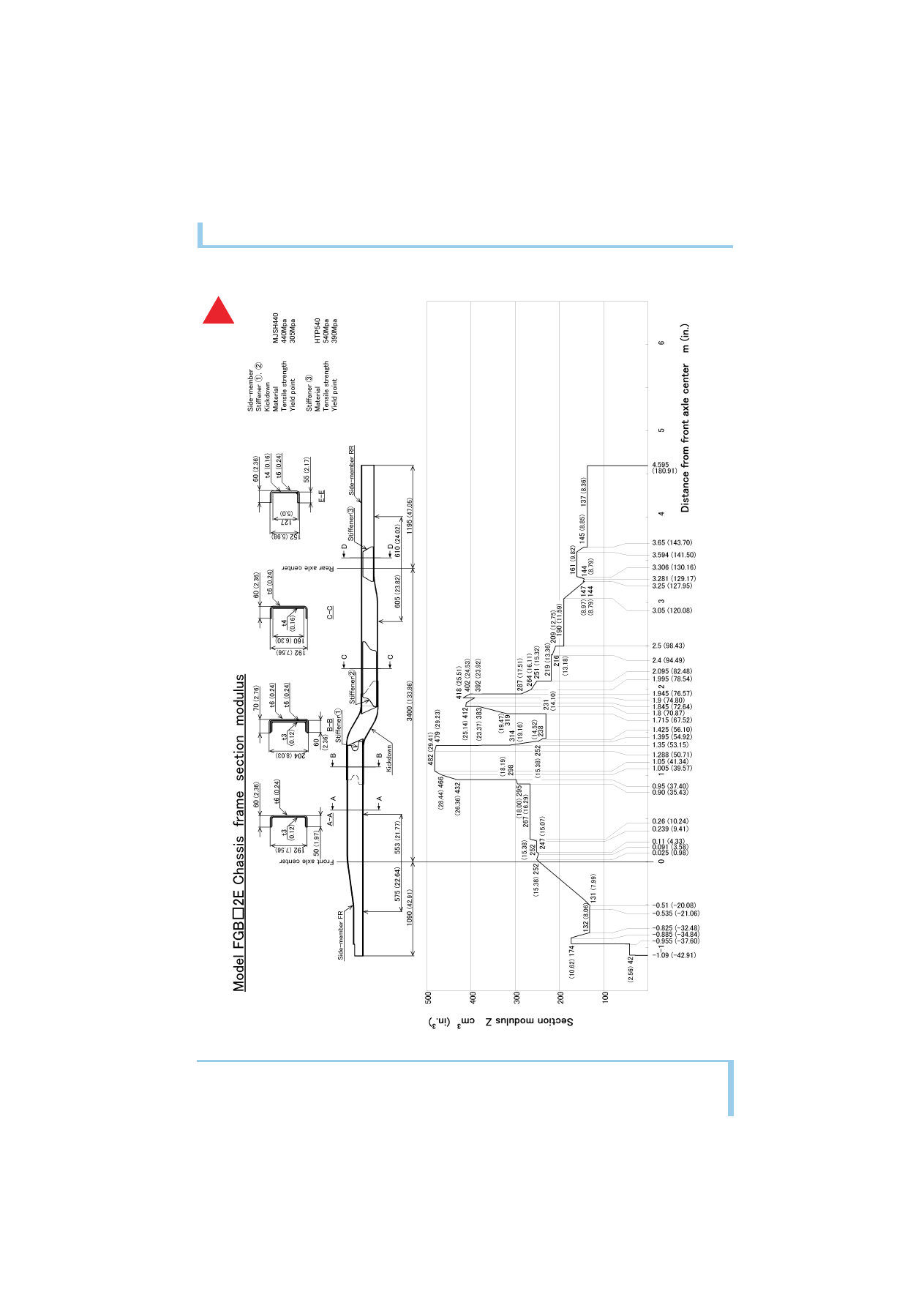

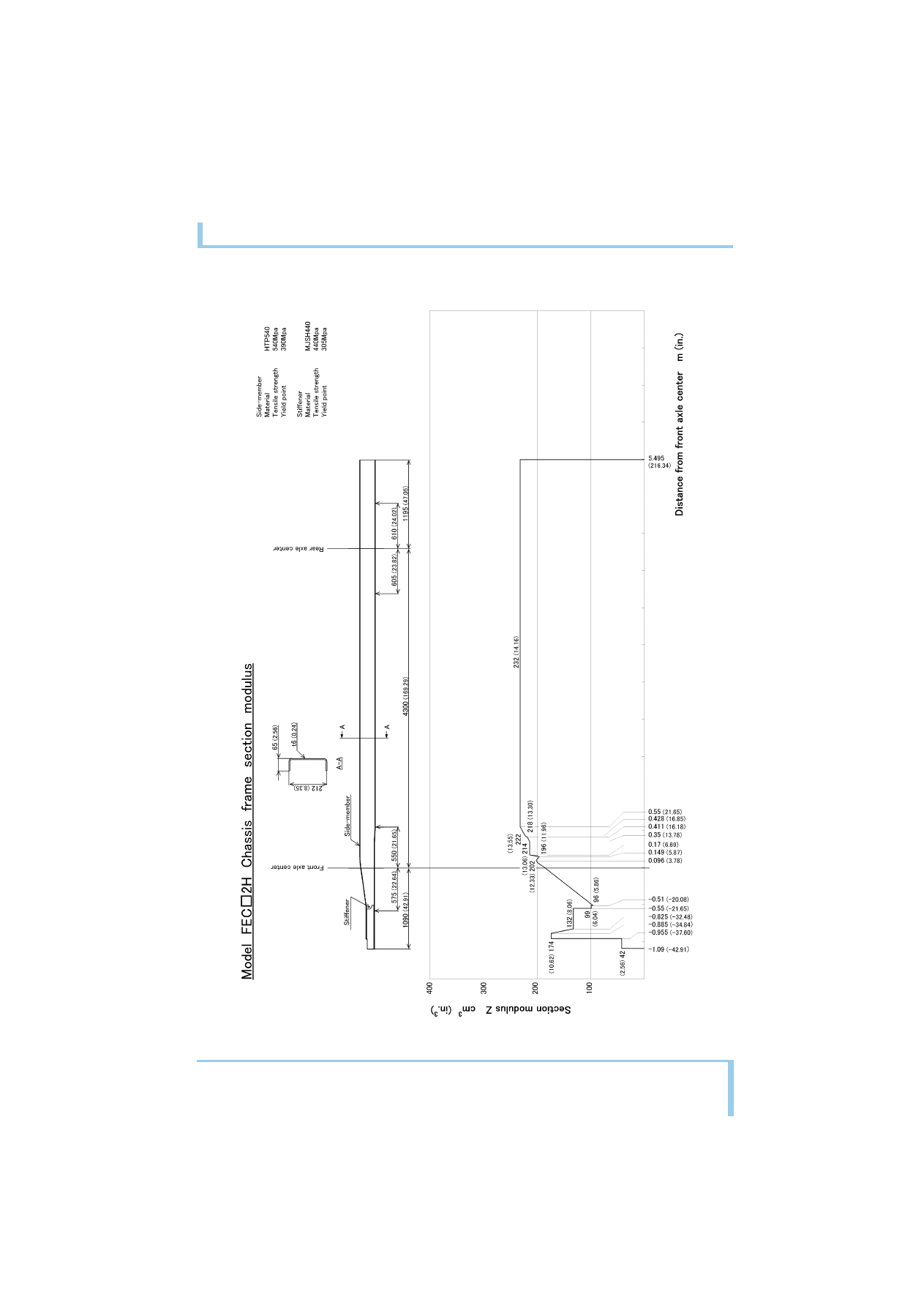

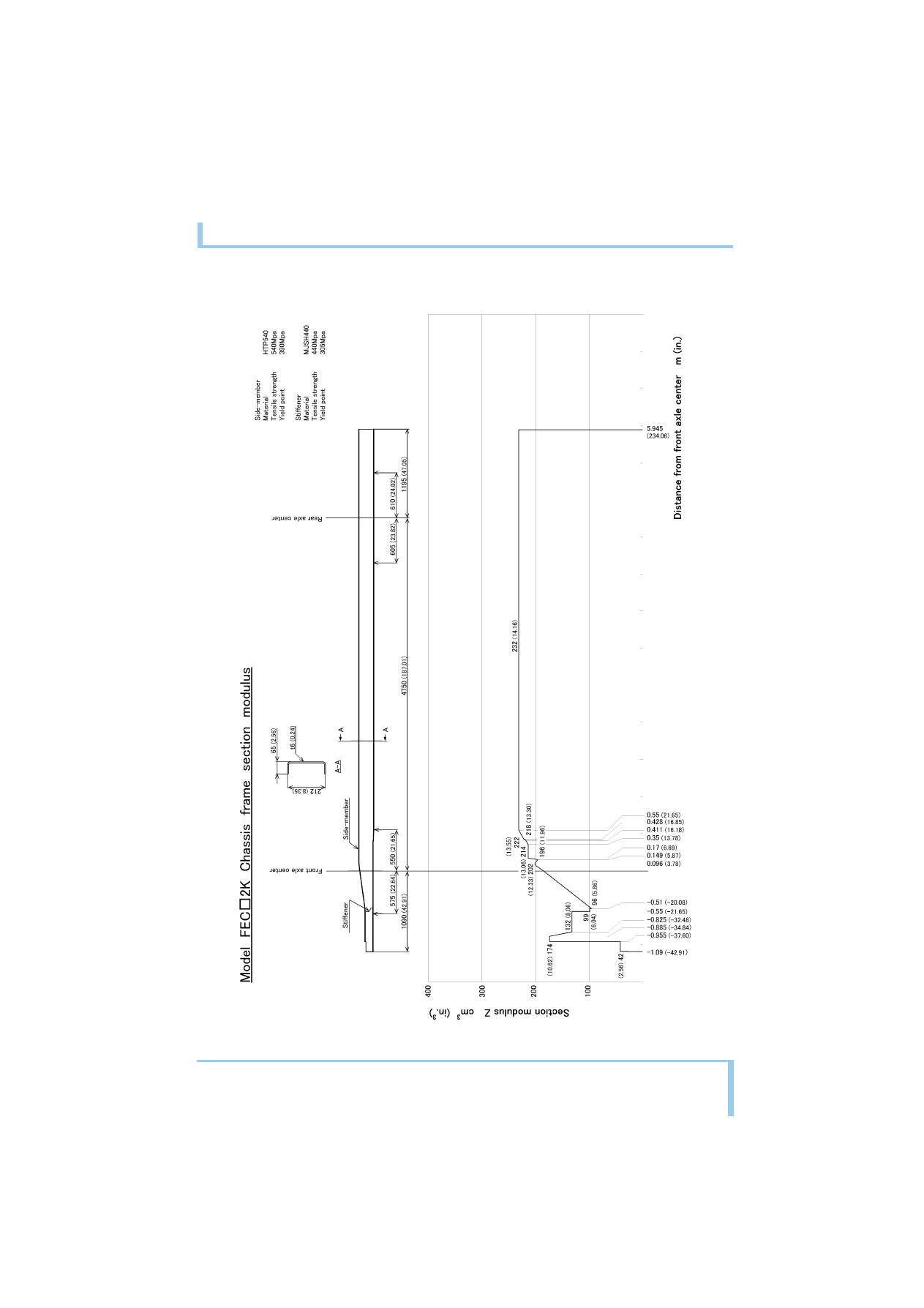

9.5 Frame layout

184

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9 Technical  data

9.5 Frame layout

185

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9 Technical  data

9.5 Frame layout

186

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

A

9 Technical  data

9.6 Spring diagram

187

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.6 Spring diagram

9.6.1

Distance from frame top surface to ground

Method of calculating Hf, Hr
Hf=hf+Rf : Frame height, Front See Chapter 9.4.1
Hr=hr+Rr : Frame height, Rear
hf : Distance from frame top to front wheel center (See drawings or following page 188.)
hr : Distance from frame top to rear wheel center (See drawings or following page 193.)
Rf, Rr : Tire radius (See drawings or following page 198.)

MODEL

OBJECT

ENGINE

kW(HP)

CAB CHASSIS WEIGHT

kg (lb)

UNDER-SPRING

WEIGHT

kg (lb)

DISTANCE

FROM

FRAME TOP

SURFACE

TO GROUND

mm (in.)

CoG.

HEIGHT

mm

(in.)

Front

Wf

Rear

Wr

Total

W

Front

Rear

Front

±

10 Hf

Rear

±

25 Hr

FEC52CL3SUHD

120

(161)

1535

(3385)

830

(1830)

2365

(5215)

277

(611)

478

(1054)

695

(27.4)

790

(31.1)

610

(24.0)

FEC52EL3SUHD

120

(161)

1565

(3450)

840

(1850)

2405

(5300)

277

(611)

478

(1054)

694

(27.3)

790

(31.1)

610

(24.0)

FEC52GL3SUHD

120

(161)

1580

(3485)

840

(1850)

2420

(5335)

277

(611)

478

(1054)

693

(27.3)

790

(31.1)

610

(24.0)

FEC72CL3SUHD

120

(161)

1570

(3460)

920

(2030)

2490

(5490)

310

(683)

562

(1239)

715

(28.2)

796

(31.3)

610

(24.0)

FEC72EL3SUHD

120

(161)

1600

(3530)

930

(2050)

2530

(5580)

310

(683)

562

(1239)

714

(28.1)

796

(31.3)

610

(24.0)

FEC72GL3SUHD

120

(161)

1615

(3560)

930

(2050)

2545

(5610)

310

(683)

562

(1239)

714

(28.1)

796

(31.3)

610

(24.0)

FEC72HL3SUHD

120

(161)

1635

(3605)

940

(2070)

2575

(5675)

310

(683)

562

(1239)

713

(28.1)

795

(31.3)

610

(24.0)

FEC72KL3SUHD

120

(161)

1650

(3640)

940

(2070)

2590

(5710)

310

(683)

562

(1239)

712

(28.0)

795

(31.3)

610

(24.0)

FEC72HL3WUHD

120

(161)

1790

(3945)

1000

(2205)

2790

(6150)

310

(683)

562

(1239)

776

(30.6)

844

(33.2)

715

(28.1)

FEC72KL3WUHD

120

(161)

1810

(3990)

1000

(2205)

2810

(6195)

310

(683)

562

(1239)

776

(30.5)

844

(33.2)

715

(28.1)

FEC92CL3SUHD

120

(161)

1570

(3460)

920

(2030)

2490

(5490)

310

(683)

562

(1239)

715

(28.2)

796

(31.3)

610

(24.0)

FEC92EL3SUHD

120

(161)

1600

(3530)

930

(2050)

2530

(5580)

310

(683)

562

(1239)

714

(28.1)

796

(31.3)

610

(24.0)

FEC92GL3SUHD

120

(161)

1615

(3560)

930

(2050)

2545

(5610)

310

(683)

562

(1239)

714

(28.1)

796

(31.3)

610

(24.0)

FEC92HL3SUHD

120

(161)

1635

(3605)

940

(2070)

2575

(5675)

310

(683)

562

(1239)

713

(28.1)

795

(31.3)

610

(24.0)

FEC92KL3SUHD

120

(161)

1650

(3640)

940

(2070)

2590

(5710)

310

(683)

562

(1239)

712

(28.0)

795

(31.3)

610

(24.0)

FGB72EL3SUHD

120

(161)

1730

(3815)

980

(2160)

2710

(5975)

403

(888)

550

(1213)

981

(38.6)

878

(34.6)

740

(29.1)
