MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

1 Introduction

1.5 Accident prevention

1.5 Accident prevention

The body, the attached or installed equipment and any
modifications must comply with the applicable laws
and ordinances as well as work safety or accident
prevention regulations, safety rules and accident
insurer requirements.

All technical means shall be used to avoid operating
conditions that may be unsafe or liable to cause an
accident.

All federal, state, and local regulations and codes
and registration requirements must be complied
with.

The manufacturer of the attachment, body, equip-
ment or conversion or the device manufacturer is
responsible for compliance with these laws and
regulations.

13

2.1 Vehicle and model designations

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

2.1 Vehicle and model designations

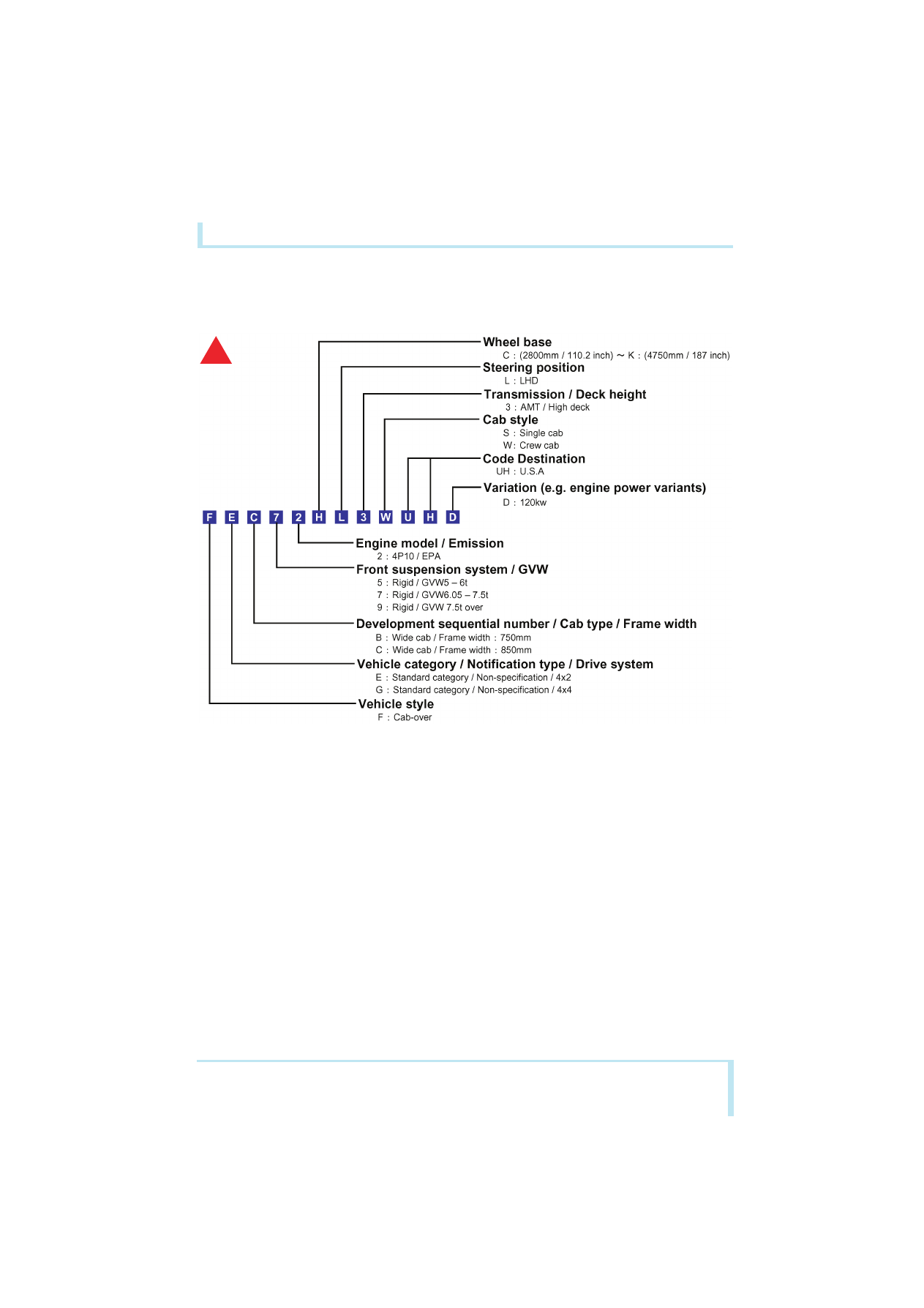

2.1.1

Model coding system

2 General

（

161HP）

A

14

2 General

2.1 Vehicle and model designations

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

2.1.2

Vehicle and model designation

A

FEC5

FEC7

FEC7

FEC9

FGB7

Engine Type
Number of Cylinders
Output

Maximum torque

(kW/rpm)

(HP/rpm)

(Nm/rpm)

(lbs.ft/rpm)

4P10T5

L4

120/3400
161/3400
400/1300
295/1300

Cab

Transmission

Single

Crew

•

Wet dual

clutch

•

Wet dual

clutch

•

Wet dual

clutch

•

Wet dual

clutch

•

Wet dual

clutch

Wheelbase

(mm/inch)

2800 / 110.2
3400 / 133.9
3415 / 134.4
3850 / 151.6
4300 / 169.3
4750 / 187.0

•

•
•

•

•
•

•

•

•

•

•

•
•

•

•

•

Permissible axle load
and weight

(kg/lbs)

Front

Rear

Total

2430 / 5360
4480 / 9880

5670 / 12500

2900 / 6390

5760 / 12700
7255 / 15995

2900 / 6390

5760 / 12700
7255 / 15995

2900 / 6390

5760 / 12700
8160 / 17995

2600 / 5730
4300 / 9480

6375 / 14050

15

2 General

2.2 Technical advice and contact persons

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

2.2 Technical advice and contact persons

Please see the attached sheet. (Click button .doc  DOC file down load)
