TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-95

STEP 11. Check the trouble symptoms.

Q: Does trouble symptom persist?

YES :

Replace engine-ECU <M/T> or

engine-A/T-ECU <A/T>.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

Code No. P0156: Cylinder 2, 3 Oxygen Sensor (Rear) System

OPERATION

• The sensor signal is inputted to the engine-ECU

<M/T> or engine-A/T-ECU <A/T> (terminal No.
116) from the cylinder 2, 3 oxygen sensor (rear)
output terminal (terminal No. 4).

• The cylinder 2, 3 oxygen sensor (rear) (terminal

No. 2) is earthed with engine-ECU <M/T> or
engine-A/T-ECU <A/T> (terminal No. 96).

FUNCTION

• The cylinder 2, 3 oxygen sensor (rear) converts

the concentration of oxygen in the exhaust
emission into a voltage and inputs the signal to
the engine-ECU <M/T> or engine-A/T-ECU
<A/T>.

AK305557

9192

939495

96979899

100

105

113114

115116117

118119120

106

107108109

110111112

101102103

104

1

2

3

4

Cylinder 2, 3 oxygen
sensor (rear)

AB

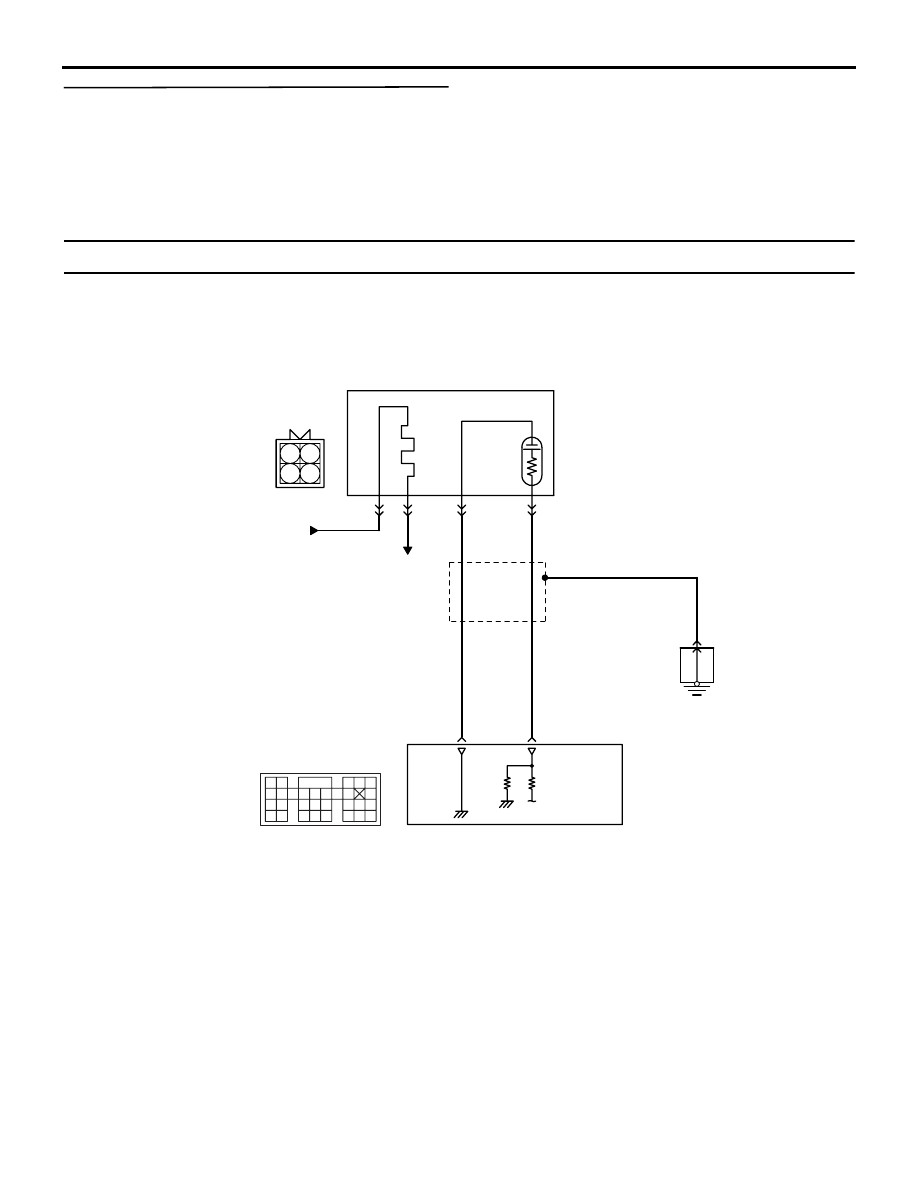

Cylinder 2, 3 oxygen sensor (rear) circuit

Engine-ECU <M/T> or
engine-A/T-ECU <A/T>

B

G

R

From engine control relay

1

2

3

4

96

116

     B-18
MU802605

C-113

(MU803805)

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet

To engine-ECU <M/T> or
engine-A/T-ECU <A/T>

5

C-115

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-96

• When the air-fuel ratio is richer than the

theoretical air-fuel ratio, the cylinder 2, 3 oxygen
sensor (rear) outputs a voltage of about 1 V.
When it is leaner than the theoretical air-fuel
ratio, it outputs a voltage of about 0 V.

• Based on this signal, the engine-ECU <M/T> or

engine-A/T-ECU <A/T> corrects the deviation in
the signal that is output by the cylinder 2, 3
oxygen sensor (front).

TROUBLE JUDGMENT

Check Conditions

• Above 3 minutes later after the engine has

started up.

• The engine coolant temperature is approx. 82°C

or higher.

• The engine speed is 1200 r/min or more.

• The monitoring time is 5 seconds.

Judgment Criteria

• When the cylinder 2, 3 oxygen sensor (rear)

output voltage is 0.2 V or less and a power
voltage of 5 V is applied to the cylinder 2, 3
oxygen sensor (rear) in the engine-ECU <M/T>
or engine-A/T-ECU <A/T>, the sensor output
voltage is 4.5 V or more.

• To be monitored once per driving cycle.

Check Conditions

• 2 seconds later after lack of circuit continuity is

detected.

• When the cylinder 2, 3 oxygen sensor (rear) is

normally operated.

Judgment Criteria

• When the air-fuel ratio is rich, the cylinder 2, 3

oxygen sensor (rear) output voltage is 0.5 V or
more.

• The cylinder 2, 3 oxygen sensor (rear) output

voltage is less than 0.1 V.

• The maximum and maximum of the cylinder 2, 3

oxygen sensor (rear) output is 0.078 V or less.

PROBABLE CAUSE

• Failed cylinder 2, 3 oxygen sensor (rear)

• Open/short circuit in cylinder 2, 3 oxygen sensor

(rear) circuit or loose connector contact

• Failed engine-ECU <M/T>

• Failed engine-A/T-ECU <A/T>

DIAGNOSIS PROCEDURE

STEP 1. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

.

a. Item 69: Cylinder 2, 3 oxygen sensor (rear)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Go to Step 2 .

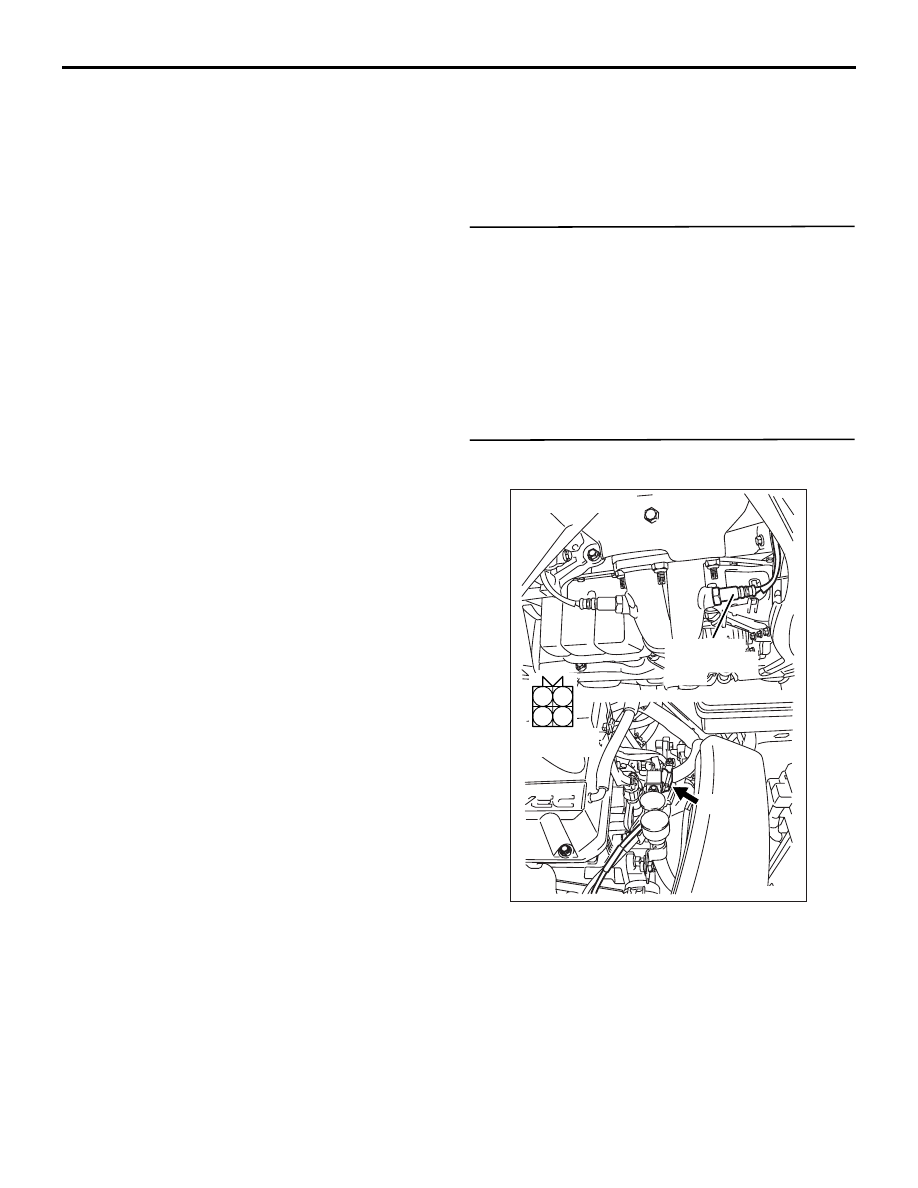

STEP 2. Connector check: B-18 cylinder 2, 3
oxygen sensor (rear) connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

AK300977

1

2

3

4

AC

Connector: B-18

Harness side
connector

B-18 (B)

Cylinder 2, 3
oxygen sensor
(rear)

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-97

STEP 3. Perform resistance measurement at B-18
cylinder 2, 3 oxygen sensor (rear) connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

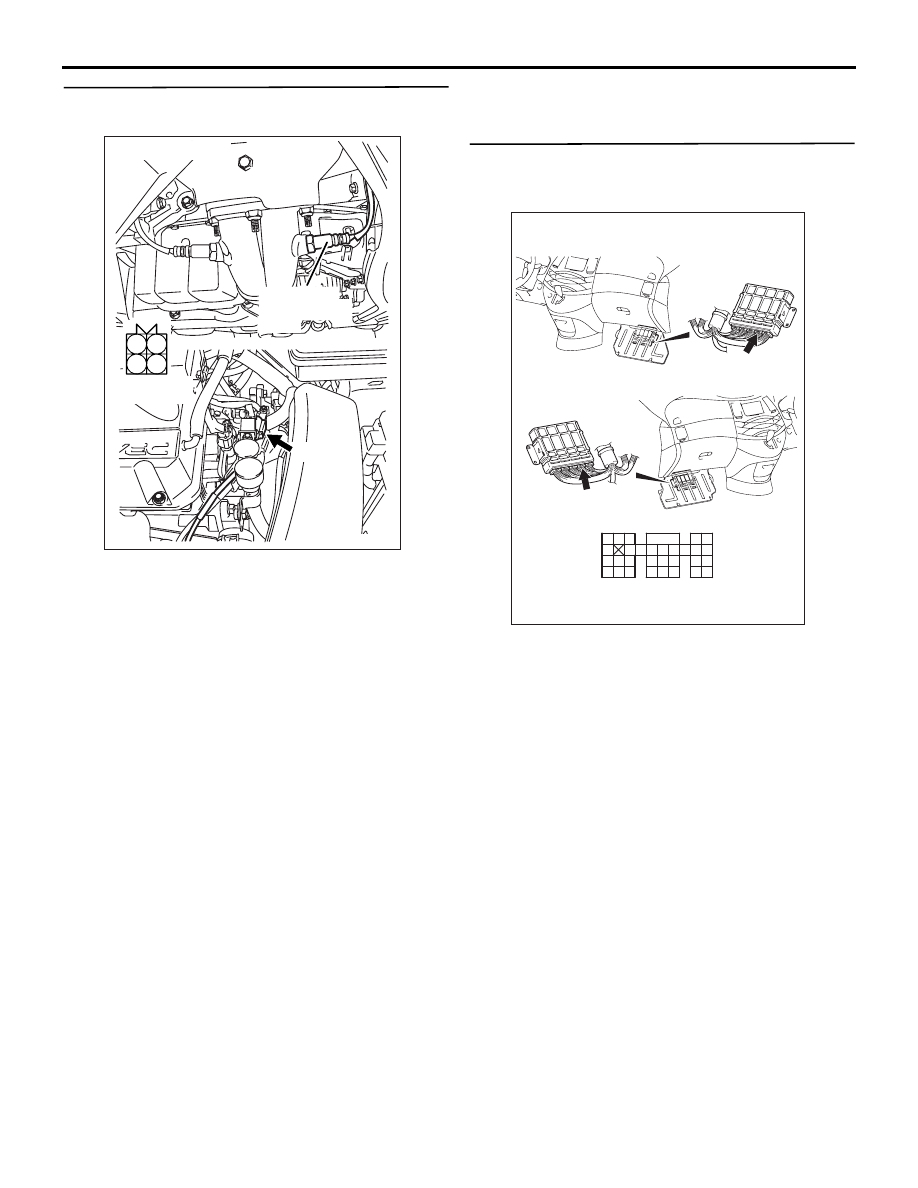

STEP 4. Connector check: C-113 engine-ECU
<M/T> connector or engine-A/T-ECU <A/T>
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace.

AK300977

1

2

3

4

AC

Connector: B-18

Harness side
connector

B-18 (B)

Cylinder 2, 3
oxygen sensor
(rear)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI)

13A-98

STEP 5. Check harness between B-18 (terminal
No. 2) cylinder 2, 3 oxygen sensor (rear)
connector and C-113 (terminal No. 96)
engine-ECU <M/T> connector or engine-A/T-ECU
<A/T> connector.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair.

STEP 6. MUT-III data list

• Refer to Data List Reference Table

P.13A-363

.

a. Item 69: Cylinder 2, 3 oxygen sensor (rear)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

P.00-5

).

NO :

Replace engine-ECU <M/T> or
engine-A/T-ECU <A/T>.

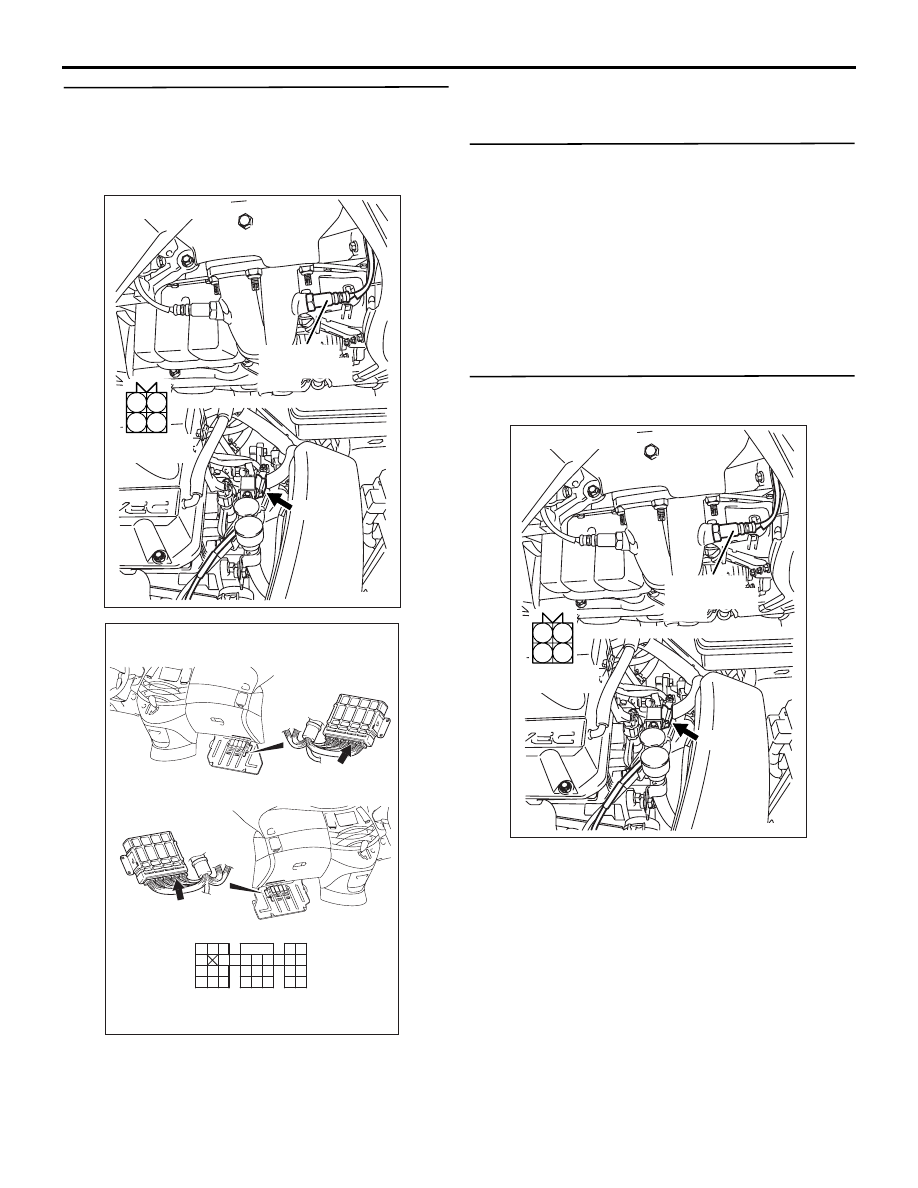

STEP 7. Perform voltage measurement at B-18
cylinder 2, 3 oxygen sensor (rear) connector.

• Use special tool test harness (MD998464) to

connect connector, and measure at pick-up
harness.

• Transmission: Neutral <M/T> or P range <A/T>

• Engine: After warm-up

• Voltage between terminal No. 4 and earth.

OK:

When the engine is 2,500 r/min, the output

voltage should repeat 0 to 0.8 V alternately.

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Go to Step 8 .

AK300977

1

2

3

4

AC

Connector: B-18

Harness side
connector

B-18 (B)

Cylinder 2, 3
oxygen sensor
(rear)

AK305616AB

Connector: C-113

<L.H. drive vehicles>

<R.H. drive vehicles>

C-113 (GR)

C-113 (GR)

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

Harness side connector

AK300977

1

2

3

4

AC

Connector: B-18

Harness side
connector

B-18 (B)

Cylinder 2, 3
oxygen sensor
(rear)
